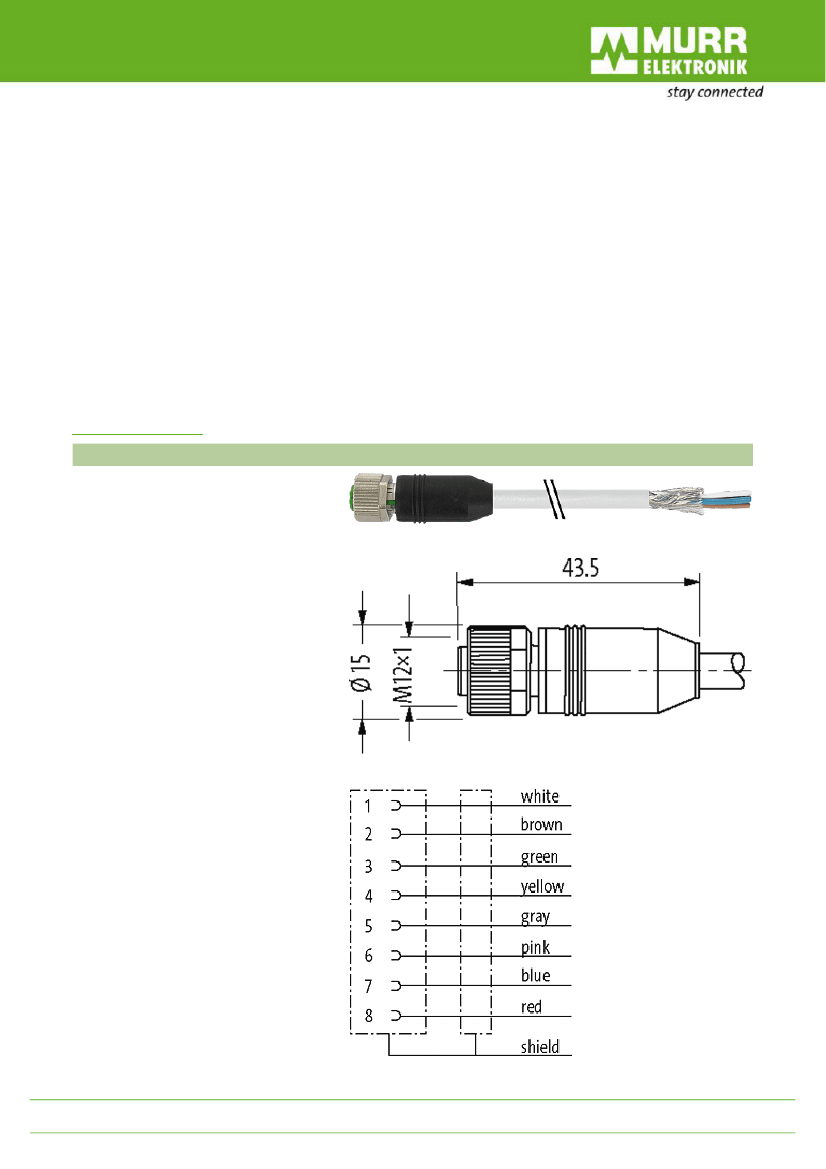

M12 FEMALE 0° SHIELDED
PUR 4X2X0.25 shielded gy 35m
Female straight
M12, 8-pole
shielded
with cable sleeves
Plastic housings with good resistance against chemicals and oils. The resistance to
aggressive media should be individually tested for your application. Further details on
request. Further cable lengths on request.
Link t o Product
Illustra tio n
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-17121-2863500
Pro d uc t may d iffe r fro m Imag e
Appro va ls
cCSAus
* only for products with UL/CSA approved cable
Fo rm
Fo rm
Ca bles
Cab le numb er
No ./d iameter o f wires
Wire iso latio n
Jacket Co lo r
Material (jacket)
Outer Ø
Bend rad ius (mo ving )
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Cab le id entificatio n
Ap p ro val (cab le)
Cab le weig ht [g /m]
Material (wire)
Resisto r (co re)
Sing le wire Ø (co re)
Co nstructio n (co re)
Diameter (co re)
AWG
Material (wire iso latio n)
286
4×2×0.25 mm²
PP (wh, b r, g n, ye, g r, p k, b l, rd )
g ray
T PU
7.1 mm ±5%
15 × o uter Ø
-40...+90 °C
-5...+90 °C
286
CE co nfo rm
74,80
Cu wire, b are
max. 79
Ω/km
(20 °C)
0.1 mm
32 × 0.1 mm (multi-strand wire class 6)
4×2×0.25 mm²
similar to AWG 24
PP
17121
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-17121-2863500
Material p ro p erty (wire iso latio n)
Sho re hard ness (wire iso latio n)
Wire-Ø incl. iso latio n
Co lo r/numb ering o f wires
Shield
Material (jacket)
Sho re hard ness (jacket)
Outer-Ø (jacket)
Co lo r (jacket)
chemical resistance
No minal vo ltag e
T est vo ltag e
Current lo ad cap acity
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Bend rad ius (fixed )
Bend rad ius (mo ving )
T ec hnic a l da ta
Op erating vo ltag e
Op erating vo ltag e (o nly UL listed )
Rated surg e vo ltag e
Op erating current p er co ntact
No . o f p o les
Material g ro up
Co d ing
LED d isp lay
Lo cking o f p o rts
Co mp ressio n g land
Pro tectio n
Material
Lo cking material
suitab le fo r co rrug ated tub e (internal Ø)
Genera l da ta
Stand ard s
Mo unting metho d
Material (co ntact)
Material (co ntact surface)
Material (g asket)
Po llutio n Deg ree
Strip p ing leng th (jacket)
CFC-, halo g en-, cad mium-, silico ne- and lead -free
65 ±5 D
1.2 mm ±5%
b r, wh, rd , b l, p k, g r, ye, g n
yes
T PU
85 ±5 A
7.1 mm ±5%
g ray
g o o d resistance to o il, g aso line and chemicals (EN 60811-404)
300 V AC
1 500 V AC
to DIN VDE 0298-4
-40...+90 °C
-5...+90 °C
7.5 × o uter Ø
15 × o uter Ø
max. 30 V AC/DC
max. 30 V AC/DC
0.8 kV
max. 2 A
8
IEC 60664-1, categ o ry I
A-co d ed
no
Screw thread M12 × 1 mm (reco mmend ed to rq ue 0.6 Nm) self-
securing
M12 (SW13)
IP65, IP66K, IP67 inserted and tig htened (EN 60529)
PUR
Zinc d ie casting , matte nickel p lated
10 mm
DIN EN 61076-2-101 (M12)
inserted , tig htened
Co p p er allo y
Au
FKM
3
60 mm
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-17121-2863500
T emp erature rang e
Co m m erc ia l da ta
co untry o f o rig in
custo ms tariff numb er
EAN
eClass
Packag ing unit
-25...+85 °C, d ep end ing o n cab le q uality
CZ
85444290
4048879487214
27279218
1
