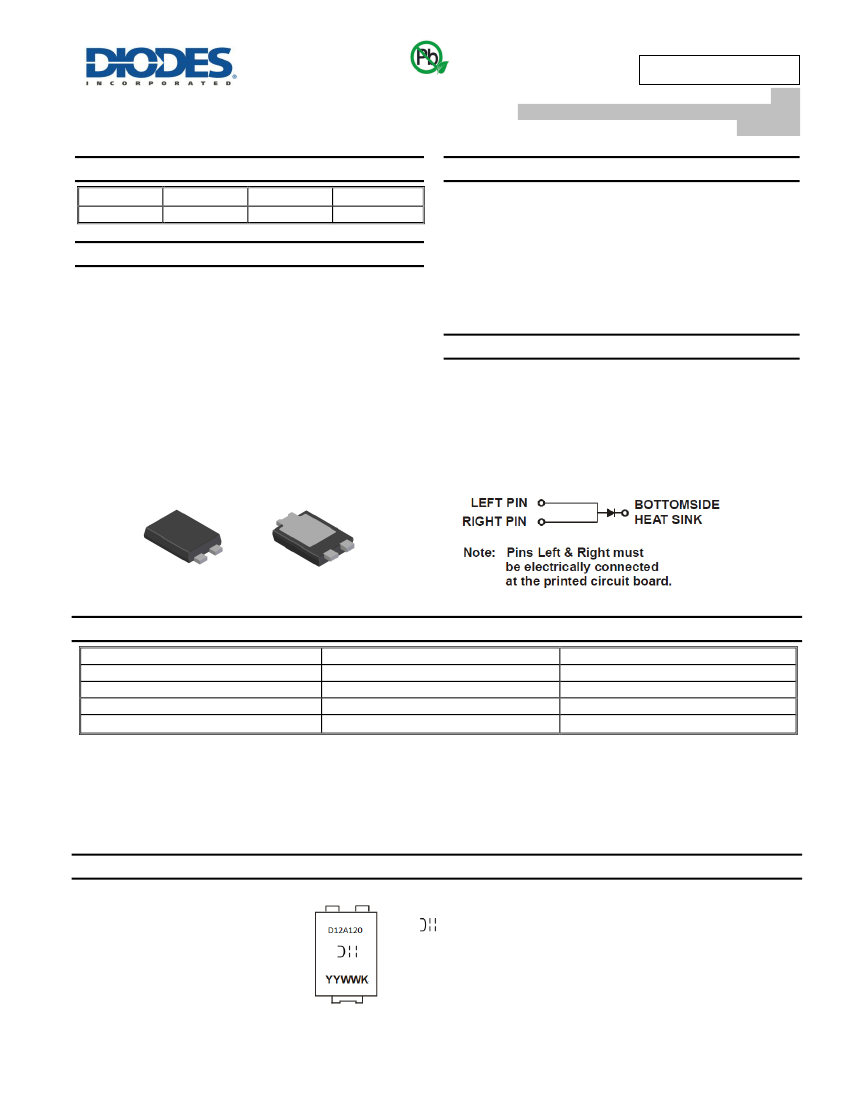

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
NEW PRODUCT
ADVANCED INFORMATION
Description and Applications
Packaged in the compact thermally efficient PowerDI 5 package, the
SDT12A120P5Q provides very low V
F
and excellent reverse leakage
stability at high temperatures. It is ideal for use as a rectifier,
freewheel diode or blocking diode in:
DC/DC Converters
AC/DC Adaptors
®
Mechanical Data
Case: PowerDI5
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram Below
Weight: 0.093 grams (Approximate)
PowerDI5
Top View
Bottom View
Ordering Information
(Note 5)
Part Number
SDT12A120P5Q-7
SDT12A120P5Q-7D (Note 6)
SDT12A120P5Q-13
SDT12A120P5Q-13D (Note 6)
Notes:
Case
PowerDI5
PowerDI5
PowerDI5
PowerDI5
Packaging
1,500/Tape & Reel
1,500/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
6. PowerDI5 available in 5K quantity on 13-inch reel & 12mm tape, part number suffix "13D"; Diodes Incorporated also provides 12mm tape with 7-inch
reel, part number suffix "7D".
Marking Information
= Manufacturer’s Marking
D12A120 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 17 = 2017)
WW = Week (01 to 53)
K = Factory Designator
PowerDI is a registered trademark of Diodes Incorporated.
