CY7C342B
128-Macrocell MAX
®
EPLD
Features
• 128 macrocells in eight logic array blocks (LABs)
• Eight dedicated inputs, 52 bidirectional I/O pins
• Programmable interconnect array
• Advanced 0.65-micron CMOS technology to increase
performance
• Available in 68-pin HLCC, PLCC, and PGA packages
100% user-configurable, allowing the device to accommodate
a variety of independent logic functions.
The 128 macrocells in the CY7C342B are divided into eight
LABs, 16 per LAB. There are 256 expander product terms, 32
per LAB, to be used and shared by the macrocells within each
LAB.
Each LAB is interconnected with a programmable interconnect
array, allowing all signals to be routed throughout the chip.
The speed and density of the CY7C342B allows it to be used in a
wide range of applications, from replacement of large amounts of
7400-series TTL logic, to complex controllers and multifunction
chips. With greater than 25 times the functionality of 20-pin PLDs,
the CY7C342B allows the replacement of over 50 TTL devices.
By replacing large amounts of logic, the CY7C342B reduces board
space, part count, and increases system reliability.
Functional Description
The CY7C342B is an Erasable Programmable Logic Device
(EPLD) in which CMOS EPROM cells are used to configure
logic functions within the device. The MAX
®
architecture is

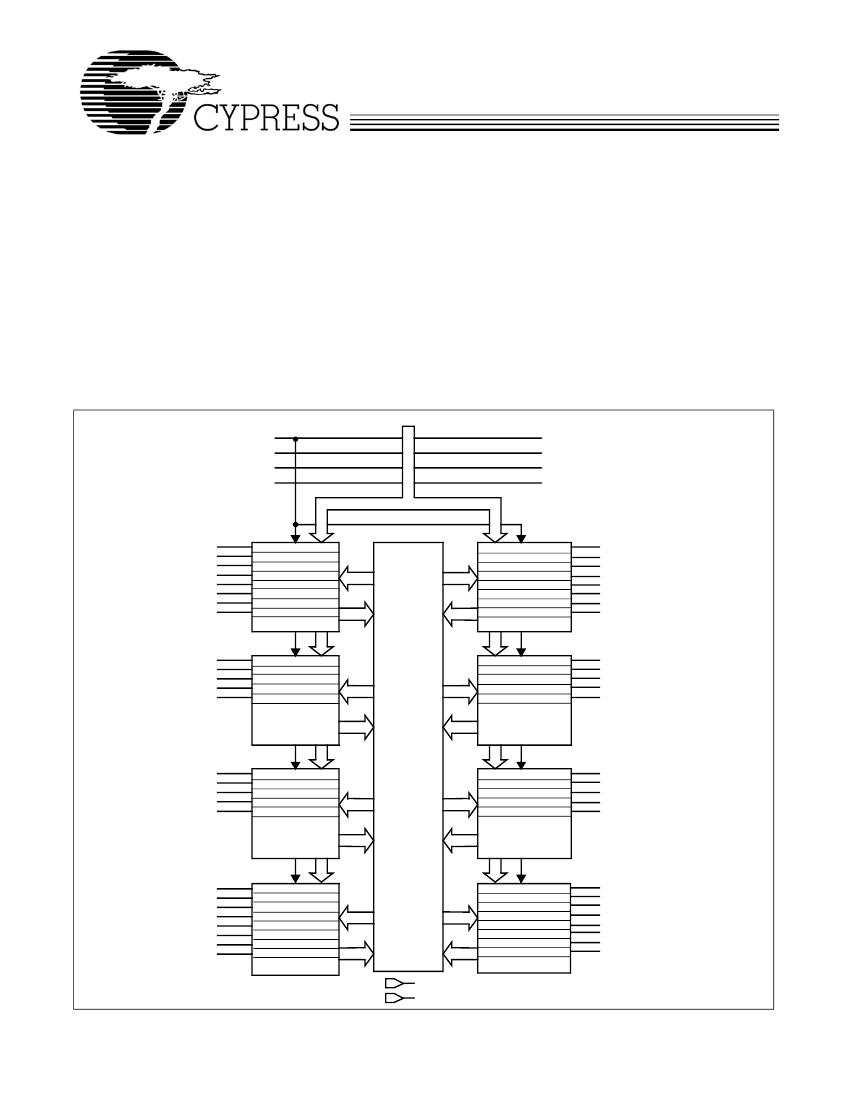

Logic Block Diagram
1 (B6)
2 (A6)
32 (L4)
34 (L5)
INPUT/CLK
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
INPUT
(A7)
(A8)
(L6)
(K6)
68
66
36
35
SYSTEM CLOCK
LAB A
MACROCELL 1
MACROCELL 2
MACROCELL 3
MACROCELL 4
MACROCELL 5
MACROCELL 6
MACROCELL 7
MACROCELL 8
MACROCELL 9–16
LAB B
MACROCELL 17
MACROCELL 18
MACROCELL 19
MACROCELL 20
MACROCELL 21
MACROCELL 22–32
P
I
A
LAB H
MACROCELL 120
MACROCELL 119
MACROCELL 118
MACROCELL 117
MACROCELL 116
MACROCELL 115
MACROCELL 114
MACROCELL 113
MACROCELL 121–128
LAB G
MACROCELL 101
MACROCELL 100
MACROCELL 99
MACROCELL 98
MACROCELL 97
MACROCELL 102–112
(B8) 65
(A9) 64
(B9) 63
(A10) 62
(B10) 61
(B11) 60
(C11) 59
(C10) 58
4 (A5)
5 (B4)
6 (A4)
7 (B3)
8 (A3)
9 (A2)
10 (B2)
11 (B1)
12 (C2)
13 (C1)
14 (D2)
15 (D1)
17 (E1)
(D11) 57
(D10) 56
(E11) 55
(F11) 53
(F10) 52
18 (F2)
19 (F1)
21 (G1)
22 (H2)
23 (H1)
LAB C
MACROCELL 33
MACROCELL 34
MACROCELL 35
MACROCELL 36
MACROCELL 37
MACROCELL 38–48
LAB F
MACROCELL 85
MACROCELL 84
MACROCELL 83
MACROCELL 82
MACROCELL 81
MACROCELL 86–96
(G11) 51
(H11) 49
(H10) 48
(J11) 47
(J10) 46
24 (J2)
25 (J1)
26 (K1)
27 (K2)
28 (L2)
29 (K3)
30 (L3)
31 (K4)
LAB D
MACROCELL 49
MACROCELL 50
MACROCELL 51
MACROCELL 52
MACROCELL 53
MACROCELL 54
MACROCELL 55
MACROCELL 56
MACROCELL 57–64
3, 20, 37, 54 (B5, G2, K7, E10)
16, 33, 50, 67 (E2, K5, G10, B7)
V
CC
GND
LAB E
MACROCELL 72
MACROCELL 71
MACROCELL 70
MACROCELL 69
MACROCELL 68
MACROCELL 67
MACROCELL 66
MACROCELL 65
MACROCELL 73–80
(K11) 45
(K10) 44
(L10) 43
(L9) 42
(K9) 41
(L8) 40
(K8) 39
(L7) 38
() – PERTAIN TO 68-PIN PGA PACKAGE
Cypress Semiconductor Corporation
Document #: 38-03014 Rev. *B
•
3901 North First Street
•
San Jose
,
CA 95134
•
408-943-2600
Revised April 22, 2004
USE ULTRA37000
TM
FOR
ALL NEW DESIGNS
Selection Guide
7C342B-15
Maximum Access Time
15
7C342B-20
20
7C342B-25
25
7C342B-30
30
CY7C342B
7C342B-35
35
Unit
ns
Pin Configurations
HLCC, PLCC
Top View
INPUT/CLK
INPUT
PGA
Bottom View
INPUT
INPUT
L
I/O
I/O
I/O
I/O
I/O
I/O
I/O
INPUT INPUT INPUT
I/O
I/O
I/O
I/O
GND
I/O
I/O
I/O
I/O
I/O
I/O
V CC
K
9
I/O
I/O
I/O
I/O
I/O
I/O
GND
I/O
I/O
I/O
V
CC
I/O
I/O
I/O
I/O
I/O
I/O
10
11
12
13
14
15
16
17
18
19
20
21
22
23
7C342B
8
7
6
5
4
3
2
1 68 67 66 65 64 63 62 61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
I/O
I/O
I/O
I/O
I/O
I/O
V
CC
I/O
I/O
I/O
GND
I/O
I/O
I/O
I/O
I/O
I/O
C
J
I/O
I/O
I/O
I/O
GND
INPUT
V
CC
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
H
I/O
I/O
I/O
I/O
G
I/O
V
CC
GND
I/O
F
I/O
I/O
7C342B
I/O
I/O
E
I/O
GND
V
CC
I/O
D
I/O
I/O
I/O
I/O
24
45
25
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 4344
INPUT
INPUT
INPUT
V CC
GND
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
INPUT
I/O
I/O
I/O
INPUT/
GND
CLK
I/O
I/O
B
I/O
I/O
I/O
I/O
V
CC
I/O
I/O
I/O
I/O
A
1
I/O
I/O
I/O
I/O
INPUT INPUT INPUT
I/O
I/O
2
3
4
5
6
7
8
9
10
11
Document #: 38-03014 Rev. *B
Page 2 of 14
