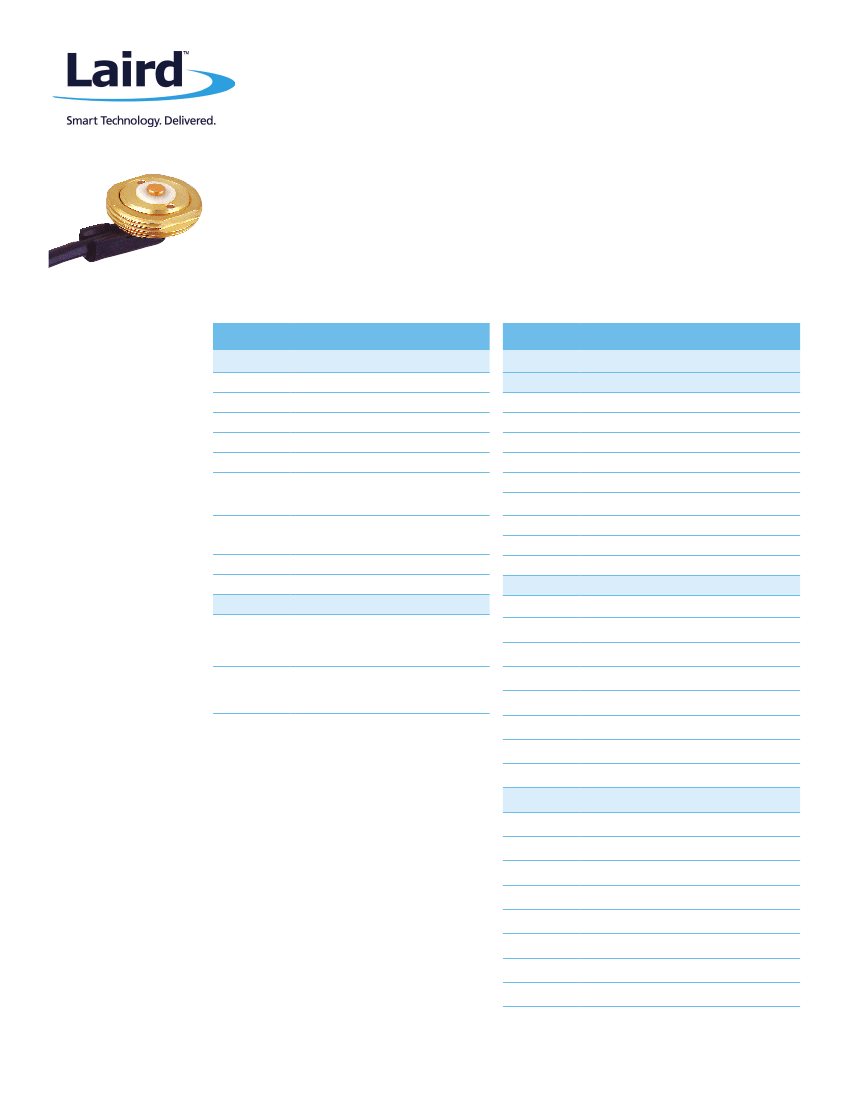

• All brass construction and gold plated contact design ensure the most corrosion resistance and best
power transfer available
• 78 Rockwell Hardness brass material resists corrosion
• Silver soldered ground lug and contact virtually eliminates RF noise or static
• Multiple cable options are available
Model
Connector Type
Model
Connector Type
3/4” or 3/8” Hole Alternative Mounts (Cable Not Included)
MO
MBO
MBOX
MBOF
MABO
MABTO
3/4 Steel Mount
3/4 Brass Mount for use with RG58 size Cable
3/4 Brass Mount for RG8X size Cable
3/4 Brass Mount for Teflon
®
Cable
3/8 Brass Mount for use with RG58 size Cable
3/4 or 3/8 Brass Thick Plate Mount for
3/16”to 1/4” thick surfaces
3/4 or 3/8 Hole 1/2” Thick Plane
Adjustable Mount Only
3/8” snap-in Ground Plane Mount
Snap-in Mount
3/4” Hole Brass Mounts*
Models with 17’ of RG58A/U Stranded Center Conductor Cable
MB8
MB8B
MB8M
MB8N
MB8NS
MB8P
MB8PS
MB8PST
MB8T
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Solder
UHF (PL259) Teflon
®
Solder
TNC Crimp
MABVTO
MXGPO
MXO
Models with 17’ of RG58U Solid Center Conductor Cable
MB8U
MB8UB
MB8UM
MB8UN
MB8UNS
MB8UP
MB8UPST
MB8UT
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
5/8” Hole Alternative Mounts
VTPM
1” Extra Thick Plate Mount
(UHF Barrel - 1-3/8” total stud length)
800 MHz - 1/2” Thick Plate Mount
(N Barrel - 1-3/16” total stud length)
VTPM800
*All connectors are shipped loose. Choose “I” option for installed connectors
Models with 17’ of RG8X Low Loss Solid Center Conductor Cable
MB8X
MB8XB
MB8XM
MB8XN
MB8XNS
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
Americas: +1.847 839.6925
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: ++86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
MB8XP
MB8XPST
MB8XT
www.lairdtech.com
Vehicular Mobile Radio Mounts
Model
Connector Type
Model
Connector Type
3/4” Hole Brass Mounts* (continued)
Models with 17’ of Teflex
™
Cable
MBD
MBDB
MBDM
MBDN
MBDNS
MBDP
MBDPST
MBDT
MBF
MBFB
MBFM
MBFN
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
3/8” Hole Brass Mounts* (continued)
Models with 17’ of RG8X Low Loss Solid Center Conductor Cable
MAB8X
MAB8XB
MAB8XM
MAB8XN
MAB8XNS
MAB8XP
MAB8XPST
MAB8XT
MABD
MABDB
MABDM
MABDN
MABDNS
MABDP
MABDPST
MABDT
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
Models with 17’ of Teflon
®
Cable
Models with 17’ of Teflex
™
Coax
Models with 17’ of ATX195 Cable
Ordering Guide
MB8PSI14 = 3/4” Brass
Mount, PL259 Solder
Installed, 14’ of RG58A/U
Mount Style & Hole Style
M= 3/4” Steel Hole Mounts
MAB = 3/8” Brass Hole Mounts
MABT = 3/8” or 3/4” Brass Mounts
for Thick Plate up to 1/4”
MABVT = 3/8” or 3/4” Brass Hole
Mounts Adjustable up to 1/2”
MB = 3/4” Brass Hole Mounts
MX = 3/8” Brass Snap-in Hole Mount
Cable Style
8 = RG58A/U
8U = RG58U
8X = RG8X “low loss”
D = Teflex™
F = Teflon® Coax Cable
O = Only (Mount Only-No Cable)
195=ATX195
Connector Style
Blank = No connector
B = BNC crimp
M = Mini UHF crimp
N = N crimp
NS = N solder
P = PL259 crimp
PS = PL259 solder
PST = PL259 solder Teflon®
SM = SMA Crimp
T = TNC crimp
Installation Option
Blank = Loose connector
I = Installed connector
(Add $1.00 for crimp, $1.50 for solder.)
Cable Length
Blank = Standard 17 ft. cable length
14 = Optional 14 ft. cable length
Other lengths available upon request
MB195
No Connector (Good for higher frequency)
Installation Accessories
P34
MOGSK
MORNG
N/A Package of 6 - 3/4” Hole Plugs
N/A Package of 6 - 3/4” Mount Gaskets
N/A Package of O-rings for ”M” Mounts
Thick Plane Models* - up to 1/4”
Models with 17’ of RG58A/U Stranded Center Conductor Cable
MABT8
MABT8B
MABT8M
MABT8N
MABT8P
MABT8PS
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
UHF (PL259) Crimp
UHF (PL259) Solder
3/8” Hole Brass Mounts*
Models with 17’ of RG58A/U Stranded Center Conductor Cable
MAB8
MAB8B
MAB8M
MAB8N
MAB8NS
MAB8P
MAB8PS
MAB8PST
MAB8T
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Solder
UHF (PL259) Teflon
®
Solder
TNC Crimp
MB
8
Models with 17’ of RG58U Solid Center Conductor Cable
MABT8U
MABT8UB
MABT8UM
MABT8UN
MABT8UP
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
UHF (PL259) Crimp
PS
Models with 17’ of RG58U Solid Center Conductor Cable
MAB8U
MAB8UB
MAB8UM
MAB8UN
MAB8UNS
MAB8UP
MAB8UPST
MAB8UT
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
Thick Plane Models* - up to 1/2”
Models with 17’ of RG58A/U Stranded Center Conductor Cable
MABVT8
MABVT8M
MABVT8B
MABVT8UP
No Connector
Mini UHF Crimp
BNC Crimp
UHF (PL259) Crimp
I
14
Model with 17’ of RG58U Solid Center Conductor Cable
MABVT8U
*All connectors are shipped loose. Choose “I” option for installed connectors
Vehicular Mobile Radio Mounts

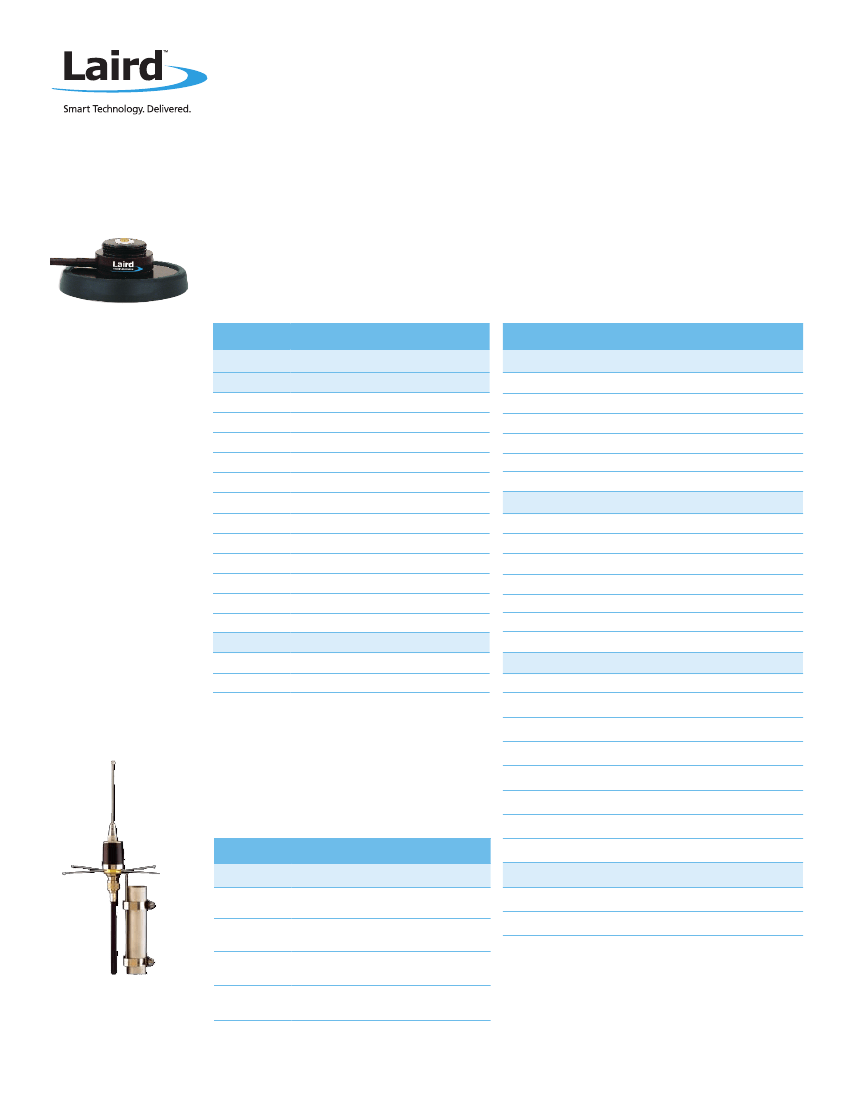

Magnetic NMO Mounts
FEATURES AND BENFITS
•
•
•
•
•
•
Corrosion resistant materials used throughout for high durability and weather resistance
Neoprene seal for moisture protection
High 80-lb pull strength will allow antenna to stay put
Optional rubber boot provides additional protection to mounting surface
Triple reinforced coax strain relief eliminates cable pull out
3-1/4” diameter
Model
Connector Type
Model
Connector Type
3/4” Style Magnetic Mounts*
Chrome Models with 12’ of RG58A/U Stranded Center Cable
G8
G8B
G8BI
G8MI
G8N
G8NS
G8P
G8PI
GR8PI
G8PS
G8PST
G8TI
G8U
G8UB
No Connector
BNC Crimp
BNC Crimp, Installed
Mini UHF Crimp, Installed
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Crimp, Installed
UHF (PL259) Crimp, Installed
UHF (PL259) Solder
UHF (PL259) Teflon Solder
®
3/4” Style Magnetic Mounts* (continued)
G8UM
G8UN
G8UNS
G8UP
G8UPST
G8UT
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
Chrome Models with 12’ of RG8X Low Loss Cable
G8X
G8XBI
G8XM
G8XNI
G8XNS
G8XP
G8XPST
No Connector
BNC Crimp, Installed
Mini UHF Crimp
N Crimp, Installed
N Solder
UHF (PL259) Solder
UHF (PL259) Teflon
®
Solder
TNC Crimp, Installed
No Connector
BNC Crimp
Chrome Models with 12’ of RG58U Solid Center Conductor Cable
Chrome Models with 12’ of Teflex
™
Cable
GD
GDBI
GDM
No Connector
BNC Crimp, Installed
Mini UHF Crimp
N Crimp, Installed
N Solder
UHF (PL259) Crimp, Installed
UHF (PL259) Teflon
®
Solder
TNC Crimp
MOBILE-TO-BASE-CONVERTERS
FEATURES AND BENFITS
• Value conscious option for VHF, UHF, 800 MHz and up
applications
Model
Connector Type
GDNI
GDNS
GDPI
GDPST
GDT
Mobile-to-Base Converter
MBC
MBCN
MBC800
Mobile-to-base Converter for VHF and UHF,
S0239 Terminated
Mobile-to-base Converter for VHF and UHF,
N Terminated
Mobile-to-base Converter for 800 and 900 MHz,
N Terminated
Mobile-to-base Converter for 800 and up, wall mount,
N Terminated
Black Models with 12’ of RG58A/U Stranded Center Cable
GB8
GBR8PI
RG58A/U
Rubber Boot Option - RG58A/U with PL259 Installed
MBC800LBT
*All connectors are shipped loose. Choose “I” option for installed connectors
Vehicular Mobile Radio Mounts

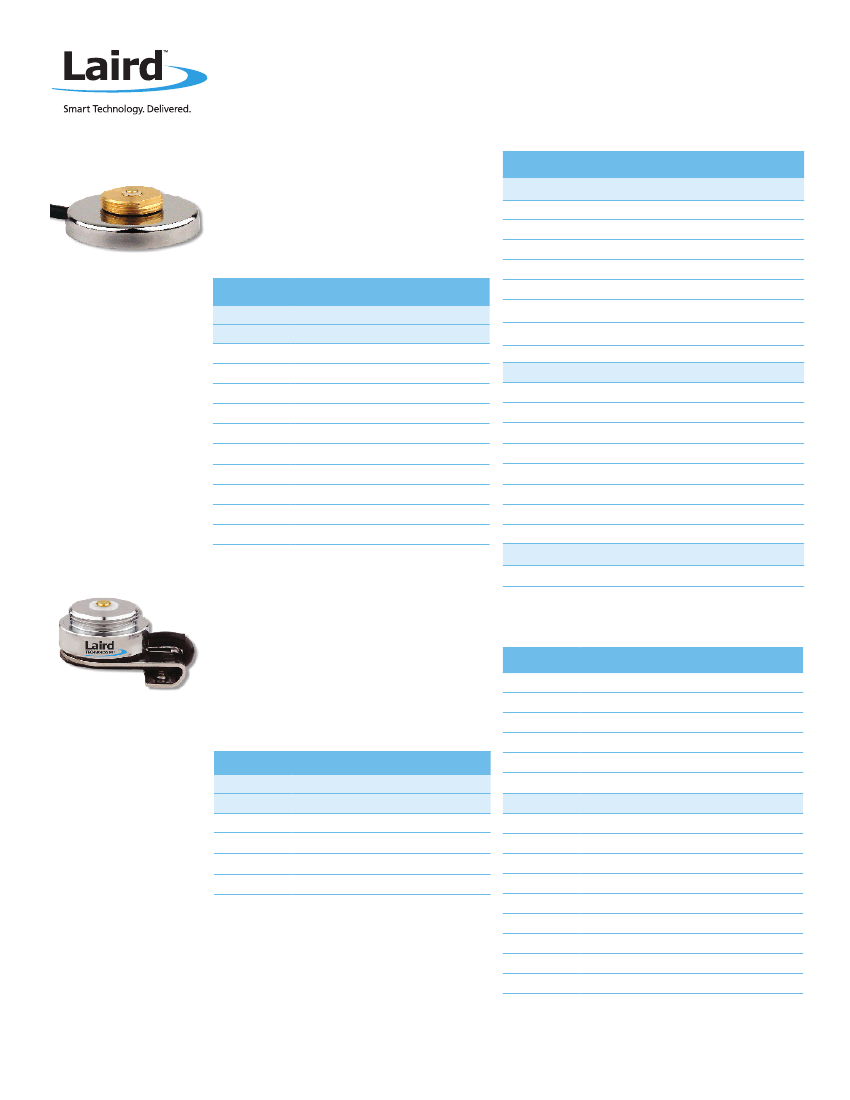

Mini Magnetic NMO Mounts
Model
Connector Type
Chrome Models with 12’ of RG58U Solid Center Conductor Cable
GM8U
GM8UB
GM8UM
GM8UN
GM8UNS
GM8UP
GM8UPST
GM8UT
GMD
GMDB
GMDM
GMDN
GMDNS
GMDPI
GMDPST
GMDT
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp, Installed
UHF (PL259) Teflon
®
Solder
TNC Crimp
FEATURES AND BENFITS
• Ideal for small antennas - 2-3/8” diameter
• 50-lb pull strength
• Brass, ceramic magnet, and chrome plated steel
materials are very durable and resist corrosion
• Gold plated contact
Model
Connector Type
3/4” Style Mini-Magnetic Mounts*
Chrome Models with 12’ of RG58A/U Stranded Center Cable
GM8
GM8B
GM8M
GM8N
GM8NS
GM8P
GM8PI
GM8PS
GM8PST
GM8T
No Connector
BNC Crimp
Mini UHF crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Crimp, Installed
UHF (PL259) Solder
UHF (PL259) Teflon
®
Solder
TNC Crimp
Chrome Models with 12’ of Teflex
™
Cable
Black Models with 12’ of RG58A/U Stranded Center Cable
MINI-TRUNK LID MOUNTS
FEATURES AND BENFITS
• Stainless steel brackets and hardware are the ultimate in
corrosion resistance
• Elegant design enables proper fit on high tolerance trunk
lid seams
• Non staining rubber cushion minimizes scratches and stains
• Gold plated contact
Model
Connector Type
GM88
No Connector
Model
TM8N
TM8NS
TM8P
TM8PS
TM8PST
TM8T
TM8U
TMB8U
TM8UB
TM8UM
TM8UN
TM8UNS
TM8UP
TM8UPST
TM8UT
Connector Type
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Solder
UHF (PL259) Teflon
®
Solder
TNC Connector
No Connector
No Connector
BNC Crimp
Mini UHF Crimp
N Crimp
N Solder
UHF (PL259) Crimp
UHF (PL259) Teflon
®
Solder
TNC Crimp
Mini-trunk Lid Mounts*
Models with 17’ RG58A/U Stranded Center Conductor Cable
TM8
TMB8
TM8B
TM8M
No Connector
No Connector
BNC Crimp
Mini UHF Crimp
Models with 17’ of RG58U Solid Center Conductor Cable
*All connectors are shipped loose. Choose “I” option for installed connectors
