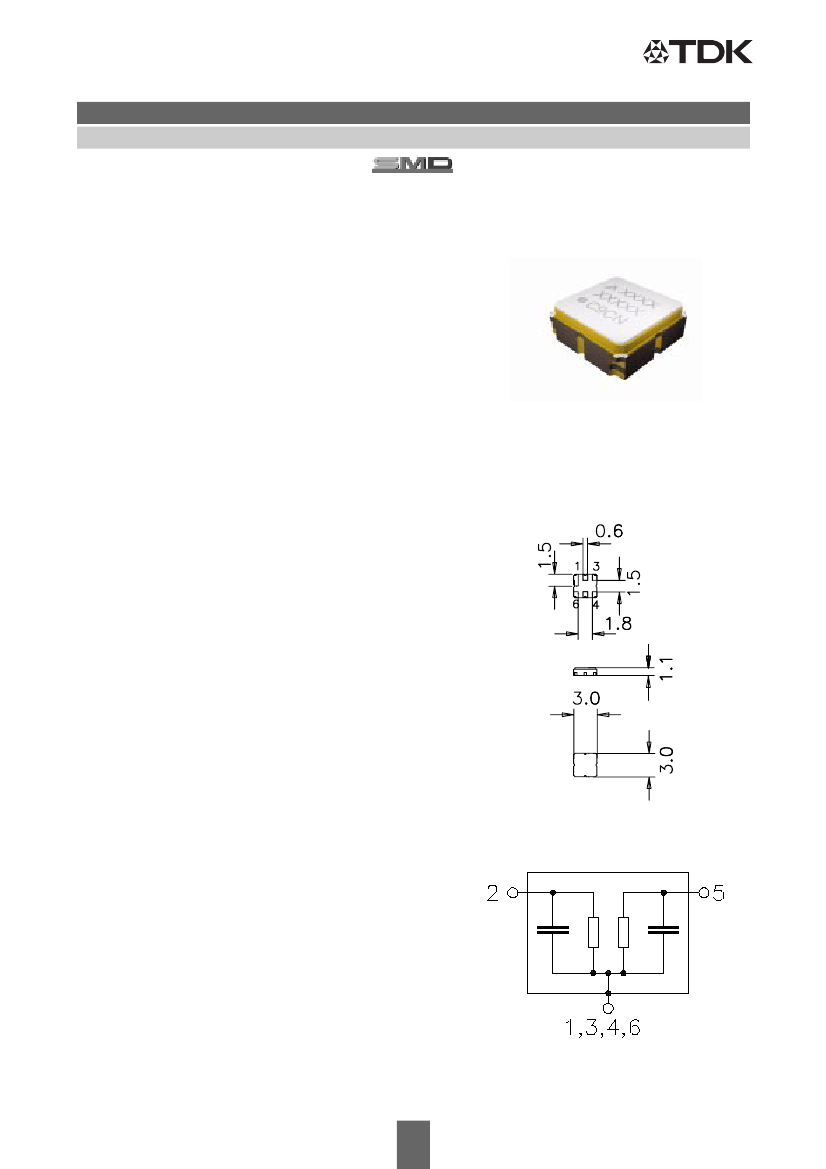

SAW Components
SAW RF filter
Data sheet
Application
s
s
s
s
B3907
447.70 MHz
Low-loss RF filter for short range devices.
Low amplitude ripple
Usable passband 1.6 MHz
No matching network required for operation at 50
Ω
Features
s
s
s
s
s
s
s
s
s
s
Package size 3.0 x3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
Passivation layer ELPAS
AEC-Q200 qualified component family
Electrostatic Sensitive Device
(ESD)
Pin configuration
s
s
s
s
2
5
1, 4
3, 6
Input
Output
Ground
Ground (case)
Please read
cautions and warnings and
important notes
at the end of this document.
2
May 15, 2013
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
=
50Ω
Z
L
=
50Ω
min.
Center frequency
Maximum insertion attenuation
446.90 ... 448.50 MHz
Amplitude ripple
(p-p)
446.90 ... 448.50 MHz
Input VSWR
446.90 ... 448.50 MHz
Output VSWR
446.90 ... 448.50 MHz
Attenuation
10.00
393.78
437.20
441.20
...
...
...
...
393.78
437.20
441.20
443.20
MHz
MHz
MHz
MHz
α
55
45
28
7
5
30
46
64
52
32
16
14
35
50
—
—
—
—
—
—
—
—
1.3
2.0
—
1.3
2.0
f
C
α
max
—
∆α
—
0.4
1.8
3.0
3.5
—
typ.
@ 25 ˚C
447.7
max.
—
B3907
447.70 MHz
MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
452.20 ... 458.20 MHz
458.20 ... 473.78 MHz
473.78 ... 1000.00 MHz
