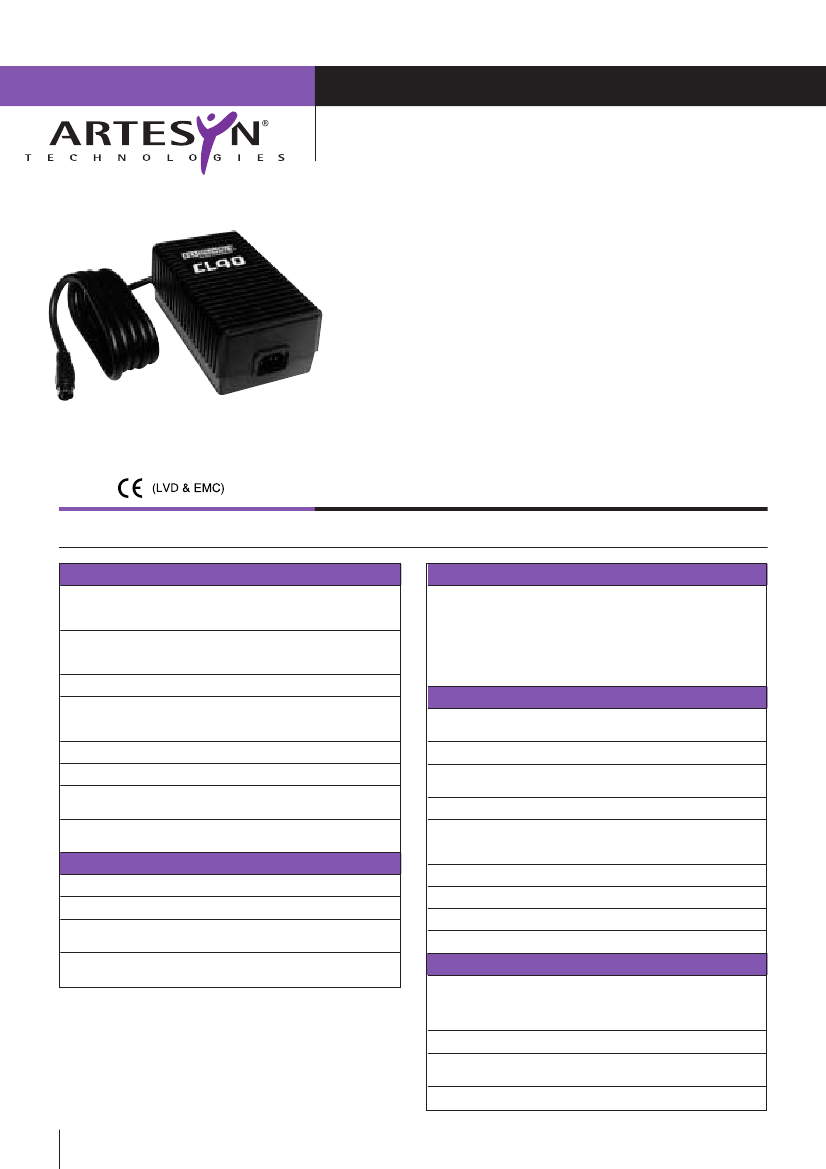

CL40 SERIES

Single and triple output

Recommended for new design-ins

•

85VAC to 264VAC universal input range

Pre-approved SELV power solution

Up to 40W continuous output power

Up to 50W peak output power

UL, CSA, VDE and BABT approved

VDE0871-A conducted noise performance

Stand alone "listed" equipment

[ 2 YEAR WARRANTY ]

The CL40 series is a family of 40W (50W peak) external switching power

supplies. The CL40 enables the system specifier to optimise the design for

several reasons. Firstly, because the power supply offers pre-approved SELV

(Safety Extra Low Voltage) outputs, the submission of the apparatus for safety

approval is simplified. This represents a significant saving of time and money.

Secondly, the task of integrating the power supply into the mechanical design is

eliminated, presenting further savings in time and money by ensuring a shorter

and simpler design cycle. This means that your product gets to market faster.

These advantages are complemented by universal input, CE mark, IEC950, UL,

CSA, VDE and BABT approvals, to complete a worldwide packaged power

solution suitable for a wide variety of low power, desktop applications.

SPECIFICATION

OUTPUT SPECIFICATIONS

Line regulation

LL to HL, FL

Total regulation

NL to FL (Note 5)

Overshoot/undershoot

Transient response

(Single output model)

All specifications are typical at nominal input, full load at 25°C unless otherwise stated

ELECTROMAGNETIC COMPATIBILITY SPECIFICATIONS

±0.2%

±1.0%

±5.0%

See table

10% max.

GENERAL SPECIFICATIONS

±250mV max. dev.,

1ms recovery to 1%

±0.02%/°C

6.25V ±0.75V

90W Pin max.

50W Pout min.

Continuous with

auto-restart

Hold-up time

Efficiency

Isolation voltage

Switching frequency

Approvals and

standards

Case material

110VAC

230VAC

110VAC and 230VAC

Input/output

Input/chassis

Variable

12ms

110ms

70% typical

3000VAC

1500VAC

20kHz to 70kHz

VDE0805, EN60950

IEC950, IEC1010, UL1950

BABT, CSA C22.2 No. 950

ABS plastic

UL94V-0

800g (28oz)

MIL-HDBK-217E

100,000 hours min.

Radiated emissions

EN55022, EN55011, FCC

Conducted emissions

EN55022, EN55011, FCC

Electrostatic discharge EN61000-4-2

Electrostat. air discharge IEC801-2

RF field susceptibility

IEC801-3

Electrical fast

EN61000-4-4

transients/bursts

Surge susceptibility

EN61000-4-5

Level B

Level A

Level 4

Level 3

Single outputs

Multi's: +5.1V output

Multi's: aux. outputs

Single outputs

Multi's: +5.1V output,

Multi's: aux. outputs

At turn-on

+5.1V output

(50% FL to

100% FL step)

Temperature coefficient All outputs

Overvoltage protection

Output power limit

Short Circuit Protection

INPUT SPECIFICATIONS

Input voltage range

Input frequency range

Input surge current

Safety ground

leakage current

110VAC

230VAC

110VAC, 60Hz

230VAC, 50Hz

Note 1

+5.1V output only

Primary power limited

85 to 264VAC

Material flammability

47 to 440Hz

Weight

12A max.

30A max.

0.2mA

0.4mA

MTBF

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Operating

0°C to +40°C

Non-operating

–40°C to +85°C

0°C to 40°C ambient

40W

Peak (0°C to 40°C, max. 60s)

50W

Non-condensing

Operating

Non-operating

5% to 95% RH

10,000 feet max.

40,000 feet max.

2.4G rms (approx)

Relative humidity

Altitude

Vibration, 5Hz to 500Hz See Note 8

PAGE 1

AC/DC POWER SUPPLIES

40W AC/DC

40 Watt

AC/DC external power supplies

OUTPUT

VOLTAGE

+5.1V (A)

+12.0V (B)

–12.0V

+5.1V (A)

+15.0V (B)

–15.0V

+5.1V

+12.0V

+13.5V

+15.0V

+16.5V

+24.0V

Notes

1 For 230VAC operation a minimum output load of 4 Watts is required.

2 Natural convection cooling, 40W maximum.

3 Peak output current lasting less than 60 seconds with duty cycle less than

10%. During peak loading outputs may go outside of regulation limits.

Peak total power must not exceed 50W.

4 Figures are peak-to-peak. Output noise is measured across a 20MHz

bandwidth using a 12” twisted pair terminated with a 47µF capacitor.

5 Total regulation is defined as the static output regulation at 25°C, including

initial tolerance, load currents within stated limits, and output voltages

adjusted to their factory settings. Also, for ‘B’ output stated regulation:

I(A)/I(B)<5.

6 The standard CL40 is IEC950/VDE0805 approved as a stand-alone power

supply. The plastic case incorporates an IEC 320 inlet receptacle.

No input cable is supplied in Europe as standard.

An input cable is supplied to customers in the US only. To order add

the suffix ‘I’ to the end of the model number, e.g. CL40-7605I.

In order to have a stand-alone power supply fully UL and CSA listed (as

opposed to certified or recognised) it is required that the manufacturer pro-

vide an approved input cable with the power supply.

7 The standard output connector is a DIN41524 five-pin plug. As an alterna-

tive single output models can be supplied with a 2.5mm battery eliminator

jack. To order this option add the suffix “J” to the model number.

Example: CL40-7612J. See the table above for availability.

8 Three orthogonal axes random vibration, 10 minute test for each axis.

(1829)

OUTPUT CURRENT

MAX

(2)

(1)

RIPPLE

PEAK

5.0A

3.0A

1.0A

5.0A

3.0A

1.0A

5.0A

4.0A

3.7A

3.3A

3.0A

2.0A

(3)

(4)

TOTAL

REGULATION

±5.0%

(5)

MODEL NUMBER

CL40-7608

3.0A

1.7A

0.35A

3.0A

1.3A

0.35A

5.0A

3.3A

3.0A

2.7A

2.4A

1.6A

50mV

120mV

50mV

150mV

50mV

120mV

130mV

150mV

160mV

240mV

-3.0%, +7.0%

±5.0%

-2.0%, +5.0%

±5.0%

±6.0%

±5.0%

CL40-7605

CL40-7612

CL40-7613

CL40-7615

CL40-7616

CL40-7624

CL40-7624J

(7)

CL40-7610

CL40-7605J

CL40-7612J

(7)

CL40-7615J

(7)

PIN CONNECTIONS

PIN NUMBER

SINGLES

OUT

Return

-7608

+5.1V

+12V

Return

–12V

Return

-7610

+5.1V

+15V

Return

–15V

Return

2.5mm BATTERY ELIMINATOR JACK

(SUFFIX 'J')

6.5

(165)

- NEGATIVE

+ POSITIVE

3.85

(98)

STANDARD OUTPUT CONNECTION

(DIN 41524 FIVE PIN PLUG)

International Safety Standard Approvals

geprüfte

Sicherhelt

2.60

(66)

VDE0805/EN60950, IEC950, IEC1010

File No. 10401-3336-1062 Licence No. 1062

UL1950 File No. E136005

ALL DIMENSIONS ARE INCHES (mm)

DS_CL40_19980401.PDF

CSA C22.2 No. 950 File No. LR41062/LR50913/LR101320

Certificate No. PS/603191

http://www.artesyn.com

PAGE 2
