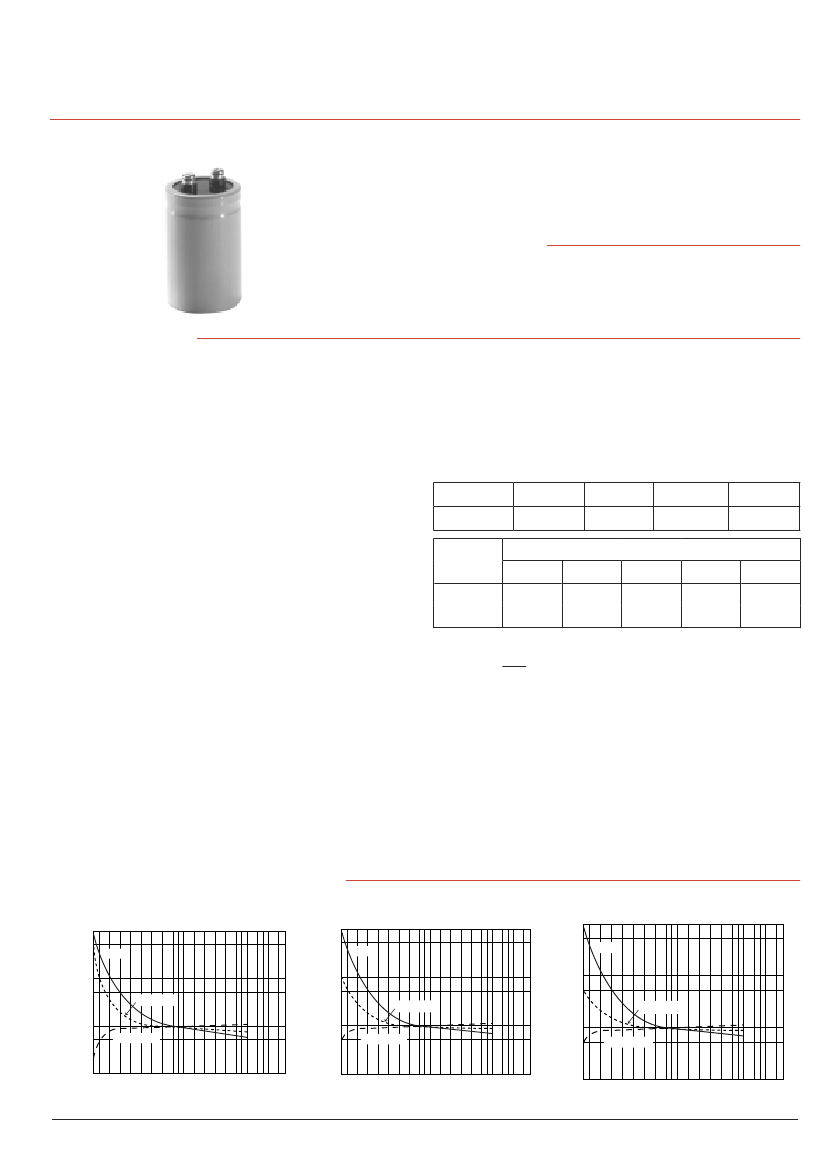

Type CGS
Computer Grade Aluminum Electrolytic Capacitor
High CV, Screw Terminal Capacitors
Type CGS screw terminal, computer grade aluminum
electrolytic capacitors have a high CV rating and are
suitable for use in most demanding applications requir-
ing high current filtering or energy storage.
Highlights
•
•
•
High CV rating
High current filtering
Screw Terminal
Specifications
Capacitance Range:
75 to 1,500,000 µF
Voltage Range:
6.3 to 500 WVdc
Capacitance Tolerance:
–10% +75% (6.3 - 150 WVdc)
–10% +50% (200 - 450 WVdc)
Operating Temperature:
–40 ºC to +85 ºC
Ripple Current Multipliers:
Ambient Temperature
+45 ºC
2.24
+55 ºC
2.00
+65 ºC
1.73
+75 ºC
1.41
+85 ºC
1.00
Rated
Voltage
16 to 150
200 to 500
60 Hz
0.9
0.9
1.0
1.0
Ripple Multiplier
120 Hz
300 Hz
1.15
1.25
1000 Hz
1.25
1.40
10 kHz
1.30
1.50
DC Leakage Current:
I = .006 √ CV
Not to exceed 6.0 mA max. after 5 minutes
C = Capacitance in µF
V = Rated Voltage
I = Leakage current in mA
Apply WVdc for 2000 h @ 85 ºC
• Capacitance change ± 10% from initial limits
• DC leakage current: 200% of limit
• ESR: 175% of limit
Temperature Characteristics - 4600 µF 100 Vdc
100
QA Stability Test:
Typical Performance Curves
100
ESR
Temperature Characteristics - 100,000 µF 10 Vdc Temperature Characteristics - 29,000 µF 50 Vdc
100
ESR
ESR
10
% C
1
Impedance
10
% C
1
Capacitance
10
Impedance
% C
1
Impedance
Capacitance
Capacitance
0.1
-5 5 -40
-20
-0
25 40 60
Temperature (gC)
85
105
0.1
-5 5 -40
-20
-0
25 40 60
Temperature (gC)
85
105
0.1
-5 5 -40
-20
-0
25 40 60
Temperature (gC)
85
105
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS
Computer Grade Aluminum Electrolytic Capacitor
Ratings
Typical
Catalog
Cap
(µF)
Part Number
ESR
120 Hz
(Ω)
Max Ripple
120 Hz
+85 ºC
(A) RMS
Dia.
Length
Typical Max Ripple
Catalog
Cap
(µF)
Part Number
(Inches) (Inches)
ESR
120 Hz
(Ω)
120 Hz
+85 ºC
(A) RMS
Dia.
Length
(Inches) (Inches)
6.3 WVdc ( 8 Vdc Surge )
73,000 CGS733U6R3R2L
95,000 CGS953U6R3R3C
140,000 CGS144U6R3R4C
190,000 CGS194U6R3V3C
210,000 CGS214U6R3R5L
230,000 CGS234U6R3U4C
300,000 CGS304U6R3V4C
310,000 CGS314U6R3V5L
480,000 CGS484U6R3W4C
500,000 CGS504U6R3W5L
670,000 CGS674U6R3X4C
900,000 CGS904U6R3X5C
1,000,000 CGS105U6R3X5L
1,100,000 CGS115U6R3X5R
49,000 CGS493U7R5R2C
71,000 CGS713U7R5R2L
92,000 CGS923U7R5R3C
140,000 CGS144U7R5R4C
190,000 CGS194U7R5V3C
200,000 CGS204U7R5R5L
220,000 CGS224U7R5U4C
290,000 CGS294U7R5V4C
440,000 CGS444U7R5V5L
470,000 CGS474U7R5W4C
650,000 CGS654U7R5W5L
710,000 CGS714U7R5W5L
870,000 CGS874U7R5X5C
980,000 CGS984U7R5X5L
1,000,000 CGS105U7R5X5R
7,200 CG801U050R2C
12,000 CG152U050R2C
14,000 CG152U050R3C
18,000 CG202U050R4C
20,000 CG252U050U3C
26,000 CG292U050R3C
33,000 CG332U050V3C
43,000 CG432U050R4C
44,000 CG452U050V4C
62,000 CG502U050U3C
81,000 CG652U050V3C
94,000 CG732U050W4C
110,000 CG742U050U4C
120,000 CG952U050V4C
170,000 CG103U050X4C
180,000 CG153U050W4C
200,000 CG1652U050X5L
250,000 CG223U050X4C
390,000 CG333U050X5L
410,000 CG333U050X5L
580,000 CG333U050X5L
630,000 CG333U050X5L
780,000 CG333U050X5L
880,000 CG333U050X5L
920,000 CG333U050X5L
5,500 CGS552U016R2C
8,900 CGS892U016R2C
10,000 CGS103U016R2C
10,000 CGS103U016R3C
0.023
0.014
0.011
0.013
0.011
0.009
0.010
0.007
0.007
0.005
0.006
0.005
0.005
0.004
0.030
0.023
0.019
0.014
0.013
0.012
0.010
0.010
0.007
0.007
0.005
0.005
0.005
0.005
0.004
0.072
0.058
0.044
0.033
0.037
0.036
0.035
0.026
0.026
0.029
0.017
0.023
0.022
0.013
0.013
0.009
0.010
0.006
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.037
0.034
0.033
0.024
8.0
10.4
11.2
12.6
10.9
13.1
14.7
16.9
19.6
22.9
20.7
23.5
24.5
24.7
6.7
7.9
8.8
10.3
12.5
10.8
13.1
14.6
16.8
19.5
24.4
22.8
23.4
24.4
24.7
3.2
3.5
4.7
6.1
6.0
5.2
6.7
6.9
8.6
6.7
9.6
10.5
8.7
12.2
15.6
16.8
20.5
22.5
29.0
29.0
29.0
29.0
29.0
29.0
29.0
4.4
4.6
4.7
6.4
1.375
1.375
1.375
2.000
1.375
1.750
2.000
2.000
2.500
2.500
3.000
3.000
3.000
3.000
1.375
1.375
1.375
1.375
2.000
1.375
1.750
2.000
2.000
2.500
3.000
2.500
3.000
3.000
3.000
1.375
1.375
1.375
1.375
1.750
1.375
2.000
1.375
2.000
1.750
2.000
2.500
1.750
2.000
3.000
2.500
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
1.375
1.375
1.375
1.375
1.625
3.125
4.125
3.125
5.625
4.125
4.125
5.625
4.125
5.625
4.125
5.125
5.625
5.875
2.125
2.625
3.125
4.125
3.125
5.625
4.125
4.125
5.625
4.125
4.125
5.625
5.125
5.625
5.875
2.125
2.125
3.125
4.125
3.125
3.125
3.125
4.125
4.125
3.125
3.125
4.125
4.125
4.125
4.125
4.125
5.625
4.125
5.625
5.625
5.625
5.625
5.625
5.625
5.625
2.125
2.125
2.125
3.125
16 WVdc ( 20 Vdc Surge )
12,000 CGS123U016R2C
15,000 CGS153U016R2L
15,000 CGS153U016R4C
17,000 CGS173U016R3C
19,000 CGS193U016R3C
21,000 CGS213U016R3L
22,000 CGS233U016V3C
24,000 CGS243U016R3C
25,000 CGS253U016R4C
25,000 CGS253U016V2C
33,000 CGS333U016R4C
33,000 CGS333U016V2C
34,000 CGS343U016R4C
34,000 CGS343U016V4C
35,000 CGS353U016R2C
38,000 CGS383U016R3C
38,000 CGS383U016V3C
49,000 CGS493U016R2L
50,000 CGS503U016V3C
55,000 CGS553U016R3L
55,000 CGS553U016V3L
62,000 CGS623U016R3C
66,000 CGS663U016R4C
66,000 CGS663U016V4C
68,000 CGS683U016V3C
68,000 CGS703U016V4C
77,000 CGS773U016V4L
80,000 CGS803U016X4C
83,000 CGS833U016V5L
90,000 CGS903U016R4C
91,000 CGS913U016V4C
100,000 CGS104U016X5C
110,000 CGS114U016W4C
120,000 CGS124U016V4C
130,000 CGS134U016R5L
130,000 CGS134U016V3C
130,000 CGS134U016W4L
150,000 CGS154U016X5L
160,000 CGS164U016U4C
170,000 CGS174U016V4C
180,000 CGS184U016X4L
190,000 CGS194U016V4C
210,000 CGS214U016X5R
220,000 CGS224U016X4C
260,000 CGS264U016V5L
290,000 CGS294U016V5L
310,000 CGS314U016W4C
470,000 CGS474U016W5L
620,000 CGS624U016X5C
640,000 CGS644U016X5L
640,000 CGS644UFX5L3PD
700,000 CGS704U016X5L
740,000 CGS744U016X5R
980,000 CGS984U016X8L
250,000 CGS254U020X3L
500,000 CGS505U020X5L
1,000,000 CGS105UGX8L6PD
1,000,000 CGS105UGX8L6PH
1,000,000 CGS106U020X5R
1,500,000 CGS155U020X8L
0.031
0.026
0.061
0.022
0.021
0.037
0.027
0.032
0.016
0.031
0.020
0.028
0.020
0.016
0.030
0.019
0.021
0.023
0.011
0.015
0.018
0.019
0.012
0.017
0.017
0.008
0.015
0.009
0.015
0.014
0.009
0.007
0.010
0.007
0.010
0.011
0.009
0.007
0.010
0.004
0.006
0.007
0.005
0.005
0.003
0.005
0.005
0.004
0.004
0.002
0.002
0.003
0.003
0.007
0.006
0.004
0.003
0.003
0.003
0.003
4.8
5.6
4.5
6.7
6.8
5.5
7.6
5.6
8.8
6.1
7.9
6.5
9.8
8.8
6.7
9.4
8.6
7.9
11.7
10.2
9.6
8.8
11.6
10.8
9.5
15.2
11.8
18.9
12.9
10.3
14.7
22.5
16
20.1
12.6
12.5
17.6
19.3
13.1
23.5
24.3
19.5
29.2
25.2
29.8
21.1
22.7
30.4
32.3
44.9
30.0
35.0
35.8
23.8
29.0
37.0
41.0
41.0
40.0
41.0
1.375
1.375
1.375
1.375
1.375
1.375
2.000
1.375
1.375
2.000
1.375
2.000
1.375
2.000
1.375
1.375
2.000
1.375
2.000
1.375
2.000
1.375
1.375
2.000
2.000
2.000
2.000
3.000
2.000
1.375
2.000
3.000
2.500
3.000
1.375
2.000
2.500
3.000
1.750
2.000
3.000
2.000
3.000
3.000
2.000
2.000
2.500
2.500
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
3.000
2.125
2.625
4.125
3.125
3.125
3.625
3.125
3.125
4.125
2.125
4.125
2.125
4.125
4.125
2.125
3.125
3.125
2.625
3.125
3.625
3.625
3.125
4.125
4.125
3.125
4.125
4.625
4.125
5.625
4.125
4.125
5.125
4.125
3.625
5.625
3.125
4.625
4.125
4.125
4.125
4.625
4.125
5.875
4.125
5.625
5.625
4.125
5.625
5.125
5.625
5.625
5.625
5.875
8.625
3.625
5.625
8.625
8.625
5.875
8.625
7.5 WVdc ( 9 Vdc Surge )
10 WVdc ( 12 Vdc Surge )
20 WVdc ( 22 Vdc Surge )
16 WVdc ( 20 Vdc Surge )
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS
Computer Grade Aluminum Electrolytic Capacitor
Ratings
Typical Max Ripple
Catalog
Cap
(µF)
3,000 CGS302U025R2C
4,700 CGS472U025R2C
5,600 CGS562U025R3C
6,000 CGS602U025R2C
6,800 CGS682U025R2C
8,200 CGS822U025R4C
8,900 CGS892U025R3C
10,000 CGS103U025R3C
12,000 CGS123U025R3C
12,000 CGS123U025V3C
13,000 CGS133U025R4C
14,000 CGS143U025U3C
14,000 CGS143U025V2C
16,000 CGS163U025R4C
18,000 CGS183U025R4C
18,000 CGS183U025V4C
20,000 CGS203U025R3C
20,000 CGS203U025R5C
20,000 CGS203U025V3C
22,000 CGS223U025R2C
22,000 CGS223U025V2C
28,000 CGS283U025V3C
29,000 CGS293U025V4C
30,000 CGS303U025W3C
31,000 CGS313U025R2L
32,000 CGS323U025V4C
33,000 CGS333U025V3C
40,000 CGS403U025R3C
41,000 CGS413U025V4C
43,000 CGS433U025R4C
43,000 CGS433U025X4C
47,000 CGS473U025V4C
50,000 CGS503U025V5L
50,000 CGS503U025W3L
57,000 CGS573U025X5C
58,000 CGS583U025R4C
65,000 CGS653U025W4C
68,000 CGS683U025V4C
70,000 CGS703U025X4C
82,000 CGS823U025V3C
85,000 CGS853U025R5L
90,000 CGS903U025W5L
92,000 CGS923U025X5C
95,000 CGS953U025X4C
100,000 CGS104U025U4C
100,000 CGS104U025V5L
100,000 CGS104U025X3L
110,000 CGS114U025X5C
110,000 CGS114U025X5L
120,000 CGS124U025V4C
120,000 CGS124U025X4C
120,000 CGS124U050X5L
180,000 CGS184U025X4C
190,000 CGS194U025V5L
200,000 CGS204U025W4C
204,000 CGS2043U025X8L
270,000 CGS274U025X5L
270,000 CGS274UHX5L3PD
300,000 CGS304U025W5L
310,000 CGS314U025W5L
400,000 CGS404U025X5C
450,000 CGS454U025X5L
480,000 CGS484U025X5R
740,000 CGS744U025X8L
Typical Max Ripple
Catalog
ESR
120 Hz
(Ω)
0.037
0.037
0.024
0.024
0.018
0.018
0.016
0.013
0.019
0.020
0.015
0.016
0.009
0.011
0.008
0.145
0.024
0.038
0.018
0.023
0.029
0.028
0.021
0.010
0.012
0.044
0.042
0.038
0.028
0.036
0.026
0.025
0.020
0.019
0.019
0.024
0.024
0.049
0.067
0.033
0.017
0.025
0.029
0.018
0.025
0.014
0.031
0.021
0.020
0.021
0.021
0.015
0.015
0.014
0.010
0.010
0.020
0.014
0.010
ESR
120 Hz
(Ω)
0.235
0.101
0.026
0.035
0.096
0.019
0.024
0.024
0.024
0.023
0.082
0.046
0.037
0.017
0.017
0.052
0.023
0.014
0.024
0.032
0.043
0.028
0.018
0.029
0.024
0.018
0.018
0.020
0.020
0.022
0.021
0.022
0.018
0.010
0.017
0.014
0.009
0.006
0.010
0.011
0.011
0.007
0.008
0.011
0.010
0.005
0.011
0.008
0.009
0.008
0.010
0.007
0.004
0.006
0.005
0.006
0.003
0.003
0.005
0.004
0.004
0.003
0.003
0.002
120 Hz
+85 ºC
(A) RMS
1.8
2.7
6.1
4.5
2.8
8.1
6.4
6.4
8.1
6.6
3.9
5.3
5.6
8.5
8.6
6.1
6.5
10.3
8.0
6.4
5.2
7.5
10.5
8.4
7.6
10.3
9.3
8.4
9.8
8.5
12.2
9.5
11.7
14.9
14.6
10.0
16.5
17.9
18.1
15.5
12.2
21.4
21.6
16.9
12.7
22.8
16.0
20.7
20.9
15.5
17.9
21.6
30.3
20.4
22.0
29.9
36.6
30.0
26.2
29.6
31.6
34.3
35.0
48.3
120 Hz
+85 ºC
(A) RMS
4.4
4.5
6.4
6.4
8.4
8.4
9.3
11.0
10.0
9.8
11.7
12.7
16.3
16.8
22.4
2.2
6.4
5.5
8.4
6.4
7.3
8.6
9.6
19.7
16.6
4.1
4.2
4.4
6.0
4.5
6.1
6.2
7.9
8.1
8.2
8.1
8.0
5.0
4.2
6.0
10.5
6.1
7.4
10.4
7.1
13.6
7.1
7.9
9.9
9.5
9.7
9.4
12.8
9.9
16.3
18.1
13.8
11.0
15.8
Part Number
Dia.
Length
Cap
(µF)
Part Number
Dia.
Length
(Inches) (Inches)
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
2.000
1.375
1.375
1.750
2.000
1.375
1.375
2.000
1.375
1.375
2.000
1.375
2.000
2.000
2.000
2.500
1.375
2.000
2.000
1.375
2.000
1.375
3.000
2.000
2.000
2.500
3.000
1.375
2.500
2.000
3.000
2.000
1.375
2.500
3.000
3.000
1.750
2.000
3.000
3.000
3.000
2.000
3.000
3.000
3.000
2.000
2.500
3.000
3.000
3.000
2.500
2.500
3.000
3.000
3.000
3.000
2.125
2.125
3.125
2.125
2.125
4.125
3.125
3.125
3.125
3.125
4.125
3.125
2.125
4.125
4.125
4.125
3.125
5.125
3.125
2.125
2.125
3.125
4.125
3.125
2.625
4.125
3.125
3.125
4.125
4.125
4.125
4.125
5.625
3.625
5.125
4.125
4.125
4.125
4.125
3.125
5.625
5.625
5.125
4.125
4.125
5.625
3.625
5.125
5.625
4.125
4.125
5.625
4.125
5.625
4.125
8.625
5.625
5.625
5.625
5.625
5.125
5.625
5.875
8.625
(Inches) (Inches)
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
2.000
2.000
2.500
2.000
2.500
3.000
3.000
1.375
1.375
2.000
1.375
1.375
2.000
2.500
2.000
3.000
3.000
1.375
1.375
1.375
1.375
1.375
1.370
1.375
1.375
1.375
1.375
2.000
2.000
1.375
2.000
1.375
2.000
1.375
2.000
2.000
1.375
2.000
2.000
1.375
2.000
2.000
2.000
1.375
2.000
2.000
2.500
3.000
3.000
2.000
2.500
2.125
2.125
3.125
3.125
4.125
4.125
4.625
5.625
4.125
4.125
3.125
5.625
4.125
4.125
5.625
2.125
3.125
2.125
4.125
3.125
3.125
3.125
4.125
5.125
4.125
2.125
2.125
2.125
3.125
2.125
3.125
3.125
4.125
4.125
4.125
3.125
3.125
4.125
2.125
2.125
4.125
3.125
3.125
4.125
2.625
5.625
3.125
3.125
4.125
4.125
4.125
4.125
5.625
3.125
4.125
4.125
5.125
3.125
4.125
25 WVdc ( 30 Vdc Surge )
30 WVdc ( 40 Vdc Surge )
4,500 CGS452U030R2C
5,000 CGS502U030R2C
8,000 CGS802U030R3C
9,200 CGS922U030R3C
12,000 CGS123U030R4C
13,000 CGS133U030R4C
15,000 CGS153U030R4L
20,000 CGS203U030R5L
30,000 CGS303U030V4C
33,000 CGS333U030V4C
44,000 CGS443U030W3C
50,000 CGS503U030V5L
55,000 CGS553U030W4C
78,000 CGS783U030X4C
100,000 CGS104U030X5L
4,400 CGS442U035R2C
8,200 CGS822U035R3C
10,000 CGS103U035V2C
12,000 CGS123U035R4C
21,000 CGS213U035R3C
21,000 CGS213U035V3C
30,000 CGS303U035W3C
31,000 CGS313U035V4C
60,000 CGS603U035X5C
70,000 CGS703U035X4C
2,200 CGS222U040R2C
2,700 CGS272U040R2C
3,500 CGS352U040R2C
4,200 CGS422U040R3C
4,700 CGS472U040R2C
5,100 CGS512U040R3C
6,000 CGS602U040R3C
6,200 CGS622U040R4C
7,500 CGS752U040R4C
9,000 CGS902U040R4C
9,300 CGS932U040V3C
11,000 CGS113U040V3C
12,000 CGS123U040R4C
12,000 CGS123U040V2C
13,000 CGS133U040R2C
13,000 CGS133U040V4C
17,000 CGS173U040R3C
17,000 CGS173U040V3C
17,000 CGS173U040V4C
18,000 CGS183U040R2L
20,000 CGS203U040V5L
22,000 CGS223U040V3C
23,000 CGS233U040R3C
23,000 CGS233U040V4C
32,000 CGS323U040V4C
33,000 CGS333U040V4C
34,000 CGS343U040R4C
35,000 CGS353U040V5L
40,000 CGS403U040V3C
40,000 CGS403U040W4C
40,000 CGS403U040X4C
43,000 CGS433U040X5C
47,000 CGS473U040V3C
47,000 CGS473U040W4C
35 WVdc ( 45 Vdc Surge )
40 WVdc ( 50 Vdc Surge )
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS
Computer Grade Aluminum Electrolytic Capacitor
Ratings
Typical Max Ripple
Catalog
Cap
(µF)
49,000 CGS493U040R5L
53,000 CGS533U040X5C
55,000 CGS553U040W5L
61,000 CGS613U040U4C
68,000 CGS683U040X4C
71,000 CGS713U040V4C
78,000 CGS783U040X6L
110,000 CGS114U040V5L
120,000 CGS124U040W4C
150,000 CGS154U040X5L
150,000 CGS154ULX5L3PD
180,000 CGS184U040W5L
230,000 CGS234U040X5C
260,000 CGS264U040X5L
280,000 CGS284U040X5R
430,000 CGS434U040X8L
1,600 CGS162U050R2C
2,200 CGS222U050R2C
2,900 CGS292U050R3C
3,000 CGS302U050R2C
3,300 CGS332U050R2C
4,100 CGS412U050R3C
4,300 CGS432U050R4C
4,900 CGS492U050R3L
5,000 CGS502U050R3C
5,700 CGS572U050R3C
6,100 CGS612U050R4C
6,500 CGS652U050V3C
6,700 CGS672U050R3L
6,800 CGS682U050R3C
7,500 CGS752U050R4C
8,000 CGS802U050V2C
9,600 CGS962U050R2C
9,600 CGS962U050V4C
10,000 CGS103U050R4C
10,000 CGS103U050V2C
12,000 CGS123U050R5L
13,000 CGS133U050R2L
13,000 CGS133U050R3C
13,000 CGS133U050V3C
14,000 CGS143U050V5L
14,500 CGS1452U050V3C
15,000 CGS153U050V4C
17,000 CGS173U050R3C
18,000 CGS183U050V3C
20,000 CGS203U050R4C
20,000 CGS203U050V4C
20,000 CGS203U050V5L
24,000 CGS243U050W3C
25,000 CGS253U050R4C
25,000 CGS253U050U4C
25,000 CGS253U050W4C
27,000 CGS273U050V4C
28,000 CGS283U050V5C
30,000 CGS303U050V5L
31,000 CGS313U050W4C
33,000 CGS333U050W4C
35,000 CGS353U050V3C
37,000 CGS373U050R5L
41,000 CGS413U050X4L
43,000 CGS433U050X5C
45,000 CGS453U050U4C
Typical Max Ripple
Catalog
ESR
120 Hz
(Ω)
0.012
0.008
0.010
0.011
0.005
0.010
0.017
0.016
0.008
0.004
0.007
0.007
0.003
0.003
0.005
0.004
0.004
0.006
0.043
0.032
0.027
0.019
0.021
0.015
0.014
0.014
0.010
0.010
0.010
0.007
0.007
0.007
0.007
0.012
0.591
0.041
0.036
0.041
0.028
0.096
0.032
0.120
0.023
0.031
0.030
0.058
0.021
0.017
0.044
0.022
0.078
0.017
0.036
0.029
0.041
0.024
0.021
0.026
0.026
ESR
120 Hz
(Ω)
0.013
0.008
0.011
0.011
0.012
0.010
0.009
0.007
0.006
0.003
0.003
0.005
0.004
0.004
0.004
0.003
0.048
0.044
0.03
0.04
0.182
0.022
0.022
0.023
0.026
0.096
0.02
0.025
0.022
0.024
0.019
0.043
0.036
0.018
0.017
0.049
0.014
0.027
0.031
0.029
0.031
0.022
0.019
0.022
0.034
0.019
0.021
0.014
0.014
0.016
0.021
0.024
0.022
0.018
0.016
0.028
0.025
0.016
0.012
0.009
0.023
0.012
120 Hz
+85 ºC
(A) RMS
11.0
21.5
16.9
11.4
16.0
14.0
22.7
18.6
20.0
36.6
30.0
27.0
29.5
32.1
32.7
45.6
3.9
4.1
5.7
4.3
2.0
7.6
7.6
7.0
6.1
3.2
7.9
7.9
7.2
6.4
8.1
5.2
5.6
10.3
8.5
4.9
10.7
6.7
6.2
7.3
7.1
7.3
10.0
7.5
6.8
8.2
9.5
13.2
12.1
8.9
9.8
10.2
9.3
11.4
12.4
9.6
10.0
10.5
11.8
19.2
12.7
11.0
120 Hz
+85 ºC
(A) RMS
16.2
20.4
18.4
13.3
23.1
19.8
15.0
15.7
17.7
29.2
19.1
29.3
36.6
30.0
25.8
31.0
31.6
30.7
5.0
6.0
6.7
8.1
9.2
9.3
10.3
11.5
14.6
15.6
18.0
20.0
21.3
23.2
23.7
21.3
1.1
4.9
5.3
4.2
6.6
3.2
5.6
2.9
7.4
6.7
7.2
4.4
7.8
9.8
5.3
9.5
4.5
12.3
5.9
5.8
6.2
9.0
7.6
8.7
7.2
Part Number
Dia.
Length
Cap
(µF)
Part Number
Dia.
Length
(Inches) (Inches)
1.375
3.000
2.500
1.750
3.000
2.000
3.000
2.000
2.500
3.000
3.000
2.500
3.000
3.000
3.000
3.000
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
2.000
1.375
1.375
1.375
2.000
1.375
2.000
1.375
2.000
1.375
1.375
1.375
2.000
2.000
2.000
2.000
1.375
2.000
1.375
2.000
2.000
2.500
1.375
1.750
2.500
2.000
2.000
2.000
2.500
2.500
2.000
1.375
3.000
3.000
1.750
5.625
5.125
5.625
4.125
4.125
4.125
6.625
5.625
4.125
5.625
5.625
5.625
5.125
5.625
5.875
8.625
2.125
2.125
3.125
2.125
2.125
3.125
4.125
3.625
3.125
3.125
4.125
3.125
3.625
3.125
4.125
2.125
2.125
4.125
4.125
2.125
5.625
2.625
3.125
3.125
5.625
3.125
4.125
3.125
3.125
4.125
4.125
5.625
3.125
4.125
4.125
4.125
4.125
5.125
5.625
4.125
4.125
3.125
5.625
4.625
5.125
4.125
(Inches) (Inches)
3.0
2.5
3.0
2.0
3.0
3.0
3.0
3.0
2.0
3.0
2.5
3.0
3.0
3.0
2.5
3.0
3.0
3.0
1.375
1.375
1.375
1.375
2.000
1.375
1.750
2.000
2.000
2.500
3.000
2.500
3.000
3.000
3.000
3.000
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
2.000
1.375
1.375
1.375
1.375
2.000
2.000
2.000
1.375
1.375
2.000
2.000
1.375
2.000
1.375
4.125
5.625
5.875
4.125
3.625
5.125
4.125
5.625
5.625
4.125
4.125
8.625
5.625
5.625
5.625
5.625
5.875
8.625
2.125
2.625
3.125
4.125
3.125
5.625
4.125
4.125
5.625
4.125
4.125
5.625
5.125
5.625
5.875
8.625
2.125
3.125
3.125
2.125
4.125
4.125
3.125
3.125
4.125
3.125
3.125
2.125
4.125
5.625
2.625
4.125
3.125
5.625
3.125
3.125
3.125
4.125
4.125
4.125
4.125
40 WVdc ( 50 Vdc Surge )
50 WVdc (65 Vdc Surge )
48,000 CGS483U050X4C
50,000 CGS503U050W5L
51,000 CGS513U050X5R
53,000 CGS533U050V4C
56,000 CGS563U050X3L
60,000 CGS603U050X5C
68,000 CGS683U050X4C
70,000 CGS703U050X5L
79,000 CGS793U050V5L
82,000 CGS823U050X4C
87,000 CGS873U050W4C
100,000 CGS104U050X8L
120,000 CGS124U050X5L
120,000 CGS124UNX5L3PD
130,000 CGS134U050W5L
190,000 CGS194U050X5L
210,000 CGS214U050X5R
320,000 CGS324U050X8L
6,100 CGS612U063R2C
8,900 CGS892U063R2L
12,000 CGS123U063R3C
14,000 CGS143U063R4C
19,000 CGS193U063V3C
20,000 CGS203U063R5L
28,000 CGS284U063U4C
36,000 CGS363U063V4C
55,000 CGS553U063V5L
60,000 CGS603U063W4C
89,000 CGS893U063W5L
91,000 CGS913U063W5L
120,000 CGS124U063X5C
140,000 CGS144U063X5L
150,000 CGS154U063X5R
210,000 CGS214U063X8L
820 CGS821U075R2C
1,500 CGS152U075R3C
2,100 CGS212U075R3C
2,200 CGS222U075R2C
2,300 CGS232U075R4C
2,500 CGS252U075R4C
2,900 CGS292U075R3C
3,300 CGS332U075R3C
4,200 CGS422U075R4C
4,800 CGS482U075R3C
4,800 CGS482U075V3C
5,000 CGS502U075R2C
5,600 CGS562U075R4C
6,300 CGS632U075R5L
7,000 CGS702U075R2L
7,100 CGS712U075V4C
7,300 CGS732U075V3C
7,500 CGS752U075V5L
9,000 CGS902U075R3C
10,000 CGS103U075R3C
10,000 CGS103U075V3C
10,000 CGS103U075V4C
12,000 CGS123U075R4C
12,000 CGS123U075V4C
13,000 CGS133U075R4C
50 WVdc ( 65 Vdc Surge )
63 WVdc ( 75 Vdc Surge )
75 WVdc ( 95 Vdc Surge )
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type CGS
Computer Grade Aluminum Electrolytic Capacitor
Ratings
Typical Max Ripple
Catalog
Cap
(µF)
15,000
17,000
17,000
18,000
18,000
19,000
23,000
25,000
25,000
25,000
26,000
26,000
27,000
27,000
33,000
37,000
37,000
41,000
45,000
55,000
68,000
68,000
90,000
100,000
110,000
140,000
CGS153U075V5L
CGS173U075W4C
CGS173U075X4C
CGS183U075V3C
CGS183U075V4C
CGS193U075R5L
CGS233U075U4C
CGS253U075X4C
CGS253U075W5L
CGS253U075X4C
CGS263U075V4C
CGS263U075X5R
CGS273U075V4C
CGS273U075X3L
CGS333U075X4C
CGS373U075V5L
CGS373U075X5L
CGS413U075V5L
CGS453U075W4C
CGS553U075X8L
CGS683U075W5L
CGS683U075X5L
CGS903U075X5C
CGS104U075X5L
CGS114U075X5R
CGS144U075X8L
Typical Max Ripple
Catalog
ESR
120 Hz
(Ω)
CGS951U150R3C
CGS112U150R2C
CGS112U150R4C
CGS162U150R2L
CGS212U150R3C
CGS242U150V3C
CGS312U150R4C
CGS332U150V5C
CGS352U150V5L
CGS442U150V3C
CGS472U150R5L
CGS482U150W4L
CGS532U150U4C
CGS572U150X4C
CGS622U150W5L
CGS672U150U4C
CGS772U150X5C
CGS872U150X5R
CGS103U150V5L
CGS103U150X5C
CGS113U150W4C
CGS123U150V5L
CGS123U150X5L
CGS173U150W5L
CGS223U150X5C
CGS253U150X5L
CGS263U150X5R
CGS433U150X8L
0.087
0.102
0.064
0.071
0.074
0.117
0.038
0.032
0.031
0.032
0.026
0.030
0.023
0.037
0.025
0.022
0.029
0.027
0.015
0.034
0.017
0.014
0.013
0.020
0.015
0.012
0.011
0.014
ESR
120 Hz
(Ω)
0.018
0.033
0.033
0.023
0.009
0.019
0.017
0.039
0.024
0.014
0.028
0.037
0.016
0.019
0.019
0.011
0.010
0.011
0.012
0.008
0.008
0.005
0.008
0.007
0.007
0.012
120 Hz
+85 ºC
(A) RMS
11.9
8.8
9.8
8.9
14.5
7.8
9.8
9.0
11.7
15.0
10.3
10.6
11.0
12.5
12.7
16.4
19.7
14.6
14.7
27.4
20.0
30.0
21.3
23.2
23.7
21.3
120 Hz
+85 ºC
(A) RMS
3.4
3.2
4.4
3.8
4.3
3.7
5.8
8.4
11.4
7.0
7.9
9.5
8.3
9.3
11.4
9.4
11.3
12.5
12.7
10.4
12.1
16.5
17.8
12.7
15.6
18.4
19.1
19.9
Part Number
Dia.
Length
Cap
(µF)
950
1,100
1,100
1,600
2,100
2,400
3,100
3,300
3,500
4,400
4,700
4,800
5,300
5,700
6,200
6,700
7,700
8,700
10,000
10,000
11,000
12,000
12,000
17,000
22,000
25,000
26,000
43,000
Part Number
Dia.
Length
(Inches) (Inches)
2.000
2.500
3.000
2.000
2.000
1.375
1.750
3.000
2.500
3.000
2.000
3.000
2.000
3.000
3.000
2.000
3.000
2.000
2.500
3.000
2.500
3.000
3.000
3.000
3.000
3.000
5.625
4.125
4.125
3.125
4.125
5.625
4.125
4.125
5.625
4.125
4.125
5.875
4.125
3.625
4.125
5.625
5.625
5.625
4.125
8.625
5.625
5.625
5.125
5.625
5.875
8.625
(Inches) (Inches)
1.375
1.375
1.375
1.375
1.375
2.000
1.375
2.000
2.000
2.000
1.375
2.500
1.750
3.000
2.500
2.000
3.000
3.000
2.000
3.000
2.500
2.000
3.000
2.500
3.000
3.000
3.000
3.000
3.125
2.125
4.125
2.625
3.125
3.125
4.125
5.125
5.625
3.125
5.625
4.625
4.125
4.125
5.625
4.125
5.125
5.875
5.625
5.125
4.125
5.625
5.625
5.625
5.125
5.625
5.875
8.625
75 WVdc ( 95 Vdc Surge )
150 WVdc (175 Vdc Surge )
100 WVdc (125 Vdc Surge )
850
1,200
1,700
2,400
3,100
3,100
4,000
4,000
4,500
5,900
6,000
8,600
9,000
10,000
12,000
13,000
15,000
15,000
15,000
16,000
18,000
28,000
30,000
33,000
39,000
45,000
46,000
60,000
68,000
74,000
96,000
CGS851U100R2C
CGS122U100R3C
CGS172U100R3C
CGS242U100R4C
CGS312U100R2C
CGS312U100R5C
CGS402U100R4C
CGS402U100V4C
CGS452U100R2L
CGS592U100R3C
CGS602U100V4C
CGS862U100R4C
CGS902U100V5L
CGS103U100W4C
CGS123U100V3C
CGS133U100R5L
CGS153U100V4C
CGS153U100W5L
CGS153U100X4C
CGS163U100U4C
CGS183U100V4C
CGS283U100V5L
CGS303U100W4C
CGS333U100X8L
CGS393U100X5R
CGS453U100W5L
CGS463U100W5L
CGS603U100X5C
CGS683U100X5L
CGS743U100X5R
CGS963U100X8L
0.120
0.062
0.069
0.050
0.068
0.036
0.031
0.036
0.051
0.042
0.033
0.029
0.024
0.040
0.026
0.024
0.036
0.043
0.051
0.019
0.018
0.012
0.011
0.009
0.011
0.010
0.008
0.009
0.008
0.007
0.013
2.5
3.5
3.8
5.0
4.0
6.4
6.2
7.3
4.8
5.4
7.6
6.5
10.2
8.0
7.7
7.2
7.3
8.6
7.9
8.9
10.5
14.0
15.2
25.0
15.8
18.1
20.1
20.6
22.5
23.3
20.9
1.375
1.375
1.375
1.375
1.375
1.375
1.375
2.000
1.375
1.375
2.000
1.375
2.000
2.500
2.000
1.375
2.000
2.500
3.000
1.750
2.000
2.000
2.500
3.000
3.000
3.000
2.500
3.000
3.000
3.000
3.000
2.125
3.125
3.125
4.125
2.125
5.125
4.125
4.125
2.625
3.125
4.125
4.125
5.625
4.125
3.125
5.625
4.125
5.625
4.125
4.125
4.125
4.625
4.125
8.625
5.875
4.125
5.625
5.125
5.625
5.875
8.625
200 WVdc (250 Vdc Surge )
590
800
1,000
1,000
1,200
1,400
1,500
1,600
2,000
2,200
2,200
2,700
3,100
3,300
3,300
3,400
3,600
4,000
4,000
4,000
4,600
4,700
4,800
5,000
5,200
5,400
5,500
6,200
7,200
7,400
7,700
7,800
9,400
12,000
CGS591T200R3C
CGS801T200R2C
CGS102T200R4C
CGS102T200V2C
CGS122T200R2L
CGS142T200V3C
CGS152T200R3C
CGS162T200V3C
CGS202T200V4C
CGS222T200R4C
CGS222T200V4C
CGS272T200V4C
CGS312T200V3C
CGS332T200R5L
CGS332T200W4C
CGS342T200W4C
CGS362T200V4C
CGS402T200U4C
CGS402T200V3C
CGS402T200W4C
CGS462T200X4C
CGS472T200V4C
CGS482T200V4C
CGS502T200W5C
CGS522T200V5L
CGS542T200X4L
CGS552T200X4C
CGS622T200X4C
CGS722T200V5L
CGS742T200X5L
CGS772T200X5L
CGS782T200W4C
CGS942T200X4C
CGS123T200W5L
0.151
0.102
0.113
0.097
0.071
0.081
0.054
0.074
0.057
0.038
0.054
0.048
0.032
0.026
0.060
0.076
0.042
0.023
0.062
0.055
0.047
0.021
0.042
0.036
0.021
0.021
0.027
0.039
0.019
0.018
0.018
0.017
0.021
0.013
2.6
2.7
3.2
3.6
3.5
4.4
4.3
4.6
5.8
5.8
6.0
6.4
7.0
7.9
6.5
5.8
6.7
8.3
5.0
6.8
8.2
9.4
6.8
9.2
11.0
12.6
10.9
9.0
11.5
15.0
15.0
12.1
12.1
16.0
1.375
1.375
2.000
1.375
1.375
2.000
1.375
2.000
2.000
1.375
2.000
2.000
2.000
1.375
2.500
2.500
2.000
1.750
2.000
2.500
3.000
2.000
2.000
2.500
2.000
3.000
3.000
3.000
2.000
3.000
3.000
2.500
3.000
2.500
3.125
2.125
2.125
4.125
2.625
3.125
3.125
3.125
4.12
4.125
4.125
4.125
3.125
5.625
4.125
4.125
4.125
4.125
3.125
4.125
4.125
5.625
4.125
5.125
5.625
4.625
4.125
4.125
5.625
5.625
5.625
4.125
4.125
5.625
150 WVdc (175 Vdc Surge )
400
720
CGS401U150R2C
CGS721U150R3C
0.137
0.063
2.3
3.5
1.375
1.375
2.125
3.125
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
