Film Capacitors
Power Electronic Capacitors
B2562*
MKP DC
Construction
1.
Construction and general data
K: ±10%
2 • 10
-4
≤
1.2 • 10
-3
for C
R
< 450 µF
≤
1.5 • 10
-3
for 450 µF
≤
C
R
≤
800 µF
≤
2.0 • 10
-3
for C
R
> 800 µF
100 000 h at
hs
+75 °C und V
RDC
up to 200 000 h (Considering de-ratings in voltage
and/or temperature (upon request))
50 at V
RDC
and +70 °C (refer to section 4)
–55 °C
+85 °C for diameter 85 mm
+75 °C for diameter 116 mm
–55 ... +85 °C
+85 °C for diameter 85 mm
+75 °C for diameter 116 mm
55/85/56 for 85 mm diameter
55/75/56 for 116 mm diameter
2000 m above sea level
(derating curves available upon request)
100 Hz to10 kHz
(High frequency designs available upon request)
Characteristics
Standard capacitance tolerance
Dielectric dissipation factor (tan
δ
o
)
Loss factor (tan
δ)
at 100 Hz
Service life expectancy
(refer to section 3)
Fit rate
Minimum temperature
min.
Maximum temperature
max.
Storage temperature
stg
Maximum hotspot temperature
hs
(refer to section 1)
Climatic category
Maximum altitude
Frequency range
Test data
Voltage between terminals V
TT
Voltage between terminals and case U
TC
Life test
Cooling
Degree of protection
Design data
Resin filling
Mounting and grounding
Max. torque (case) M12 stud
Max. torque terminal
1.5 V
RDC
, 10 s
4000 V AC,10 s
According to IEC 61071
Naturally air-cooled (or forced air cooling)
Indoor mounting
Non PCB, hard polyurethane (dry type)
M12 threaded bolt on bottom of the aluminum case
10 Nm
Female M6: 5 Nm
Female M8: 6 Nm
Male M8: 8 Nm
Reference standards
IEC 61071
RoHS compliance
Certification: UL 810-5th edition (refer to table 1.3)
CAP FILM PW
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 27
May 2018
Film Capacitors
Power Electronic Capacitors
B2562*
MKP DC
1.1 Structure of ordering code
Version:
B = without plastic cap
C = with plastic cap
S = special
MKP DC Series
Rated voltage: 110
•
10 = 1100 V
B2562 0 B 1 427 K 10 1
Terminal type:
0 = Female M6
1 = Male M6
2 = Female M8
3 = Male M8
4 = Female M10
5 = Male M10
9 = special
Rated capacitance:
7
107 = 10 · 10 pF = 100 µF
427 = 42 · 10
7
pF = 420 µF
8
108 = 10 · 10 pF = 1 mF
Distance between terminals:
1 = 32 mm
2 = 35 mm
3 = 50 mm
4 = 45 mm
9 = special
Capacitance tolerance
J = ± 5%
K = ± 10%
A = special
1.2 Standard types
D (mm)
OC ending
Diameter (Ø)
Terminal type
85 mm
116 mm
Female M6
(B25620)
Female M6
(B25620)
32 ± 0.5
-**1
50 ± 0.5
-**3
standard
standard
Other terminal configurations upon request.
1.3 UL approved types
Diameter (Ø)
Series
85 mm
116 mm
B2562xC
Hc = 70 to 290 mm approved
Hc = 290 to 345 mm under approval
CAP FILM PW
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 27
May 2018
Film Capacitors
Power Electronic Capacitors
B2562*
MKP DC
1.4 Drawings

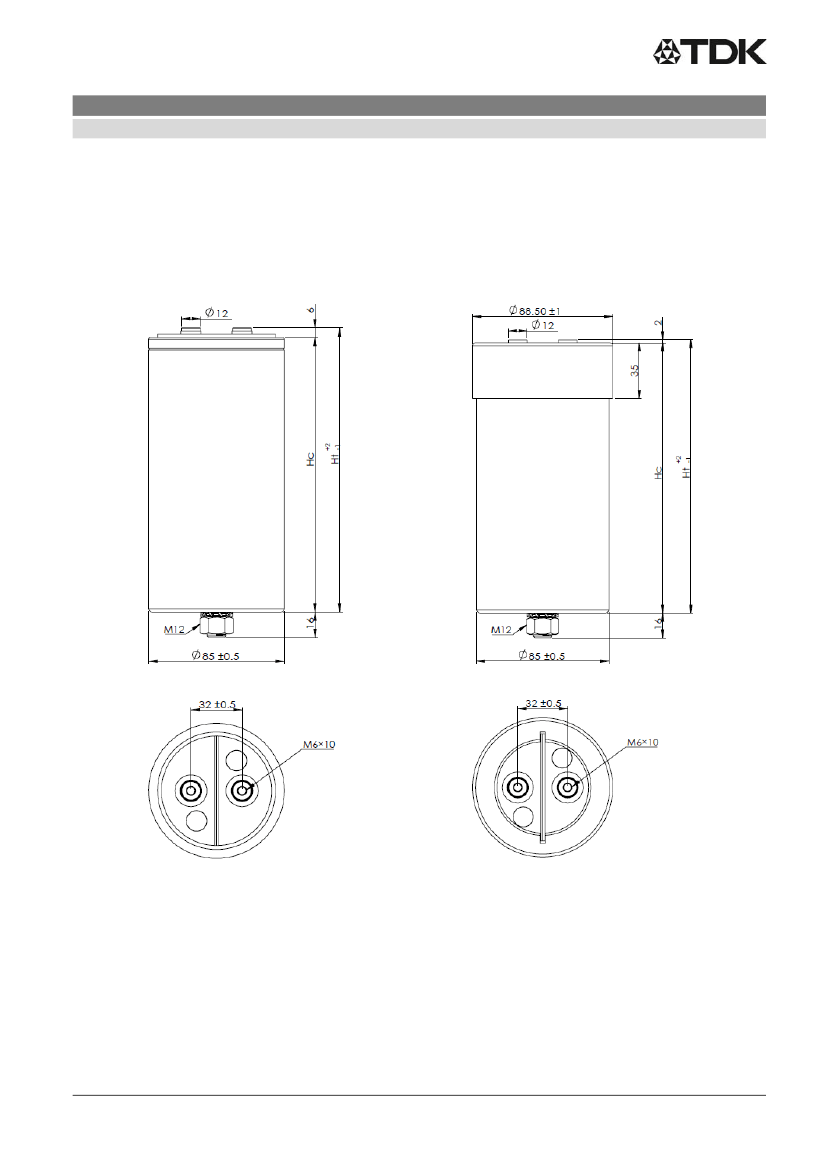

Figure 1: - B25620B - Ø 85mm
- Female terminals (M6)
- Between terminals 32 ±0.5mm
Figure 2: - B25620C - Ø 85mm
- Female terminals (M6)
- Between terminals 32 ±0.5mm
CAP FILM PW
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 27
May 2018
Film Capacitors
Power Electronic Capacitors

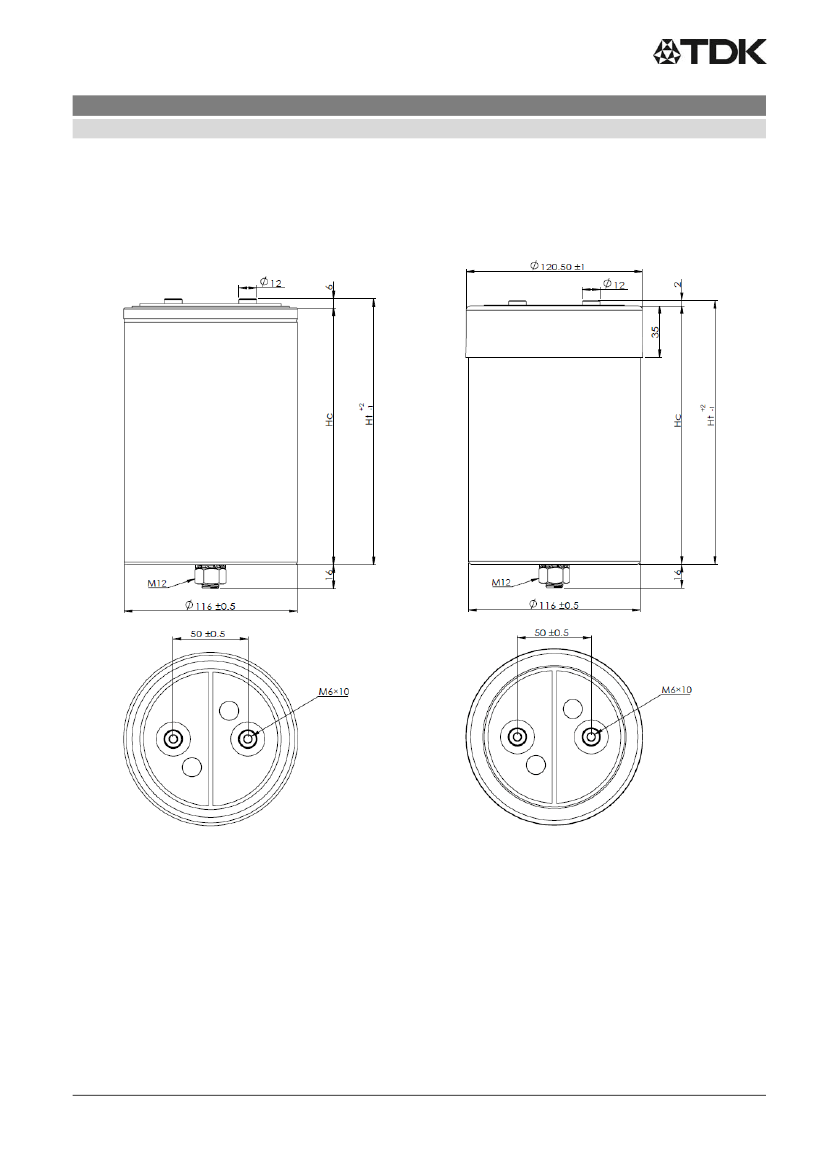

Figure 3: - B25620B - Ø 116mm
- Female terminals (M6)
- Between terminals 50 ±0.5mm
B2562*
MKP DC
Figure 4: - B25620C - Ø 116mm
- Female terminals (M6)
- Between terminals 50 ±0.5mm
M12 stud on bottom of the aluminum case, nut and washer for fixing are standard for all types.
CAP FILM PW
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 27
May 2018
