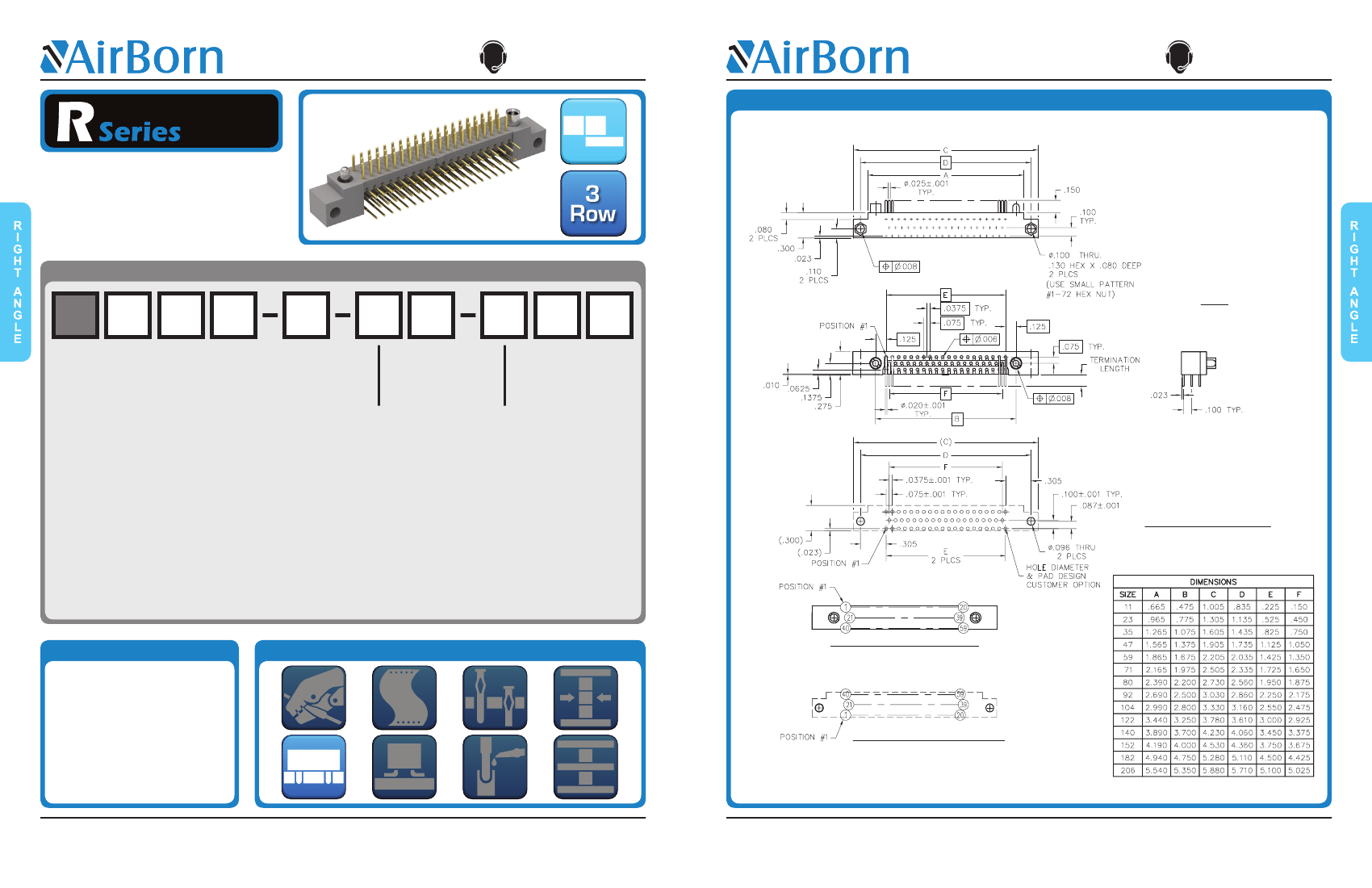

RM – Three-Row, Right-Angle, Board-Mount Plug
CONTACT CUSTOMER SERVICE
High-Density
0.075"
(1.905mm)
RM – Three-Row, Right-Angle,
Board-Mount Plug
Contact Spacing: 0.075" (1.91 mm)
R-Series products are high-density, plastic
connectors commonly used in board-to-board
applications. Approved to MIL-55302 standard.
Plastic ▪ 3-Row ▪ 11-206 Contacts
Sample Part Number Format: RM352-152-321-5500
RM
SERIES
0.075" Plastic
Rectangular
Connector
(Plug)
3
ROWS
3 – 3-Row
(11-206
contacts)
2
STYLE
BODY MATERIAL
5 – Plug, right- 2 – Polyphenylene
angle with
sulfide (PPS)
mounting ears
7 – Plug, right-
angle without
mounting ears
SIZE
011 – 11 contacts
023 – 23 contacts
035 – 35 contacts
047 – 47 contacts
059 – 59 contacts
071 – 71 contacts
080 – 80 contacts
092 – 92 contacts
104 – 104 contacts
122 – 122 contacts
140 – 140 contacts
152 – 152 contacts
182 – 182 contacts
206 – 206 contacts
PLATING
1 – Gold
2 – Pre-tinned,
SnPb alloy ‡
3 – Pre-tinned,
SAC305 alloy
TERMINATION
31 – Plated thru-hole, 0.109" x 0.020" Ø
32 – Plated thru-hole, 0.140" x 0.020" Ø
33 – Plated thru-hole, 0.172" x 0.020" Ø
34 – Plated thru-hole, 0.109" x 0.016" Ø
35 – Plated thru-hole, 0.140" x 0.016" Ø
36 – Plated thru-hole, 0.172" x 0.016" Ø
37 – Plated thru-hole, 0.250" x 0.020" Ø
POLARIZA-
OPTIONS
TION
BN – Bond #1-
00 – None
72, small
XX – See page 140
patern hex
for codes
nuts into
70 – Same as above, mounting
but without
ears
Loctite®
(customer-
keyed)
PLUG
Notes:
‡ Not RoHS-compliant
HARDWARE
0256 – None
55 – Guide set
57 – Two guide pins
58 – Two guide sockets
29 – Fixed jackset
30 – Fixed jackset, reversed
19 – Two fixed jackscrews
20 – Two fixed jacksockets
59 – Hex turning jackset, 0.200"
60 – Hex turning jackset reversed, 0.200"
61 – Two hex turning jackscrews, 0.200"
62 – Two hex turning jacksockets, 0.200"
64 – Turning jackset, 0.490"
PCB LAYOUT VIEWED
FROM COMPONENT SIDE
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
Mates with
RM322 & RM342 — Three-row,
straight receptacle
RM362 & RM382 — Three-row,
right-angle receptacle
RA3 — Three-row, I/O receptacle
Terminations
PIN IDENTIFICATION PATTERN
VIEWED FROM TERMINATION SIDE
(EXAMPLE: 59 POSITION CONNECTOR
PCB IDENTIFICATION PATTERN
VIEWED FROM TERMINATION SIDE
(EXAMPLE: 59 POSITION CONNECTOR
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
RM352-PNB-1
(CTR517, REV. 1)
www.airborn.com
(512 ) 863-5585
RM352-DIM-1
(CTR517, REV. 1)
www.airborn.com
( 512 ) 863-5585
49
48
PCB Design
