RSRK 601B-696/72F datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> RSRK 601B-696/72F

Preview

RSRK 601B-696/72F: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size452KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric View All

RSRK 601B-696/72F Overview

Sensor Cables / Actuator Cables

RSRK 601B-696/72F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	1 in
Connector End A Pin Count	6 Position
Connector End B	1 in
Connector End B Pin Count	6 Position
Gender	Male / Female
Length	72 ft
Current Rating	8 A
Voltage Rating	600 V
Color	Yellow
Description/Function	Mini, 1â??-Round-Plug Connector, Double-Ended Cordsets
Jacket Material	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

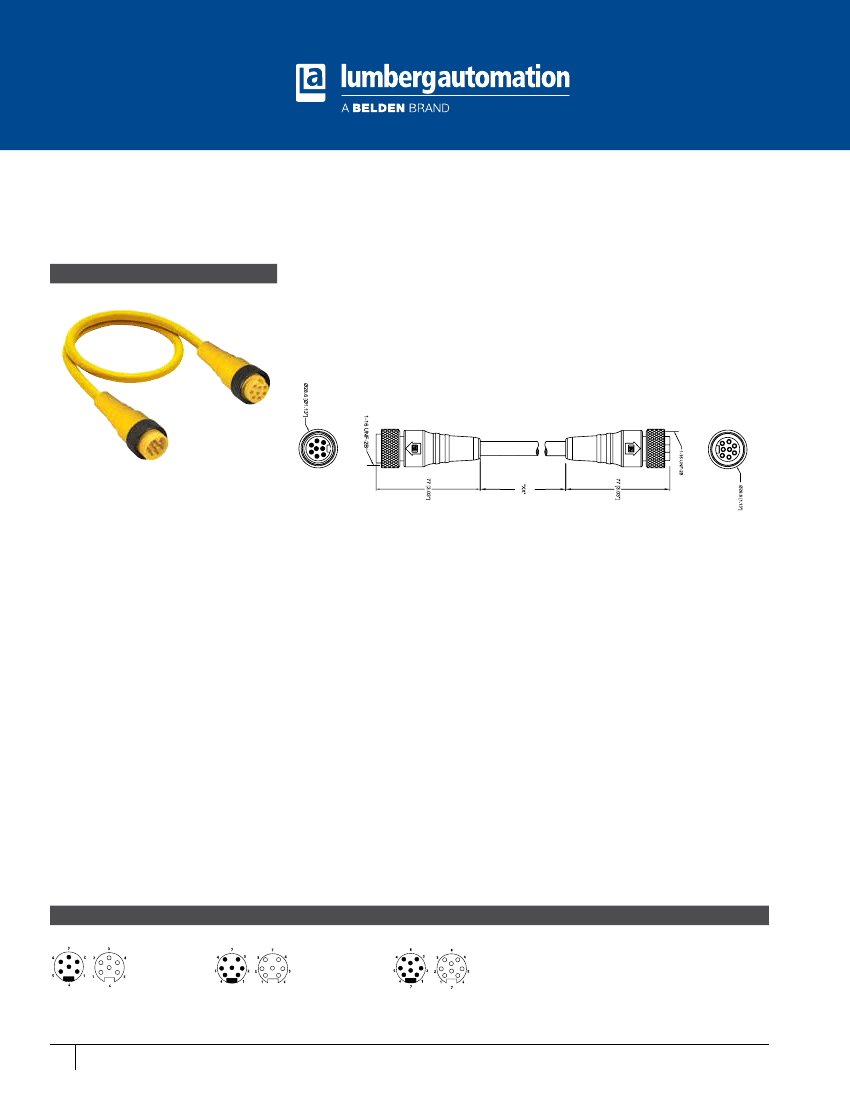

Mini, 1”-Round-Plug Connector, Double-Ended Cordsets,

US Color Code

RSRK 601B...801M

6-, 7- and 8-Poles

Mini, 1” double-ended cordsets, male straight

to female straight connector, 6-, 7- and 8-poles

with molded cable, US color code.

RSRK

Pin Assignments

Mini, 1” - Male / Female

6 poles

1=

2=

3=

4=

5=

6=

orange

blue

black

white

red

green

7 poles

1=

2=

3=

4=

5=

6=

7=

white/black

black

white

red

orange

blue

green

8 poles

1=

2=

3=

4=

5=

6=

7=

8=

orange

blue

white/black

black

white

red

green

red/black

204

Technical Support:

1-717-217-2289

www.lumberg-automationusa.com
