4
Power Supplies
Linear OEM – Single Output
Applications
•
•
•
•
Microprocessor circuits
Process controls
Control circuits
Noise sensitive circuits
• Instrumentation
• CNC machinery
• Analog circuits
Specifications
Parameter
UL 1950
E137632
Condition
Input
Limit
104-127 VAC
208-254 VAC
50-60 Hz
Input Voltage
Input Frequency
Output
Regulation Line & Load
Pard (Ripple and Noise)
Periodic Deviations
(Ripple)
Output Voltage Adjustment
Transient Recovery Time
Storage Ambient Temp.
Operating Ambient Temp.
Temp. Effect Coefficient
Polarity
Short Circuit Protection
Maximum Allowable Lead
Drop for Remote Sensing
Maximum Output Current
Maximum Short Circui
Current
Input/Output Isolation
Cooling
50%-100% Load
General
Features
• Low noise output
• 115/230 VAC input
• Remote sensing
• Designed for both bench and rack use
• Completely protected short circuit proof; automatic
foldback.
• Current limiting – automatic reset
• Isolated floating output
• UL Recognized, CSA Certified
• Built-in OVP on 5 Volt models
• Terminal block on Case D models (24 V/6 A)
• One year warranty
±0.1%
0.1% pk/pk
10mv rms
±5% Minimum
Less than 50 msec
-40°C to +85°C
0°C to +50°C
0.03% °C
May be used
positive or negative
Protected with
Automatic Recovery
5%
120% Rated Current
30% Rated Current
1000 Megohms
D.C., 2500 VAC
Forced air. 20 CFM required for full
rating Derate 30% without cooling
Selection Table
Catalog Number
83-05-230-3
83-12-218-3
83-24-212-3
83-05-260-3
83-12-250-3
83-24-225-3
83-05-312-3
83-12-310-3
83-24-260-3
Output 1
5 V @ 3.0 A
12 V @ 1.8 A
24 V @ 1.2 A
5V@6A
12 V @ 5 A
24 V @ 2.5 A
5 V @ 12 A
12 V @ 10 A
24 V @ 6 A
Case
B
B
B
C
C
C
D
D
D
114
Visit our website at www.solaheviduty.com or
contact
Technical Services
at
(800) 377-4384
with any questions.
Power Supplies

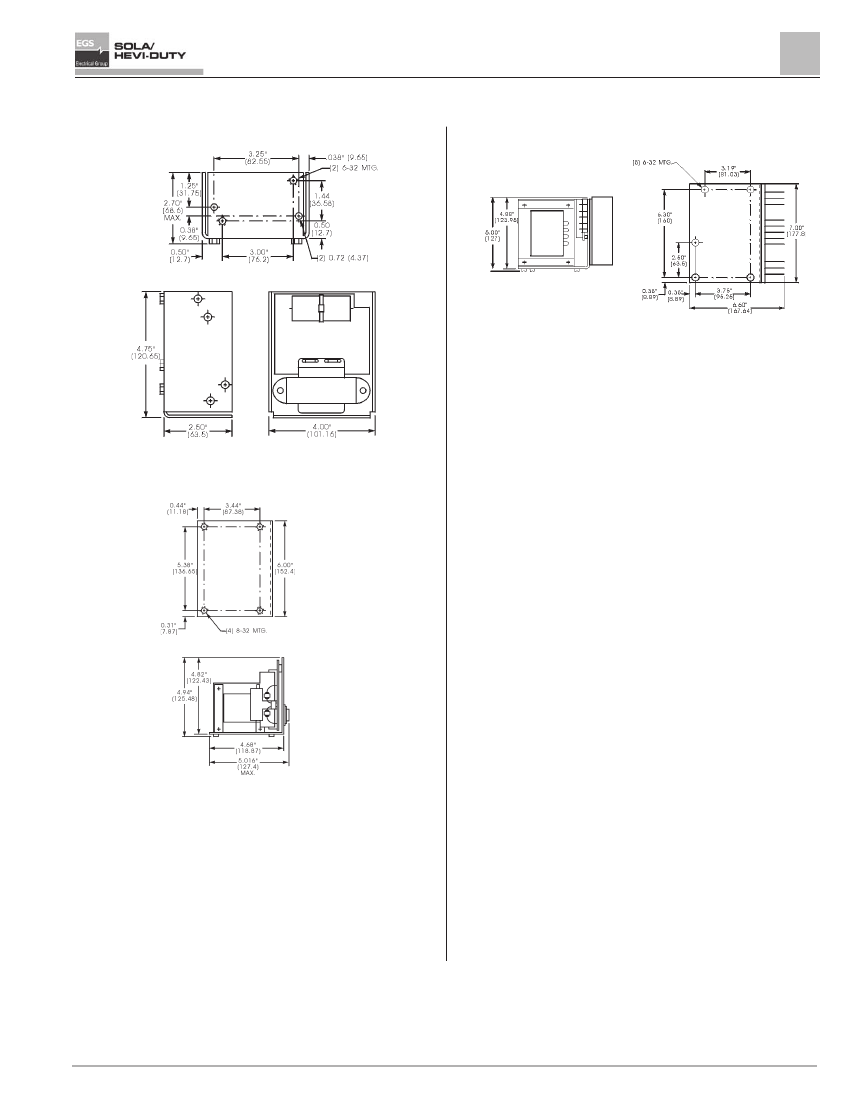

Linear OEM Cases and Dimensions
4
Case D
Notes:
All dimensions in inches (mm). Dimensions may change and should not be used for
construction purposes.
When ordering, be sure to specify the complete part number. Orders may be placed
with your local Sola/Hevi-Duty distributor.
Case B
Case C
Visit our website at www.solaheviduty.com or
Contact
Technical Services
at
(800) 377-4384
with any questions.
115
