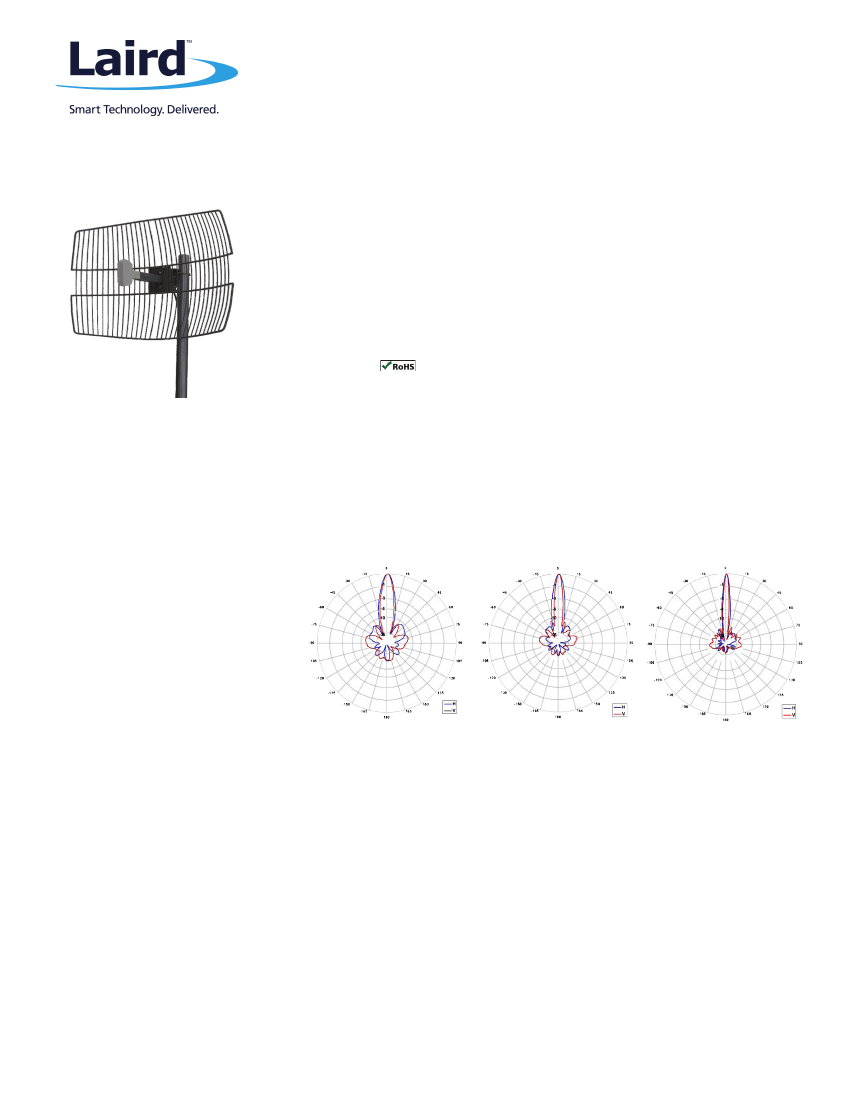

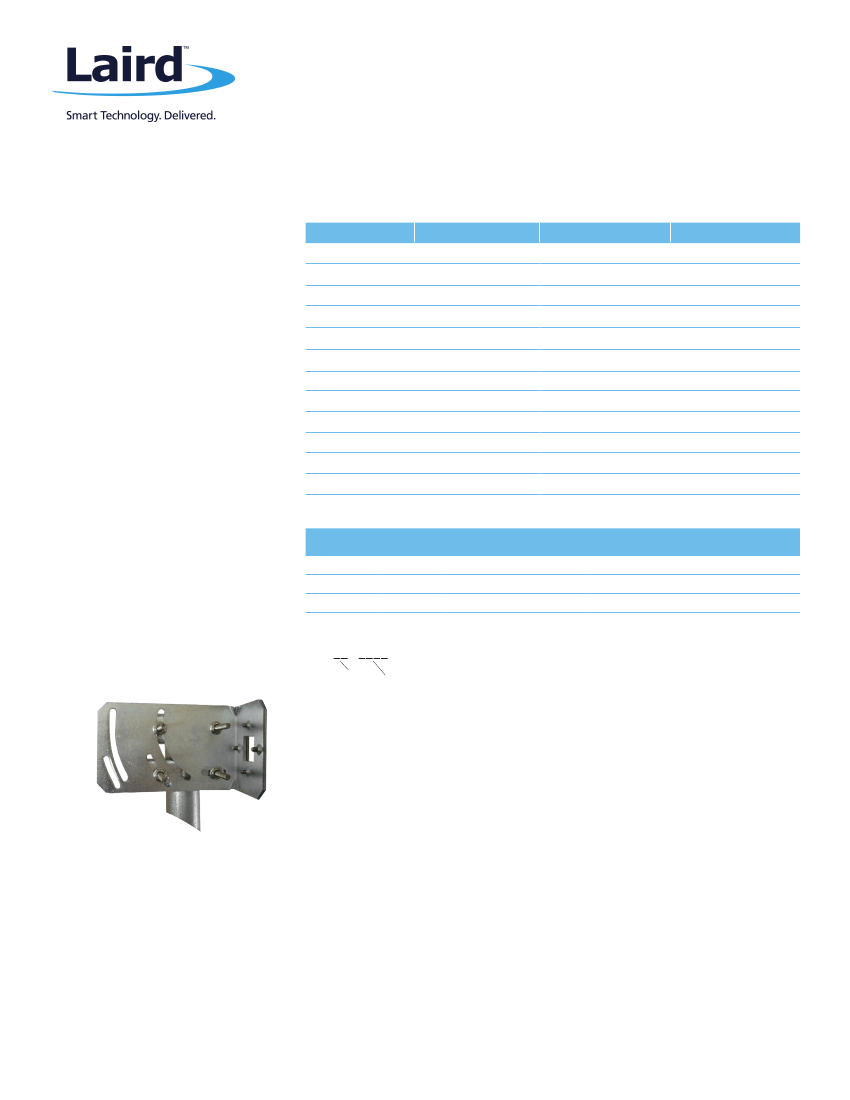

Grid Dish Parabolic Antenna
GD24
2400 TO 2485 MHz GRID DISH PARABOLIC ANTENNA
The 2.4 GHz parabolic grid directional antennas offered by Laird utilize a patented parabolic
grid design with a patented high performance dipole feed. The antennas are constructed of
welded steel wires which are galvanized and then powder coat painted with a light gray
epoxy paint. The wire grid semi-parabolic design offers unsurpassed low wind loading while
maintaining good RF performance. The compact low visual impact attractive styling blends
well in almost any application. Mounting is simplified with the Laird bracket system made of
galvanized steel with stainless steel hardware. A super heavy duty “HD” bracket system is
available for the 24 dB grid. The antennas come with a 30 inch pigtail with choice of N male,
N female or RPSMA connector.
FEATURES
•
•
•
•
•
•
15 dBi, 19 dBi, and 24 dBi models available
Rugged and weatherproof
Ultra low wind loading and low visual impact
Vertical or horizontal polarization
Various connector choices
Super HD bracket 2 dBi model
available for greater stability
MARKETS
•
•
•
•
•
2.4 GHz wireless LAN applications
Client antennas
802.11b/g applications
Point-to-point backhaul
WiMAX
ANTENNA PATTERN
2450.0 MHz
GD24-15
2450.0 MHz
GD24-19
2450.0 MHz
GD24-24
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
www.lairdtech.com
Grid Dish Parabolic Antenna
GD24
SPECIFICATIONS
PARAMETER
Frequency range
Gain
3dB beamwidth
Front to back
VSWR
Impedance
Input power
Operating temperature
Pole size
Weight
Dimension (W x L)
GD24-15
2400-2485 MHz
15 dBi
17° vert., 21° hor.
17 dB
1.5:1
50 ohm
100 watts
-40° to +70°C
1 to 2 in (25 to 50 mm)
4 lbs (1.8 kg)
12 x 16 in (305 x 406 mm)
45°
GD24-19
2400-2485 MHz
19 dBi
11° vert., 17° hor.
22 dB
1.5:1
50 ohm
100 watts
-40° to +70°C
1 to 2 in (25 to 50 mm)
6 lbs (2.7 kg)
16.5 x 24 in (419 x 610 mm)
45°
GD24-24
2400-2485 MHz
24 dBi
8° vert., 10° hor.
25 dB
1.5:1
50 ohm
100 watts
-40° to +70°C
1 to 2 in (25 to 50 mm)
11 lbs (5 kg)
28.5 x 36 in (724 x 914 mm)
45°
Bracket tilt
WIND LOADING (LBS.)
MODEL
GD24-15
GD24-19
GD24-24
SQ. IN
40
79
163
100 MPH
10 lbs
20 lbs
41 lbs
125 MPH
15.6 lbs
31 lbs
64 lbs
100 MPH WITH ½ IN RADIAL ICE
48 lbs
99 lbs
257 lbs
SYSTEM ORDERING
GD24-
p-
15
19
24
NM (N male)
NF (N female)
RSMA (RPSMA)
NOTES
• All shipments F.O.B. Schaumburg, IL 60173
* Super HD Bracket System Now Available for 24 dBi Grid.
Add “HD” as prefix to part number. Example:
HDGD24-24P-NF
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
