ERZ-U22JP162F: DescriptionVaristors ZNR Transient/Surge Absorb 104x204x122mm; CategoryCircuit protection; File Size137KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ERZ-U22JP162F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ERZ-U22JP162F	-	-	View	Buy Now

ERZ-U22JP162F Overview

Varistors ZNR Transient/Surge Absorb 104x204x122mm

ERZ-U22JP162F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panasonic
Product Category	Varistors
RoHS	Details
Product	MOV
Voltage Rating AC	825 VAC
Voltage Rating DC	1.167 kVDC
Varistor Voltage	1600 V
Clamping Voltage	2375 V
Peak Surge Current	35 kA
Surge Energy Rating	1.85 kJ
Capacitance	1200 pF
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 70 C
Packaging	Bulk
Height	102 mm
Length	204 mm
Mounting	Chassis
Type	Transient/Surge Absorbers
Width	104 mm
Lead Spacing	92 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

New Product Introduction

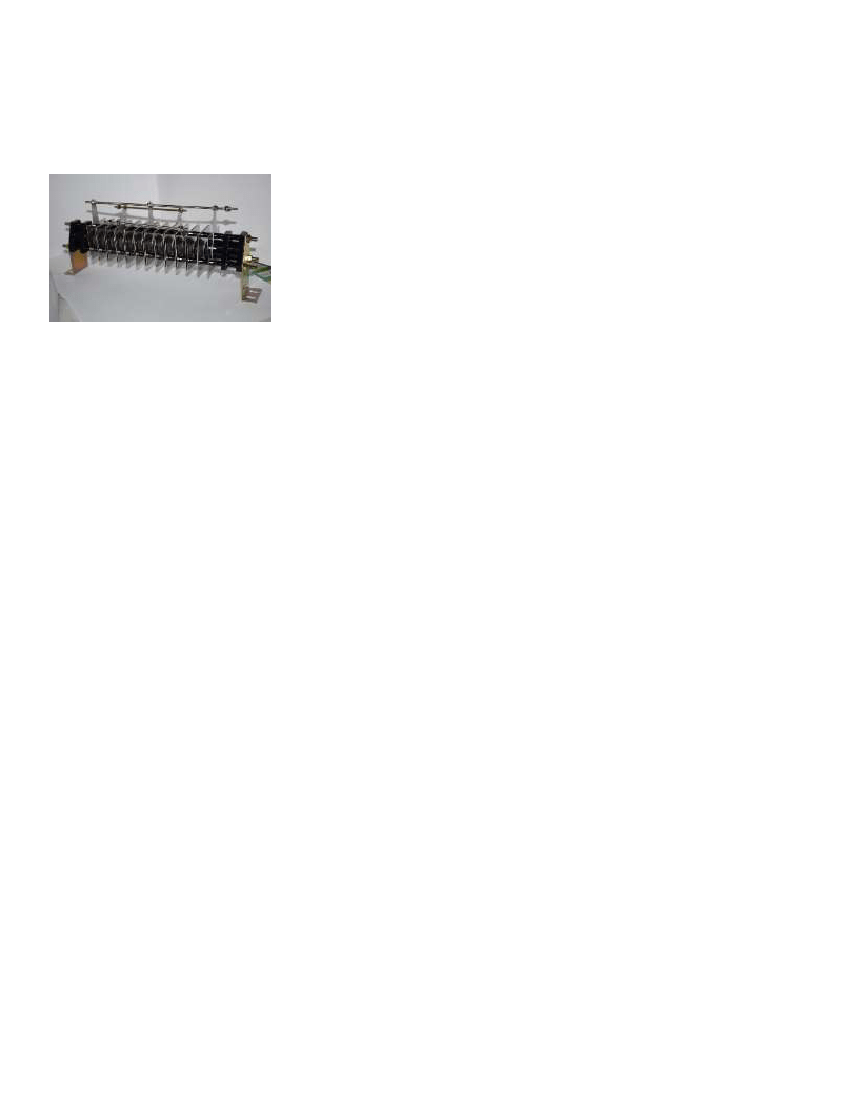

ERZ-UxxJ Series

“ZNR” Transient / Surge Absorbers (Type J)

Panasonic Introduces The New ERZ-UxxJ Series Vertical Mount Array Type Heavy Duty Threaded

Connections ZNR Surge Absorber!

Panasonic, a worldwide leader in Circuit Protection Products, announces the

NEW ERZ- UxxJ

Series “ZNR” Transient / Surge Absorbers, Type

J.

The

New ERZ-UxxJ Series Type J

is capable of handling larger surge energy than Type E in applications to protect SCR power controllers and

SCR power sources from high energy transient over voltages caused by switching and induced lightning surges.

Features

•

Benefits

•

Compact Size Vs. Conventional Selenium Surge Absorber

Single And 3 Phase (Delta) Configuration

High Reliability With Stable Characteristics

Direct Bolt-On Mounting

Improved Surge Protection

Compact Size

Excellent Voltage Clamping Characteristics As Compared With Conventional Selenium Surge Absorber

High Surge Current Capability

Fast Response To Transient Overvoltages

Low Clamping Voltage For Better Surge Protection

Single And 3 Phase (Delta) Configuration Available

Mounting Brackets

RoHS And REACH Compliant

Industries

•

Infrastructure

Alternative Energy

HVAC

Industrial Controls

Power Distribution

Power Supply
