PG1W-12-60-M3B2: DescriptionDC Fans Active Cooling for LED Modules & CoBs, Xicato XSM, 12VDC, 38W, 7dBA, 1800RPM, 197.5Khr Lifetime (at 20 C), Mounting M3 x 0.5, 5mm Thread Depth, Both Sides; CategoryThermal management products; File Size298KB，1 Pages; Manufacturerebm-papst; Websitehttp://www.ebmpapst.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PG1W-12-60-M3B2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PG1W-12-60-M3B2	-	-	View	Buy Now

PG1W-12-60-M3B2 Overview

DC Fans Active Cooling for LED Modules & CoBs, Xicato XSM, 12VDC, 38W, 7dBA, 1800RPM, 197.5Khr Lifetime (at 20 C), Mounting M3 x 0.5, 5mm Thread Depth, Both Sides

PG1W-12-60-M3B2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ebm-papst
Product Category	DC Fans
RoHS	Details
Frame Dimensions - mm	72.14 mm L x 60.2 mm W x 72.14 mm H
Operating Supply Voltage	12 VDC
Speed	1800 RPM
Noise	7 dBA
Power Rating	38 W
Termination Style	Wire Leads
Height	72.14 mm
Length	72.14 mm
Size	72.14 mm
Width	60.2 mm
Current Type	DC
Factory Pack Quantity	1
Unit Weight	5.185272 oz

Preview

Download Datasheet

View All

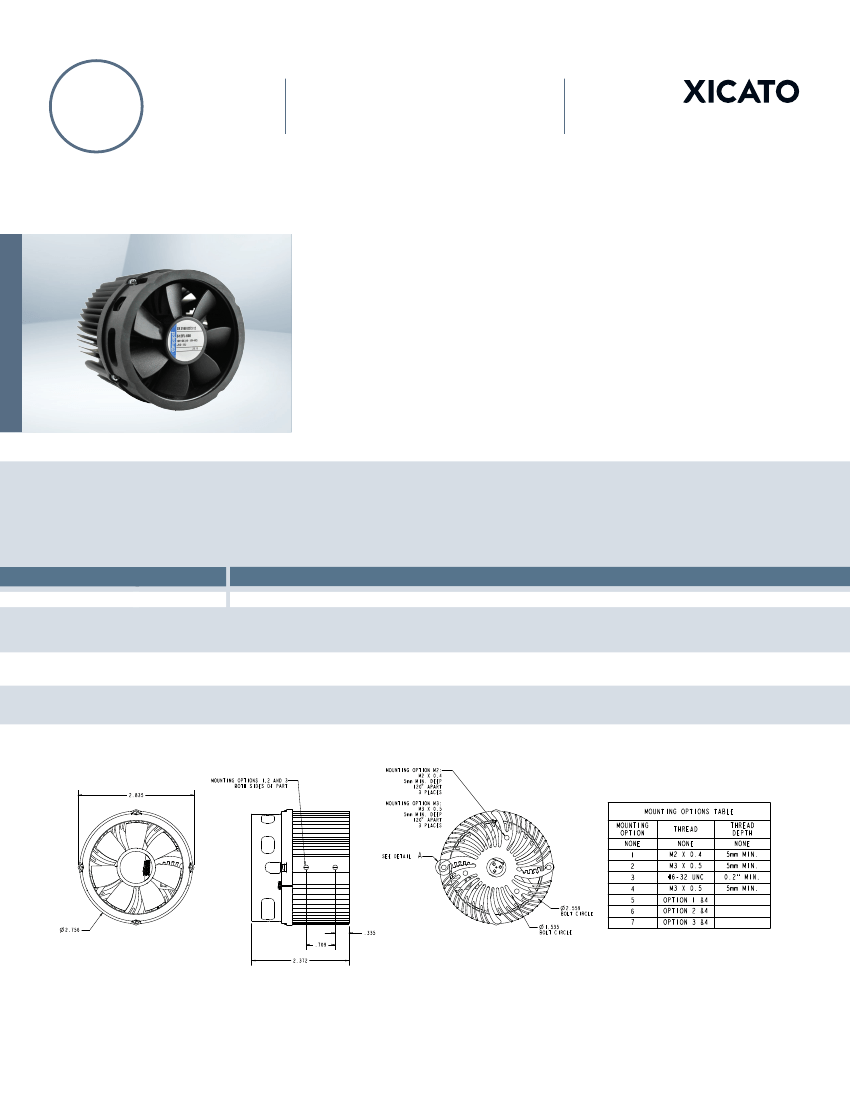

XICATO

XSM

Active cooling module

DC axial fan + heat sink

Highlights:

– Active cooling solution for Xicato light engines

– Xicato XSM light engines

– Industry leading lifetime

– Silent fan operation 7dBA

– Increased lumen output capability

– Commonly used in architectural, pendant, track, spot and downlight applications

– Highly efficient .18 Watt

– Thermal power dissipation up to 40 Watts

Thermal power

dissipation capability*

Lifetime (at 20°C)

Lifetime (at 40°C)

Nominal Data

Type

PG1W-12-60-M3BN

VDC

12

dB(A)

7

Watts

38

RPM

1800

G

147

Watts

0.18

hours

197,500

years

22.5

hours

87,500

years

10

Note: Voltages are based on the 612F base fan model. Other voltages available upon request. Life expectancy L

10

per IPC 9591.

*Application dependant.

Technical Drawing

Dimensions shown in inches

Lifetime (at 40°C)

Nominal voltage

Acoustic noise

Power input

Total mass

Fan speed
