DFW-RAV120-98-3A: DescriptionBoard Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.024 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size203KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric View All

DFW-RAV120-98-3A Overview

Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.024 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

DFW-RAV120-98-3A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.256 inch
subject depth	0.386 inch
body length	1.772 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	100 mΩ
Dielectric withstand voltage	150VAC V
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	DFW
Plug contact pitch	0.024 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	120
Base Number Matches	1

Preview

Download Datasheet

View All

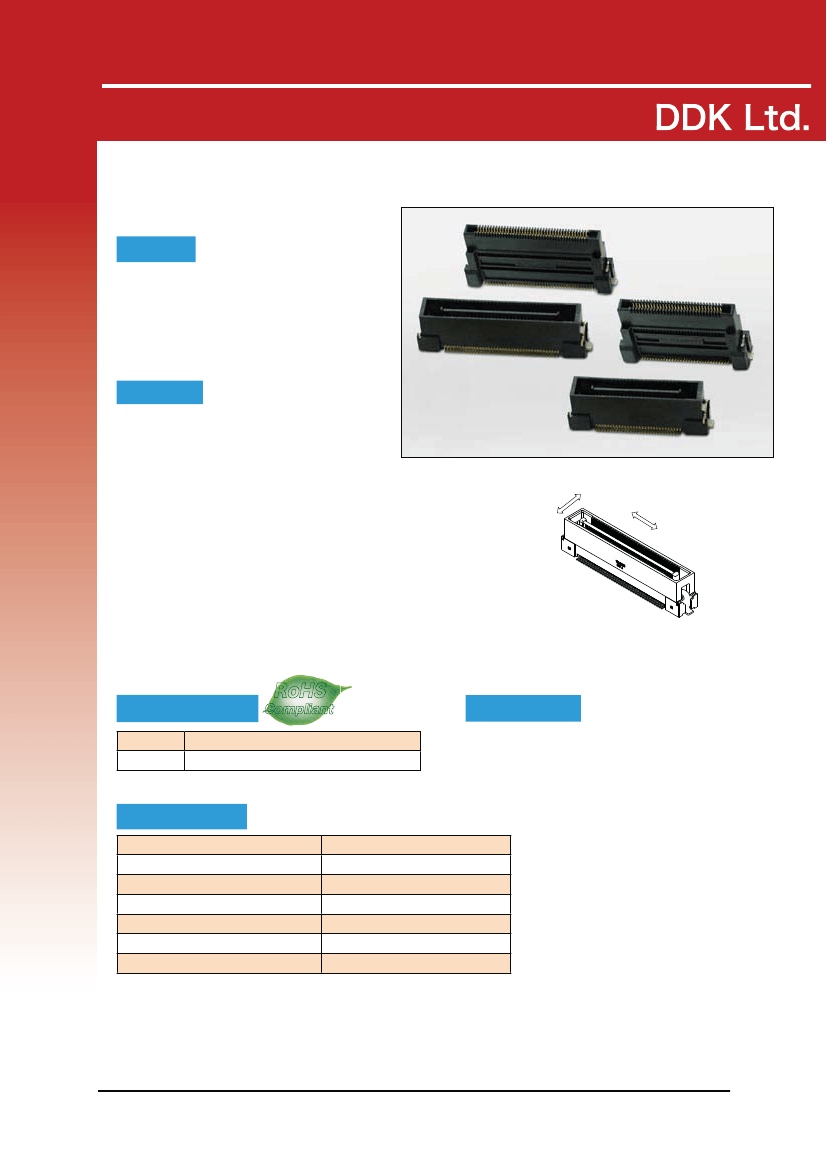

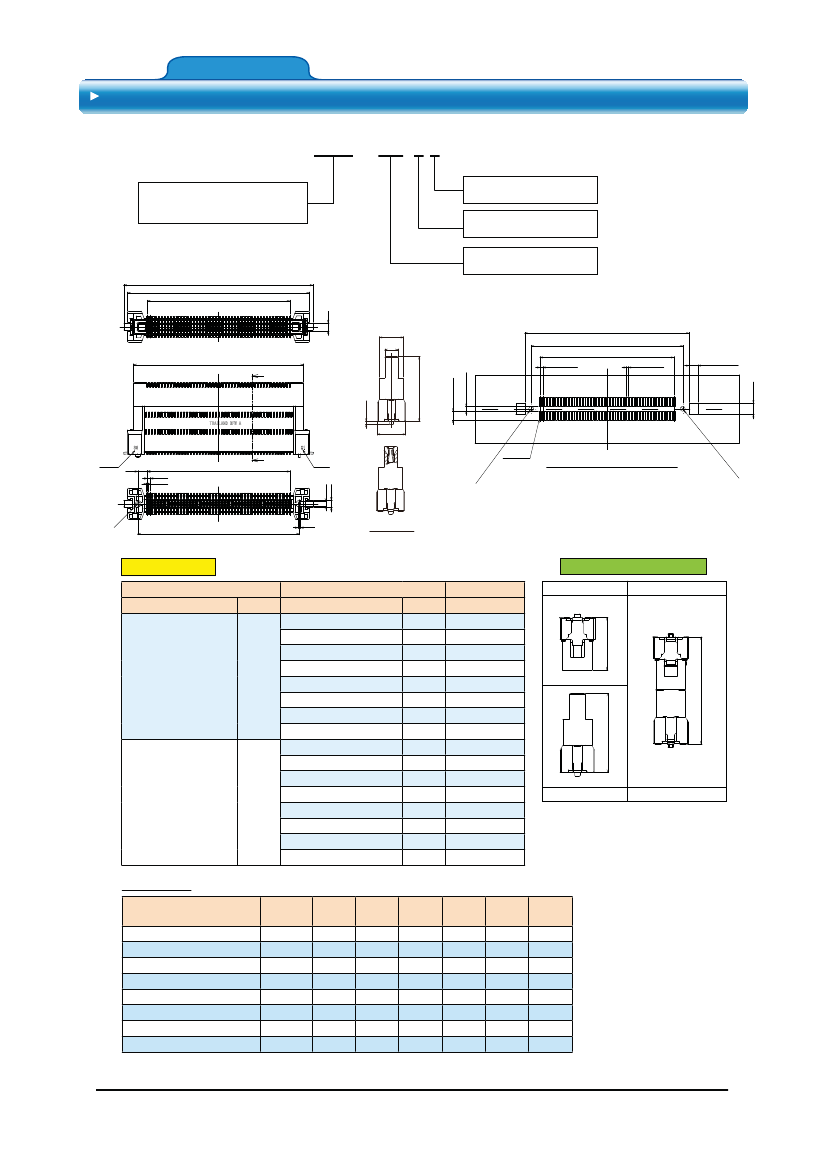

0.6mm Pitch Floating Connector

DFW Series

OUTLINE

DFW series is a 0.6mm pitch board

to board connectors which offset

the gap between parallel boards by

moving in X and Y axis.

FEATURES

・Number of Contact：20 ∼ 160 Contacts

・Stacking Height：13 ∼ 25 ½½

・Contact Pitch：0.6 ½½

・Floating

Mechanism

Ｙ Axis(Short Edge)： 0.5 ½½

Ｘ Axis(Long Edge) ： 0.5 ½½

・Eﬀective Contact Length：2.0 ½½

・Solid design to thicken the housing

・ Stacking heights can be selected by changing

receptacle connectors.

・Applied DDK original ﬂoating mechanism

Y Axis

X Axis

RoHS

MATERIAL / FINISH

Compliant

Contact

Housing

Copper Alloy / Au over Ni Plating

LCP Resin (UL94V-0) / Black

APPLICATIONS

FA, Car Electronics, Mobile Devises,

Plural Connectors use for board to

board connection

SPECIFICATIONS

Rated Voltage

Rated Current

Dielectric Withstanding Voltage

Insulation Resistance

Contact Resistance

Number of Contact

Stacking Height

50V AC(r.m.s.)

0.5A / Contact

150V AC (r.m.s.) at 1 minute

100 ＭΩ min. at 100V DC

100m Ω max. (Initial)

20 ∼ 160 Contacts

13mm ∼ 25mm

※ Regarding the number of contact and connector height,

please contact us.

◎ Speciﬁcations and/or dimenssions in this catalogue are subject to change without notice.

Your catalogue checking the latest speiﬁcations with our drawings would be highly appreciated.

110707

http://www.ddknet.co.jp
