Multilayer Chip Inductors
EPICL Type
ELECTRONICS INC.
Applications :
Mother Boards, CD ROM, Hard Disk Drivers,
Wireless Phones, Pagers and other similar devices
Specifications :
Operating/Storage Temperature : -55°C to +125°C
Terminal : Ag/Ni/Sn
Material : Ferrite
Product Identification
EPICL
Tolerance
Inductance
Dimensions
Product Code
: Inductance Tolerance (G = 2%, J = 5%, K = 10%, M = 20%)
D
Shape and Dimension
Ferrite
Terminal Electrode
D
C
.078 ± .019
(2.00 ± .500)
.039
(1.00)
.512 ± .019
(13.00 ± .500)
B ± .039 (1.00)
.827 ± .031
(21.00 ± .800)
A±
.079 (2.00)
C ± .039 (1.00)
Type
EPICL160808
EPICL201209
EPICL201212
D ± .020 (.500)
A
B
Package Dimensions
A
Inches
(mm)
.062 ± .008
(1.60 ± .200)
.079 ± .008
(2.00 ± .200)
.079 ± .008
(2.00 ± .200)
.126 ± .008
(3.20 ± .200)
.126 ± .008
(3.20 ± .200)
B
Inches
(mm)
.031 ± .006
(.800 ± .200)
.047 ± .008
(1.20 ± .200)
.047 ± .008
(1.20 ± .200)
.062 ± .008
(1.60 ± .200)
.098 ± .008
(2.50 ± .200)
C
Inches
(mm)
.031 ± .006
(.800 ± .200)
.035 ± .008
(.900 ± .200)
.047 ± .008
(1.20 ± .200)
.043 ± .008
(1.10 ± .200)
.051 ± .011
(1.30 ± .300)
D
Inches
(mm)
.011 ± .011
(.300 ± .300)
.020 ± .011
(.500 ± .300)
.020 ± .011
(.500 ± .300)
.020 ± .011
(.500 ± .300)
.020 ± .011
(.500 ± .300)
Reel Dimensions
Type
EPICL160808
EPICL201209
EPICL201212
EPICL321611
EPICL322513
A
Inches
(mm)
7.00
(178)
7.00
(178)
7.00
(178)
7.00
(178)
7.00
(178)
B
Inches
(mm)
2.95
(75)
2.95
(75)
2.95
(75)
2.95
(75)
2.95
(75)
C
Inches
(mm)
0.492
(12.5)
0.492
(12.5)
0.492
(12.5)
0.492
(12.5)
0.492
(12.5)
D
Inches
(mm)
0.078
(2)
0.078
(2)
0.078
(2)
0.078
(2)
0.078
(2)
Chip/Reel
Quantity
4000
4000
2000
3000
2500
EPICL321611
EPICL322513
.157 ± .004
(4.00 ± .100)
W
± .008
(± .200)
F
± .002
(± .050)
.689
.079 ± .004
± .002 (17.50
(2.00 ± .100)
± .050)
Tape Dimensions
K
± .002
(± .050)
Type
EPICL160808
EPICL201209
EPICL201212
EPICL321611
EPICL322513
A
Inches
(mm)
.042
(1.08)
.056
(1.42)
.059
(1.50)
.076
(1.94)
.110
(2.80)
B
Inches
(mm)
.074
(1.15)
.088
(2.24)
.090
(2.30)
.139
(3.54)
.135
(3.42)
T
Inches
(mm)
.041
(1.05)
.040
(1.04)
.063
(1.60)
.051
(1.29)
.065
(1.64)
W
Inches
(mm)
.315
(8.00)
.315
(8.00)
.315
(8.00)
.315
(8.00)
.315
(8.00)
P
Inches
(mm)
.157
(4.00)
.157
(4.00)
.157
(4.00)
.157
(4.00)
.157
(4.00)
F
Inches
(mm)
.138
(3.50)
.138
(3.50)
.138
(3.50)
.138
(3.50)
.138
(3.50)
K
Inches
(mm)
.008
(.200)
.008
(.200)
.008
(.200)
.008
(.200)
.008
(.200)
B ± .004
(± .100)
A
± .004
(± .100)
T
± .002
(± .050)
P
± .004
(± .100)
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSICL
Rev. -
3/26/08 MH
1
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
Multilayer Chip Inductors
EPICL Type
ELECTRONICS INC.
Electrical Characteristics
Part
Number
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL160808
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201209
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
EPICL201212
47NM
68NM
82NM
R10K
R12K
R15K
R18K
R22K
R27K
R33K
R39K
R47K
R56K
R68K
R82K
1R0K
1R2K
1R5K
1R8K
2R2K
2R7K
3R3K
3R9K
4R7K
5R6K
6R8K
8R2K
100K
120K
150K
180K
220K
270K
330K
47NM
68NM
82NM
R10K
R12K
R15K
R18K
R22K
R27K
R33K
R39K
R47K
R56K
R68K
R82K
1R0K
1R2K
1R5K
1R8K
2R2K
2R7K
3R3K
3R9K
4R7K
5R6K
6R8K
8R2K
100K
120K
150K
180K
220K
270K
330K
Inductance
(µH)
0.047 ± 20%
0.068 ± 20%
0.082 ± 20%
0.10 ± 10%
0.12 ± 10%
0.15 ± 10%
0.18 ± 10%
0.22 ± 10%
0.27 ± 10%
0.33 ± 10%
0.39 ± 10%
0.47 ± 10%
0.56 ± 10%
0.68 ± 10%
0.82 ± 10%
1.0 ± 10%
1.2 ± 10%
1.5 ± 10%
1.8 ± 10%
2.2 ± 10%
2.7 ± 10%
3.3 ± 10%
3.9 ± 10%
4.7 ± 10%
5.6 ± 10%
6.8 ± 10%
8.2 ± 10%
10 ± 10%
12 ± 10%
15 ± 10%
18 ± 10%
22 ± 10%
27 ± 10%
33 ± 10%
0.047 ± 20%
0.068 ± 20%
0.082 ± 20%
0.10 ± 10%
0.12 ± 10%
0.15 ± 10%
0.18 ± 10%
0.22 ± 10%
0.27 ± 10%
0.33 ± 10%
0.39 ± 10%
0.47 ± 10%
0.56 ± 10%
0.68 ± 10%
0.82 ± 10%
1.0 ± 10%
1.2 ± 10%
1.5 ± 10%
1.8 ± 10%
2.2 ± 10%
2.7 ± 10%
3.3 ± 10%
3.9 ± 10%
4.7 ± 10%
5.6 ± 10%
6.8 ± 10%
8.2 ± 10%
10 ± 10%
12 ± 10%
15 ± 10%
18 ± 10%
22 ± 10%
27 ± 10%
33 ± 10%
Q
(Min.)
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
30
30
30
30
30
30
30
30
30
30
30
30
30
30
20
20
20
20
20
15
15
15
20
20
20
20
20
20
20
25
25
25
25
25
45
45
45
45
45
45
45
45
45
45
45
45
45
45
30
30
30
30
30
Test Frequency
(MHz)
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
1
1
1
1
1
1
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
1
1
1
1
0.4
Self Resonant
Frequency
(MHz Min.)
260
250
250
240
205
180
165
150
136
125
110
105
95
80
75
70
60
55
50
45
40
38
36
33
22
20
18
17
15
14
13
11
10
9
320
280
255
235
220
200
185
170
150
145
135
125
115
105
100
75
65
60
55
50
45
41
38
35
32
29
26
24
22
19
18
16
14
13
DC Resistance
RDC
(Ω Max.)
0.30
0.30
0.30
0.50
0.50
0.60
0.60
0.80
0.80
0.85
1.00
1.35
1.55
1.70
2.10
0.60
0.80
0.80
0.95
1.15
1.35
1.55
1.70
2.10
1.55
1.70
2.10
2.55
2.75
1.70
1.85
2.15
2.75
2.95
0.20
0.20
0.20
0.30
0.30
0.40
0.40
0.50
0.50
0.55
0.65
0.65
0.75
0.80
1.00
0.40
0.50
0.50
0.60
0.65
0.75
0.80
0.90
1.00
0.90
1.00
1.10
1.15
1.25
0.80
0.90
1.10
1.15
1.25
Rated Current
IDC
(mA Max.)
50
50
50
50
50
50
50
50
50
35
35
35
35
35
35
25
25
25
25
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
300
300
300
250
250
250
250
250
250
250
200
200
150
150
150
50
50
50
50
30
30
30
30
30
15
15
15
15
15
5
5
5
5
5
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSICL
Rev. -
3/26/08 MH
2
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
Multilayer Chip Inductors
EPICL Type
ELECTRONICS INC.
Electrical Characteristics
Part
Number
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
EPICL321611
47NM
68NM
82NM
R10K
R12K
R15K
R18K
R22K
R27K
R33K
R39K
R47K
R56K
R68K
R82K
1R0K
1R2K
1R5K
1R8K
2R2K
2R7K
3R3K
3R9K
4R7K
5R6K
6R8K
8R2K
100K
120K
150K
180K
220K
270K
330K
Inductance
(µH)
0.047 ± 10%
0.068 ± 10%
0.082 ± 10%
0.10 ± 10%
0.12 ± 10%
0.15 ± 10%
0.18 ± 10%
0.22 ± 10%
0.27 ± 10%
0.33 ± 10%
0.39 ± 10%
0.47 ± 10%
0.56 ± 10%
0.68 ± 10%
0.82 ± 10%
1.0 ± 10%
1.2 ± 10%
1.5 ± 10%
1.8 ± 10%
2.2 ± 10%
2.7 ± 10%
3.3 ± 10%
3.9 ± 10%
4.7 ± 10%
5.6 ± 10%
6.8 ± 10%
8.2 ± 10%
10 ± 10%
12 ± 10%
15 ± 10%
18 ± 10%
22 ± 10%
27 ± 10%
33 ± 10%
Q
(Min.)
20
20
20
20
20
20
20
20
20
20
25
25
25
25
25
45
45
45
45
45
45
45
45
45
50
50
50
50
50
35
35
35
35
35
Test Frequency
(MHz)
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
1
1
1
1
0.4
Self Resonant
Frequency
(MHz Min.)
320
280
260
135
220
200
185
170
152
145
135
125
115
105
100
75
65
60
55
50
45
41
38
35
32
29
26
24
22
19
18
16
14
13
DC Resistance
RDC
(Ω Max.)
0.15
0.25
0.25
0.25
0.30
0.30
0.40
0.40
0.50
0.50
0.60
0.60
0.70
0.80
0.90
0.40
0.50
0.50
0.50
0.60
0.60
0.70
0.80
0.90
0.70
0.80
0.90
1.00
1.05
0.70
0.70
0.90
0.90
1.05
Rated Current
IDC
(mA Max.)
300
300
300
250
250
250
250
250
250
250
250
200
200
150
150
100
100
50
50
50
50
50
50
50
25
25
25
25
15
5
5
5
5
5
Part
Number
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
EPICL322513
R12
R15
R18
R22
R27
R33
R39
R47
R56
R68
R82
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
Inductance
L
(µH)
0.12 ± 10%
0.15 ± 10%
0.18 ± 10%
0.22 ± 10%
0.27 ± 10%
0.33 ± 10%
0.39 ± 10%
0.47 ± 10%
0.56 ± 10%
0.68 ± 10%
0.82 ± 10%
1.0 ± 10%
1.2 ± 10%
1.5 ± 10%
1.8 ± 10%
2.2 ± 10%
2.7 ± 10%
3.3 ± 10%
3.9 ± 10%
4.7 ± 10%
5.6 ± 10%
6.8 ± 10%
8.2 ± 10%
10 ± 10%
12 ± 10%
15 ± 10%
18 ± 10%
22 ± 10%
27 ± 10%
33 ± 10%
Q
(Min.)
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
Test Frequency
(MHz)
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
Self Resonant
Frequency
(MHz Min.)
500
450
400
350
320
300
250
220
180
160
140
120
100
85
80
75
70
60
55
50
47
43
40
36
33
30
27
25
20
19
DC
Resistance
(Ω Max.)
0.22
0.25
0.28
0.30
0.36
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.85
0.90
1.00
1.10
1.20
1.30
1.50
1.60
1.80
2.00
2.10
2.50
2.80
3.30
3.70
5.00
5.60
Rated
Current
(mA Max.)
450
450
450
450
450
450
450
450
450
450
450
400
390
370
350
320
290
260
250
220
200
180
170
150
140
130
120
110
80
70
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSICL
Rev. -
3/26/08 MH
3
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
Multilayer Chip Inductors
EPICL Type
ELECTRONICS INC.
EPICL Series, 1608 Type

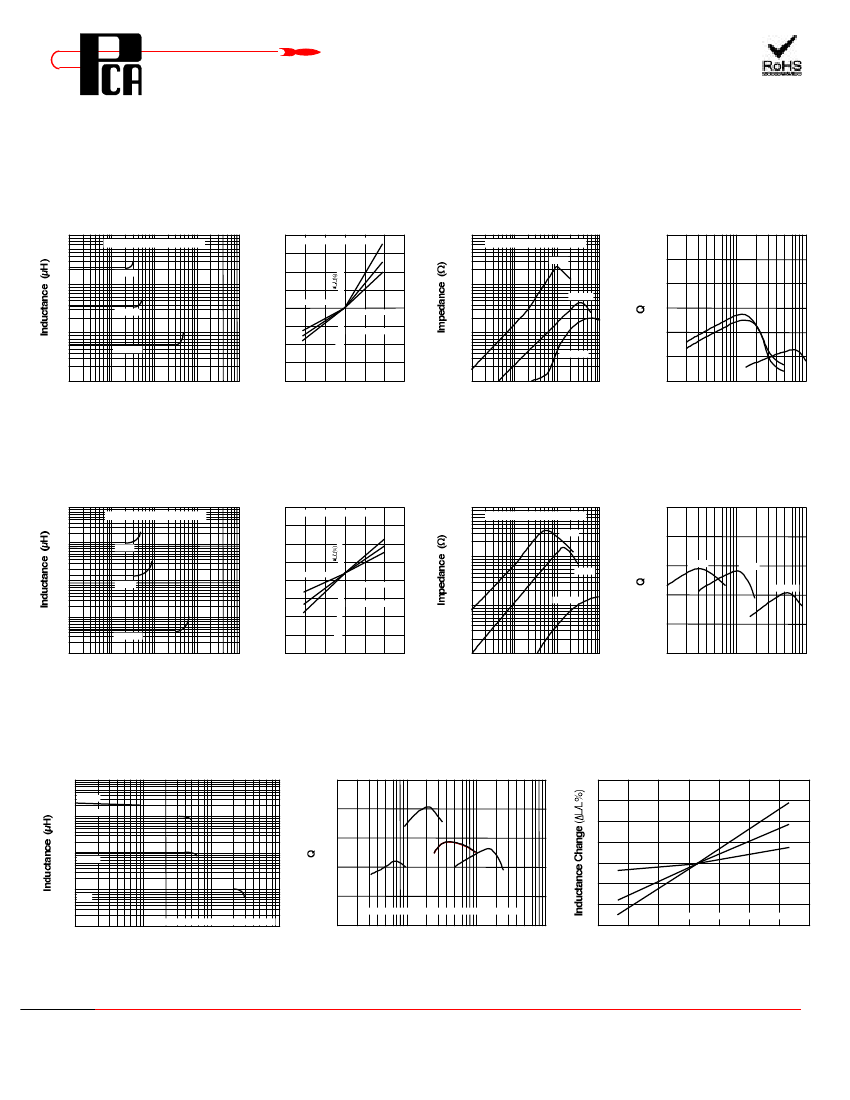

Typical Electrical Characteristics
Inductance vs Frequency
10
Test Equipment : HP4291A
Inductance vs Temperature
Test Equipment : HP4291A
Impedance vs Frequency
10000
Test Equipment : HP4291A
22 µH
Q vs Frequency
120
100
80
.068 µH
22 µH
22 µH
10
5
-25
-0
25
-5
50
0.39 µH
1
0.39 µH
1000
0.39 µH
85
60
100
0.068 µH
01
0.068 µH
.068 µH
22 µH
0.39 µH
Temperature (°C)
-10
40
20
0
1
10
Frequency (MHz)
100
001
1
10
100
1000
Frequency (MHz)
10000
10
1
10
100
Frequency (MHz)
1000
EPICL Series, 2012 Type
Typical Electrical Characteristics
Inductance vs Frequency
100
Test Equipment : HP4291A
Inductance vs Temperature
Test Equipment : HP4291A
Impedance vs Frequency
10000
Test Equipment : HP4291A
12 µH
Q vs Frequency
100
80
60
40
20
8.2 µH
1.5 µH
0.047 µH
10
1.5 µH
12 µH
8
4
12 µH
0.047 µH
1000
1.5 µH
1
-25
-0
25
50
85
1.5 µH
.047 µH
-4
1.5 µH
Temperature (°C)
-8
-12
100
0.047 µH
01
0.047 µH
12 µH
001
1
10
100
1000
Frequency (MHz)
10000
10
1
10
100
Frequency (MHz)
1000
0
1
10
Frequency (MHz)
100
EPICL 3216 Series, 3225 Series
Typical Electrical Characteristics
Inductance vs DC Superposition
1000
220 µH
Q vs Frequency
100
8
6
Inductance Change vs Superposition
100
100 µH
80
100 µH
100 µH
4
10 µH
60
10
100 µH
1 µH
2
0
-2
1 µH,
200 µH
10 µH
Test Instrument : HP4191A RF Impedance Analyzer
1 µH
200 µH
22 µH
40
1
1 µH
20
Test Instrument : HP4261A Digital Meter
-4
100
-6
-40
100 µH
Test Instrument : HP4261A Digital Meter
0.1
11
10
100
DC Current (mA)
1000
0
0.1
1
10
Frequency (MHz)
-25
0
20
40
60
Temperature (°C)
80
100
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSICL
Rev. -
3/26/08 MH
4
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
京公网安备 11010802033920号
EEWORLD
