RK 120M-676/25F datasheet, PDF

Datasheet> All Categories > Wire/cable> RK 120M-676/25F

RK 120M-676/25F: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size941KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric Compare View All

RK 120M-676/25F Overview

Sensor Cables / Actuator Cables

RK 120M-676/25F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	1-1/8 in
Connector End A Pin Count	12 Position
Connector End B	No Connector
Connector End B Pin Count	-
Gender	Female
Length	25 ft
Current Rating	5 A
Voltage Rating	300 V
Number of Conductors	12 Conductor
Color	Yellow
Jacket Material	Polyurethane (PUR)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

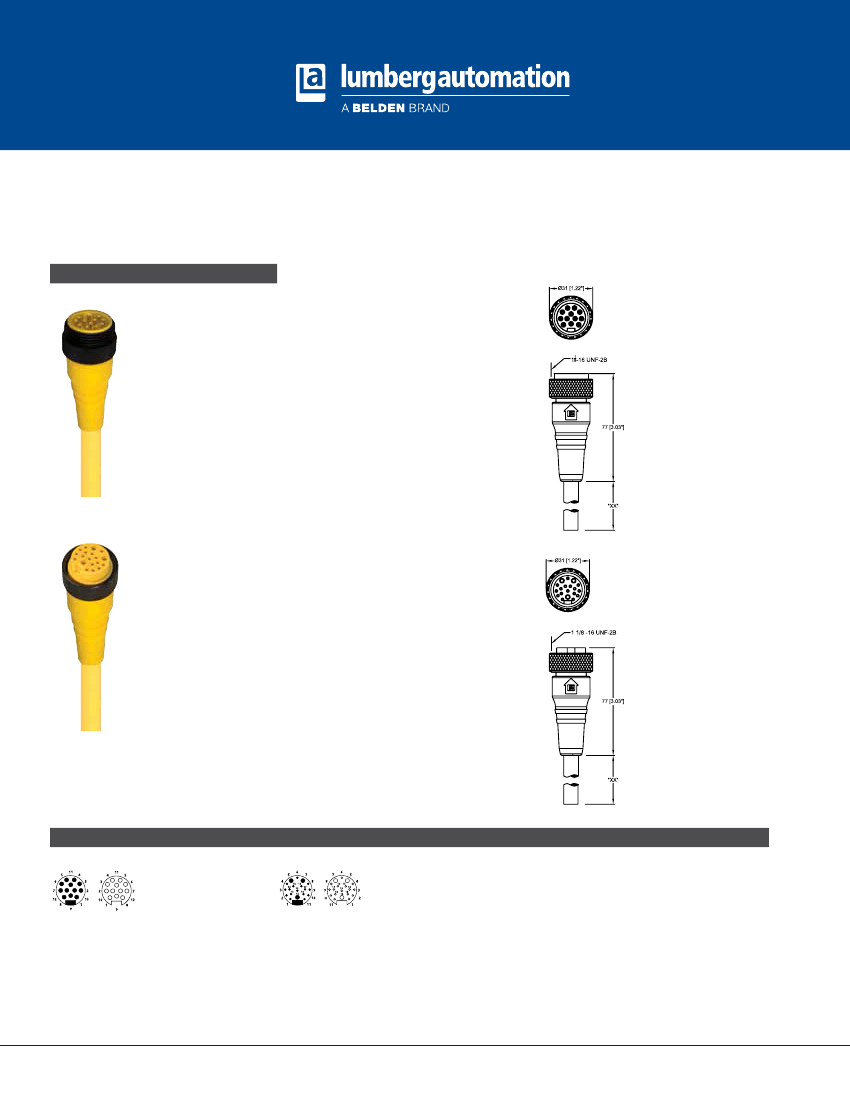

Mini, 1 1/8”-Round-Plug Connector, Single-Ended Cordsets,

Numeric Color Code

RS 120M...190M | RK 120M...190M

12- and 19-Poles

Mini, 1 1/8” single-ended cordsets, male

straight, 12- and 19-poles with external

threads and molded PUR or TPE cable,

Numeric color code.

Mini, 1 1/8” single-ended cordsets, female

straight, 12- and 19-poles with internal

threads and molded PUR or TPE cable,

Numeric color code.

Pin Assignments

Mini, 1 1/8” - Male / Female

12 poles

10 =

11 =

12 =

black w/ number “1”

black w/ number “2”

black w/ number “3”

black w/ number “4”

black w/ number “5”

black w/ number “6”

black w/ number “7”

black w/ number “8”

green w/yellow tracer

black w/ number “10”

black w/ number “11”

black w/ number “12”

19 poles

10 =

11 =

12 =

13 =

14 =

15 =

16 =

17 =

18 =

19 =

black w/ number “1”

black w/ number “2”

black w/ number “3”

black w/ number “4”

black w/ number “5”

black w/ number “6”

black w/ number “7”

black w/ number “8”

black w/ number “9”

black w/ number “10”

black w/ number “11”

green w/yellow tracer

black w/ number “13”

black w/ number “14”

black w/ number “15”

black w/ number “16”

black w/ number “17”

black w/ number “18”

black w/ number “19”

19 poles - current rating

1-4, 6, 8-11, and 13-19 = 3 A

5 and 7 = 8 A

12 = Ground”

160

1.800.Belden1 |

www.lumberg-automationusa.com

Technical Support:

1-717-217-2289

www.lumberg-automationusa.com

RK 120M-676/25F Related Products

	RK 120M-676/25F	RK 190M-669/60M	RK 190M-669/30F	RK 120M-676/15F	RK 120M-676/10M	RK 120M-776/10M	RK 120M-676/2M	RK 190M-669/6M	RK 190M-669/30M	RK 120M-676/25M
Description	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Connector End A	1-1/8 in	1-1/8 in	1-1/8 in	1-1/8 in	1-1/8 in	1-1/8 in	1-1/8 in	1-1/8 in	1-1/8 in	1-1/8 in
Connector End A Pin Count	12 Position	19 Position	19 Position	12 Position	12 Position	12 Position	12 Position	19 Position	19 Position	12 Position
Connector End B	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector
Gender	Female	Female	Female	Female	Female	Female	Female	Female	Female	Female
Length	25 ft	60 m	30 ft	15 ft	10 m	10 m	2 m	6 m	30 m	25 m
Current Rating	5 A	8 A	8 A	5 A	5 A	5 A	5 A	8 A	8 A	5 A
Voltage Rating	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V
Number of Conductors	12 Conductor	19 Conductor	19 Conductor	12 Conductor	12 Conductor	12 Conductor	12 Conductor	19 Conductor	19 Conductor	12 Conductor
Color	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow
Jacket Material	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Thermoplastic Elastomer (TPE)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)
Factory Pack Quantity	1	1	1	1	1	1	1	1	1	1
