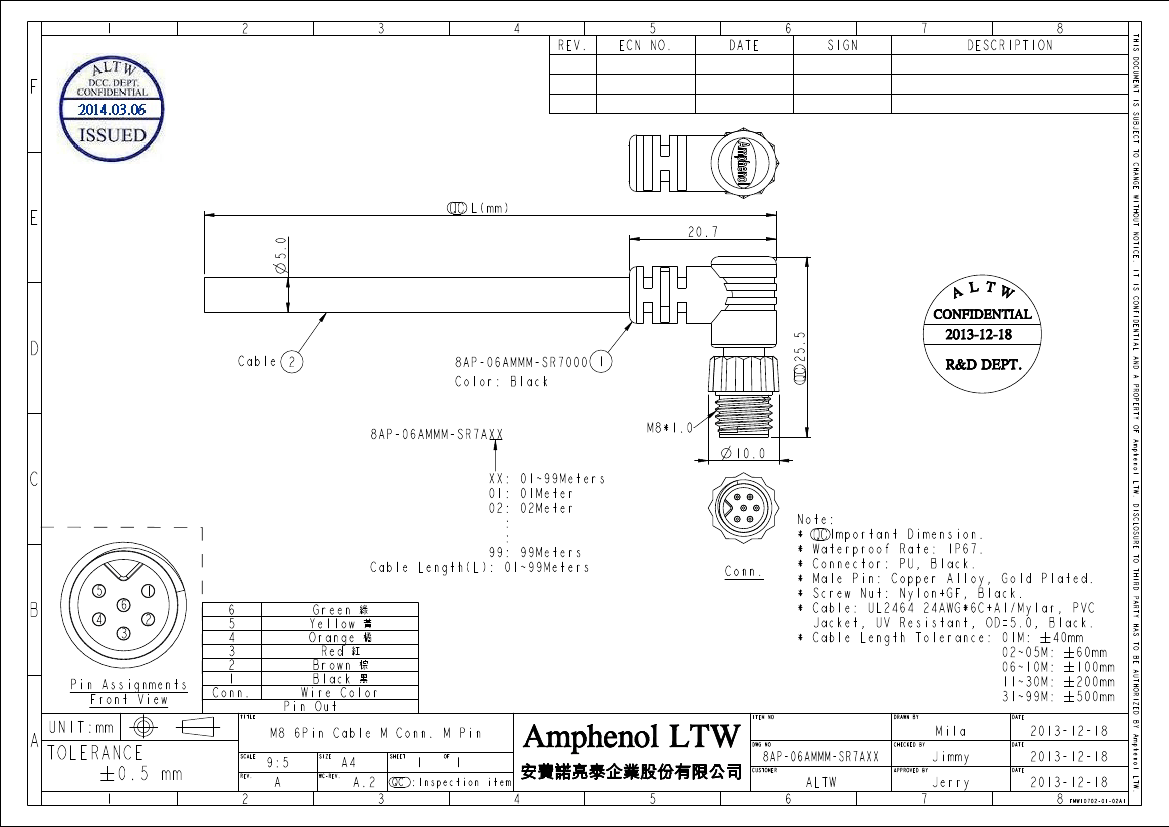

Cable
8AP-06AMMM-SR7000 1
Color: Black
25.5
D
2013-12-18
R&D DEPT.
QC
2
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
8AP-06AMMM-SR7AXX
M8*1.0
10.0
C
XX: 01~99Meters
01: 01Meter
02: 02Meter
:
:
99: 99Meters
Cable Length(L): 01~99Meters
5
1
6
4
3
2
6
5
4
3
2
1
Conn.
TITLE
Conn.
B
Pin Assignments
Front View
Green 綠
Yellow 黃
Orange 橘
Red 紅
Brown 棕
Black 黑
Wire Color
Pin Out
M8 6Pin Cable M Conn. M Pin
Note:
* Important Dimension.
QC
* Waterproof Rate: IP67.
* Connector: PU, Black.
* Male Pin: Copper Alloy, Gold Plated.
* Screw Nut: Nylon+GF, Black.
* Cable: UL2464 24AWG*6C+Al/Mylar, PVC
Jacket, UV Resistant, OD=5.0, Black.
* Cable Length Tolerance: 01M: # 40mm
02~05M: # 60mm
06~10M: # 100mm
11~30M: # 200mm
31~99M: # 500mm
DRAWN BY
DATE
A
UNIT:mm
TOLERANCE
# 0.5 mm
1
SCALE
9:5
A
SIZE
A4
A.2
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
Mila
DWG NO
CHECKED BY
DATE
2013-12-18
2013-12-18
DATE
Amphenol LTW.
1
8AP-06AMMM-SR7AXX
CUSTOMER
APPROVED BY
Jimmy
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
2
2013-12-18
8
FMW10702-01-02A1
Embedded System
