74LVC74DB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74LVC74DB-T

74LVC74DB-T: DescriptionIC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch; Categorylogic; File Size112KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74LVC74DB-T Overview

IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch

74LVC74DB-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
length	6.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	1
Number of functions	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	5.3 mm
minfmax	150 MHz
Base Number Matches	1

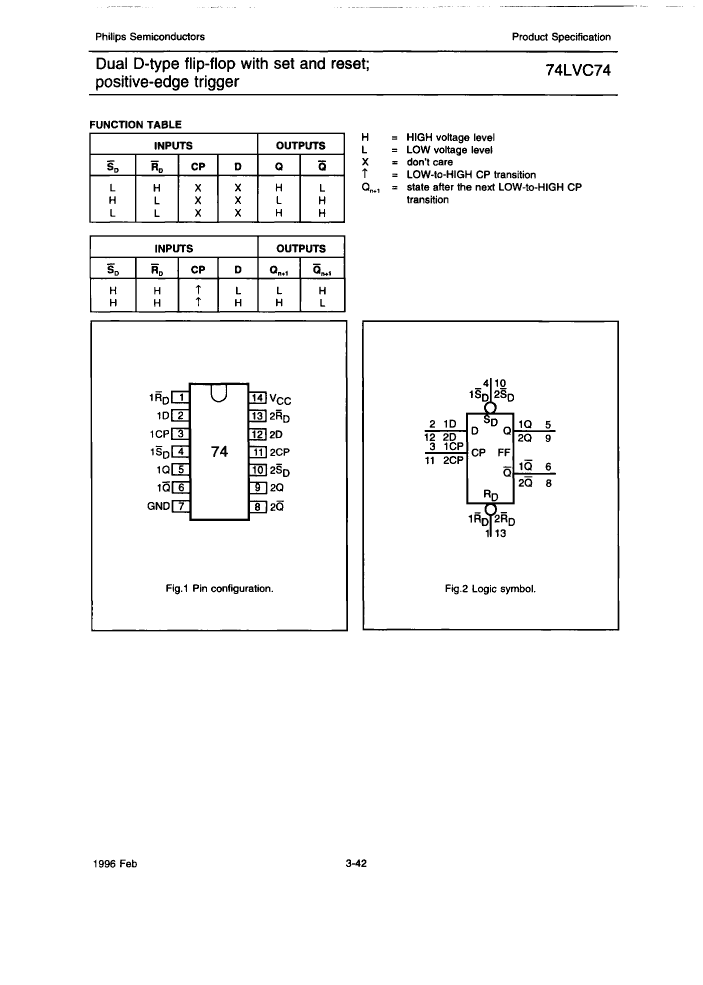

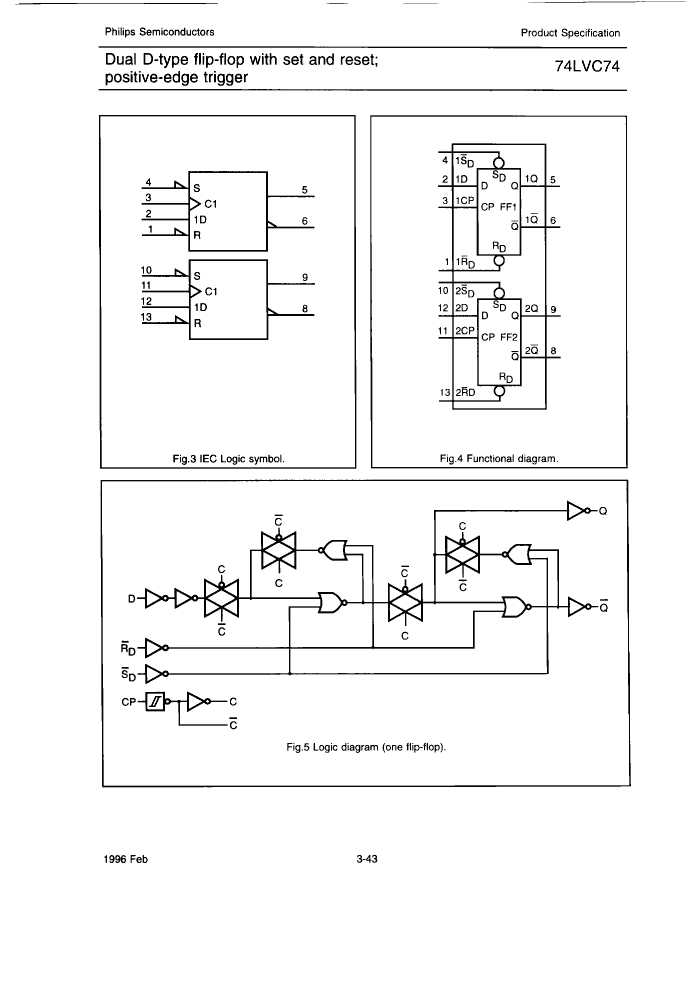

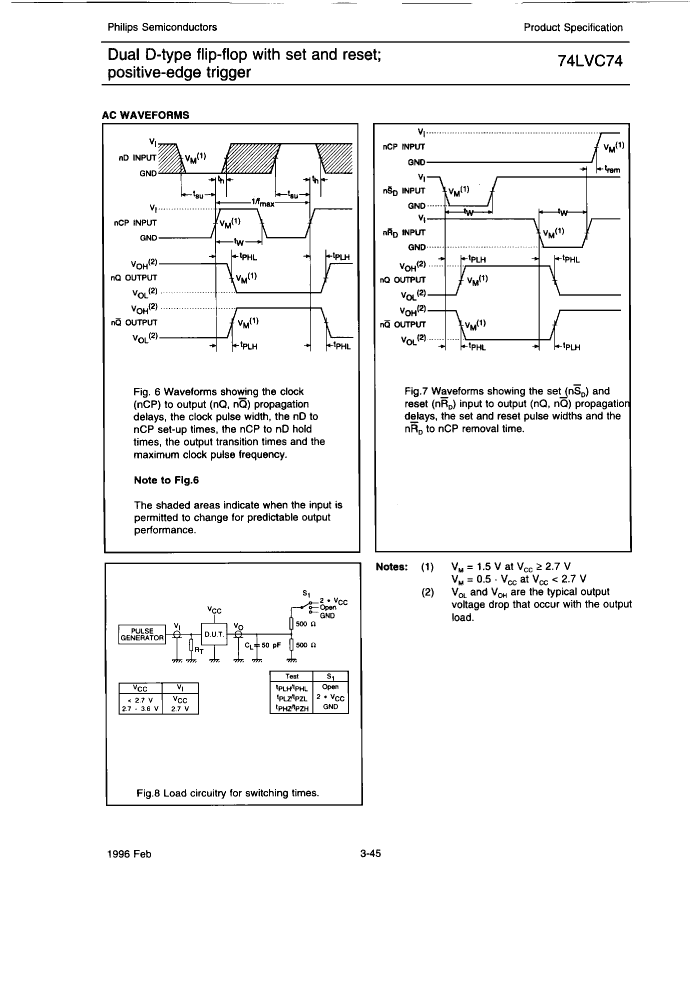

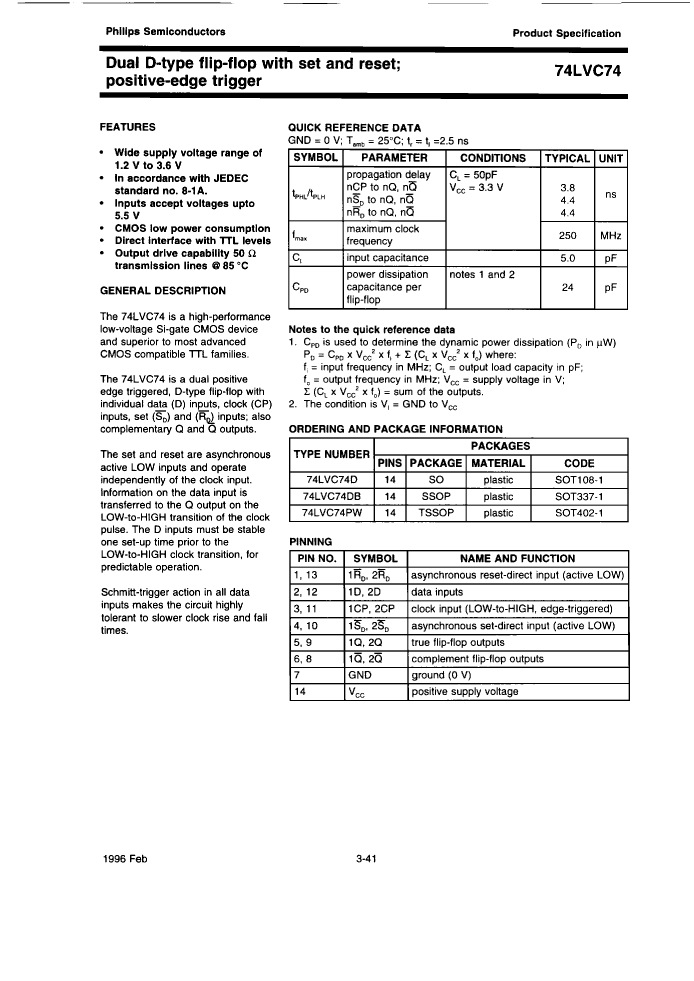

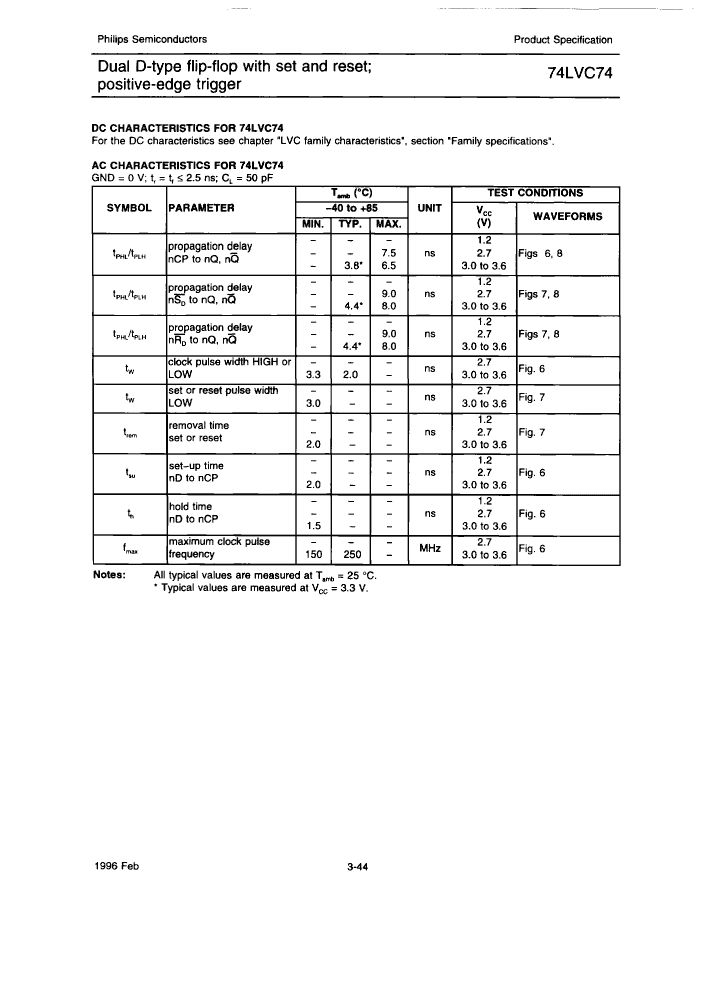

Preview

Download Datasheet

View All

74LVC74DB-T Related Products

	74LVC74DB-T	74LVC74PW	74LVC74PW-T	74LVC74DB	74LVC74D-T	74LVC74D
Description	IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch	IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch	IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch	IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch	IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch	IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, FF/Latch
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SSOP,	TSSOP,	TSSOP,	SSOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	6.2 mm	5 mm	5 mm	6.2 mm	8.65 mm	8.65 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	1	1	1	1	1	1
Number of functions	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP	SSOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.1 mm	1.1 mm	2 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	5.3 mm	4.4 mm	4.4 mm	5.3 mm	3.9 mm	3.9 mm
minfmax	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz
Base Number Matches	1	1	1	1	1	-
