AP130
300mA Low Dropout (LDO) Linear Regulator
Features
- Input voltage range is up to 7V
- Dropout voltage 400mV at 300mA output current
- Guaranteed 300mA output current.
- Internal R
ON
=1.5Ω PMOS draws no base current
- Low quiescent current 50µA
- Output voltage 2% accuracy, 1.5V to 5V with 0.1V
step
- Fast transient response
- Good load regulation
- Current limit and thermal shutdown protection
- 3 leads SOT89, TO92 and SOT23 packages
General Descriptions
The AP130 is a 300mA, fixed output voltage, low
dropout linear regulator. The Device includes pass
element, error amplifier, band-gap, current-limit and
thermal shutdown circuitry. The characteristics of
low dropout voltage and less quiescent current
make it good for some critical current application,
for example, some battery powered devices. The
typical quiescent current is approximately 50µA
from zero to maximum load. Due to internal flexible
design, result in extensively fixed output voltage
versions and make it convenient to use for
applications.
Built-in
current-limit
and
thermal-shutdown functions prevent any fault
condition from IC damage.
Applications
- Wireless Communication
- Battery Powered device
- CD-ROM, DVD, and LAN Card
- PC peripheral
Ordering Information
AP130 XX XX X X
Output voltage
15 : 1.5V
~
~
25 : 2.5V
50 : 5.0V
~
~
Package
Y : SOT89
YR : SOT89R
W: SOT23
R: SOT23R
Z : TO92
ZR : TO92R
Lead Free
Blank : Normal
L : Lead Free Package
Packing
Blank:Tube
A : Taping
Block Diagram
IN
Error
Amp
OUT
Current
Limit
- +
Thermal
Shutdown
Bandgap
1.08V
GND
This datasheet contains new product information. Anachip Corp. reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of
this product. No rights under any patent accompany the sale of the product.
Rev. 1.0 May 7, 2004
1/9
AP130
300mA Low Dropout (LDO) Linear Regulator
Absolute Maximum Ratings
Symbol
V
CC
T
OP
T
ST
Input voltage
Operating junction temperature range
Storage temperature range
Power dissipation, P
D
@T
A
=25ºC
TO-92
SOT-89
SOT-23
Package thermal resistance
TO-92
SOT-89
SOT-23
Parameter
Rating
-0.1 to +7
-40 to +125
-65 to +150
+0.6
+0.5
+0.25
+100
+100
+250
Unit
V
ºC
ºC
W
W
W
ºC/W
ºC/W
ºC/W
P
D
θ
JA
Electrical Characteristics
T
A
=25ºC, C
IN
=1µF, C
OUT
=10µF, unless otherwise specified.
Symbol
V
DROP
I
LIMIT
∆V
LINE
PSRR
∆V
LOAD
∆V
OUT
I
SB
Parameter
Dropout voltage (Note 1)
Current Limit (Note 2)
Line regulation
Ripple Rejection
Load regulation (Note 3)
Output voltage accuracy
Output voltage temperature coefficient
(Note 4)
Standby current
Conditions
I
L
=300mA
V
IN
=5V,V
OUT
=0V
I
L
=1mA, V
IN
=5~7V
F=100Hz,
C
IN
=1μF, C
O
=10uF,
I
L
=100mA
I
L
=1~300mA, V
IN
=5V
I
L
=1mA, V
IN
=5V
Min.
--
350
--
--
--
-2
--
Typ.
400
450
0.1
58
30
--
50
50
Max.
500
--
0.3
--
40
+2
150
100
Unit
mV
mA
%
dB
mV
%
PPM/ºC
μA
I
L
=0, V
IN
=5V
--
Note 1.
Dropout voltage is defined as the input to output differential voltage. Dropout is measured at constant junction temperature by
using pulsed ON time, and the criterion is V
OUT
inside target value ±2%. This test is skipped at the condition of V
IN
<3V.
Note 2.
Current limit is measured at constant junction temperature by using pulsed testing with a low ON time.
Note 3.
Regulation is measured at constant junction temperature by using pulsed testing with a low ON time.
Note 4.
Guaranteed by design.
Anachip Corp.
www.anachip.com.tw
3/9
Rev. 1.0 May 7, 2004
AP130
300mA Low Dropout (LDO) Linear Regulator

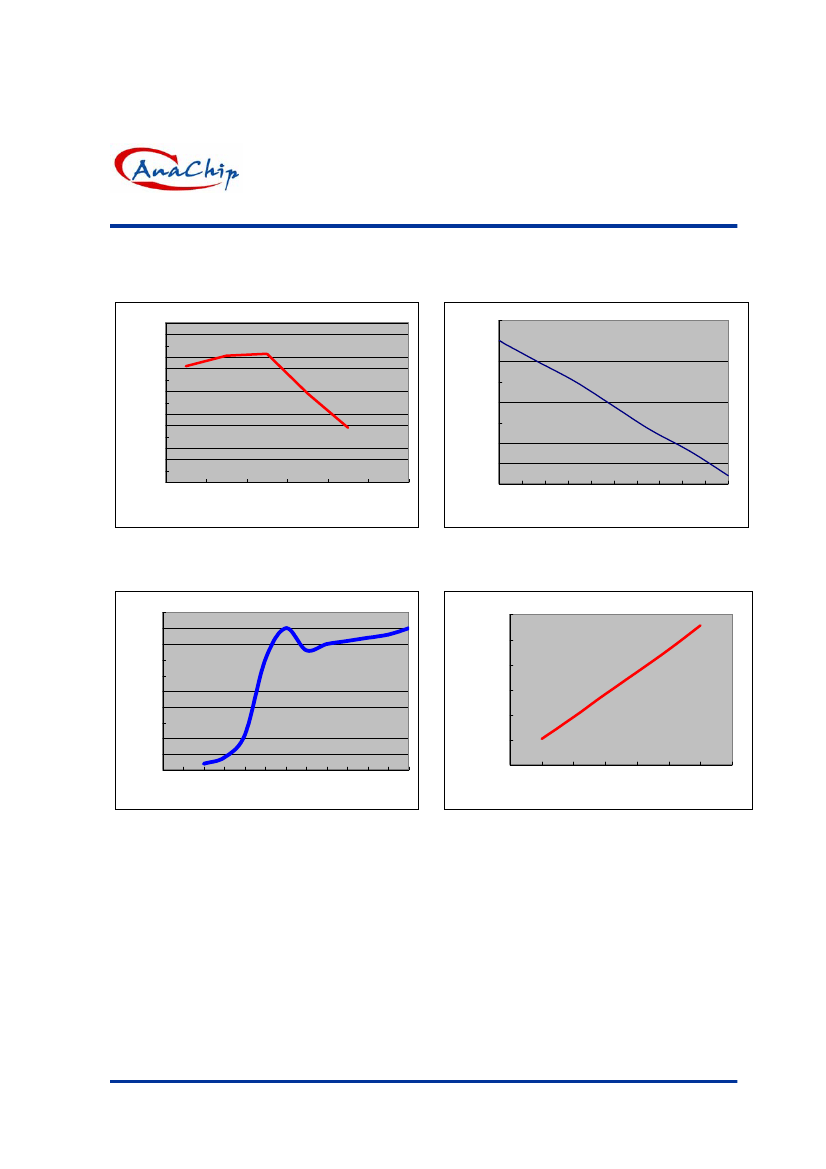

Typical Characteristics
AP130 PSRR V.S. Frequency
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
3.35
3.345
3.34
3.335
AP130 Vout V.S. Load Current
PSRR (dB)
Vout (V)
10
100
1K
10K
100K
1M
3.33
3.325
3.32
3.315
3.31
0
30
60
90 120 150 180 210 240 270 300
Frequency (Hz)
Load Current
PSRR V.S. Frequency
Vout V.S. Load Current
50
45
AP130 GND Current V.S. Input Voltage
0.3
0.25
AP130 Dropout V.S. Load
GND Current (uA)
30
25
20
15
10
5
0
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Dropout (V)
40
35
0.2
0.15
0.1
0.05
0
0
50
100
150
200
250
300
350
Input Voltage (V)
Load (Io) (mA)
GND Current V.S. Input Voltage
Dropout V.S. Load
Anachip Corp.
www.anachip.com.tw
4/9
Rev. 1.0 May 7, 2004
AP130
300mA Low Dropout (LDO) Linear Regulator
Typical Application Circuit
AP130
IN
OUT
GND
V
IN
C
IN
V
OUT
C
OUT
Function Description
A minimum of 10µF capacitor must be connected from OUT to ground to insure stability. Typically a large
storage capacitor is connected from V
IN
to ground to ensure that the input voltage does not sag below the
minimum dropout voltage during the load transient response. This pin must always be 0.7V higher than V
OUT
in order for the device to regulate properly.
Marking Information
(Top View)
Output voltage
15: 1.5V
50: 5.0V
AP130
XX
Y WW X X
Part Number
Blank: normal
L: Lead Free Package
Internal code: Blank or A~Z
Xth Week: 01~52
Year: "1"=2001
"2"=2002
1
2
3
TO92
(Top View)
3
(Top View)
Identification code
Blank: normal
L: Lead Free Package (See appendix)
Month: A~L
Year:0~9
Identification code
(See appendix)
XX Y M X
1
2
XX
YMX
1
2
3
Blank: normal
L: Lead Free Package
Month: A~L
Year: 0~9
SOT23
SOT89
Anachip Corp.
www.anachip.com.tw
5/9
Rev. 1.0 May 7, 2004
