ADA10001RS3P1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Radio frequency and microwave> ADA10001RS3P1

ADA10001RS3P1: DescriptionWide Band Medium Power Amplifier, 50MHz Min, 1000MHz Max, ROHS COMPLIANT, PLASTIC, SOIC-16; CategoryRadio frequency and microwave; File Size124KB，8 Pages; ManufacturerII-VI Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

ADA10001RS3P1 Overview

Wide Band Medium Power Amplifier, 50MHz Min, 1000MHz Max, ROHS COMPLIANT, PLASTIC, SOIC-16

ADA10001RS3P1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	II-VI Incorporated
Reach Compliance Code	unknown
Is Samacsys	N
Characteristic impedance	75 Ω
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	50 MHz
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Base Number Matches	1

Preview

Download Datasheet

View All

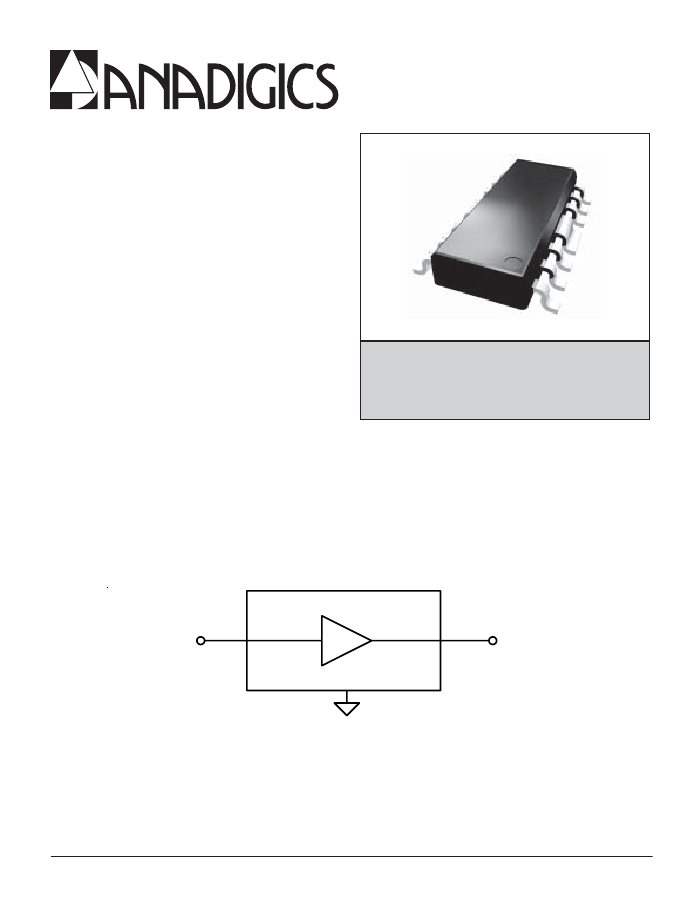

ADA10001

Linear Amplifier MMIC

Data Sheet - Rev 2.3

FEATURES

•

High Linearity: +18 dBm IIP3

Low Noise Figure: 2.0 dB

Single Supply: +8 VDC

Wide Bandwidth: 50 MHz to 1 GHz

RoHS-Compliant Package Option

Driver Amplifier

CATV - Distribution / Drop Amplifiers

APPLICATIONS

S3 Package

Modified 16 Pin SOIC

PRODUCT DESCRIPTION

The ADA10001 is a monolithic IC intended for use in

applications requiring high linearity, such as Cellular

Telephone Base Station Driver Amplifiers, CATV Fiber

Receiver and Distribution Amplifiers and CATV Drop

Amplifiers. Offered in a modified 16 lead surface

mount SOIC package, it is well suited for use in

amplifiers where small size, reduced component

count, and high reliability are important.

RF Input

15 dB

RF Output

/ Bias

Figure 1: Block Diagram

02/2005

ADA10001RS3P1 Related Products

	ADA10001RS3P1
Description	Wide Band Medium Power Amplifier, 50MHz Min, 1000MHz Max, ROHS COMPLIANT, PLASTIC, SOIC-16
Is it Rohs certified?	conform to
Maker	II-VI Incorporated
Reach Compliance Code	unknown
Is Samacsys	N
Characteristic impedance	75 Ω
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	50 MHz
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Base Number Matches	1
