HM5116100Z-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> HM5116100Z-10

HM5116100Z-10: DescriptionFast Page DRAM, 16MX1, 100ns, CMOS, PZIP24, 0.475 INCH, PLASTIC, ZIP-24; Categorystorage; File Size618KB，20 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HM5116100Z-10 Overview

Fast Page DRAM, 16MX1, 100ns, CMOS, PZIP24, 0.475 INCH, PLASTIC, ZIP-24

HM5116100Z-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	ZIP
package instruction	ZIP, ZIP24,.1
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	SEPARATE
JESD-30 code	R-PZIP-T24
JESD-609 code	e0
length	30.5 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	24
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP24,.1
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	10.16 mm
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2.85 mm
Base Number Matches	1

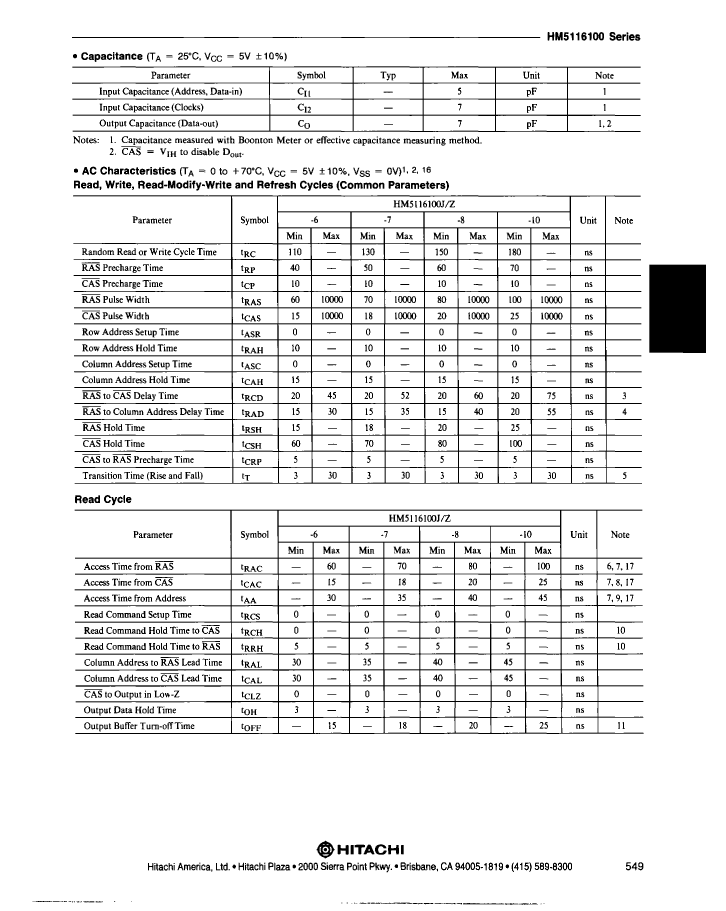

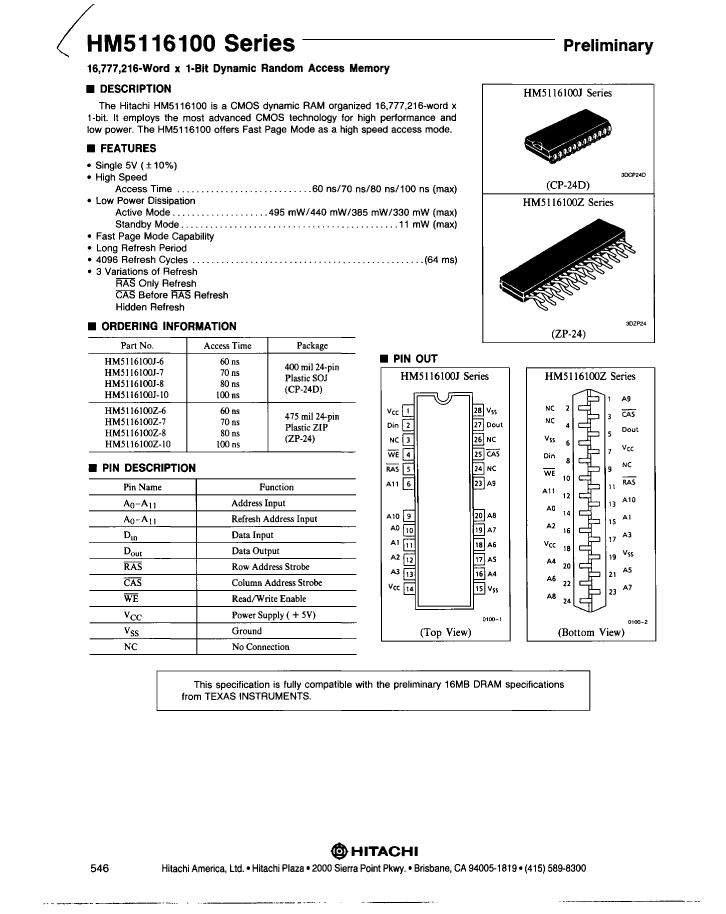

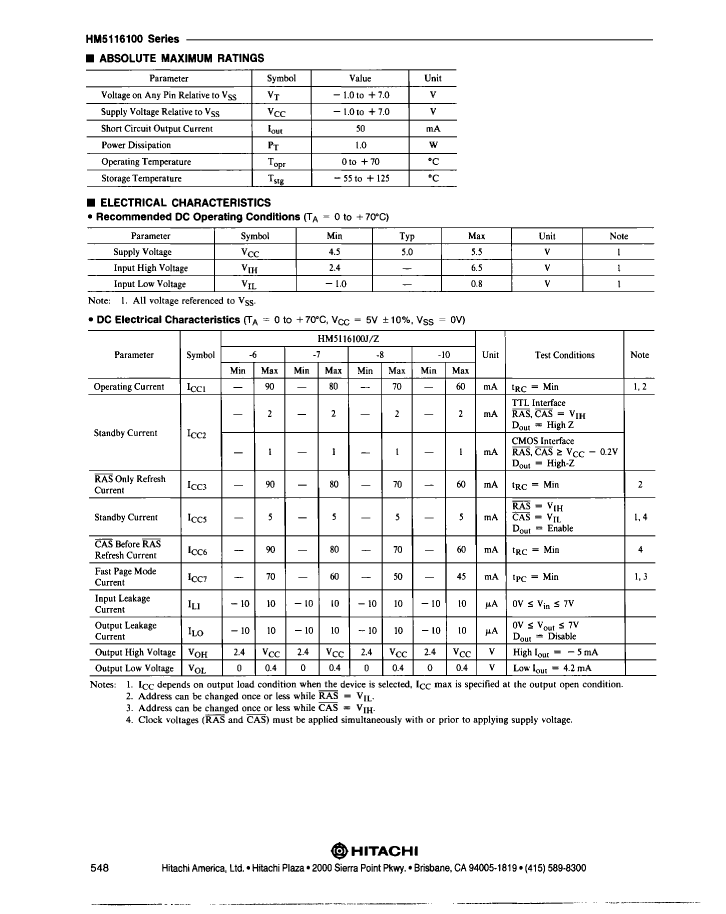

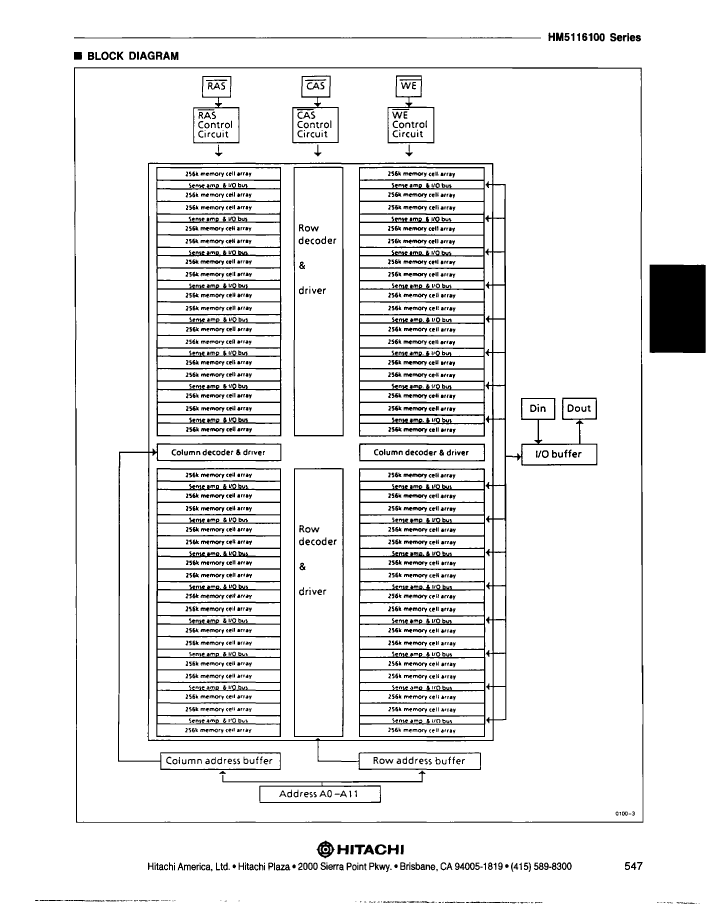

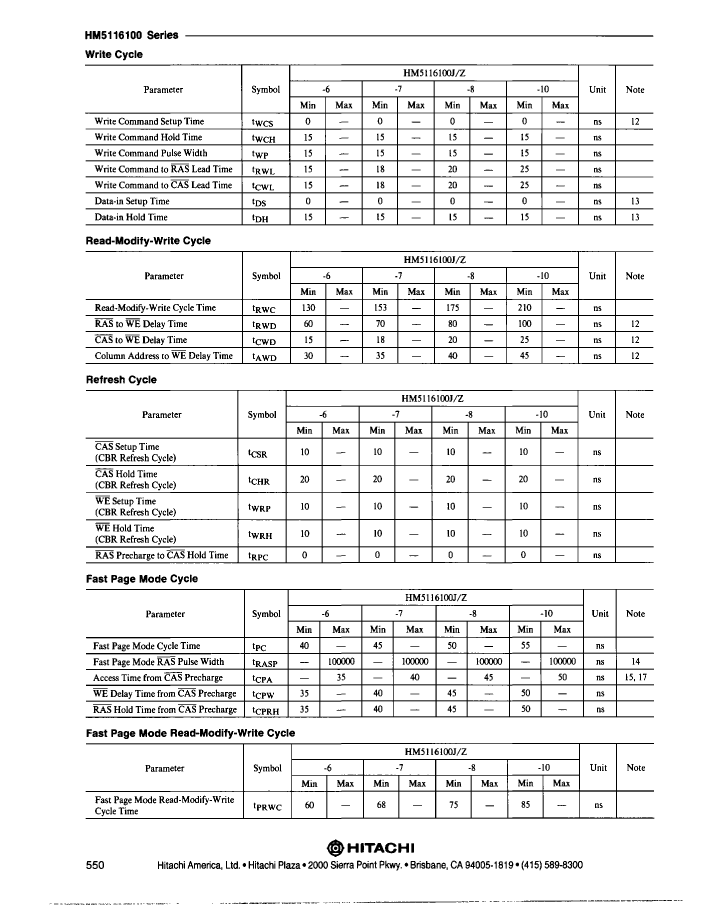

Preview

Download Datasheet

View All

HM5116100Z-10 Related Products

	HM5116100Z-10	HM5116100J-10	HM5116100J-8	HM5116100Z-6	HM5116100J-6	HM5116100Z-7	HM5116100Z-8	HM5116100J-7
Description	Fast Page DRAM, 16MX1, 100ns, CMOS, PZIP24, 0.475 INCH, PLASTIC, ZIP-24	Fast Page DRAM, 16MX1, 100ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Fast Page DRAM, 16MX1, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Fast Page DRAM, 16MX1, 60ns, CMOS, PZIP24, 0.475 INCH, PLASTIC, ZIP-24	Fast Page DRAM, 16MX1, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Fast Page DRAM, 16MX1, 70ns, CMOS, PZIP24, 0.475 INCH, PLASTIC, ZIP-24	Fast Page DRAM, 16MX1, 80ns, CMOS, PZIP24, 0.475 INCH, PLASTIC, ZIP-24	Fast Page DRAM, 16MX1, 70ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	ZIP	SOJ	SOJ	ZIP	SOJ	ZIP	ZIP	SOJ
package instruction	ZIP, ZIP24,.1	SOJ, SOJ24/28,.44	SOJ, SOJ24/28,.44	ZIP, ZIP24,.1	SOJ, SOJ24/28,.44	ZIP, ZIP24,.1	ZIP, ZIP24,.1	SOJ, SOJ24/28,.44
Contacts	24	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	100 ns	100 ns	80 ns	60 ns	60 ns	70 ns	80 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-PZIP-T24	R-PDSO-J24	R-PDSO-J24	R-PZIP-T24	R-PDSO-J24	R-PZIP-T24	R-PZIP-T24	R-PDSO-J24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	30.5 mm	15.63 mm	15.63 mm	30.5 mm	15.63 mm	30.5 mm	30.5 mm	15.63 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bi
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24
word count	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000	16000000	16000000	16000000	16000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	16MX1	16MX1	16MX1	16MX1	16MX1	16MX1	16MX1	16MX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	SOJ	SOJ	ZIP	SOJ	ZIP	ZIP	SOJ
Encapsulate equivalent code	ZIP24,.1	SOJ24/28,.44	SOJ24/28,.44	ZIP24,.1	SOJ24/28,.44	ZIP24,.1	ZIP24,.1	SOJ24/28,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096	4096	4096
Maximum seat height	10.16 mm	3.76 mm	3.76 mm	10.16 mm	3.76 mm	10.16 mm	10.16 mm	3.76 mm
self refresh	NO	NO	NO	NO	NO	NO	NO	NO
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.06 mA	0.06 mA	0.07 mA	0.09 mA	0.09 mA	0.08 mA	0.07 mA	0.08 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	DUAL	DUAL	ZIG-ZAG	DUAL	ZIG-ZAG	ZIG-ZAG	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	2.85 mm	7.62 mm	7.62 mm	2.85 mm	7.62 mm	2.85 mm	2.85 mm	7.62 mm
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Base Number Matches	1	1	1	1	1	-	-	-
