934067037115 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 934067037115

934067037115: DescriptionMOSFET N-CH 100V 49A LFPAK; CategoryDiscrete semiconductor The transistor; File Size756KB，13 Pages; ManufacturerNexperia; Websitehttps://www.nexperia.com; Environmental Compliance

Download Datasheet Parametric Compare View All

934067037115 Overview

MOSFET N-CH 100V 49A LFPAK

934067037115 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nexperia
package instruction	SMALL OUTLINE, R-PSSO-G4
Reach Compliance Code	compliant
Is Samacsys	N
Other features	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	80.8 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	49 A
Maximum drain-source on-resistance	0.022 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	MO-235
JESD-30 code	R-PSSO-G4
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	197 A
Guideline	AEC-Q101; IEC-60134
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

BUK9Y22-100E

7 November 2016

N-channel 100 V, 22 mΩ logic level MOSFET in LFPAK56

Product data sheet

1. General description

Logic level N-channel MOSFET in an LFPAK56 (Power SO8) package using TrenchMOS

technology. This product has been designed and qualified to AEC Q101 standard for use

in high performance automotive applications.

2. Features and benefits

•

Q101 compliant

Repetitive avalanche rated

Suitable for thermally demanding environments due to 175 °C rating

True logic level gate with V

GS(th)

rating of greater than 0.5 V at 175 °C

3. Applications

•

12 V, 24 V and 48 V Automotive systems

Motors, lamps and solenoid control

Transmission control

Ultra high performance power switching

4. Quick reference data

Table 1.

Symbol

tot

DSon

Quick reference data

Parameter

drain-source voltage

drain current

total power dissipation

Conditions

25 °C ≤ T

≤ 175 °C

= 5 V; T

= 25 °C;

Fig. 2

= 25 °C;

Fig. 1

= 5 V; I

= 15 A; T

= 25 °C;

Fig. 11

Min

Typ

Max

100

147

Unit

Static characteristics

drain-source on-state

resistance

gate-drain charge

17.4

mΩ

Dynamic characteristics

= 15 A; V

= 80 V; V

= 5 V;

= 25 °C;

Fig. 13; Fig. 14

13.3

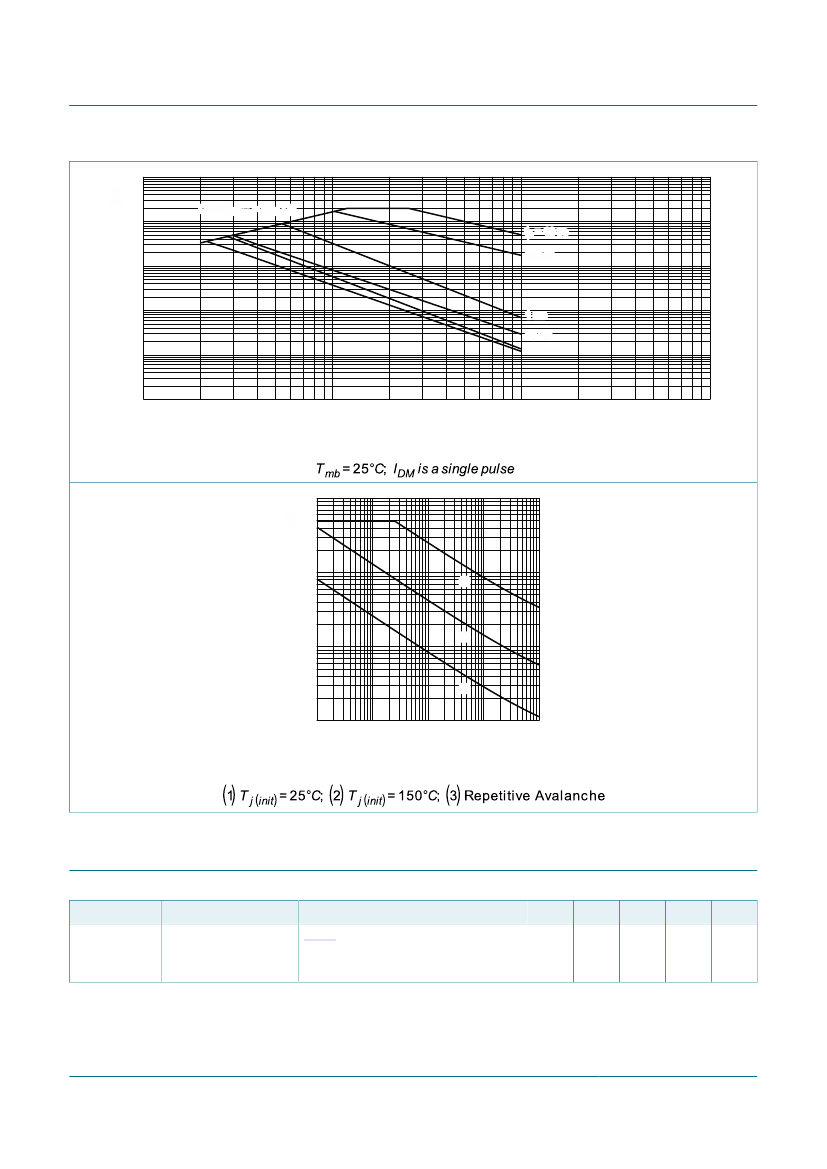

934067037115 Related Products

	934067037115	BUK9Y22-100E,115
Description	MOSFET N-CH 100V 49A LFPAK	MOSFET N-CH 100V 49A LFPAK
Maker	Nexperia	Nexperia
package instruction	SMALL OUTLINE, R-PSSO-G4	SMALL OUTLINE, R-PSSO-G4
Reach Compliance Code	compliant	not_compliant
Other features	AVALANCHE RATED	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	80.8 mJ	80.8 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V	100 V
Maximum drain current (ID)	49 A	49 A
Maximum drain-source on-resistance	0.022 Ω	0.022 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	MO-235	MO-235
JESD-30 code	R-PSSO-G4	R-PSSO-G4
Number of components	1	1
Number of terminals	4	4
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	197 A	197 A
Guideline	AEC-Q101; IEC-60134	AEC-Q101; IEC-60134
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
