BC04-11CGKWA datasheet, PDF - EEWORLD Datasheet

BC04-11CGKWA: DescriptionSmart/Normal 7 Seg Numeric LED Display, Green, 10.2mm, ROHS COMPLIANT PACKAGE-24; Categoryphotoelectric; File Size243KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

BC04-11CGKWA Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 10.2mm, ROHS COMPLIANT PACKAGE-24

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-24
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
color	GREEN
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	10.2 mm
Maximum forward current	0.03 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

10.2mm (0.4INCH) THREE DIGIT NUMERIC

DISPLAY

Part Number: BC04-11CGKWA

Green

Features

0.4 inch digit height.

Low current operation.

Excellent character appearance.

Easy mounting on P.C. boards or sockets.

Mechanically rugged.

Standard : gray face, white segment.

RoHS compliant.

Description

The Green source color devices are made with AlGaInP on

GaAs substrate Light Emitting Diode.

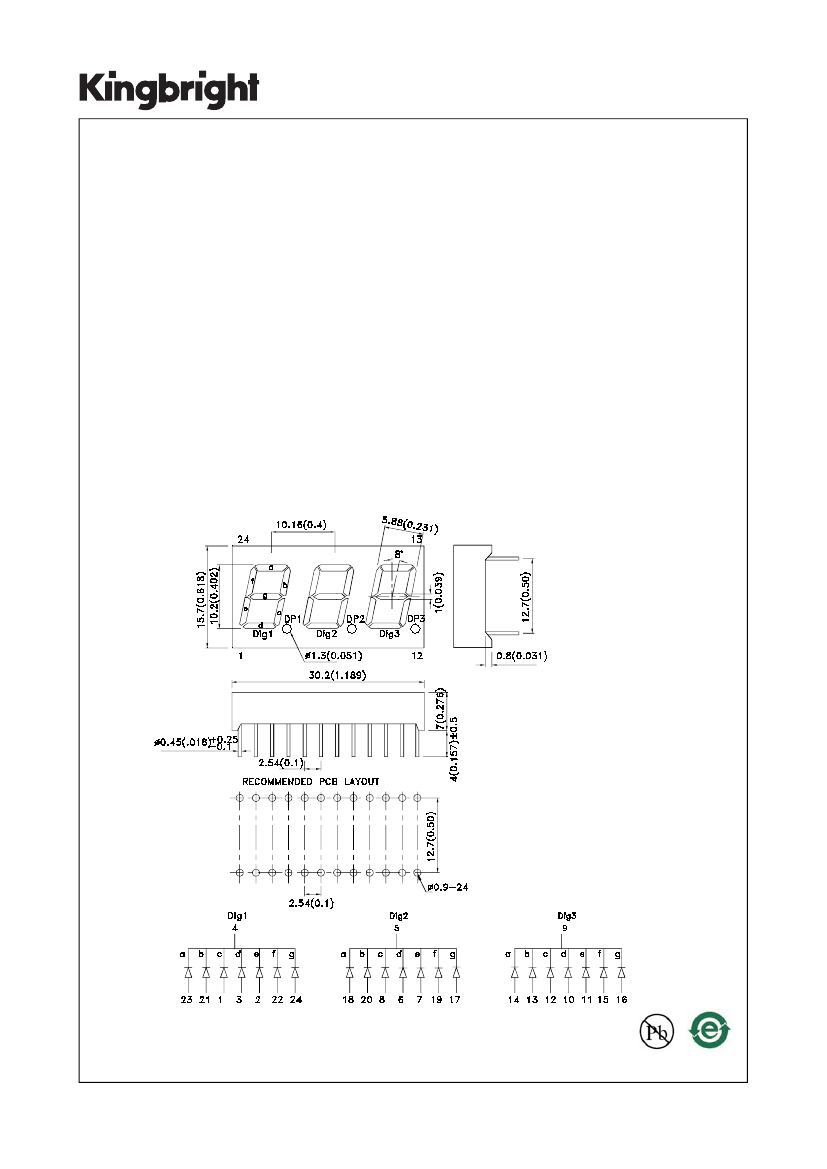

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAK2784

APPROVED: WYNEC

REV NO: V.5A

CHECKED: Joe Lee

DATE: APR/03/2013

DRAWN: Q.M.Chen

PAGE: 1 OF 6

ERP: 1303000578
