PCA-6F-04-HL-3-T/R datasheet, PDF

Datasheet> All Categories > The connector> PCA-6F-04-HL-3-T/R

PCA-6F-04-HL-3-T/R: DescriptionCard Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator; CategoryThe connector; File Size88KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

PCA-6F-04-HL-3-T/R Overview

Card Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator

PCA-6F-04-HL-3-T/R Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Board mount options	LOCATING POSTS
body width	0.039 inch
subject depth	0.128 inch
body length	0.149 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON CU
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.4826 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Base Number Matches	1

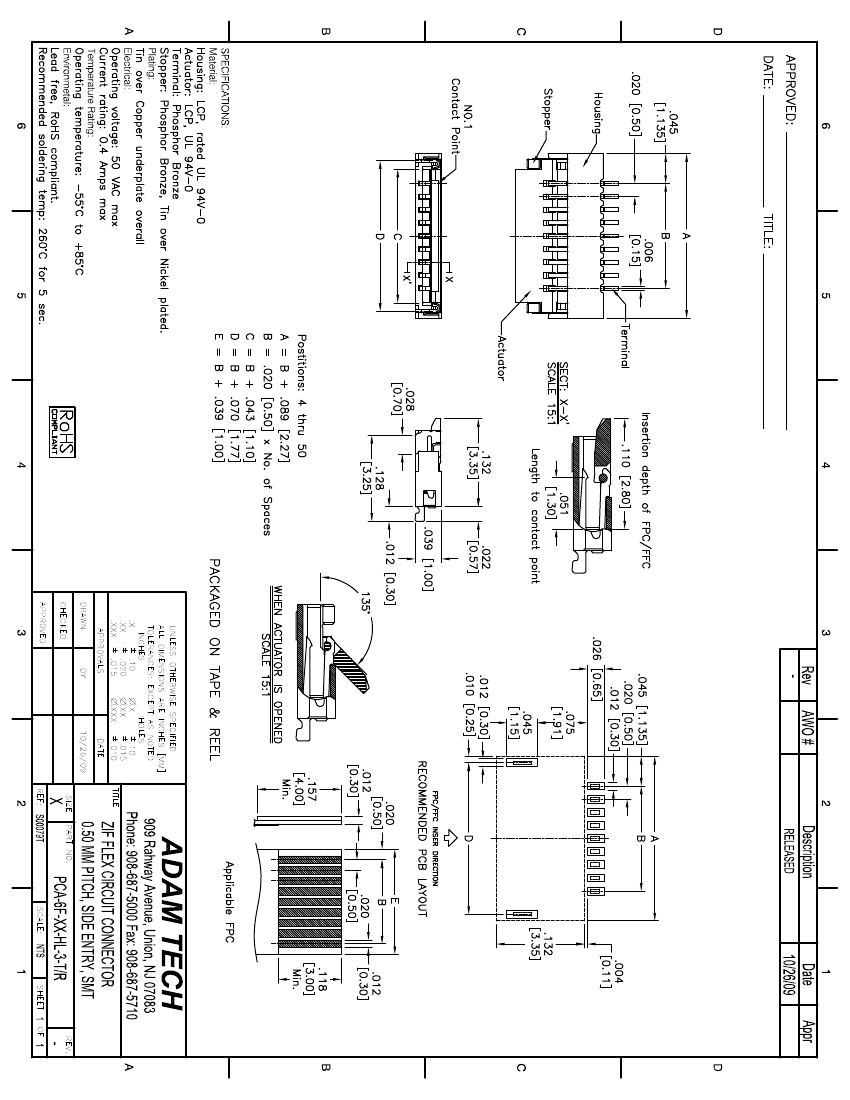

Preview

Download Datasheet

View All

PCA-6F-04-HL-3-T/R Related Products

	PCA-6F-04-HL-3-T/R	PCA-6F-08-HL-3-T/R	PCA-6F-09-HL-3-T/R
Description	Card Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator	Card Edge Connector, 8 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,	Card Edge Connector, 9 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,
Maker	Adam Tech	Adam Tech	Adam Tech
Reach Compliance Code	compliant	compliant	compliant
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.039 inch	0.039 inch	0.039 inch
subject depth	0.128 inch	0.128 inch	0.128 inch
body length	0.149 inch	0.229 inch	0.249 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON CU	SN ON CU	SN ON CU
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
maximum insertion force	ZIF N	ZIF N	ZIF N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	1	1	1
Number of rows loaded	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.4 A	0.4 A	0.4 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.4826 mm	0.4826 mm	0.4826 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	8	9
Is Samacsys	N	N	-
Base Number Matches	1	1	-
