DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
5mm Lamp
AlInGaP : High Brightness
Lamp Type LED - 5mm Round

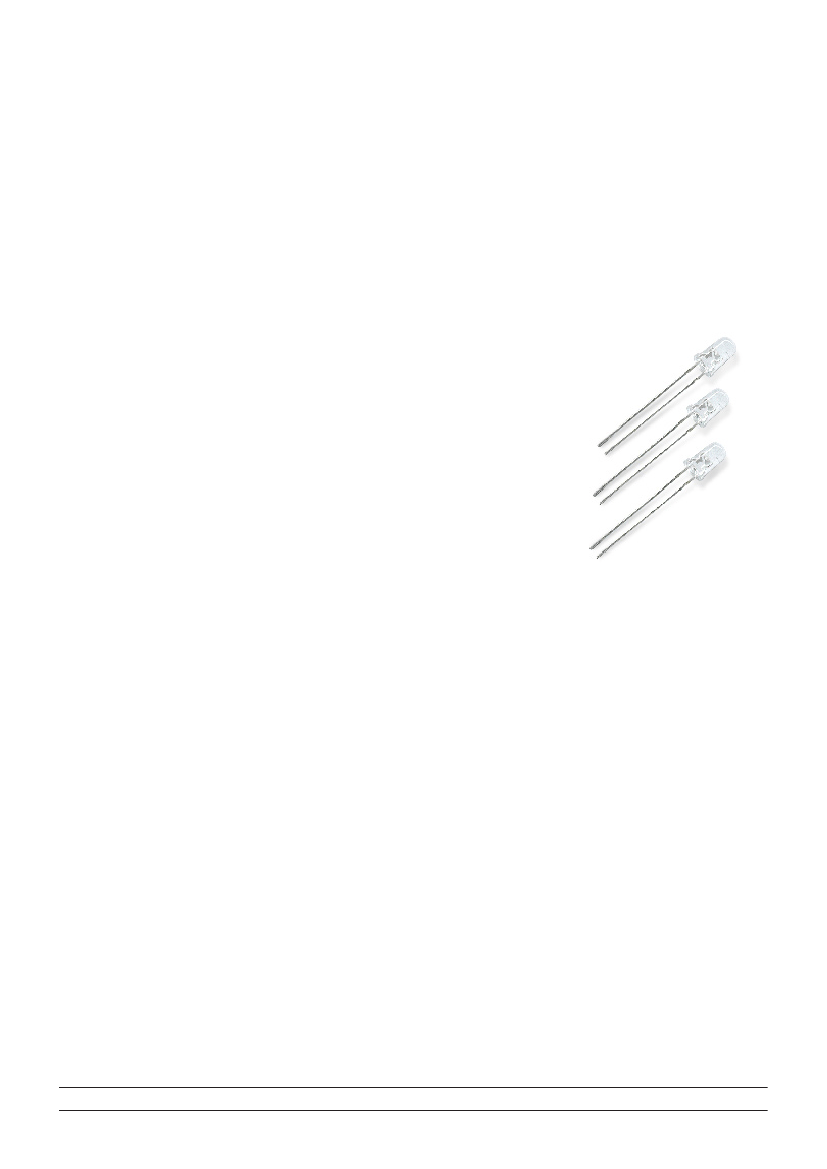

Synonymous with function and performance, the
5mm
Round LED has
superior performance in outdoor applications due to its well-defined
radiation pattern and wide viewing angle. These lamps are made with
an advanced optical grade epoxy, offering superior high temperature
and high moisture resistance performance in outdoor signal and sign
applications
Features:
>
>
>
>
High brightness LED lamp.
Narrow viewing angle; 15
o
, 30
o
and 60
o
Superior resistance to moisture.
Suitable for TTW soldering.
Applications:
>
>
Full color signs
Outdoor displays/signs
All rights reserved. Product specifications are subject to change without notice.
1
05/09/2013 V12.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP: High Brightness
Optical Characteristics at Tj=25˚C
Part Ordering
Number
L5S-R1500-ZAB-1
L5S-R3000-XY2-1
L5S-R60E0-UV2-1
L5R-R1500-AAD-1
L5R-R3000-W2Y1-1
L5R-R3000-YZ2-1
L5R-R3000-ZAA-1
L5R-R60E0-VW2-1
L5A-R1500-AAD-1
L5A-R3000-YZ2-1
L5O-R1500-AAD-1
L5O-R3000-Y2AA-1
L5O-R60E0-U2W1-1
L5Y-R1500-AAD-1
L5Y-R3000-WX2-1
L5Y-R3000-YZ2-1
L5Y-R3000-ZAA-1
L5Y-R60E0-U2W1-1
Not for new design
NOTE
1. Luminous intensity is measured with an accuracy of ± 15%.
2. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each pack.
Color
Super red, 632nm
Super red, 632nm
Super red, 632nm
Red, 625nm
Red, 625nm
Red, 625nm
Red, 625nm
Red, 625nm
Amber, 615nm
Amber, 615nm
Orange, 605nm
Orange, 605nm
Orange, 605nm
Yellow, 588nm
Yellow, 588nm
Yellow, 588nm
Yellow, 588nm
Yellow, 588nm
Viewing Angle˚
15
30
60
15
30
30
30
60
15
30
15
30
60
15
30
30
30
60
Luminous Intensity @ IF = 20mA IV (mcd)
Min.
Typ.
Max.
4500.0
1800.0
450.0
7150.0
1400.0
2850.0
4500.0
715.0
7150.0
2850.0
7150.0
3550.0
560.0
7150.0
1125.0
2850.0
4500.0
560.0
7150.0
2850.0
715.0
11250.0
2240.0
4500.0
7150.0
1125.0
1125.0
4500.0
11250.0
7150.0
900.0
11250.0
1800.0
4500.0
7150.0
900.0
11250.0
4500.0
1125.0
18000.0
3550.0
7150.0
9000.0
1800.0
18000.0
7150.0
18000.0
9000.0
1400.0
18000.0
2850.0
7150.0
9000.0
1400.0
2
05/09/2013 V12.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP: High Brightness
Electrical Characteristics at Tj=25˚C
Part Number
L5x-R1500, L5x-R3000,
L5x-R60E0
Forward voltages are measure using a current pulse of 1 ms and with an accuracy of ± 0.1V.
Vf @ If = 20mA
Min. (V)
1.8
V
r
@ I
r
= 10uA
Max. (V)
2.6
Typ. (V)
2.1
Min. (V)
12
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.10)
Reverse voltage ; Ir (max) = 10µA.
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
Thermal resistance junction to solder, R
th JS
50
200
12
2000
120
-40 … +100
-40 … +100
130
240
Unit
mA
mA
V
V
˚C
˚C
˚C
mW
K/W
Characteristics
Symbol
Temperature coefficient of
dom (typ)
I
F
= 20mA; 0 ˚C <= T <= 100 ˚C
Temperature coefficient of V
F (typ)
I
F
= 20mA; 0 ˚C <= T <= 100 ˚C
Temperature coefficient of I
V (typ)
I
F
= 20mA; 0 ˚C <= T <= 100 ˚C
TC
dom (typ)
L5R-Rxxxx
L5A-Rxxxx
L5Y-Rxxxx
TC
V
L5R-Rxxxx
L5A-Rxxxx
L5Y-Rxxxx
TC
IV
L5R-Rxxxx
L5A-Rxxxx
L5Y-Rxxxx
Value
0.03
0.04
0.05
-2.5
-1.9
-2.1
-0.44
-0.55
-0.79
Unit
nm / K
nm / K
nm / K
mV / K
mV / K
mV / K
%/K
%/K
%/K
3
05/09/2013 V12.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP: High Brightness
Wavelength Grouping at Tj=25˚C
Color
L5S; Super red
L5R; Red
L5A; Amber
Group
Full
Full
Full
W
X
Wavelength distribution (nm)
625 - 640
620 - 630
610 - 621
610 - 615
615 - 621
600 - 612
600 - 603
603 - 606
606 - 609
609 - 612
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
L5O; Orange
Full
W
X
Y
Z
L5Y; Yellow
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of ± 1 nm.
Luminous Intensity Group at Tj=25˚C
Brightness Group
U1
U2
V1
V2
W1
W2
X1
X2
Y1
Y2
Z1
Z2
AA
AB
AC
AD
Luminous intensity is measured with an accuracy of ± 15%.
Luminous Intensity
IV (mcd)
450.0...560.0
560.0...715.0
715.0...900.0
900.0...1125.0
1125.0...1400.0
1400.0...1800.0
1800.0...2240.0
2240.0...2850.0
2850.0...3550.0
3550.0...4500.0
4500.0...5600.0
5600.0...7150.0
7150.0...9000.0
9000.0...11250.0
11250.0...14000.0
14000.0...18000.0
4
05/09/2013 V12.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
AlInGaP: High Brightness
Vf Binning (Optional)
Vf Bin @ 20mA
V2
V3
V4
V5
Group
Forward Voltage (V)
Wavelength distribution (nm)
1.80 ... 2.00
2.00 ... 2.20
2.20 ... 2.40
2.40 ... 2.60
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Parts with the Vf binning option will be defined as L5x-Rxxxx-xxxx-x-Vx.
Please consult sales and marketing for special part number to incorporate Vf binning.
5
05/09/2013 V12.0
