LMC6084AIM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Amplifier circuit> LMC6084AIM

LMC6084AIM: DescriptionBasic information of LMC6084AIM amplifier: LMC6084AIM is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, SOP-14 LMC6084AIM amplifier core information: The LMC6084AIM has a minimum operating temperature of -40 °C and a maximum operating temperature of 85 °C. Its peak reflow temperature is 235 and its maximum average bias current is 0.000004 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the LMC6084AIM has a nominal slew rate of 1.5 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LMC6084AIM gain becomes 0.707 times the low-frequency gain is 1300 kHz. The nominal supply voltage of the LMC6084AIM is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of the LMC6084AIM is 350000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of LMC6084AIM: The width of LMC6084AIM is: 3.9 mm and the length is 8.65 mm. LMC6084AIM has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14 LMC6084AIM amplifier additional information: Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. The LMC6084AIM is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0. The packaging code of LMC6084AIM is: SOP. The materials used in the LMC6084AIM package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LMC6084AIM package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.; CategoryAmplifier circuit; File Size862KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound19parts with similar functions to LMC6084AIM; Alternative parts：LMC6084AIM

Download Datasheet Parametric Compare View All

LMC6084AIM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LMC6084AIM	-	-	View	Buy Now

LMC6084AIM Overview

Basic information of LMC6084AIM amplifier:

LMC6084AIM is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, SOP-14

LMC6084AIM amplifier core information:

The LMC6084AIM has a minimum operating temperature of -40 °C and a maximum operating temperature of 85 °C. Its peak reflow temperature is 235 and its maximum average bias current is 0.000004 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LMC6084AIM has a nominal slew rate of 1.5 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LMC6084AIM gain becomes 0.707 times the low-frequency gain is 1300 kHz.

The nominal supply voltage of the LMC6084AIM is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of the LMC6084AIM is 350000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of LMC6084AIM:

The width of LMC6084AIM is: 3.9 mm and the length is 8.65 mm. LMC6084AIM has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14

LMC6084AIM amplifier additional information:

Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. The LMC6084AIM is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-PDSO-G14.

The corresponding JESD-609 code is: e0. The packaging code of LMC6084AIM is: SOP. The materials used in the LMC6084AIM package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LMC6084AIM package pin formats are: SMALL OUTLINE.

Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.

LMC6084AIM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-14
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.000004 µA
Nominal Common Mode Rejection Ratio	85 dB
Maximum input offset voltage	350000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Humidity sensitivity level	1
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Certification status	COMMERCIAL
Maximum seat height	1.75 mm
Nominal slew rate	1.5 V/us
Supply voltage upper limit	16 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Nominal Uniform Gain Bandwidth	1300 kHz
width	3.9 mm
Base Number Matches	1

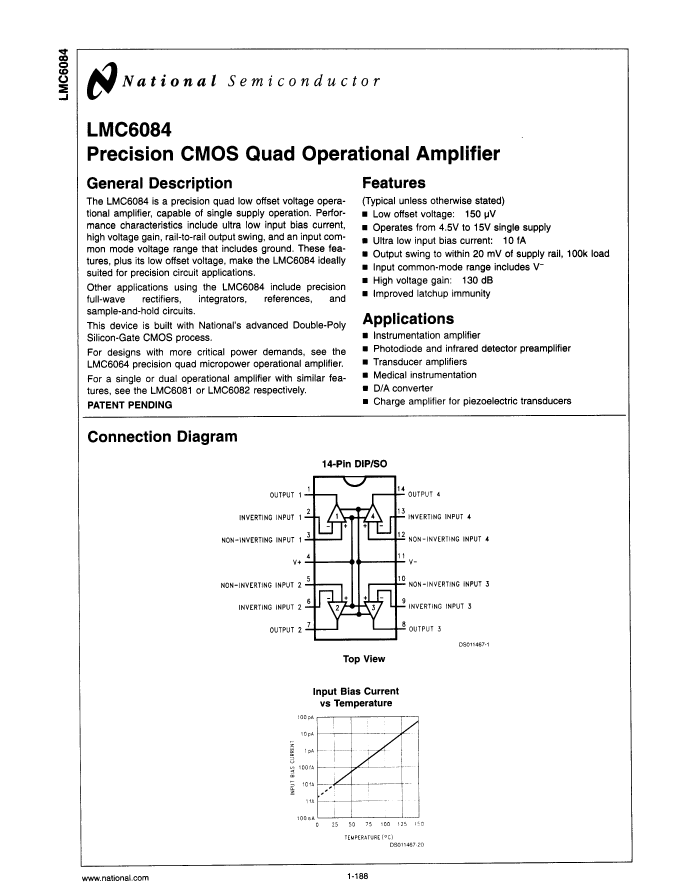

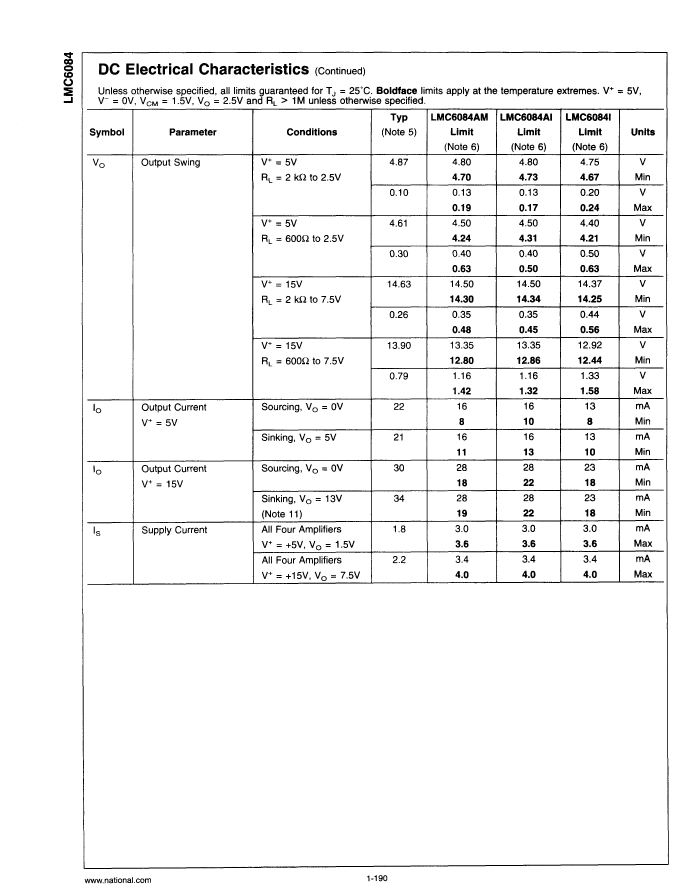

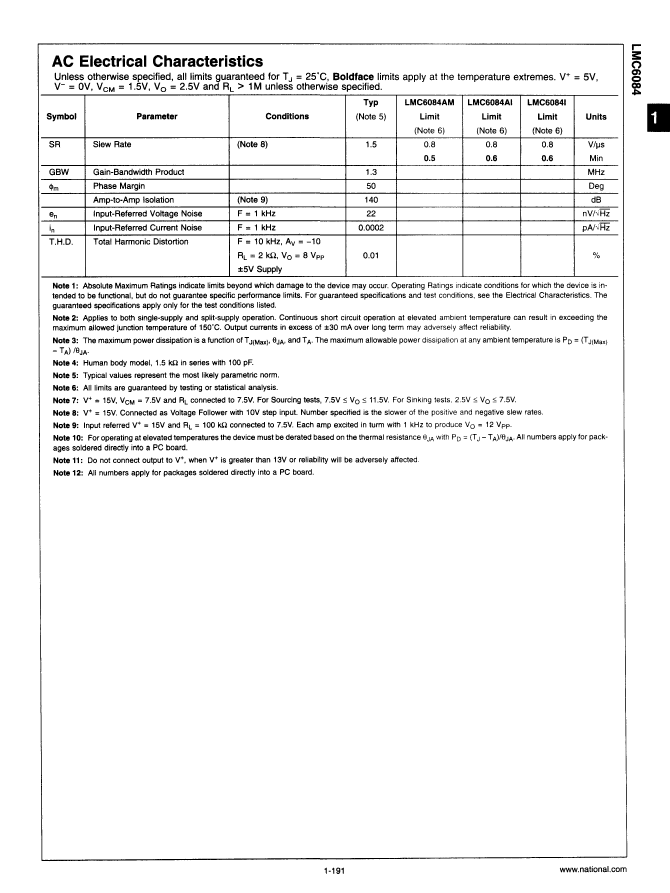

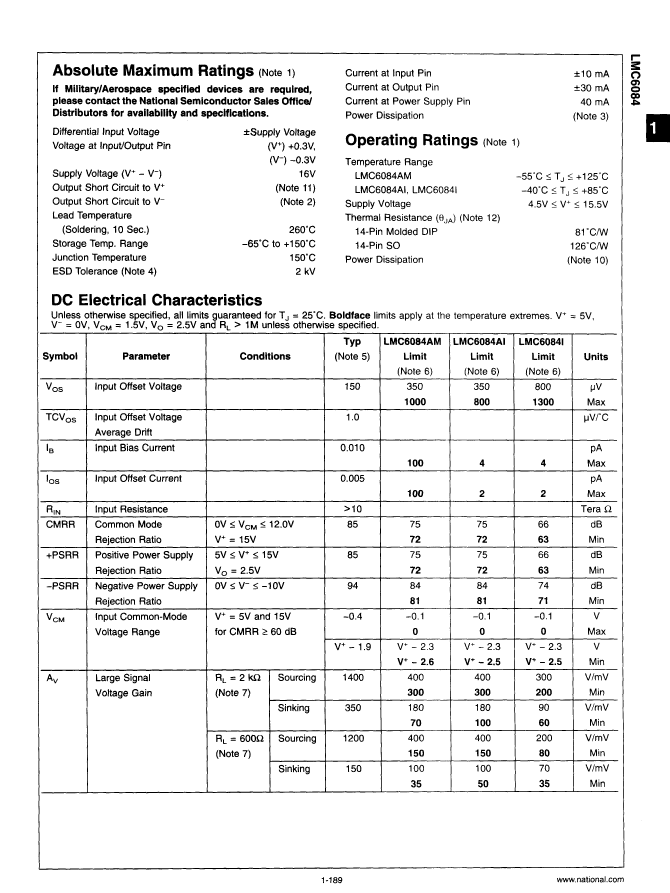

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

LMC6084AIM Related Products

	LMC6084AIM	LMC6084IN	LMC6084AMN
Description	QUAD OP-AMP, 350000uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDSO14, PLASTIC, SOP-14	QUAD OP-AMP, 800000uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14	QUAD OP-AMP, 350000uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
Parts packaging code	SOIC	DIP	DIP
package instruction	PLASTIC, SOP-14	PLASTIC, DIP-14	PLASTIC, DIP-14
Contacts	14	14	14
Reach Compliance Code	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.000004 µA	0.000004 µA	0.0001 µA
Nominal Common Mode Rejection Ratio	85 dB	85 dB	85 dB
Maximum input offset voltage	350000 µV	800000 µV	350000 µV
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14
length	8.65 mm	19.18 mm	19.18 mm
Number of functions	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	COMMERCIAL	COMMERCIAL	COMMERCIAL
Maximum seat height	1.75 mm	5.08 mm	5.08 mm
Nominal slew rate	1.5 V/us	1.5 V/us	1.5 V/us
Supply voltage upper limit	16 V	16 V	16 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	NOT SPECIFIED
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	1300 kHz	1300 kHz	1300 kHz
width	3.9 mm	7.62 mm	7.62 mm
Is it lead-free?	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-
Is Samacsys	N	N	-
JESD-609 code	e0	e0	-
Humidity sensitivity level	1	1	-
Peak Reflow Temperature (Celsius)	235	260	-
Maximum time at peak reflow temperature	30	NOT SPECIFIED	-
Base Number Matches	1	1	-
