3-103166-1 datasheet, PDF - EEWORLD Datasheet

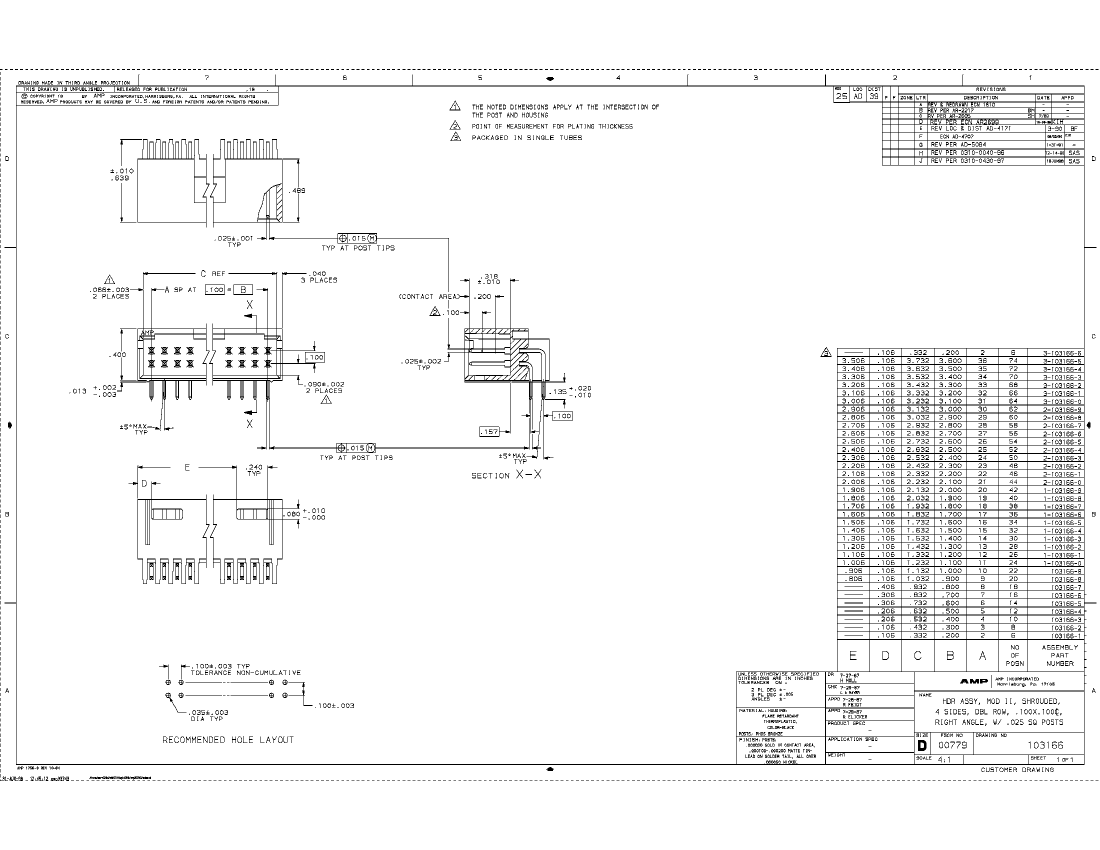

3-103166-1: Description66 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-103166-1 Overview

66 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SHROUDED
body width	0.413 inch
subject depth	0.639 inch
body length	3.412 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	103166
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	DETENT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CENTER
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	66
UL Flammability Code	94V-0
Base Number Matches	1

	3-103166-1	3-103166-0	4614X-AP2-184	4814T-1-2701DAB	4814T-1-2701DCA	2-103166-4	MJHS-03R2-51G-018-6A52	MJHS-04L1-12A-018-6J34	MJHS-04L2-23U-018-3J12
Description	66 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	64 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	RESISTOR, NETWORK, FILM, ISOLATED, 1.75W, THROUGH HOLE MOUNT, SIP	Array/Network Resistor, Isolated, Thin Film, 0.1W, 2700ohm, 50V, 0.5% +/-Tol, -100,100ppm/Cel, 3922,	Array/Network Resistor, Isolated, Thin Film, 0.1W, 2700ohm, 50V, 0.5% +/-Tol, -25,25ppm/Cel, 3922,	52 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	Cable Assembly,	Cable Assembly,	Cable Assembly,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	compliant	not_compliant	not_compliant	unknown	compliant	compliant	compliant
Maximum operating temperature	105 °C	105 °C	125 °C	125 °C	125 °C	105 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-55 °C	-55 °C	-55 °C	-65 °C	-55 °C	-55 °C	-55 °C
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	-
DIN compliance	NO	NO	-	-	-	NO	NO	NO	NO
IEC compliance	NO	NO	-	-	-	NO	NO	NO	NO
insulator material	THERMOPLASTIC	THERMOPLASTIC	-	-	-	THERMOPLASTIC	FEP, PTFE	FEP, PTFE	FEP, PTFE
MIL compliance	NO	NO	-	-	-	NO	NO	NO	NO
Objectid	-	-	1915163498	770611136	770611150	-	145235188119	8359836513	7316973494
structure	-	-	Conformal	Rectangular	Rectangular	-	STRANDED	STRANDED	STRANDED
