142-0694-031 datasheet, PDF - EEWORLD Datasheet

142-0694-031: DescriptionRF SMA Connector, 1 Contact(s), Panel Mount, Solder Lug Terminal, Locking, Plug; CategoryThe connector The connector; File Size412KB，1 Pages; ManufacturerBel; Websitehttp://www.belfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

142-0694-031 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	142-0694-031	-	-	View	Buy Now

RF SMA Connector, 1 Contact(s), Panel Mount, Solder Lug Terminal, Locking, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	7 weeks
subject depth	0.33 inch
Body/casing type	PLUG
Cable type	RG-402
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact resistance	2 mΩ
Contact style	COAX
Durability	100 Cycles
Insertion loss	0.03 dB
Manufacturer's serial number	142
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell material	BRASS
Termination type	SOLDER LUG
Total number of contacts	1
voltage standing wave ratio	1.04
Base Number Matches	1

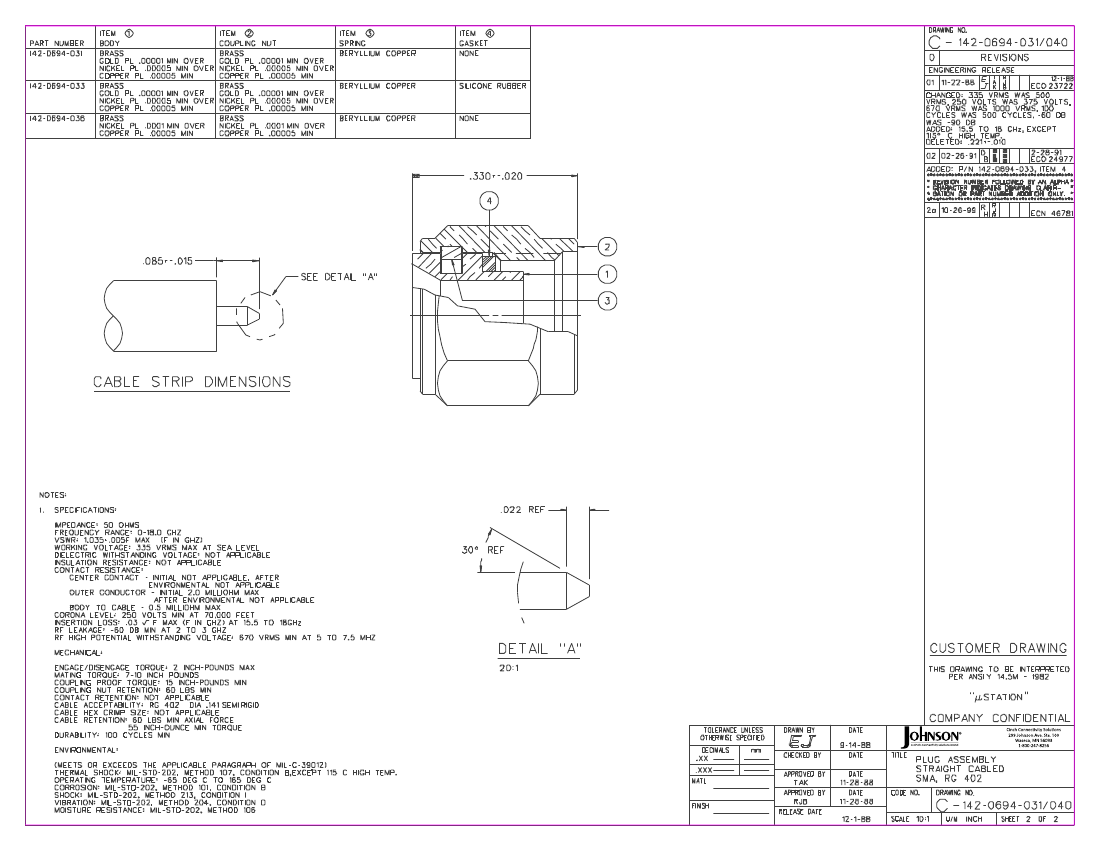

U

N

C

O

N

TR

O

LL

ED

C

O

PY

	142-0694-031	142-0694-033
Description	RF SMA Connector, 1 Contact(s), Panel Mount, Solder Lug Terminal, Locking, Plug	RF SMA Connector, 1 Contact(s), Panel Mount, Solder Lug Terminal, Locking, Plug
Reach Compliance Code	unknow	compli
subject depth	0.33 inch	0.33 inch
Body/casing type	PLUG	PLUG
Cable type	RG-402	RG-402
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact resistance	2 mΩ	2 mΩ
Contact style	COAX	COAX
Durability	100 Cycles	100 Cycles
Insertion loss	0.03 dB	0.03 dB
Manufacturer's serial number	142	142
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL
Number of ports	1	1
Maximum operating frequency	18 GHz	18 GHz
Maximum operating temperature	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS
Termination type	SOLDER LUG	SOLDER LUG
Total number of contacts	1	1
voltage standing wave ratio	1.04	1.04
Base Number Matches	1	1
