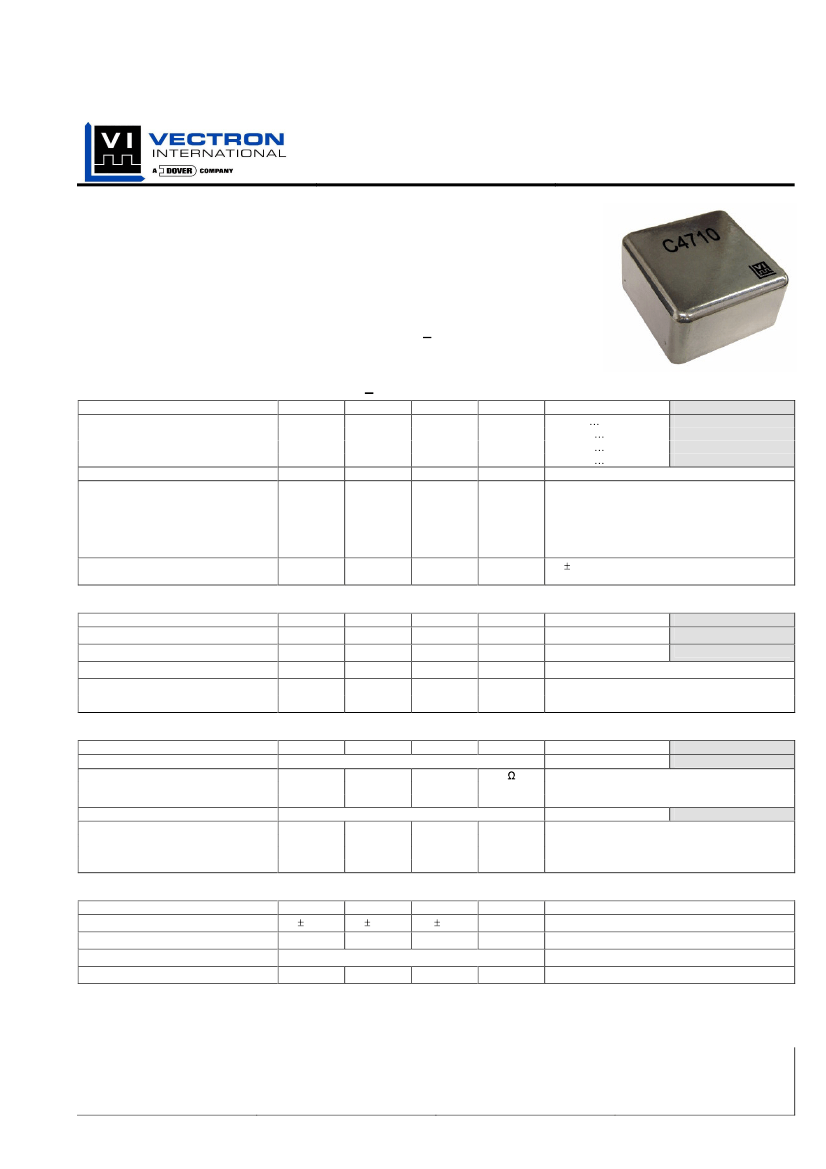

C4710
Typical Applications
Test Equipment
Frequency Synthesizers
Position Location
Satellite Communications
OCXO
Features
Low Phase Noise
High Stability
SC-Cut Crystal Standard
6012, MC886 Series, CO-714, C0-717,
CO-718S
Previous Vectron Model Numbers
Frequency range
Standard frequencies
Frequency stabilities
1
[SC Cut Crystal
Parameter
vs. operating temperature range
(Referenced to +25°C)
Min
-10
-20
-25
-30
Min
-100
-2.0
-2.0
-1.0
-100
-50
5 MHz
10Mhz
20 MHz
Standard]
Typ
Max.
+10
+20
+25
+30
Max.
+100
+2.0
+2.0
+1.0
+100
+50
5
Units
ppb
ppb
ppb
ppb
Units
ppb
ppb
ppb
ppb
ppb
ppb
minutes
Operating temp range
Ordering Code
0
+70°C
C108
-20
+70°C
D208
-40
+70°C
E258
-40
+85°C
F308
Condition
at time of shipment, nominal EFC
V
S
± 5%
Load ± 5%
after 72 hours of operation
after 72 hours of operation
to
10ppb of final frequency (1 hour reading) @
+25°C
Parameter
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging /1 day
vs aging /1 Year
vs. aging / year (following Years)
Warm-up Time
Typ
Supply voltage (Oven and Oscillator)
Parameter
Supply voltage [Standard]
Supply voltage [Option]
Oscillator Power consumption
Oven Power consumption
Min
11.4
14.25
Typ
12.0
15.0
Max.
12.6
15.75
0.5
6.0
2.0
Units
VDC
VDC
Watts
Watts
Watts
during warm-up
steady state @ +25°C
Condition
Ordering Code
SV120
SV150
RF output
Parameter
Signal [Standard]
Load
Output Power
Harmonics
Signal [Option]
Load
Signal Level (Vol)
Signal Level (Voh)
Duty cycle
Min
Typ
Max.
Sinewave
50
+5.5
+8.0
-30
HCMOS
15
0.5
55
Units
Condition
Ordering Code
RFS
50 Ohm load
50 Ohm load
RFH
pF
VDC
VDC
%
+3.0
dBm
dBc
4.5
45
@ (Voh-Vol)/2
Frequency Tuning (EFC)
Parameter
Tuning Range
Linearity
Tuning Slope
Control Voltage Range
0.0
2.5
Positive
5.0
VDC
Min
0.75
Typ
1.25
Max.
2.0
20
Units
ppm
%
Condition
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2005-08-25 · page 1 of 4
Vectron Asia Pacific Sales Office
Unit 3119 31st Floor, Jin Mao Tower, 88
Century Boulevard, Shanghai,
P.R. China 200120
+86 21 28909740 tel.
+86 21 28909240 fax
C4710
Reference Voltage Output (Vref)
Parameter
Reference Voltage
Min
4.9
Typ
5.0
Max.
5.1
Units
VDC
Condition
OCXO

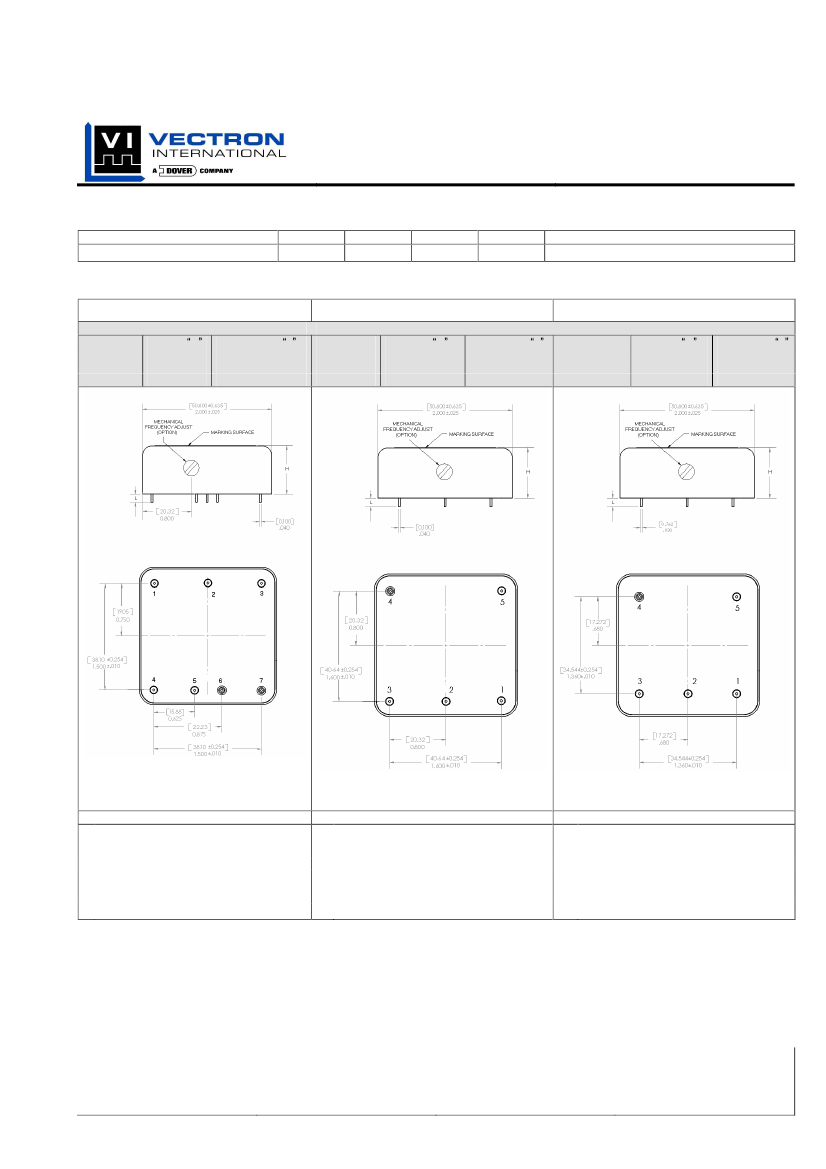

Enclosures
Type A
Package Codes:
Code
Height H
A1
26.42
A2
20.00
Pin Length L
6.35
6.35
Code
B1
B2
Type B
Height H
26.42
20.00
Pin Length L
6.35
6.35
Code
C1
C2
C3
Type C
Height H
26.42
20.00
25.40
Pin Length L
6.35
6.35
6.35
Dimensions: inches [mm]
Dimensions: inches [mm]
Dimensions: inches [mm]
Pin Connections
1
2
3
4
5
6
7
Oven Return
Supply Voltage Input Oscillator
Electronic Frequency Control Input (EFC)
Supply Voltage Input Oven
RF Output
Oscillator and Case Ground
Ground (Case)
1
2
3
4
5
Pin Connections
Electronic Frequency Control Input (EFC)
Reference Voltage Output
RF Output
Ground (Case)
Supply Voltage Input (Vs)
1
2
3
4
5
Pin Connections
Electronic Frequency Control Input (EFC)
Reference Voltage Output
RF Output
Ground (Case)
Supply Voltage Input (Vs)
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2005-08-25 · page 2 of 4
Vectron Asia Pacific Sales Office
Unit 3119 31st Floor, Jin Mao Tower, 88
Century Boulevard, Shanghai,
P.R. China 200120
+86 21 28909740 tel.
+86 21 28909240 fax
C4710
Additional parameters
Parameter
3
Phase Noise [Standard]
@ 10 MHz
Min
Typ
Max.
-80
-120
-140
-145
-150
-95
-125
-150
-160
-165
100
Contact Factory
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
g
Condition
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
1 Hz
10 Hz
100 Hz
1 kHz
10 kHz
OCXO
Ordering Code
PN1
Phase Noise [Option]
@ 10 MHz
3
PN2
Weight
Mechanical Frequency Adjust
Absolute Maximum Ratings
Parameter
Supply voltage (Vs)
Output Load
Operable temperature range
Storage temperature range
Min
Typ
Max.
28.0
50
25
+85
+125
Units
V
pF
Ohms
°C
°C
Condition
with HCMOS signal
with Sinewave signal
-55
-55
How to Order this Product:
Step 1
Use this worksheet to forward the following information to your factory representative:
Stability Code
Supply Voltage
Code
RF Output Code
Phase Noise Code
Package
Code
Frequency
Model
C4710
Example
:
C4710
D207
SV050
RFH
PN1
A1
10.000Mhz
Step 2
The factory representative will then respond with a Vectron Model Number in the following configuration:
Model
C4710
Package Code
[Customer Specified Package Code]
Dash
-
Dash Number
[Factory Generated 4 digit number]
Typical P/N = C4710A1-0001
Notes:
1 Contact factory for improved stabilities or additional product options. Not all options and codes are available at all frequencies.
2 Unless otherwise stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency control
voltage, load, temperature (25°C)
3 Phase noise degrades with increasing output frequency.
4 Subject to technical modification.
5 Contact factory for availability.
Vectron International
·
www.vectron.com
Vectron International
Headquarters
267 Lowell Road
Hudson, New Hampshire 03051
+1-888-328-7661 tel
+1-888-329-8328 fax
Vectron International LLC.
100 Watts Street
Mount Holly Springs, PA 17065
USA
+1-717-486-3411 tel
+1-717-486-5920 fax
Vectron international GmbH & Co. KG
Landstrasse
D-74924 Neckarbischofsheim
Germany
+49-07268-801-0 tel
+49-07268-801-281 fax
v.2005-08-25 · page 3 of 4
Vectron Asia Pacific Sales Office
Unit 3119 31st Floor, Jin Mao Tower, 88
Century Boulevard, Shanghai,
P.R. China 200120
+86 21 28909740 tel.
+86 21 28909240 fax
C4710
OCXO
[ THIS PAGE INTENTIONALLY BLANK ]
