AC
and
dC a
xial
F
ans
P
art
n
umbering
g
uide
Example: Part Number for DC Fan FAD1 - 04025CBMW11
F A D
1
-
040
25
C
B
M
W
1
1
-
99
SERIES
FAD: DC Fans
FAA: AC Fans up to 120mm
FKA: AC Fans 120mm and above
FAN TYPE
1: Axial
2: Axial Capacitor Motor
3: Chip Cooler
4: Blower Fan
FAN SIZE (mm)
FRAME THICKNESS (mm)
VOLTAGE
A: 3.3 VDC
B: 5 VDC
C: 12 VDC
D: 24 VDC
E: 48 VDC
F: 60 VDC
N: 115 VAC
Q: 230 VAC
R: 115/230 VAC
BEARING
B: 2 Ball
A: 1 Ball 1 Sleeve
C: Ceramic
S: Sleeve
H: Hydro Dynamic
H: High
J: Ultra High
K: Super High
T: Top High
SPEED
A: Ultra low
L: Low
M: Medium
TERMINATION
W: PVC Wire
T: Terminal
FRAME & IMPELLER MATERIAL
1: Plastic/Plastic
2: Plastic/Metal
3: Metal/Plastic
4: Metal/Metal
5: By IC with Variable Speed Sensor (VS)
6: By Transistor with Speed Sensor (FG)
7: Two Speed
8: VS+FG
9: PWM Control
A: VS+RD
B: PWM+FG
C: RD+FG
D: IP55
E: IP67
F: By Thermal
FUNCTION
1: By Impedance
2: By IC
3: By IC with Alarm (RD)
4: By IC with Speed Sensor (FG)
SPECIAL FEATURE
1
www.Qualtekusa.com

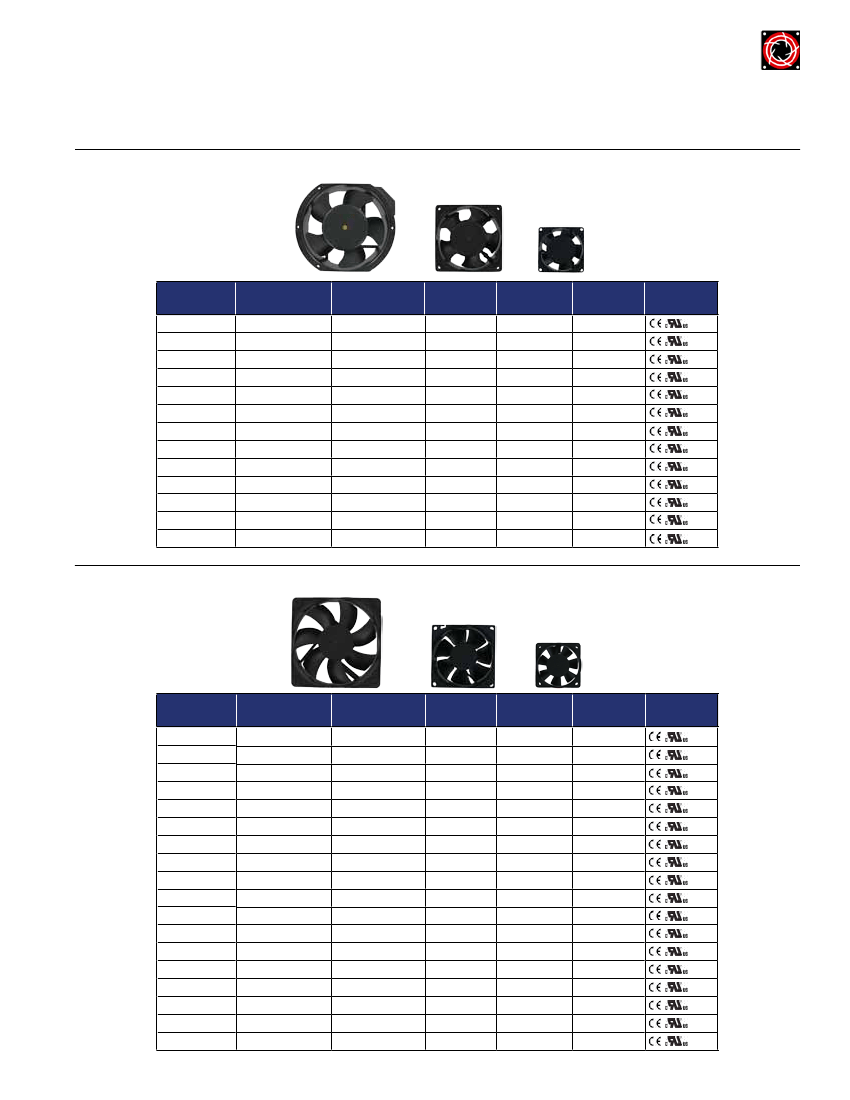

Qualtek Electronics offers a complete line of low cost AC & DC axial fans produced in high tech facilities assuring high quality
standards with large production capabilities. Qualtek’s AC and DC fans are offered in a large variety of bearing types: 2-Ball, 1-Ball
1-Sleeve, Sleeve, and Hydro Dynamic with a wide range of speeds. AC fans are available from 115 to 230VAC and sizes from
60mm to 280mm, DC fans are available from 3.3-60VDC and sizes from 20mm to 254mm with a large array of functions and special
features.
AC
and
DC
a
xial
F
ans
AC
F
an
s
peciFications
Series
FAA1-08025
FAA1-08038
FAA1-09225
FAA1-12025
FAA1-12038-A
FKA1-17251
FKA2-17251
FKA2-17689
FKA2-18065
FKA2-20572
FKA2-25489
FKA2-28089
FKA2-28089-A
Dimensions
(mm)
80 x 80 x 25
80 x 80 x 38
92 x 92 x 25
120 x 120 x 25
120 x 120 x 38
172 x 150 x 51
172 x 150 x 51
176 x 176 x 89
180 x 180 x 65
205 x 205 x 72
254 x 89 (round)
280 x 280 x 89
280 x 280 x 89
Dimensions
(in)
3.15 x 1.00
3.15 x 1.50
3.62 x 1.00
4.70 x 1.00
4.70 x 1.50
6.7 x 5.9 x 2.0
6.7 x 5.9 x 2.0
6.90 x 3.50
7.00 x 2.60
8.00 x 2.70
10.00 x 3.50
11.00 x 3.50
11.00 x 3.50
Air Flow
(CFM)
15 - 21
22 - 29.6
25 - 34
65 - 71
53.5 - 107
140 - 189
155 - 210
330-380
350-410
600-665
450-630
625 - 1400
115 - 320
Voltage
(VAC)
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
115 - 230
625 - 740
Noise Level
(dB/A)
18.3 - 27.8
25.3 - 31.6
21.1 - 30.1
38.7 - 44.1
30.5 - 48.1
50.3 - 57.7
56.6 - 65.0
66.4 - 70.0
70.0 - 72.0
72.0 - 75.4
55.6 - 66.0
60.0 - 78.0
60.0 - 78.0
Approvals
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
DC
F
an
s
peciFications
Series
FAD1-02510
FAD1-03010
FAD1-04010
FAD1-04020
FAD1-05010
FAD1-06020
FAD1-06025
FAD1-08015
FAD1-08025
FAD1-08025 IC
FAD1-08032
FAD1-08038
FAD1-09225
FAD1-09225 IC
FAD1-12025
FAD1-12032
FAD1-12038
FAD1-12738
Dimensions
(mm)
25 x 25 x 10
30 x 30 x 10
40 x 40 x 10
40 x 40 x 20
50 x 50 x 10
60 x 60 x 20
60 x 60 x 25
80 x 80 x 15
80 x 80 x 25
80 x 80 x 25
80 x 80 x 32
80 x 80 x 38
92 x 92 x 25
92 x 92 x 25
120 x 120 x 25
120 x 120 x 32
120 x 120 x 38
Dimensions
(in)
1.00 x 0.39
1.18 x 0.39
1.57 x 0.39
1.57 x 0.79
2.00 x 0.39
2.36 x 0.79
2.36 x 1.00
3.15 x 0.59
3.15 x 1.00
3.15 x 1.00
3.15 x 1.25
3.15 x 1.50
3.62 x 1.00
3.62 x 1.00
4.70 x 1.00
4.70 x 1.25
4.70 x 1.50
Air Flow
(CFM)
1.6 - 2.1
2.2 - 4.0
3.3 - 7.0
4.4 - 9.57
8.0 - 10.3
10.7 - 23.5
13.2 - 31.4
21.8 - 34.3
20.5 - 43.2
21.6 - 56.7
39.5 - 55.3
30.6 - 62.1
30.3 - 61.9
30.3 - 61.9
57.2 - 98.9
59.4 - 133.4
57.2 - 120.1
Voltage
(VDC)
5, 12
5, 12
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
5, 12, 24
12, 24
12, 24
12, 24, 48
12, 24
12, 24
12, 24, 48
12, 24, 48
12, 24, 48
12, 24, 48
Noise Level
(dB/A)
12.5 - 23.0
19.0 - 34.0
14.0 - 29.0
17.5 - 37.5
20.0 - 27.5
18.4 - 39.0
18.1 - 42.9
18.8 - 38.1
16.5 - 37.4
14.0 - 43.4
35.5 - 44.0
25.5 - 43.7
19.1 - 42.2
19.1 - 42.2
27.2 - 43.3
26.9 - 48.4
28.4 - 48.0
Approvals
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
TÜV
127 x 127 x 38
5.00 x 1.50
107.0 - 242.0
12, 24, 48
41.0 - 64.5
www.Qualtekusa.com
2

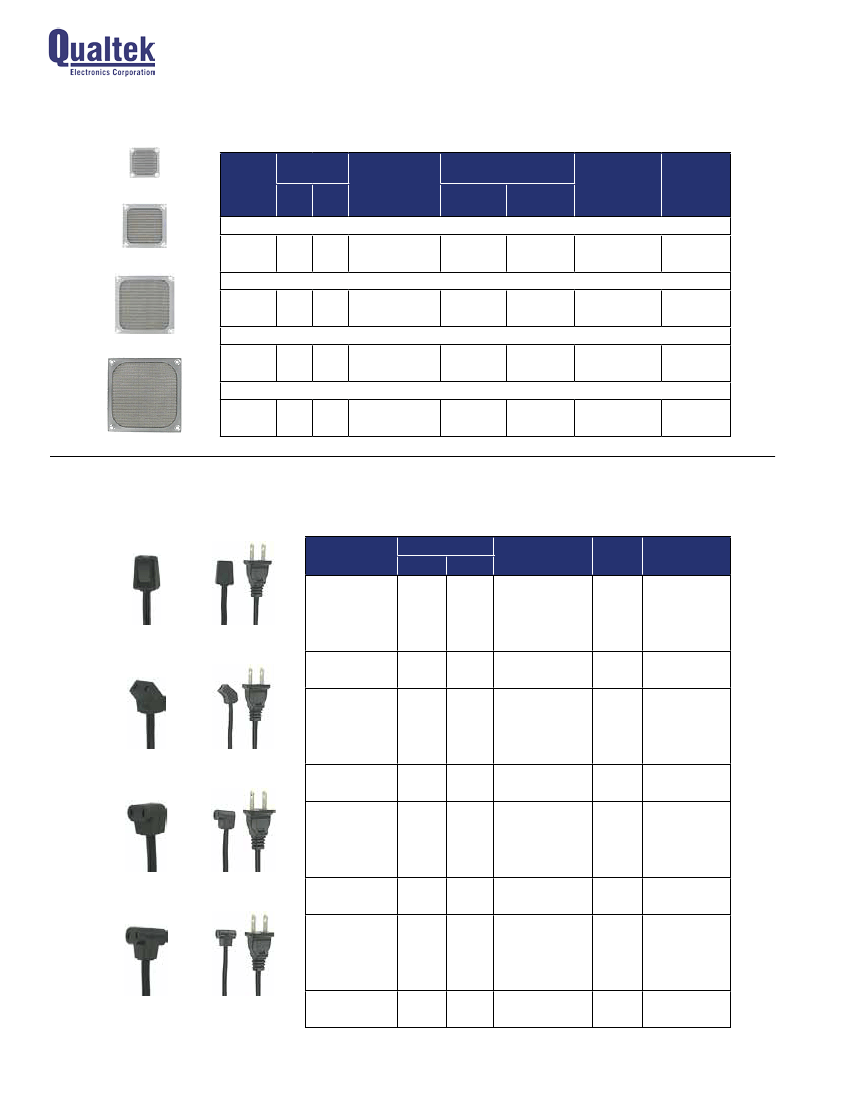

These tested and proven filters provide maximum airflow with effective filtering. Mill and stainless steel finishes are offered to
enhance EMI/RFI shielding as well as an anodized finish for aesthetic purposes. The tightly woven corrugated mesh screen is
encased in a formed aluminum frame built for ruggedness and durability. The filters are designed to fit any standard 60mm - 2 1/2”,
80mm - 3 1/8”, 92mm - 3 5/8” and 120mm - 4 1/2” tubeaxial fan. The units are easily washed in a solvent or degreaser and can be
mounted directly to the fan or to a panel.
Part
Number
Use With
Fan Size
mm
in.
Size (in)
Finish
Height
(sq.)
2.36
2.36
2.36
a
luminum
F
an
F
ilters
- 06 s
eries
60 mm
Thickness
Mounting
Hole Diameter
Mount-
ing Hole
Center
60 mm - 2 1/2”
80 mm
06250-B
06250-M
06250-SS
80 mm - 3 1/8”
06325-B
06325-M
06325-SS
60
60
60
2 1/2
2 1/2
2 1/2
Anodized (Black)
Mill (No Finish)
Stainless Steel
.138
.138
.138
.170 (4 Places)
.170 (4 Places)
.170 (4 Places)
1.97
1.97
1.97
80
80
80
3 1/8
3 1/8
3 1/8
Anodized (Black)
Mill (No Finish)
Stainless Steel
3.30
3.30
3.30
.138
.138
.138
.170 (4 Places)
.170 (4 Places)
.170 (4 Places)
2.81
2.81
2.81
92 mm
92 mm - 3 5/8”
06362-B
06362-M
06362-SS
92
92
92
3 5/8
3 5/8
3 5/8
Anodized (Black)
Mill (No Finish)
Stainless Steel
3.62
3.62
3.62
.138
.138
.138
.170 (4 Places)
.170 (4 Places)
.170 (4 Places)
3.25
3.25
3.25
120 mm - 4 1/2”
06450-B
06450-M
06450-SS
120
120
120
4 1/2
4 1/2
4 1/2
Anodized (Black)
Mill (No Finish)
Stainless Steel
4.67
4.67
4.67
.138
.138
.138
.170 (4 Places)
.170 (4 Places)
.170 (4 Places)
4.13
4.13
4.13
120 mm
Fan-S offers four configurations of high quality fan power cords designed to be used with tubeaxial fans with a strain relief for added
safety. UL and cUL rated 10 Amps/125 Volt with special configurations such as daisy chain, special length and color are available.
Part
Number
07100-12
07100-24
07100-36
07100-40
07100-50
07100-60
07100-80
07100-SP024
07100-SP036
07100-SP072
07145-12
07145-24
07145-36
07145-40
07145-50
07145-60
07145-80
07145-SP024
07145-SP036
07145-SP072
07190-12
07190-24
07190-36
07190-40
07190-50
07190-60
07190-80
F
an
p
ower
c
ords
- 07 s
eries
Cord Length
mm
305
610
915
1016
1270
1524
2034
610
915
1829
305
610
915
1016
1270
1524
2034
610
915
1829
305
610
915
1016
1270
1524
2034
610
915
1829
305
610
915
1016
1270
1524
2034
610
915
1829
in.
12
24
36
40
50
60
80
24
36
72
12
24
36
40
50
60
80
24
36
72
12
24
36
40
50
60
80
24
36
72
12
24
36
40
50
60
80
24
36
72
Style
Straight
Straight
Straight
Straight
Straight
Straight
Straight
Straight
Straight
Straight
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
T-Type
T-Type
T-Type
T-Type
T-Type
T-Type
T-Type
T-Type
T-Type
T-Type
Figure
A
A
A
A
A
A
A
B
B
B
C
C
C
C
C
C
C
D
D
D
E
E
E
E
E
E
E
F
F
F
G
G
G
G
G
G
G
H
H
H
Cordage
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
SPT-1(18/2)
A
B
C
D
E
F
07190-SP024
07190-SP036
07190-SP072
07199-12
07199-24
07199-36
07199-40
07199-50
07199-60
07199-80
G
H
07199-SP024
07199-SP036
07199-SP072
www.Qualtekusa.com
3
w
ire
F
orm
F
an
G
uards
- 08 s
eries

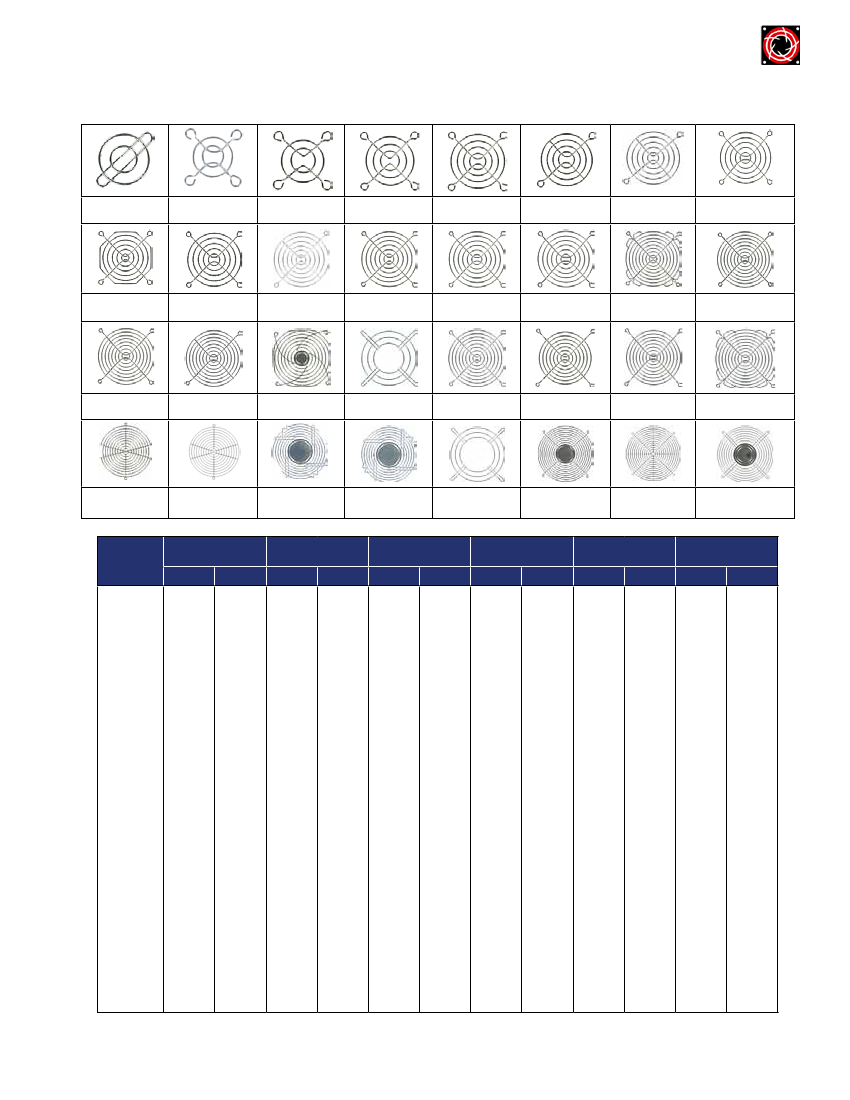

All wire form fan guards are produced in our ISO 9001 certified facility to assure compliance to our rigid specifications. Available for
fan sizes 25mm to 254mm with a high quality nickel chrome finish as our standard. Also available in black finish & stainless steel.
08245 (25mm)
08346 (30mm)
08149 (40mm)
08148 (50mm)
08147 (60mm)
08212 (60mm)
08138 (80mm)
08132 (80mm)
08156 (80mm)
08172 (80mm)
08133 (92mm)
08134 (92mm)
08174 (92mm)
08189 (92mm)
08128 (120mm)
08129 (120mm)
08130 (120mm)
08139 (120mm)
08141 (120mm)
08146 (120mm)
08170 (120mm)
08213 (120mm)
08135 (127mm)
08150 (127mm)
08125 (150mm)
08126(150mm)
08151 (150mm)
08152 (150mm)
08190 (176mm)
08127 (254mm)
08155 (254mm)
08243-SS (254mm)
Part *
Number
08245
08346
08149
08148
08147
08212
08132
08138
08156
08172
08133
08134
08174
08189
08128
08129
08130
08139
08141
08146**
08170
08213
08135
08150
08125
08126
08151
08152
08190**
08127
08155
08243-SS
For Use With
Fan Size
mm
25
30
40
50
60
60
80
80
80
80
92
92
92
92
120
120
120
120
120
120
120
120
127
127
150
150
150
150
176
254
254
254
Rib Material Dia.
mm
1.50
1.60
1.60
1.60
1.60
1.60
1.80
1.80
1.80
1.60
1.80
1.80
1.60
1.80
1.80/2.30
2.30
2.30
2.30
2.00
1.60
1.80
2.30
2.30
2.30
2.30
2.30
1.60
1.60
2.00
2.30
2.00
1.60
Ring Material
Dia.
mm
1.50
1.60
1.60
1.60
1.60
1.60
1.60
1.60
1.80
1.60
1.60
1.60
1.60
1.60
1.80
1.80
1.80
1.80
1.60
1.60
1.80
1.80
1.80
1.80
1.80
1.80
1.60
1.60
1.60
2.30
2.00
1.60
Mounting Hole
Centers
mm
20.0
24.0
32.0
42.0
50.0
50.0
71.4
100.9
71.4
71.4
82.4
82.5
82.4
82.4
104.8
104.8
104.8
104.8
104.8
104.8
104.8
104.8
113.3
113.3
162.0
162.0
161.9
161.9
152.6
174.0
174.0
208.0
Outside Ring
Dia.
mm
24.2
21.8
29.5
41.1
53.0
53.0
76.2
76.2
77.2
76.2
89.4
89.8
89.8
89.8
115.6
115.6
115.6
115.6
117.3
107.9
115.6
106.4
115.2
124.5
154.4
154.4
158.8
158.8
160.9
222.3
225.3
180.8
Thickness
mm
3.00
4.80
4.80
4.80
5.20
5.20
4.95
4.95
5.08
4.95
4.95
4.95
5.00
3.10
5.90
3.75
5.66
5.66
5.20
3.10
5.66
5.66
6.00
5.90
6.45
6.45
6.10
6.10
16.31
6.35
5.80
4.00
in.
1
1
1 1/2
2
2 1/2
2 1/2
3 1/8
3 1/8
3 1/8
3 1/8
3 5/8
3 5/8
3 5/8
3 5/8
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
5
5
6
6
6
6
7
10
10
10
in.
.059
.063
.063
.063
.063
.063
.071
.071
.071
.063
.071
.071
.063
.071
.071/.091
.091
.091
.091
.080
.063
.071
.091
.091
.091
.091
.091
.063
.063
.080
.091
.080
.063
in.
.059
.063
.063
.063
.063
.063
.063
.063
.071
.063
.063
.063
.063
.063
.071
.071
.071
.071
.063
.063
.071
.071
.071
.071
.071
.071
.063
.063
.063
.091
.080
.063
in.
0.79
0.94
1.26
1.65
1.97
1.97
2.81
3.97
2.81
2.81
3.25
3.25
3.24
3.24
4.13
4.13
4.13
4.13
4.13
4.13
4.13
4.13
4.46
4.46
6.38
6.38
6.38
6.38
6.00
6.85
6.85
8.19
in.
.953
.860
1.16
1.62
2.05
2.09
3.00
3.00
3.04
3.00
3.52
3.54
3.54
3.54
4.55
4.55
4.55
4.55
4.62
4.25
4.55
4.19
4.54
4.90
6.08
6.08
6.25
6.25
6.33
8.75
8.87
7.12
in.
.120
.189
.189
.189
.205
.205
.195
.195
.200
.195
.197
.195
.195
.122
.232
.148
.223
.223
.205
.122
.223
.223
.236
.232
.254
.254
.240
.240
.642
.250
.228
.157
*
Note: Add to part number for: Black (-02), Stainless Steel (-SS) (example: 08149-02 Black 40mm Fan Guard.)
** Does not meet 1/4” max. ring spacing.
www.Qualtekusa.com
4
京公网安备 11010802033920号
EEWORLD
