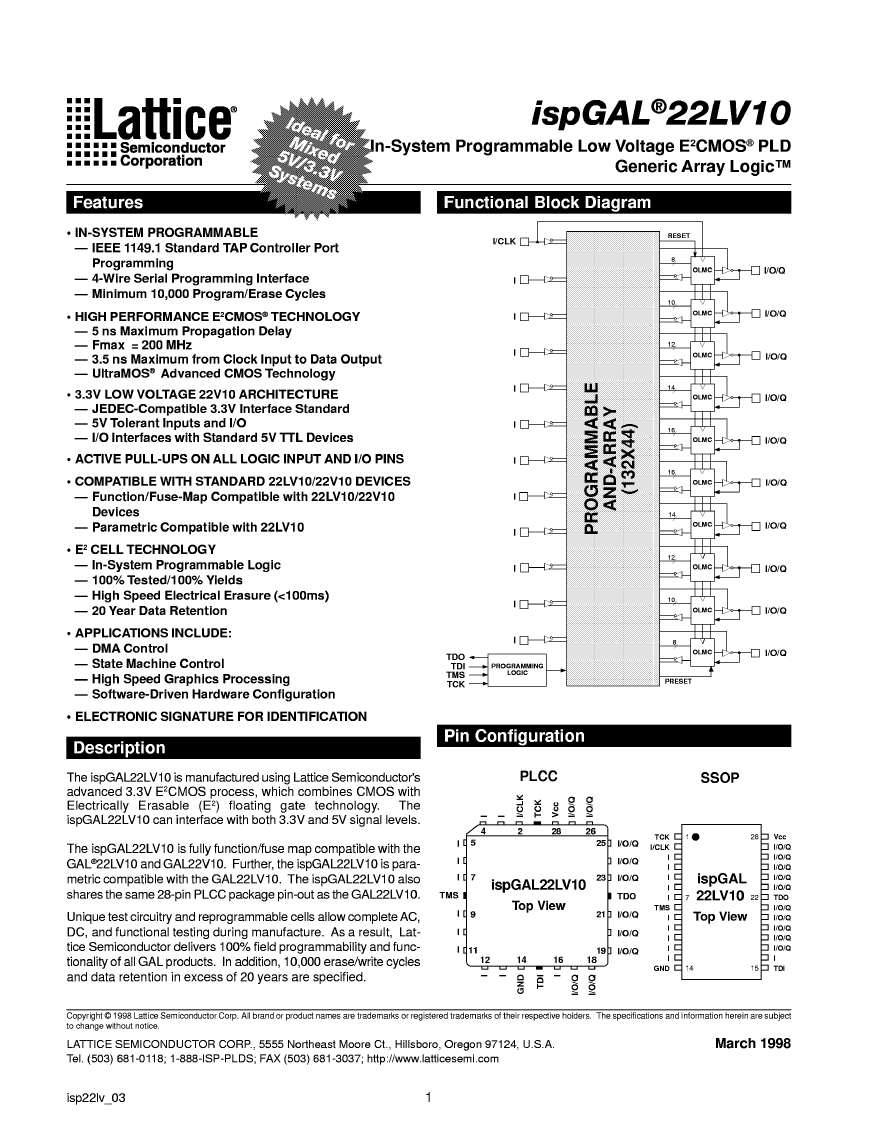

ISPGAL22LV10-15LK datasheet, PDF

ISPGAL22LV10-15LK: DescriptionEE PLD, 15ns, PAL-Type, CMOS, PDSO28, SSOP-28; CategoryProgrammable logic Programmable logic devices; File Size520KB，13 Pages; ManufacturerLattice; Websitehttp://www.latticesemi.com

Download Datasheet Parametric View All

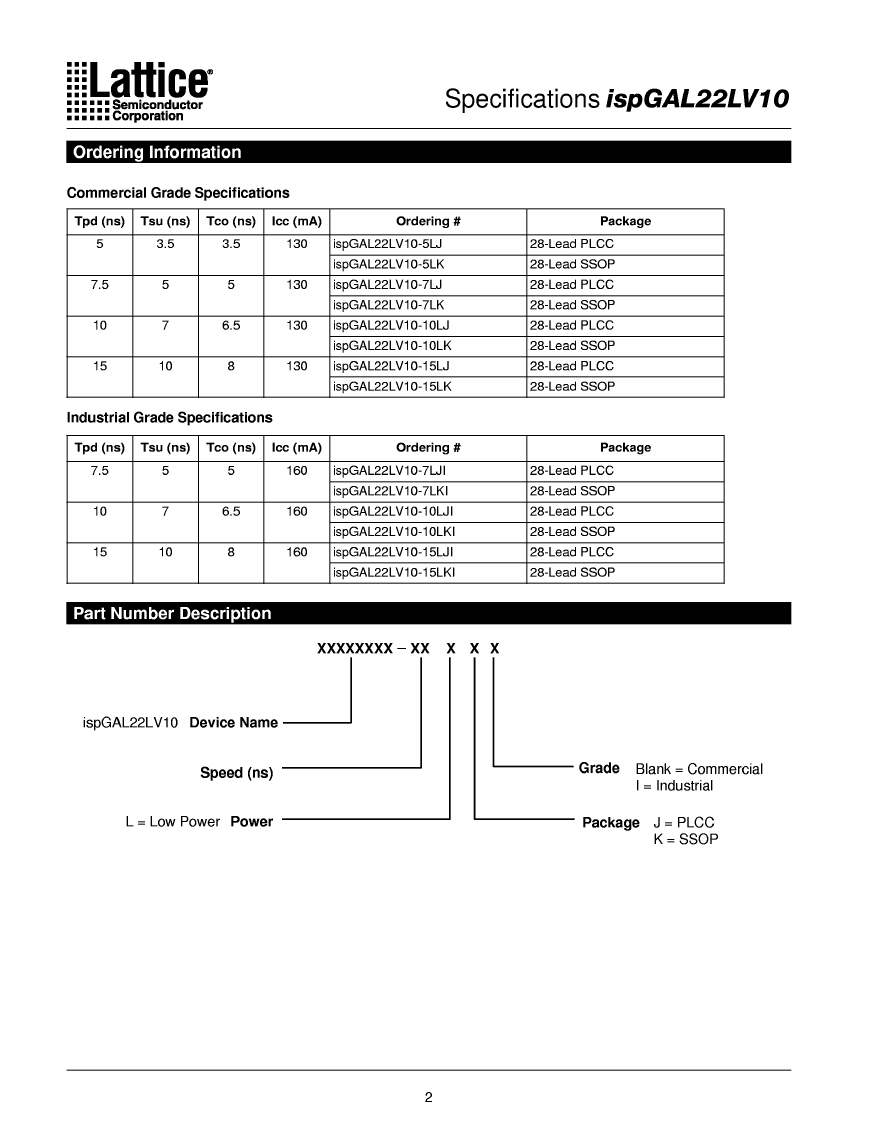

ISPGAL22LV10-15LK Overview

EE PLD, 15ns, PAL-Type, CMOS, PDSO28, SSOP-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Lattice
Parts packaging code	SSOP
package instruction	SSOP-28
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	IN-SYSTEM PROGRAMMABLE
Architecture	PAL-TYPE
maximum clock frequency	55.5 MHz
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	10.2 mm
Humidity sensitivity level	1
Dedicated input times	11
Number of I/O lines	10
Number of entries	22
Output times	10

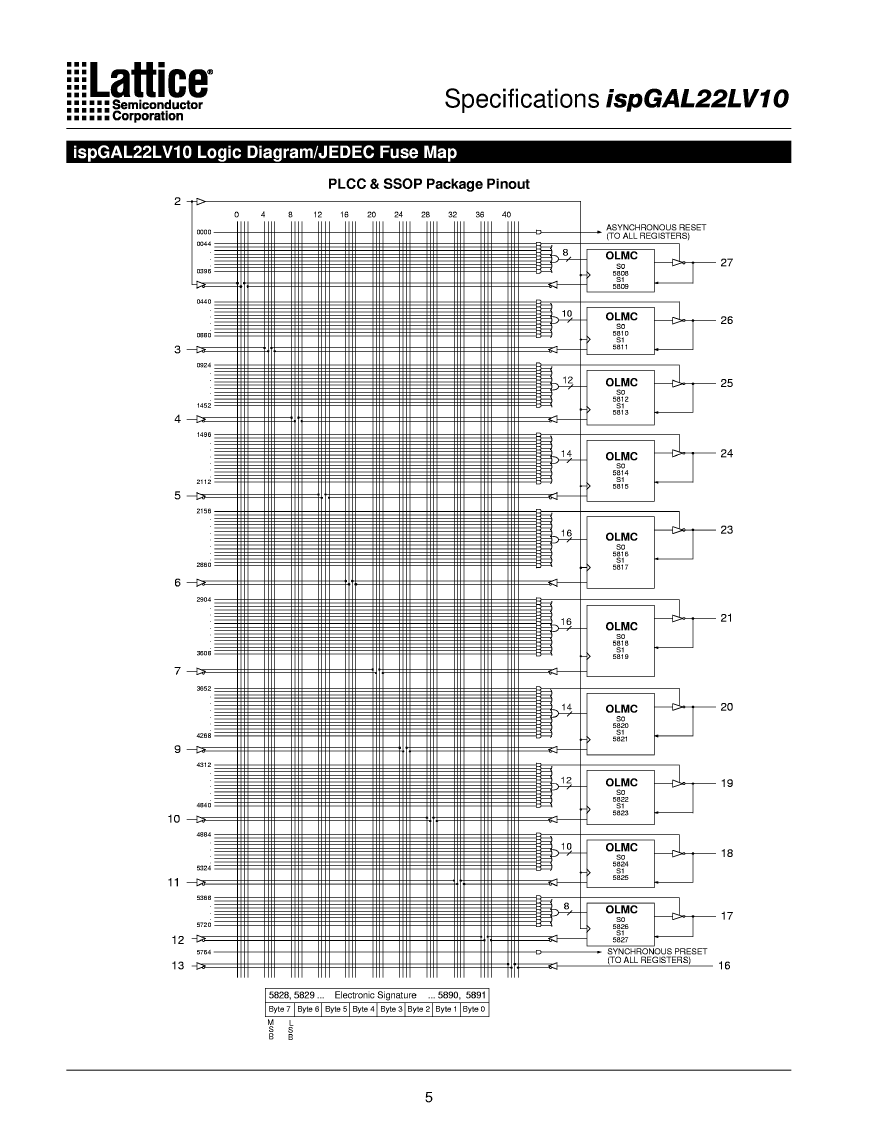

Number of product terms	132
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature

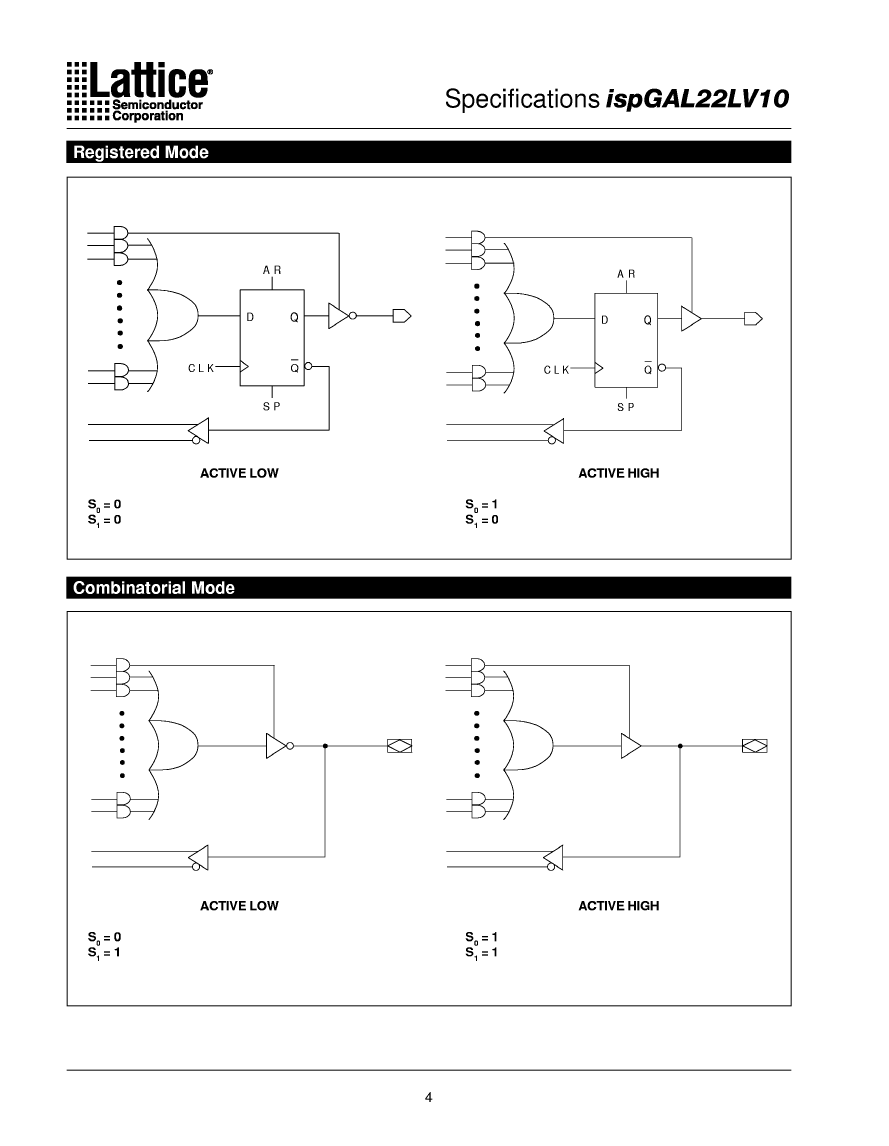

organize	11 DEDICATED INPUTS, 10 I/O

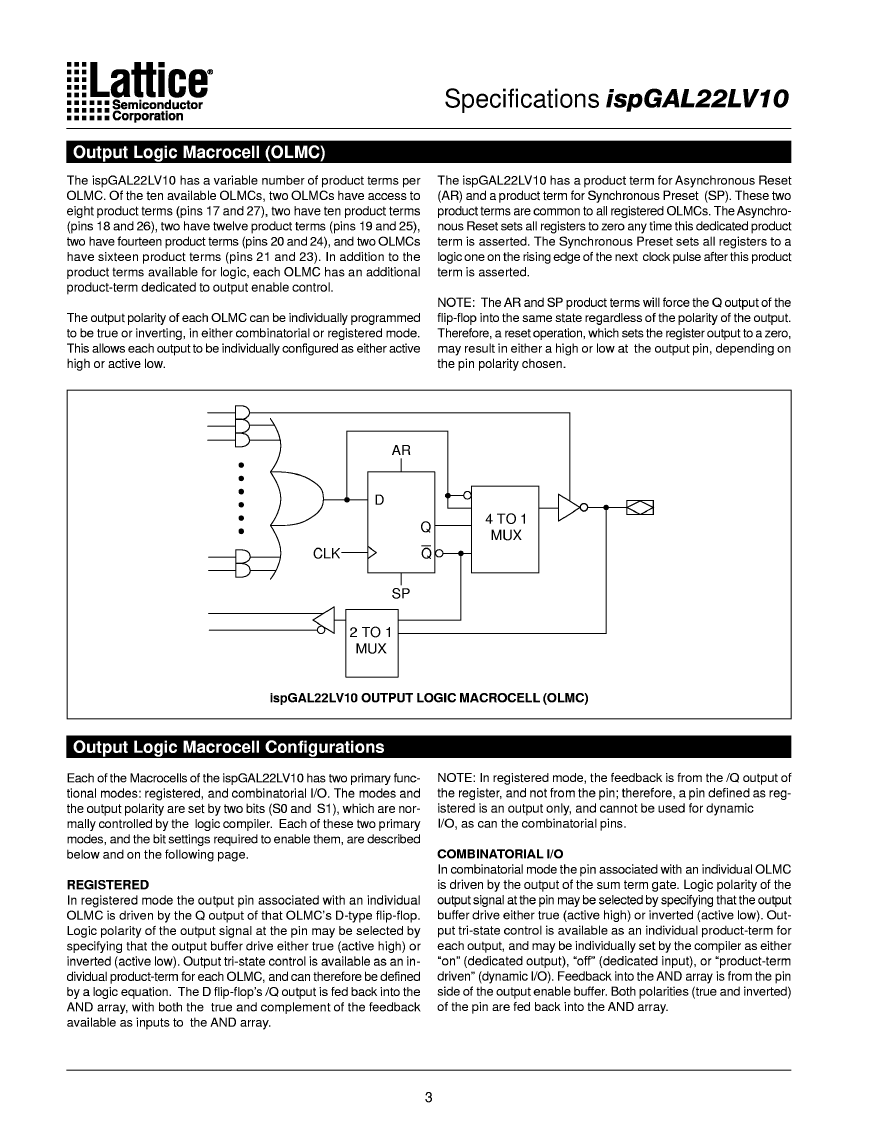

Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP28,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V
Programmable logic type	EE PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1
