Compliance to EN50155 and EN45545-2 railway standard
Ultra compact and 1U low profile(25mm)
4:1 wide input range
No minimum load required
Protections: Short circuit / Overload / Over voltage /
Input reverse polarity
4000VDC I/O isolation
(reinforced isolation)
Half encapsulated , cooling by free air convection
-40~+70
℃
wide working temperature
Built-in constant current limiting circuit
LED indicator for power on
3 years warranty
■
Applications
Bus,tram,metro or railway system
Wireless network
Telecom or datacom system
Highly vibrating, highly dusty, extremely
low or high temperature harsh environment
■
Description

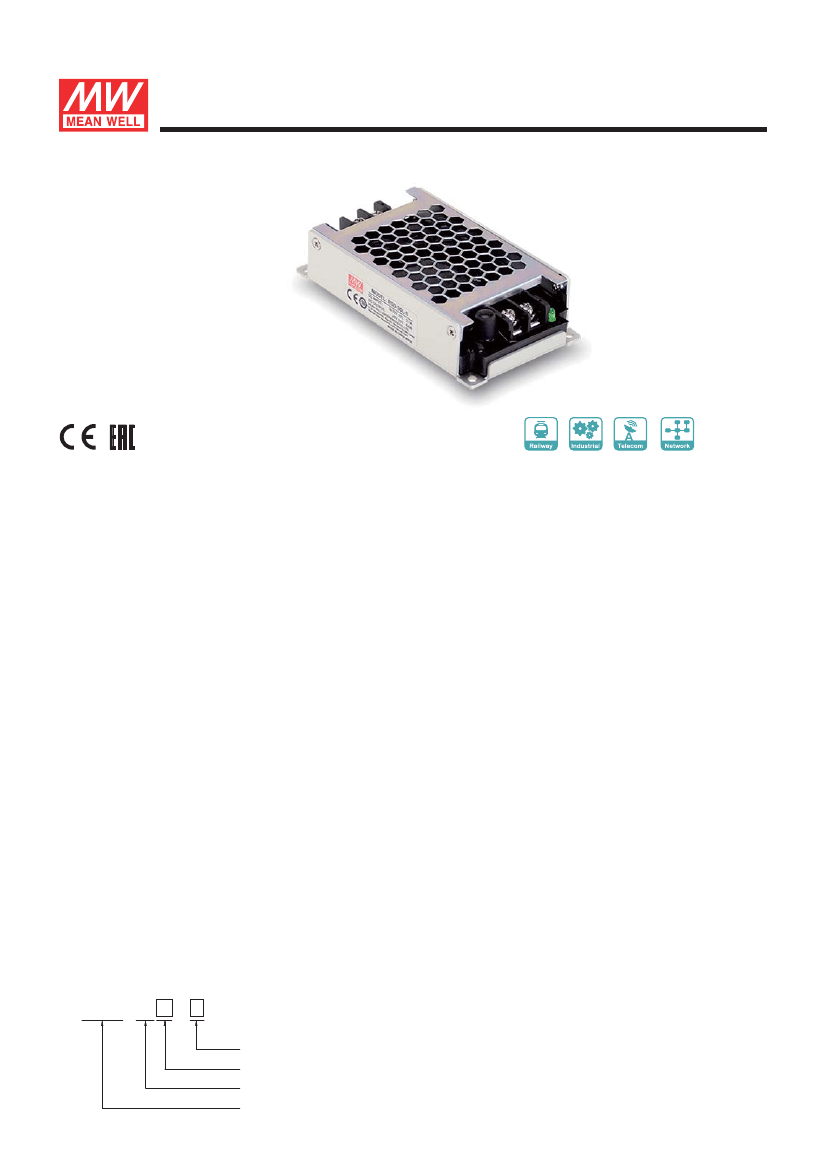

RSD-30 is a 30W enclosed type DC-DC reliable railway converter. This series is compliant with EN50155/
IEC60571 railway standard, constituting three types of models with 4:1 wide but different input ranges
9~36V/18~72V/40~160V, suitable for railway and all kinds of transportation systems exploiting the frequently
used standard input voltages such as 12V, 24V, 36V, 48V, 72V, 96V and 110V. Various output voltages,
3.3V, 5V, 12V and 24V are available for selection.
This series has the capability of working under -40~+70
℃
, low ripple and noise, supreme EMC characteristics,
4KVDC I/P-OP, low enclosure profile 25mm and an interior with semi-potted silicone. It does not only well
fits the in-car systems or the facilities by rails for railway, trams and buses but also can be used in the harsh
environment with high vibration, high dust, extremely low or high temperature, etc.
■
Model Encoding
RSD - 30 G - 5
Output voltage (3.3/5/12/24Vdc)
Input voltage (G: 9~36Vdc, L: 18~72Vdc, H: 40~160Vdc)
Rated wattage
Series name
File Name:RSD-30-SPEC 2018-01-12
30W Reliable Railway DC-DC Converter
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RSD-30G-3.3
3.3V
6A
0 ~ 6A
19.8W
RSD-30G-5
5V
6A
0 ~ 6A
30W
70mVp-p
±2.0%
±0.5%
±0.5%
RSD-30G-12
12V
2.5A
0 ~ 2.5A
30W
60mVp-p
±2.0%
±0.3%
±0.3%
RSD-30G-24
24V
1.25A
0 ~ 1.25A
30W
50mVp-p
±2.0%
±0.2%
±0.2%
RSD-30L-3.3
3.3V
6A
0 ~ 6A
19.8W
70mVp-p
±2.0%
±0.5%
±0.5%
RSD-30
RSD-30L-5
5V
6A
0 ~ 6A
30W
70mVp-p
±2.0%
±0.5%
±0.5%
RSD-30L-12
12V
2.5A
0 ~ 2.5A
30W
60mVp-p
±2.0%
±0.3%
±0.3%
series
RSD-30L-24
24V
1.25A
0 ~ 1.25A
30W
50mVp-p
±2.0%
±0.2%
±0.2%
RIPPLE & NOISE (max.)
Note.2
70mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
EFFICIENCY (Typ.)
DC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
±0.5%
±0.5%
120ms, 85ms at full load
G type comply with S1 level(3ms) @ full load,S2 level(10ms) @80% load ; L type comply with S2 level( 10
ms
) @full load
18 ~ 72VDC
85%
1.5A/24V
86.5%
89%
84%
0.52A/48V
20A/48VDC
86%
0.8A/48V
90%
91%
84%
1.1A/24V
20A/24VDC
VOLTAGE RANGE CONTINUOUS
9 ~ 36VDC
INPUT
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
3.8 ~ 4.5V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
3.8 ~ 4.5V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
Protection type : Shut down o/p voltage, re-power on to recover
-40 ~ +55
℃
(no derating) ; +70
℃
@ 60% load by free air convection ; +70
℃
(no derating with external base plate)
5 ~ 95% RH non-condensing
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 50
℃
)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
EAC TP TC 004
approved,
IEC60950-1 (LVD)
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
I/P-O/P:4KVDC
I/P-FG:2.5KVDC
O/P-FG:2.5KVDC
Test Level / Note
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Standard
Conducted
EN55032
EN55032
EN6100-3-2
EN6100-3-3
Standard
EN61000-4-2
Class A
Class B
Class A
-----
Test Level / Note
Level 3,
±
8KV air ; Level 3,
±
6KV contact
EMC EMISSION
SAFETY &
EMC
(Note 4)
Radiated
Harmonic Current
Voltage Flicker
Parameter
ESD
Radiated Field
EMC IMMUNITY
EFT / Burst
Surge
Conducted
RAILWAY STANDARD
MTBF
OTHERS
DIMENSION
PACKING
396.9K hrs min. MIL-HDBK-217F (25
℃
)
113*60*25mm (L*W*H)
0.25Kg; 56pcs/15Kg/0.83CUFT
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Level X
Level 3, 2KV at power
Level 4, 2KV at signal
Level 3,1KV Line-Line, Level 3, 2KV Line-Earth
Level 3
Compliance to EN45545-2 for fire protection ; EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
NOTE
1. All parameters NOT specially mentioned are measured at 24,48VDC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
5. Strongly recommended that external output capacitance should not exceed 5000uF.
6. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSD-30-SPEC 2018-01-12
30W Reliable Railway DC-DC Converter
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RSD-30H-3.3
3.3V
6A
0 ~ 6A
19.8W
RSD-30H-5
5V
6A
0 ~ 6A
30W
70mVp-p
±2.0%
±0.5%
±0.5%
RSD-30H-12
12V
2.5A
0 ~ 2.5A
30W
60mVp-p
±2.0%
±0.3%
±0.3%
RSD-30
RSD-30H-24
24V
1.25A
0 ~ 1.25A
30W
50mVp-p
±2.0%
±0.2%
±0.2%
series
RIPPLE & NOISE (max.)
Note.2
70mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
EFFICIENCY (Typ.)
DC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
±0.5%
±0.5%
120ms, 85ms at full load
H-type comply with S2 level(10ms) @ full load
87%
0.23A/110V
20A/110VDC
105 ~ 135% rated output power
Protection type :
Constant current limiting, recovers automatically after fault condition is removed
3.8 ~ 4.5V
5.75 ~ 7V
13.8 ~ 16.2V
27.6 ~ 32.4V
Protection type : Shut down o/p voltage, re-power on to recover
-40 ~ +55
℃
(no derating) ; +70
℃
@ 60% load by free air convection ; +70
℃
(no derating with external base plate)
5 ~ 95% RH non-condensing
89%
0.35A/110V
89%
89%
VOLTAGE RANGE CONTINUOUS
40 ~ 160VDC
INPUT
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 50
℃
)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
EAC TP TC 004
approved,
IEC60950-1 (LVD)
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
I/P-O/P:4KVDC
I/P-FG:2.5KVDC
O/P-FG:2.5KVDC
Test Level / Note
Class A
EMC EMISSION
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Standard
EN55032
Conducted
Radiated
EN55032
Harmonic Current
Voltage Flicker
EN6100-3-2
EN6100-3-3
Standard
EN61000-4-2
Class B
Class A
-----
Test Level / Note
Level 3,
±
8KV air ; Level 3,
±
6KV contact
SAFETY &
EMC
(Note 4)
Parameter
ESD
Radiated Field
EMC IMMUNITY
EFT / Burst
Surge
Conducted
RAILWAY STANDARD
MTBF
OTHERS
DIMENSION
PACKING
396.9K hrs min. MIL-HDBK-217F (25
℃
)
113*60*25mm (L*W*H)
0.25Kg; 56pcs/15Kg/0.83CUFT
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Level X
Level 3, 2KV at power
Level 4, 2KV at signal
Level 3,1KV Line-Line, Level 3, 2KV Line-Earth
Level 3
Compliance to EN45545-2 for fire protection ; EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
NOTE
1. All parameters NOT specially mentioned are measured at 110VDC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
5. Strongly recommended that external output capacitance should not exceed 5000uF.
6. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSD-30-SPEC 2018-01-12
30W Reliable Railway DC-DC Converter
Block Diagram
RSD-30
series
fosc : 110KHz
I/P
EMI
FILTER
RECTIFIERS
&
FILTER
POWER
SWITCHING
RECTIFIERS
&
FILTER
+V
-V
FG
O.L.P.
PWM
CONTROL
O.V.P.
DETECTION
CIRCUIT
Input Fuse
There is one fuse connected in series to the positive input line, which is used to protect against abnormal surge. Fuse specifications of each
model are shown as below.
Type
G
L
H
Fuse Type
Time-Lag
Time-Lag
Time-Lag
Reference and Rating
CONQUE MST, 6.3A, 250V
CONQUE MST,
3.15A, 250V
CONQUE MST,
2A, 250V
Input Reverse Polarity Protection
There is a MOSFET connected in series to the negative input line. If the input polarity is connected reversely, the MOSFET opens and there
will be no output to protect the unit.
Input Range and Transient Ability
The series has a wide range input capability. With
±
40% of rated input voltage, it can withstand that for 1 second.
Input Under-Voltage Protection
If input voltage drops below Vimin, the internal control IC shuts down and there is no output voltage. It recovers automatically when input
voltage reaches above Vimin, please refer to the cruve below.
RSD-30G-24
Vo
30
25
20
15
10
5
6.3
0
6
8
10
12
14
16
8.3
Turn On
Turn Off
RSD-30L-24
Vo
30
25
20
15
10
5
12.3
16.3
16
20
24
28
32
Turn On
Turn Off
RSD-30H-24
Vo
30
25
20
15
10
5
25.5
37
32
40
48
56
Turn On
Turn Off
Vin
0
12
Vin
0
24
Vin
Inrush Current
Inrush current is suppressed by a resistor during the initial start-up, and then the resistor is bypassed by a MOSFET to reduce power
consumption after accomplishing the start-up.
File Name:RSD-30-SPEC 2018-01-12
30W Reliable Railway DC-DC Converter
Hold-up Time
RSD-30
series
H type is in compliance with S2 level (10ms), while G and L types are in compliance with S1 level (3ms) at full load output condition.
To fulfil the requirements of S2 level (10ms), G types require de-rating their output load to 80%, please refer to the curve diagrams below.
RSD-30G-3.3
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
0ms
10ms
20ms
30ms
40ms
50ms
60ms
70ms
80ms
RSD-30G-5
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
0ms
10ms 20ms 30ms 40ms 50ms 60ms 70ms 80ms
TIME
LOAD
TIME
RSD-30G-12
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
0ms 10ms 20ms 30ms 40ms 50ms 60ms 70ms 80ms
TIME
LOAD
RSD-30G-24
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
0ms 10ms 20ms 30ms 40ms 50ms 60m s 70ms 80ms 90ms
TIME
LOAD
Output Voltage Adjustment
This function is optional, which the standard product does not have it. If you do need the function, please contact MW for details.
To transplant part of the BootLoader code under ADS to Eboot, ADS uses variable-length parameters as follows: #includevoid DM_Printf(char *fmt, ...) { char buffer[PRINTF_BUFFER_SIZE + 1]; va_list ap; ...
How to use DXP to draw CSP chip PCB package? Explanation of the situation and unclear parts: I go to PCB Library -> Tools -> New Component and use the wizard to select BGA to draw [color=Red], can it ...
[b][url=http://www.deyisupport.com/blog/b/behindthewheel/archive/2016/11/28/52600.aspx]Integrating Smart Sensor Health Monitoring for Advanced Driver Assistance Systems and Autonomous Driving[/url][/b...
There is not much difference in developing programs for different microcontrollers. If you spend too much time on the programming language of 89c51 and feel that you cannot learn the programming langu...
[align=left][font=微软雅黑][size=13.5pt]For details of the event, please see: [/size][/font][url=https://www.eeworld.com.cn/huodong/ti20160516/index.html][u][color=rgb(0, 0, 255)][font=微软雅黑][size=13.5pt]h...
Is it necessary to download the program to 0x30200000 on s3c2410? I modified a ucos program and downloaded it to the chip, but the specified address was from 0. As a result, it ran wrong and then I co...
On August 24th, Tesla CEO Elon
Musk
revealed information about the upcoming FSD V14, claiming it will outperform human drivers. Tesla FSD lead Ashok stated last year that FSD version 12.5, ...[Details]
Tesla and BYD, vying for dominance in the global electric vehicle market, are reportedly considering adopting Samsung's AMOLED (active-matrix organic light-emitting diode) technology for their next...[Details]
introduction
With the development of digital and network technologies, broadcasting technology has become increasingly diversified, with the most significant trend being the transition from an...[Details]
Logic analyzers are widely used tools in digital design verification and debugging. They can verify the proper functioning of digital circuits and help users identify and troubleshoot faults. They ...[Details]
One of the most core components of electric vehicles is the motor. The power supply provides electrical energy to the motor, which converts this electrical energy into mechanical energy, which in t...[Details]
With the increasing number of new energy vehicles on the road, the deployment of supporting facilities for these vehicles has accelerated, and new energy vehicles have gradually entered the vision ...[Details]
1. Ease of Use: The HMI module should be designed to be simple and clear, allowing users to easily operate and configure the energy storage device.
2. Ease of Maintenance: The HMI module should...[Details]
On August 22, according to CNBC's report today, the National Highway Traffic Safety Administration (NHTSA) is launching an investigation into Tesla, and the latter is questioned whether it has fail...[Details]
My career has been closely tied to the semiconductor industry. From product management to content marketing, I've provided countless forecasts and predictions across a variety of roles. Whethe...[Details]
China, August 21, 2025 – STMicroelectronics (NYSE: STM), a world-leading semiconductor company serving a wide range of electronics applications, has published its IFRS 2025 semi-annual financial re...[Details]
Common methods for troubleshooting roller press bearing wear include repair welding, thermal spraying, brush plating, and scrapping and replacement. However, these methods are often subject to asse...[Details]
With the support and encouragement of national policies, some Internet car manufacturers have also joined the new energy vehicle manufacturing industry. From the perspective of new car manufacturer...[Details]
From time to time, I see some audiophiles spending a lot of money or a lot of time to DIY speakers, but the results are not what they want. Below I list some of the small experiences I summarized b...[Details]
I recently read an article in the Wall Street Journal titled "We need the right to repair our gadgets" (reference original article: ). The author was very angry about the phenomenon of "planned obs...[Details]
introduction
The rapid adoption of computers has led to a growing number of tasks being performed on them. People from all walks of life, especially programmers and writers, are spending incre...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
