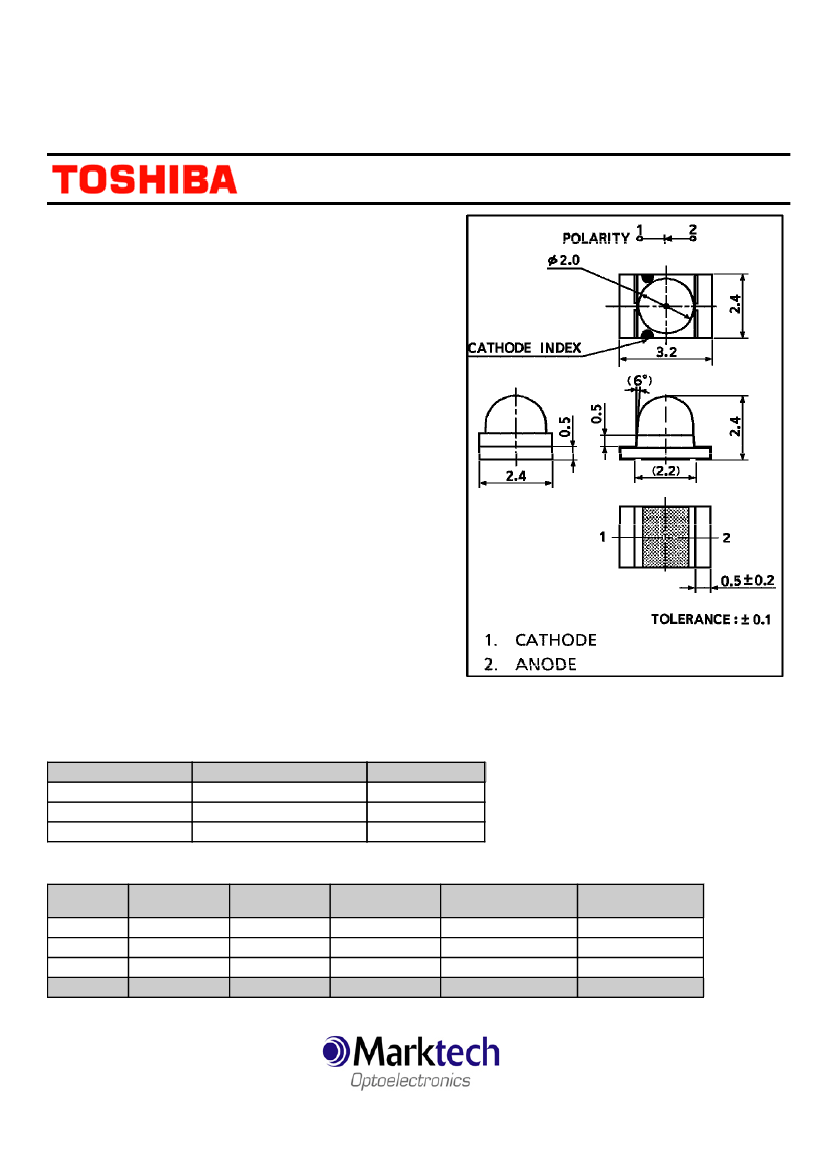

Toshiba TLxE1005A SMT LEDs
Features
3.2 (L) x 2.4 (W) x 2.4 (H) mm
2 mm Lens−top type
Reflow Soldering is possible
Standard Embossed Taping 4 mm Pitch : T03 (1000 pcs/reel)
Applications
Portable Equipment
Message Signboards
High Intensity Backlight
Battery−Driven Equipment
Series Line−Up
Part Number
TLOE1005A
TLRE1005A
TLYE1005A
Color
Ultra Bright Orange
Ultra Bright Red
Ultra Bright Yellow
Material
InGaAlP
InGaAlP
InGaAlP
Maximum Ratings (Ta=25
o
C)
Part Number
TLOE1005A
TLRE1005A
TLYE1005A
Unit
Forward Current
I
F
25
25
25
mA
Reverse Voltage
V
R
4
4
4
V
Power Dissipation
P
D
60.00
60.00
62.00
mW
Operating Temperature
T
opr
−25 ~ +80
−25 ~ +80
−25 ~ +80
o
Storage Temperature
T
stg
−30 ~ 85
−30 ~ 85
−30 ~ 85
o
C
C
Company Headquarters
3 Norhway Lane North
Latham, New York 12110
Toll Free: 800.984.5337
Fax: 518.785.4725
Web: www.marktechopto.com | Email: info@marktechopto.com
West Coast Sales Office
950 South Coast Drive, Suite 265
Costa Mesa, California 92626
Toll Free: 800.984.5337
Fax:
714.850.9314
Toshiba TLxE1005A SMT LEDs

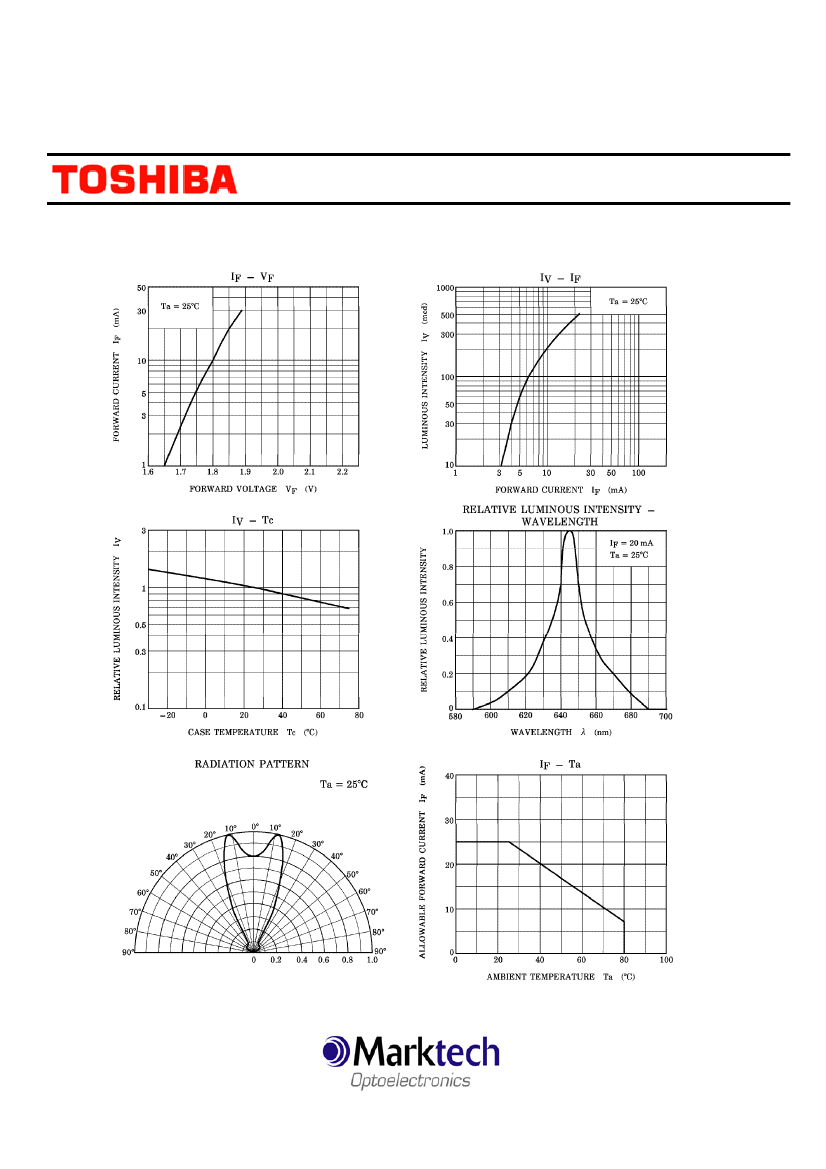

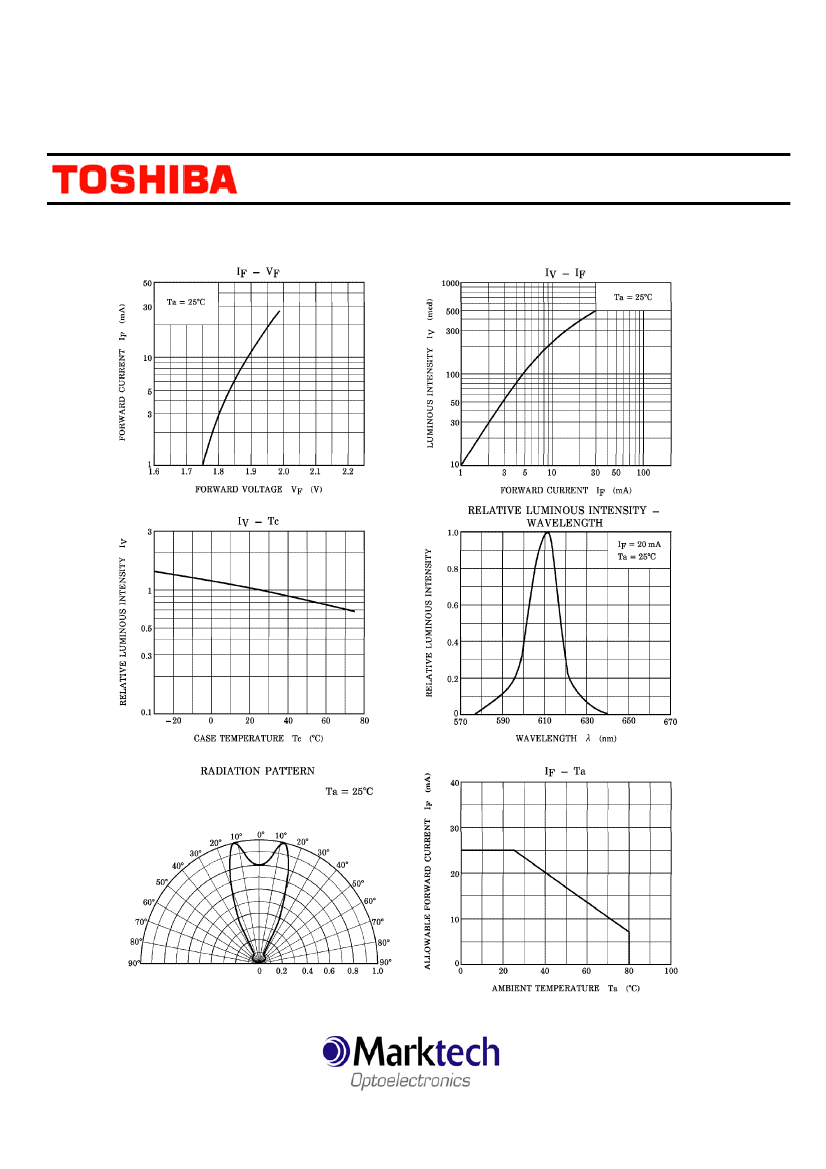

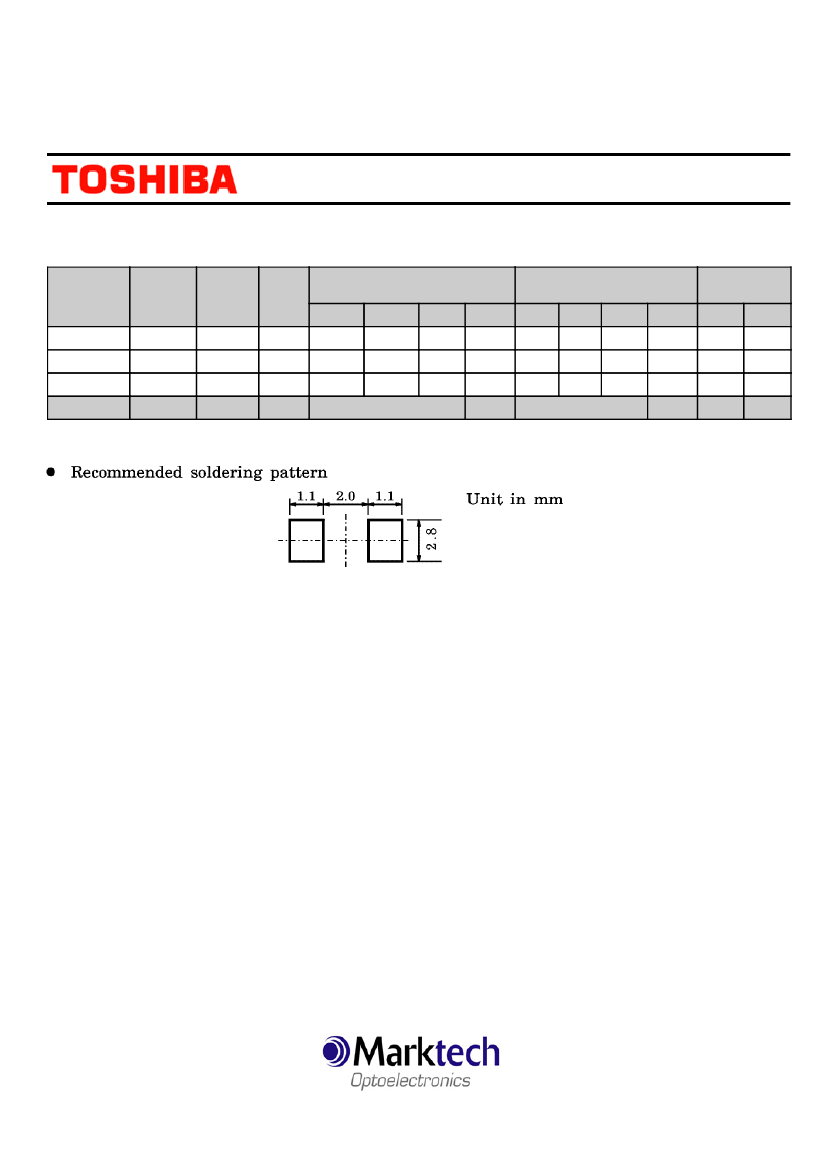

Electrical and Optical Characteristics (Ta=25 C)
Part
Number
PWL nm
λP
Material
View
Angle
2θ
1/2
44
44
44
o
o
o
o
Luminous Intensity
I
v
min.
153.00
153.00
85.00
typ.
400.00
450.00
300.00
mcd
max.
IF@
− 20mA
− 20mA
− 20mA
−
min.
−
−
−
Forward Voltage
V
F
typ.
1.95
1.85
2.10
V
max.
IF@
Rev Current
I
R
max.
50
50
50
µ
A
−
VR@
4V
4V
4V
TLOE1005A
TLRE1005A
TLYE1005A
−
612
644
590
nm
InGaAlP
InGaAlP
InGaAlP
−
2.40 20mA
2.40 20mA
2.50 20mA
−
deg
