VJ....W1BC Basic Commodity Series
www.vishay.com
Vishay

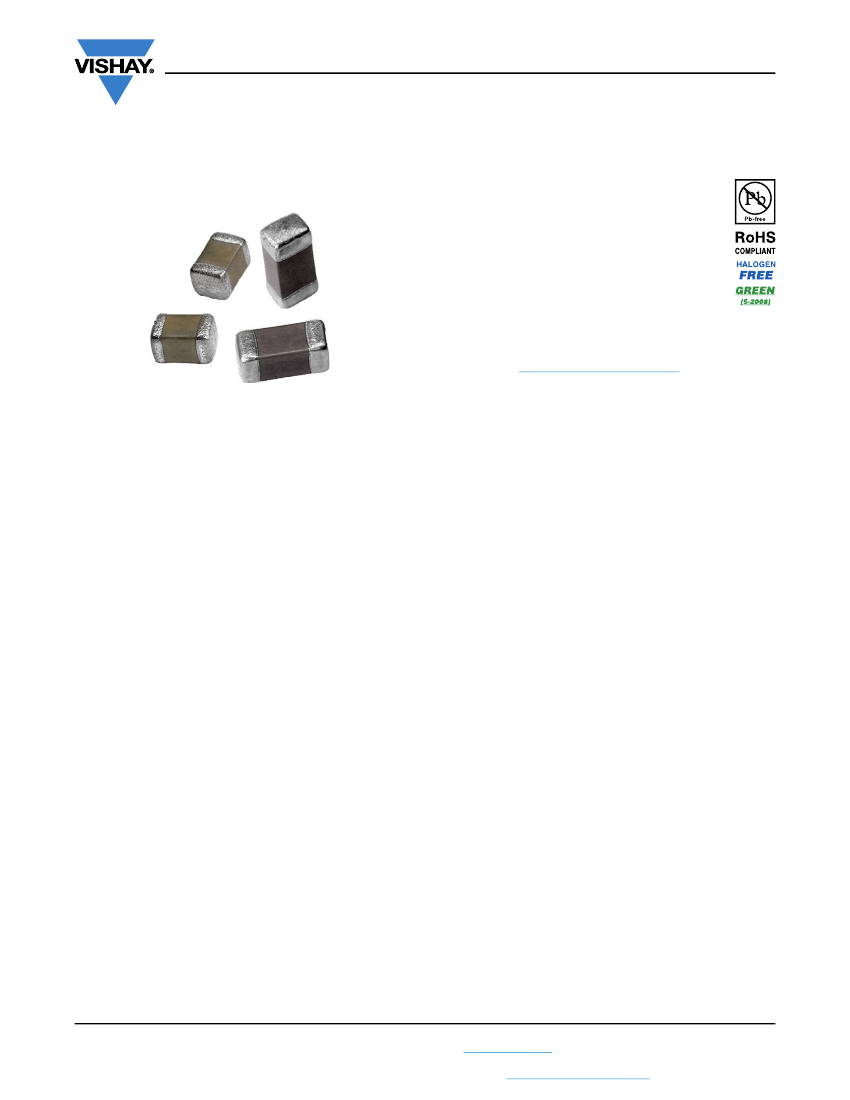

Surface Mount Multilayer Ceramic Chip Capacitors
for Commodity Applications
FEATURES
Available from 0402 to 1210 body sizes
Ultra stable C0G (NP0) dielectric
High capacitance in X5R, X7R, Y5V
For high frequency applications
Ni-barrier with 100 % tin terminations
Dry sheet technology process
Noble Metal Electrode system (NME):
for certain C0G (NP0) values
• Base Metal Electrode system (BME):
for X5R, X7R, Y5V and certain C0G (NP0) values
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
•
•
•
•
•
•
•
APPLICATIONS
•
•
•
•
Consumer electronics
Telecommunications
Data processing
Mobile applications
ELECTRICAL SPECIFICATIONS
Operating Temperature:
C0G (NP0): -55 °C to +125 °C
X5R: -55 °C to +85 °C
X7R: -55 °C to +125 °C
Y5V: -25 °C to +85 °C
Capacitance Range:
C0G (NP0): 0.5 pF to 39 nF
X5R: 47 nF to 220 μF
X7R: 100 pF to 47 μF
Y5V: 10 nF to 100 μF
Voltage Range:
C0G (NP0): 10 V
DC
to 100 V
DC
X5R: 6.3 V
DC
to 50 V
DC
X7R: 10 V
DC
to 100 V
DC
Y5V: 6.3 V
DC
to 100 V
DC
Temperature Coefficient of Capacitance (TCC):
C0G (NP0): 0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
X5R: ± 15 % from -55 °C to +85 °C without voltage applied
X7R: ± 15 % from -55 °C to +125 °C without voltage applied
Y5V: + 30 % / - 80 % from -25 °C to +85 °C without voltage
applied
Insulation Resistance (IR) at U
R
:
10 G or R x C
500
x F whichever is less
Test Conditions for Capacitance Tolerance:
preconditioning for X5R, X7R, Y5V MLCC: perform a heat
treatment at +150 °C ± 10 °C for 1 h, then leave in ambient
condition for 24 h ± 2 h before measurement
Test Conditions for Capacitance and DF Measurement:
measured at conditions of 30 % to 70 % related humidity.
C0G (NP0): Apply 1.0 V
RMS
± 0.2 V
RMS
, 1.0 MHz ± 10 % for
caps
1000 pF, at +25 °C ambient temperature
Apply 1.0 V
RMS
± 0.2 V
RMS
, 1.0 kHz ± 10 % for
caps > 1000 pF, at +25 °C ambient temperature
X5R / X7R: Caps
10 μF apply 1.0 V
RMS
± 0.2 V
RMS
,
1.0 kHz ± 10 %, at +25 °C ambient temperature
(1)
Caps > 10 μF apply 0.5 V
RMS
± 0.2 V
RMS
,
120 Hz ± 20 %, at +25 °C ambient temperature
Y5V:
Caps
10 μF apply 1.0 V
RMS
± 0.2 V
RMS
,
1.0 kHz ± 10 %, at +20 °C ambient temperature
Caps > 10 μF apply 0.5 V
RMS
± 0.2 V
RMS
,
120 Hz ± 20 %, at +20 °C ambient temperature
Note
(1)
Test conditions: 0.5 V
RMS
± 0.2 V
RMS
, 1 kHz ± 10 %
X7R: 0603:
2.2 μF / 10 V
0805: 10 μF (6.3 V and 10 V)
X5R: 0402:
4.7 μF / 6.3 V and
2.2 μF / 10 V
0603: 10 μF (6.3 V and 10 V)
Aging Rate:
C0G (NP0): 0 % per decade
X5R: 6.3 V
DC
/ 10 V
DC
: 3 % maximum per decade
16 V
DC
/ 25 V
DC
: 2 % maximum per decade
X7R:
10 V
DC
: 1.5 % maximum per decade
16 V
DC
: 1 % maximum per decade
Y5V: 6.3 V
DC
: 12.5 % maximum per decade
10 V
DC
/ 16 V
DC
: 9 % maximum per decade
25 V
DC
: 7 % maximum per decade
Dielectric Strength Test:
this is the maximum voltage the capacitors are tested 1 s to
5 s period and the charge / discharge current does not
exceed 50 mA.
100 V
DC
: 250 % of rated voltage
