HIP6018B
NOT RECOMMENDED FOR NEW DESIGNS
NO RECOMMENDED REPLACEMENT
contact our Technical Support Center at
1-888-INTERSIL or www.intersil.com/tsc
DATASHEET
FN4586
Rev 3.00
April 1, 2005
Advanced PWM and Dual Linear Power Control
The HIP6018B provides the power control and protection for
three output voltages in high-performance microprocessor
and computer applications. The IC integrates a PWM
controllers, a linear regulator and a linear controller as well
as the monitoring and protection functions into a single
package. The PWM controller regulates the microprocessor
core voltage with a synchronous-rectified buck converter.
The linear controller regulates power for the GTL bus and
the linear regulator provides power for the clock driver
circuit.
The HIP6018B includes an Intel-compatible, TTL 5-input
digital-to-analog converter (DAC) that adjusts the core PWM
output voltage from 2.1VDC to 3.5VDC in 0.1V increments
and from 1.3VDC to 2.05VDC in 0.05V steps. The precision
reference and voltage-mode control provide
1%
static
regulation. The linear regulator uses an internal pass device
to provide 2.5V
2.5%.
The linear controller drives an
external N-channel MOSFET to provide 1.5V
2.5%.
The HIP6018B monitors all the output voltages. A single
Power Good signal is issued when the core is within ±10% of
the DAC setting and the other levels are above their under-
voltage levels. Additional built-in over-voltage protection for
the core output uses the lower MOSFET to prevent output
voltages above 115% of the DAC setting. The PWM over-
current function monitors the output current by using the
voltage drop across the upper MOSFET’s r
DS(ON)
,
eliminating the need for a current sensing resistor.
Features
• Provides 3 Regulated Voltages
- Microprocessor Core, Clock and GTL Power
• Drives N-Channel MOSFETs
• Operates from +3.3V, +5V and +12V Inputs
• Simple Single-Loop PWM Control Design
- Voltage-Mode Control
• Fast Transient Response
- High-Bandwidth Error Amplifier
- Full 0% to 100% Duty Ratios
• Excellent Output Voltage Regulation
- Core PWM Output:
1%
Over Temperature
- Other Outputs:
2.5%
Over Temperature
• TTL-Compatible 5-Bit Digital-to-Analog Core Output
Voltage Selection
- Wide Range . . . . . . . . . . . . . . . . . . . 1.3V
DC
to 3.5V
DC
- 0.1V Steps . . . . . . . . . . . . . . . . . . . . 2.1V
DC
to 3.5V
DC
- 0.05V Steps . . . . . . . . . . . . . . . . . . 1.3V
DC
to 2.05V
DC
• Power-Good Output Voltage Monitor
• Microprocessor Core Voltage Protection Against Shorted
MOSFET
• Over-Voltage and Over-Current Fault Monitors
- Does Not Require Extra Current Sensing Element,
Uses MOSFET’s r
DS(ON)
• Small Converter Size
- Constant Frequency Operation
- 200kHz Free-Running Oscillator; Programmable from
50kHz to over 1MHz
• Pb-Free Available (RoHS Compliant)
Pinout
HIP6018B
(SOIC)
TOP VIEW
VCC 1
VID4 2
VID3 3
VID2 4
VID1 5
VID0 6
PGOOD 7
FAULT 8
SS 9
RT 10
FB2 11
VIN2 12
24 UGATE1
23 PHASE1
22 LGATE1
21 PGND
20 OCSET1
19 VSEN1
18 FB1
17 COMP1
16 FB3
15 DRIVE3
14 GND
13 VOUT2
Applications
• Full Motherboard Power Regulation for Computers
• Low-Voltage Distributed Power Supplies
Ordering Information
PART NUMBER
HIP6018BCB*
HIP6018BCBZ* (Note)
TEMP.
RANGE (
o
C)
0 to 70
0 to 70
PACKAGE
24 Ld SOIC
PKG.
DWG. #
M24.3
24 Ld SOIC (Pb-free) M24.3
* Add “-T” suffix for tape and reel.
NOTE: Intersil Pb-free products employ special Pb-free material sets;
molding compounds/die attach materials and 100% matte tin plate
termination finish, which are RoHS compliant and compatible with both
SnPb and Pb-free soldering operations. Intersil Pb-free products are
MSL classified at Pb-free peak reflow temperatures that meet or
exceed the Pb-free requirements of IPC/JEDEC J STD-020.
FN4586 Rev 3.00
April 1, 2005
Page 1 of 15

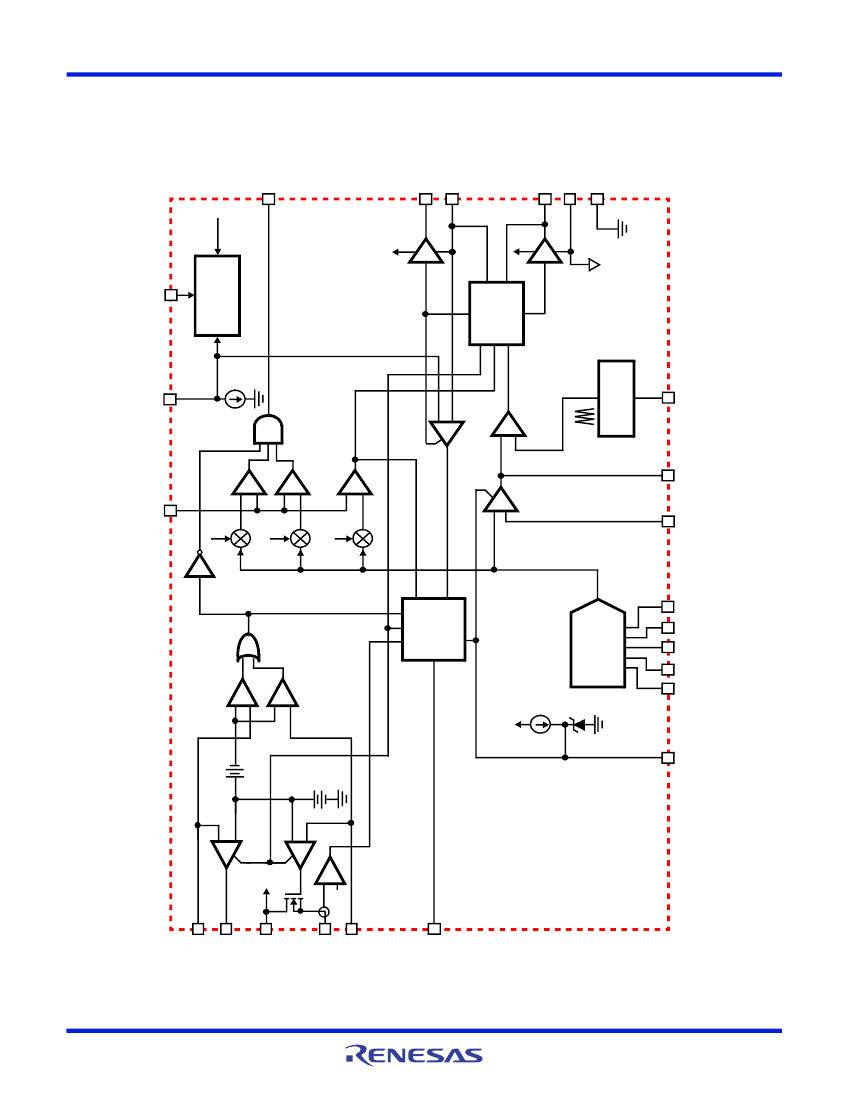

HIP6018B
Absolute Maximum Ratings
Supply Voltage, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+15V
PGOOD, RT, FAULT, and GATE Voltage . . GND - 0.3V to V
CC
+ 0.3V
Input, Output or I/O Voltage . . . . . . . . . . . . . . . . . . GND -0.3V to 7V
Thermal Information
Thermal Resistance (Typical, Note 1)
JA
(
o
C/W)
Operating Conditions
Supply Voltage, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . +12V
10%
Ambient Temperature Range. . . . . . . . . . . . . . . . . . . . . 0
o
C to 70
o
C
Junction Temperature Range . . . . . . . . . . . . . . . . . . . 0
o
C to 125
o
C
SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
Maximum Junction Temperature (Plastic Package) 150
o
C
Maximum Storage Temperature Range . . . . . . . . . -65
o
C to 150
o
C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . .300
o
C
(SOIC - Lead Tips Only)
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTE:
1.
JA
is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details.
Electrical Specifications
PARAMETER
VCC SUPPLY CURRENT
Nominal Supply
POWER-ON RESET
Rising VCC Threshold
Falling VCC Threshold

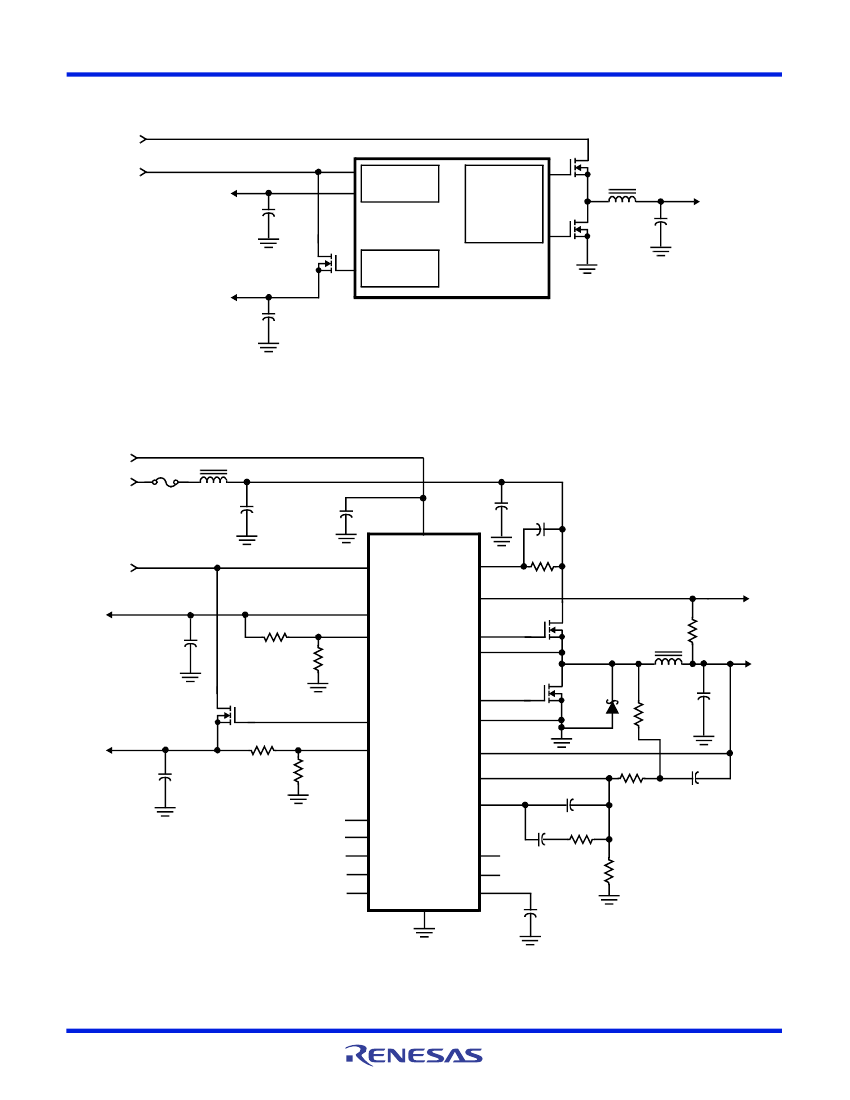

Recommended Operating Conditions, Unless Otherwise Noted. Refer to Figures 1, 2 and 3
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNITS
I
CC
UGATE1, DRIVE3, LGATE1, and VOUT2 Open
-
8
-
mA
V
OCSET
= 4.5V
V
OCSET
= 4.5V
8.6
8.2
2.45
-
-
-
-
2.55
100
1.25
10.4
10.2
2.65
-
-
V
V
V
mV
V
Rising VIN2 Under-Voltage Threshold
VIN2 Under-Voltage Hysteresis
Rising V
OCSET1
Threshold
OSCILLATOR
Free Running Frequency
Total Variation
Ramp Amplitude
REFERENCE AND DAC
DAC(VID0-VID4) Input Low Voltage
DAC(VID0-VID4) Input High Voltage
DACOUT Voltage Accuracy
Reference Voltage (Pin FB2 and FB3)
LINEAR REGULATOR
Regulation
Under-Voltage Level
Under-Voltage Hysteresis
Over-Current Protection
Over-Current Protection During Start-Up
LINEAR CONTROLLER
Regulation
Under-Voltage Level
Under-Voltage Hysteresis
Output Drive Current
DRIVE3 Source Current
I
DRIVE3
VIN2 - V
OUT3
> 1.5V
VIN2 - DRIVE3 > 0.6V
FB3
UV
VSEN3 = DRIVE3, 0 < I
DRIVE3
< 20mA
FB3 Rising
FB2
UV
10mA < I
VOUT2
< 150mA
FB2 Rising
V
OSC
RT = OPEN
6k < RT to GND < 200k
RT = Open
185
-15
-
200
-
1.9
215
+15
-
kHz
%
V
P-P
-
2.0
-1.0
1.240
-
-
-
1.265
0.8
-
+1.0
1.290
V
V
%
V
-2.5
-
-
180
560
-
75
6
230
700
2.5
87
-
-
-
%
%
%
mA
mA
-2.5
-
-
20
20
-
75
6
40
40
2.5
87
-
-
-
%
%
%
mA
mA
FN4586 Rev 3.00
April 1, 2005
Page 4 of 15
