CMA-8-4003: Description4000 MHz - 8000 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER; CategoryTopical application Wireless rf/communication; File Size698KB，2 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric Compare View All

CMA-8-4003 Overview

4000 MHz - 8000 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER

CMA-8-4003 Parametric

Parameter Name	Attribute value
Maximum operating frequency	8000 MHz
Minimum operating frequency	4000 MHz
state	ACTIVE
structure	COAXIAL
Microwave RF Type	WIDE BAND MEDIUM POWER

Preview

Download Datasheet

View All

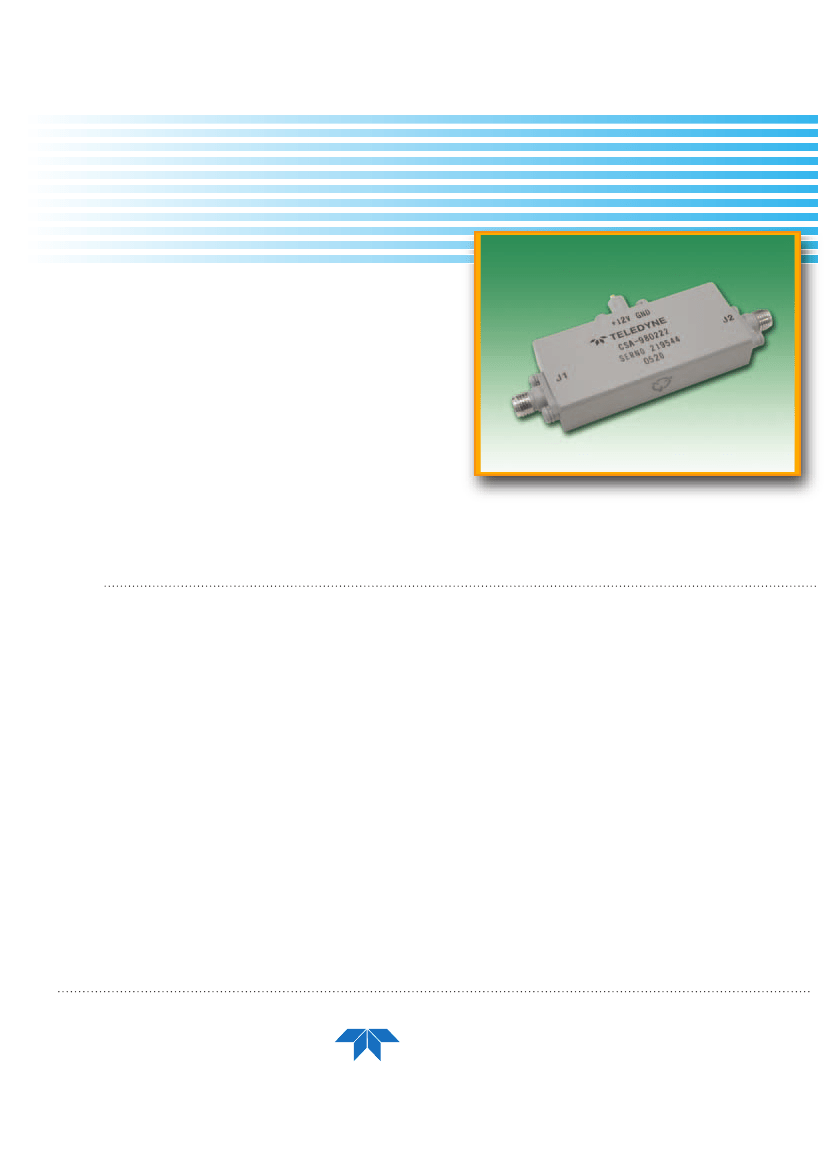

CMA-8-4002

Amplifier

4 GHz - 8 GHz

This Amplifier offers exceptional performance over the band 4

GHz to 8 GHz with 18 dBm P1dB output power and 18 dB

Gain.

Teledyne Microwave amplifiers are balanced or feedback

designs and manufactured with the latest MIC & MMIC

technology. The GaAs FET’s used in these amplifiers are well

established proven devices from multiple sources.

Teledyne Microwave offers a complete line of Narrow and

broadband Amplifiers covering the frequency range 500 MHz

to 40 GHz. These products are available in either

connectorized packages or as modules. For a complete list of

these products and more, please visit our website.

Other products from Teledyne Microwave

Transceivers, Synthesizers, and YIG Products

include:

Specifications:

Model Number:

CMA-8-4002

Frequency Range:

4 GHz - 8 GHz

18 dB

Gain (min):

Gain Vs Temp at any Frequency: This Amplifier is not Temperature Compensated

Noise Figure (max):

4.5 dB

18 dBm

Output Power @ 1dB Compression:

Gain Flatness Vs Frequency:

+/-1.0 dB

Order Intercept (Typ):

27 dBm

Power Supply:

Input Voltage: 11.5 to 15 VDC

180 mA

Current @ 12 VDC (typ):

Current @ 12 VDC (max):

210 mA

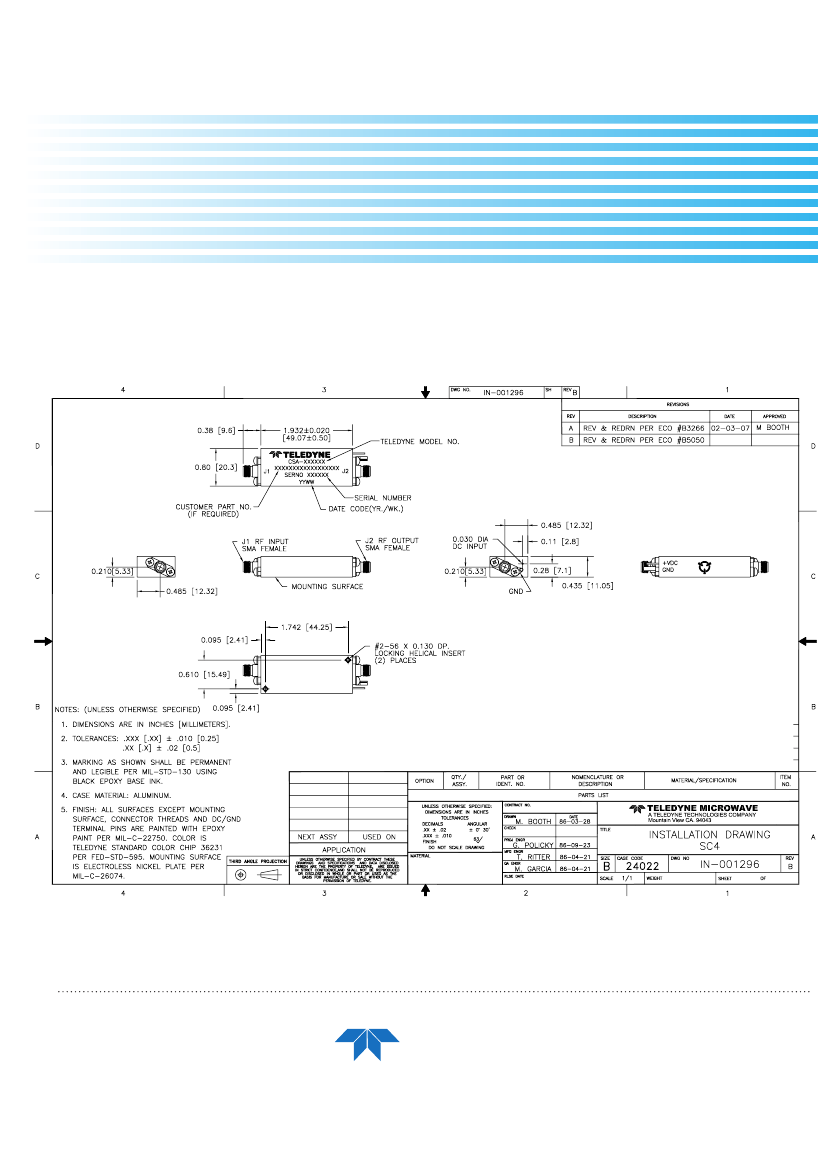

Case Type (See attached Outline):

SC4

Temperature Range:

+25

TELEDYNE

MICROWAVE

ISO 9001:2000

1274 Terra Bella Avenue, Mountain View, CA 94043 • PHN# 800.832.6869 or +1.650.962.6944 • FAX# 650.962.6845

www.teledynemicrowave.com • microwave@teledyne.com

All Specifications are subject to change. Please contact Teledyne Microwave for the latest information on this product

08/05
