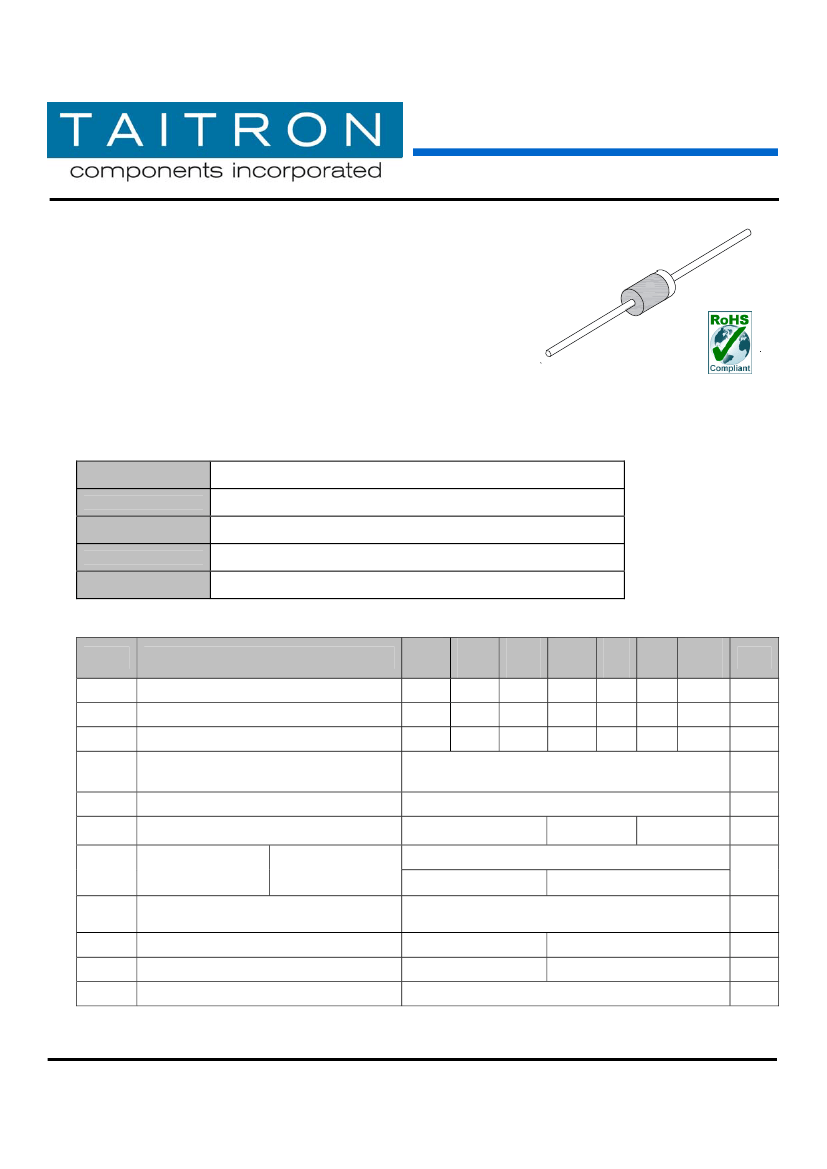

3.0A SCHOTTKY
BARRIER RECTIFIER
TSR320 –TSR3100
3.0A Schottky Barrier Rectifier
Features
•
•
•
•
Low Forward Voltage Drop
Low Power Loss, High Efficiency
High Surge Current Capability
High temperature soldering guaranteed:
250° C/10 seconds, /.0375" (9.5mm) lead length
•
RoHS compliant
DO-201AD
Mechanical Data
Case:
Epoxy:
Polarity:
Terminals:
Weight:
DO-201AD, Molded Plastic
UL 94V-0 Rate Flame Retardant
Color Band Denotes Cathode End
Axial leads, solderable per MIL-STD-750, Method 2026
0.04 ounce,1.12 grams
Maximum Ratings & Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Symbols
Description
Max. recurrent peak reverse voltage
Max. RMS voltage
Max. DC blocking voltage
Max. average forward rectified current
(See Fig.1)
Peak forward surge current (Note 1)
Max. instantaneous forward voltage at 3.0A
Max. DC reverse
current at rated DC
blocking voltage
T
A
=25°C
T
A
=100°C
20.0
30
250
-65 to +125
-65 to +150
180
-65 to +150
0.55
0.5
mA
10.0
° C/W
pF
°C
°C
TSR
320
20
14
20
TSR
330
30
21
30
TSR
340
40
28
40
TSR
350
50
35
50
3.0
100
0.70
0.85
TSR
360
60
42
60
TSR
390
90
63
90
TSR
3100
100
70
100
Unit
V
V
V
A
A
V
V
RRM
V
RMS
V
DC
Io
(AV)
I
FSM
V
F
I
R
R
θJA
C
J
T
J
T
STG
Typical thermal resistance, Junction to
Ambient (Note2)
Typical Junction Capacitance (Note3)
Operating junction temperature range
Storage Temperature Range
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAIT-FAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/JJ 2007-06-15
Page 1 of 4
3.0 A Schottky Barrier Rectifier
TSR320 –TSR3100
NOTES:
1. 8.3 ms single half sine-wave superimposed on rated load (JEDEC Method)
2. Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.375"(9.5mm) Lead Length.
3. Measured at 1MHz and applied reverse voltage of 4.0Volts D.C.

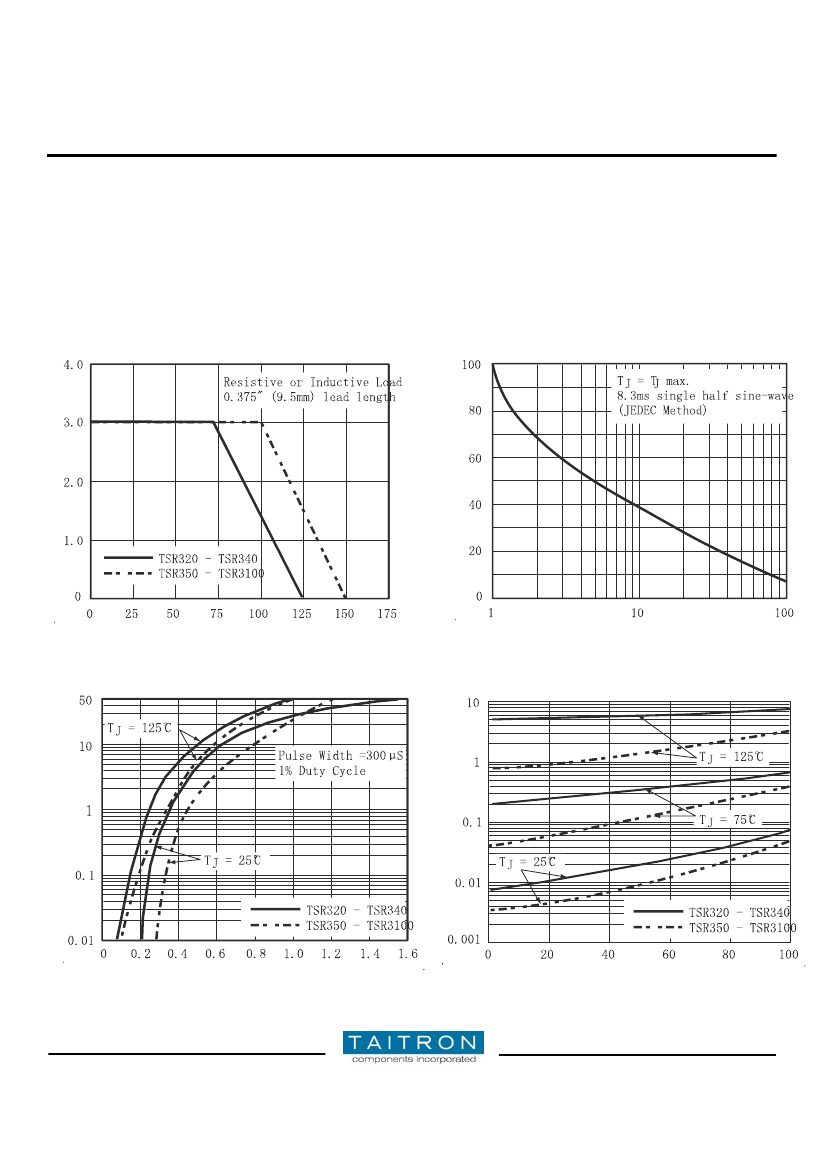

Typical Characteristics Curves
Fig.1- Typical Forward Current Derating Curve
I
FSM
Peak Forward Surge Current
(A)
Io (AV) Average Forward Current (A)
Fig.2-Max. Non-repetitive Peak Forward Surge Current
Ambient Temperature (°C)
Fig.3- Typical Instantaneous Forward
Characteristics
I
F
Instantaneous Forward Current (A)
I
R
Instantaneous Reverse Current (mA)
Number of Cycles at 60Hz
Fig.4- Typical Reverse Characteristics
V
F
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 2 of 4
3.0 A Schottky Barrier Rectifier
TSR320 –TSR3100

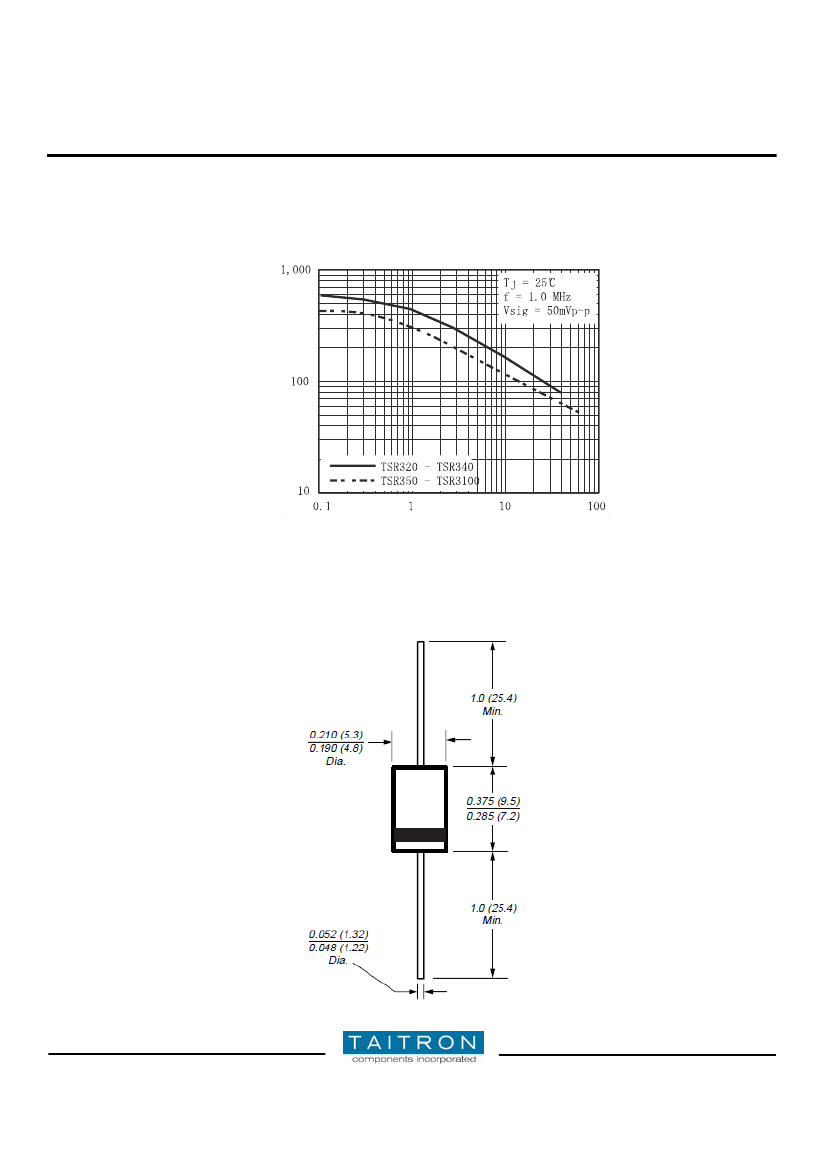

Fig.5-Typical junction capacitance
C
J
Junction Capacitance (pF)
Reverse Voltage (V)
Dimensions in inches (mm)
DO-201AD
Rev. A/JJ 2007-06-15
www.taitroncomponents.com
Page 3 of 4
3.0 A Schottky Barrier Rectifier
TSR320 –TSR3100
