Waterproof Circular Connectors
JR-W Series

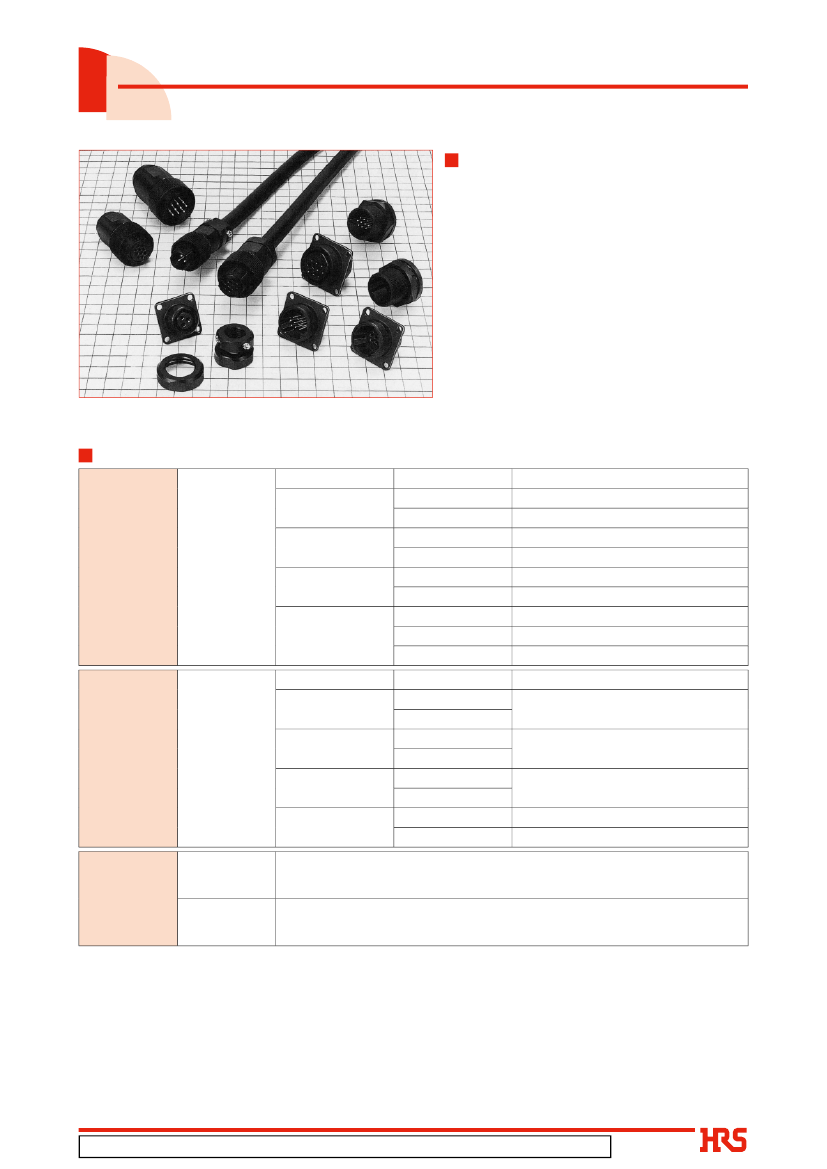

Features
1. Waterproof
The JR-W series is a rugged, waterproof
connector series that is IP67 and IP68 rated
in the mated condition.
IP67: Left in water at a depth of 1m for 30 minutes
IP68: Left in water at a depth of 2m for 14 days
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2. Corrosion resistance
The outer shell is plated to improve corrosion
resistance, allowing this connector to be used
in various environments.
Product Specifications
Shell size
13
16
Ratings
Current rating
21
No. of contacts
3
5
7
10
10
16
4
25
16
24
Shell size
13
16
21
25
Operating
temperature
range
Storage
temperature
range
No. of contacts
3
5
7
10
10
16
4
16, 24
-25 to +85℃
Current rating
10A
5A
10A
5A
10A
5A
30A
10A
5A
Voltage rating
100V AC, 140V DC
100V AC, 140V DC
100V AC, 140V DC
300V AC, 420V DC
100V AC, 140V DC
Ratings
Voltage rating
Ratings
-10 to +60℃
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.8⑤
1
JR-W Series
●
Waterproof Circular Connectors
Item
1. Contact resistance
2. Insulation
resistance
3. Withstanding
voltage
4. Vibration
resistance
5. Shock resistance
6. Mating cycles
Specifications
5mø max.
JR16-10 contact crimping type : 10mø max.
1,000Mø min.
JR25-4 contacts : 10,000Mø min.
No flashover or dielectric breakdown.
No electrical discontinuity for 10µs or greater.
No electrical discontinuity for 10µs or greater.
Contact resistance : 5mø max.
JR16-10 contact crimping type : 10mø max.
Insulation resistance : 1,000Mø min.
JR25-4 contacts : 10,000Mø min.
Insulation resistance:
10Mø min. (at high humidity)
100Mø min. (when dry)
JR25-4 contacts:
100Mø min. (at high humidity)
1,000Mø min. (when dry)
No water penetraction into the connector.
Measured at DC 1A
Conditions
Measured at DC 500V
AC 1,000V for 1 minute
JR25-4 contacts : AC 3,000V for one minute
10 to 55Hz/cycle, amplitude : 0.75mm,
3 axis derections, 2 hours each.
Acceleration : 490m/s
2
, duration : 11ms
6 directions, 3 times each.
500 times
-40ç : 30 minute
➝
Normal temperature : 10 to 15
minutes
➝
100ç : 30 minutes
➝
Normal temperature : 10 to 15 minutes, left for 5
cycles
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
7. Temperaure cycle
8. Moisture
resistance
Temperature : 40ç, relative humidity : 90 to 95%,
leave 96 hours
9. Waterproof
Mated connectors left in water at a depth of 1.8m for
48 hours.
Materials / Finish
Parts
Outer shell
Insulator
Contact
Waterproof packing
Material
Aluminium alloy, brass
Phenol resin, PPS resin
Copper alloy
Nitrile rubber, silicone rubber
Finish
Black chromium plating
――――
Silver plating
――――
Remarks
――――
UL94V-0
――――
――――
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.

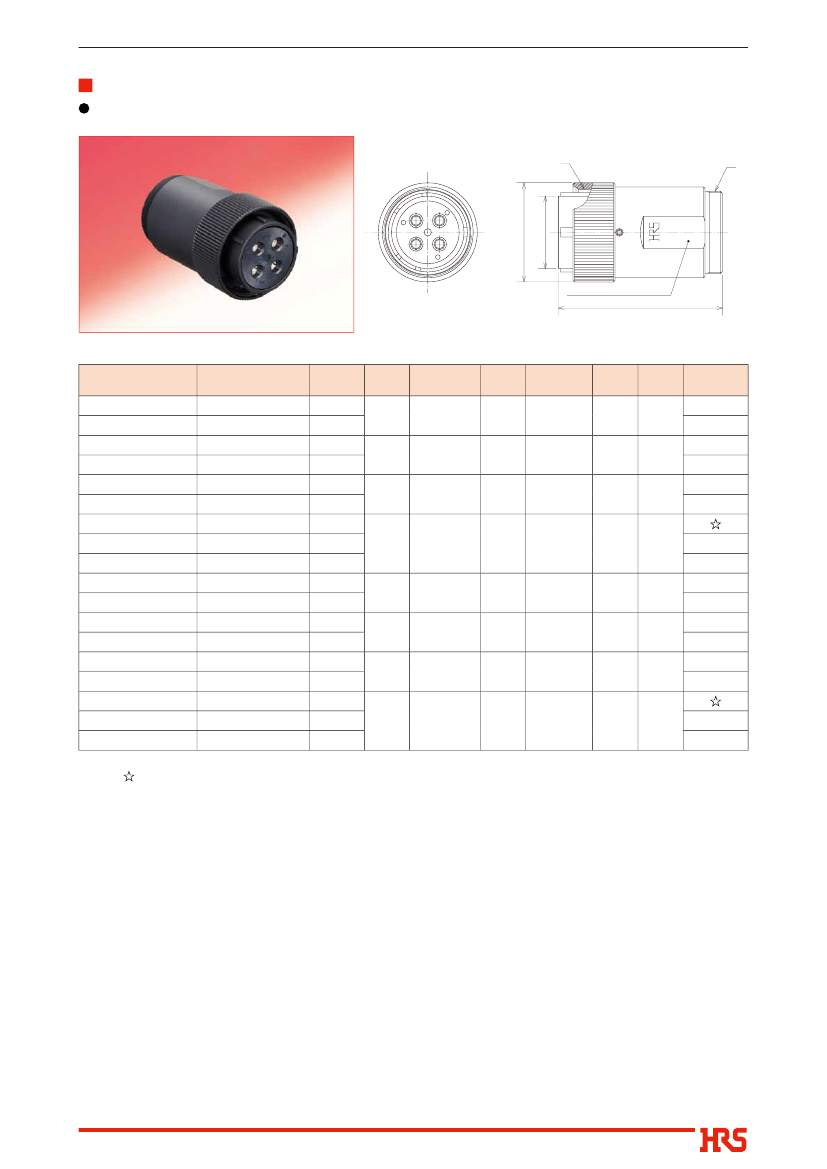

Plug and receptacle
JR 13 WP A - 3 P C
(**)
q
w
e
r
t y u
o
Cord clamp
JR 13 WCC A - 4
(**)
q
w
e
r
i
o
q
Model name : JR Series
w
Shell size：Shell size is the outer shell diameter of the mating end of the plug.
e
Shell type
WP : Waterproof plug
WR : Waterproof receptacle
WCC : Waterproof clamp
r
Shell variation : Connectors are distinguished by A, B, or C if a shell variation is applied in the same form.
t
Number of contacts.
y
Contact form
P : Male Contact
S : Female Contact
None : Solder termination
C
: Crimp termination
u
Contact termination method
i
Applicable cable diameter
o
Other specifications : A two-digit number is added to indicate other specifications.
2
JR-W Series
●
Waterproof Circular Connectors

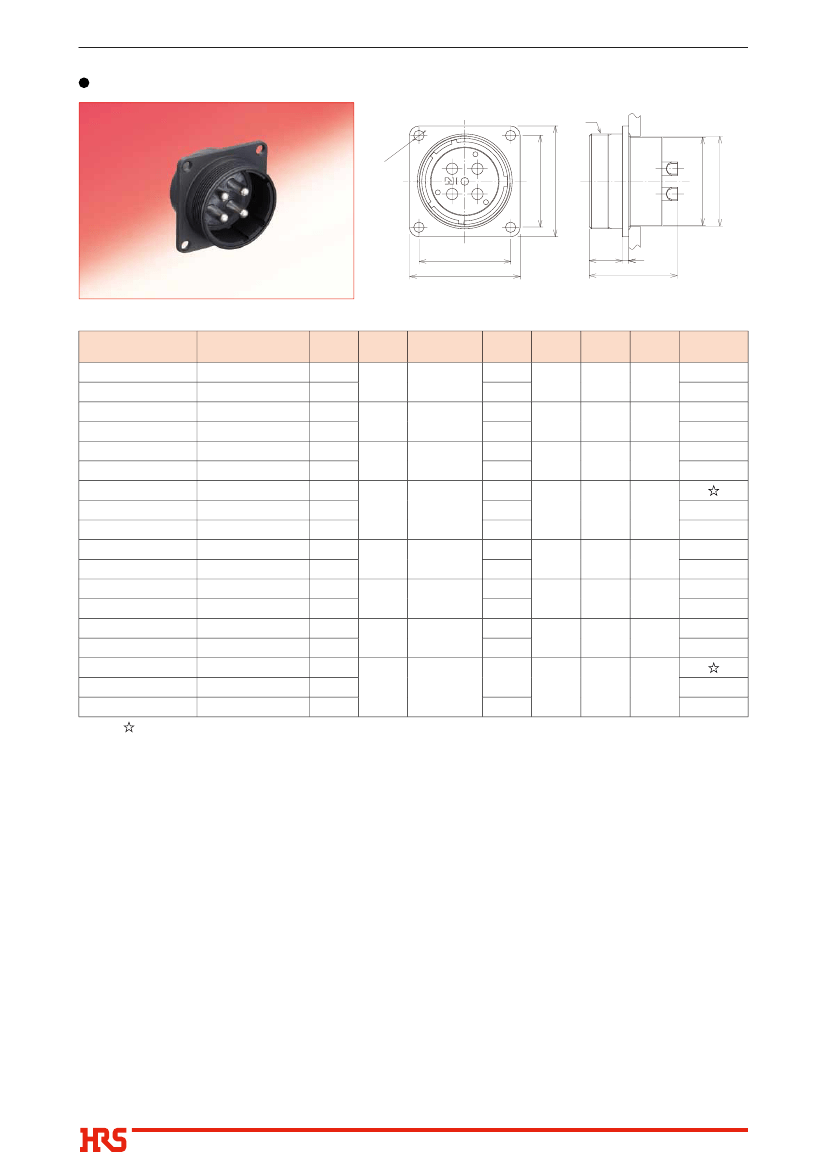

Soldering type
Receptacle (Front nut-tightening type)
M22×1
Ø28.5
１
３
６
４
７
HEX 27
Ø22
+
0.1
0
31.2
20.6
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
JR16WRA-7P(31)
Part No.
JR16WRA-7P(31)
JR16WRA-10P(31)
JR16WRA-10S(31)
HRS No.
114-2143-0 31
114-2096-1 31
114-2145-5 31
Panel cutout dimensions
(Panel thickness : 1.5mm to 6mm)
(Representative example)
No. of
contacts
7
10
A
26.6
26.1
27

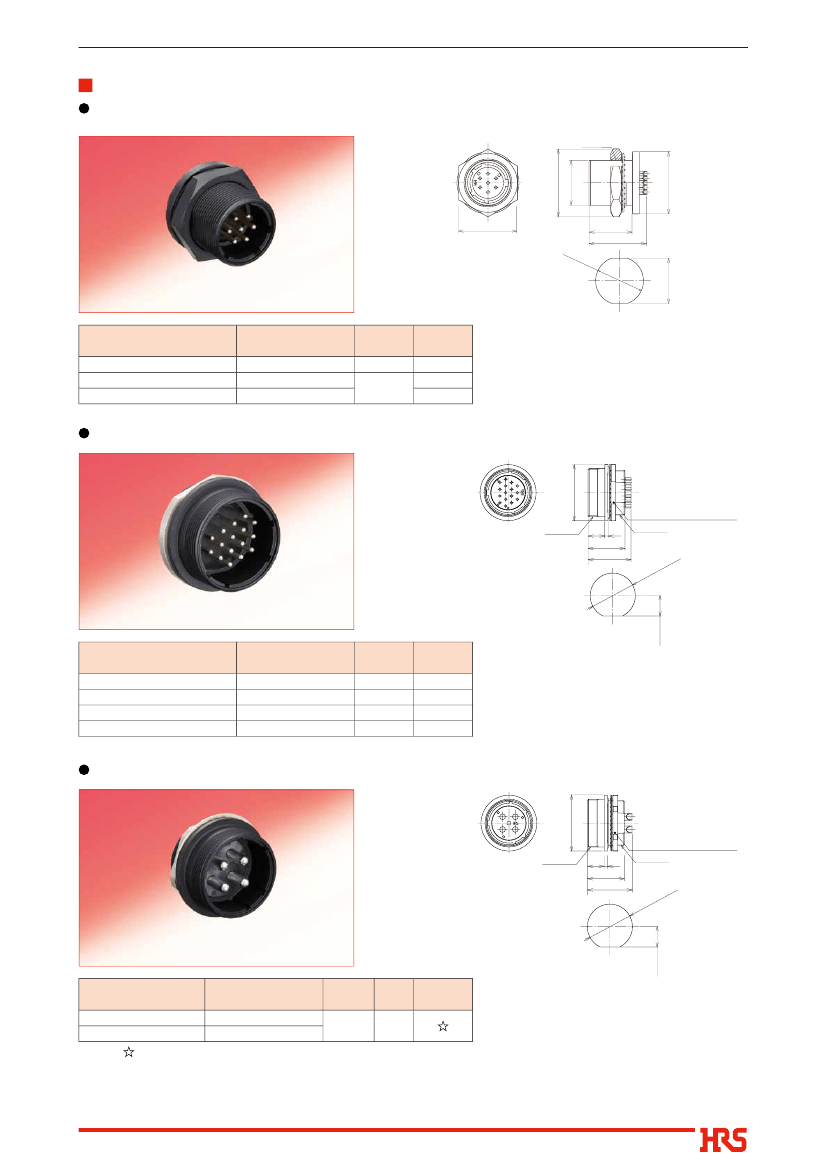

Receptacle (Rear nut-tightening type)
Ｚ
９
１３
４
Ｘ
１
５
Ｙ
１０
１４
６
Ø35
１２
３
０２５０１６
１１
２
１５
７
１６
８
M30×1
10.5 2
23
A
Width across flats : 32mm
M28×1
.2
＋
00
Panel cutout dimensions
(Panel thickness : 6.5mm max)
.2
Ø28
(Representative example)
No. of
contacts
16
24
16
24
A
26.8
26.1
27.8
26.5
Part No.
JRC25WRG-16P(31)
JRC25WRG-24P(31)
JRC25WRG-16S(31)
JRC25WRG-24S(31)
HRS No.
114-1032-3 31
114-1033-6 31
114-1043-0 31
114-1044-2 31
Receptacle (Rear nut-tightening type with hex nut)
Ｚ
３
Ｘ
２
φ35
１ ４
Ｙ
M30×1
10.5 2
23
A
Width across flats : 32mm
M28×1
.2
＋
00
Panel cutout dimensions
(Panel thickness : 6.5mm max)
φ
2
8.2
(Representative example)
No. of
contacts
4
A
28
Remarks
Part No.
JR25WRHA-4P
JR25WRHA-4S
Note 1 :
HRS No.
114-1136-9
114-1135-6
: Denotes waterproof gaskets with a silicone rubber specification
＋0.2
12.7
0
JR25WRHA-4P
＋0.2
12.7
0
JRC25WRG-16P(31)
20.7
+0.1
0
Ｙ
Ｘ
０１６００７
２
５
20
A
5
