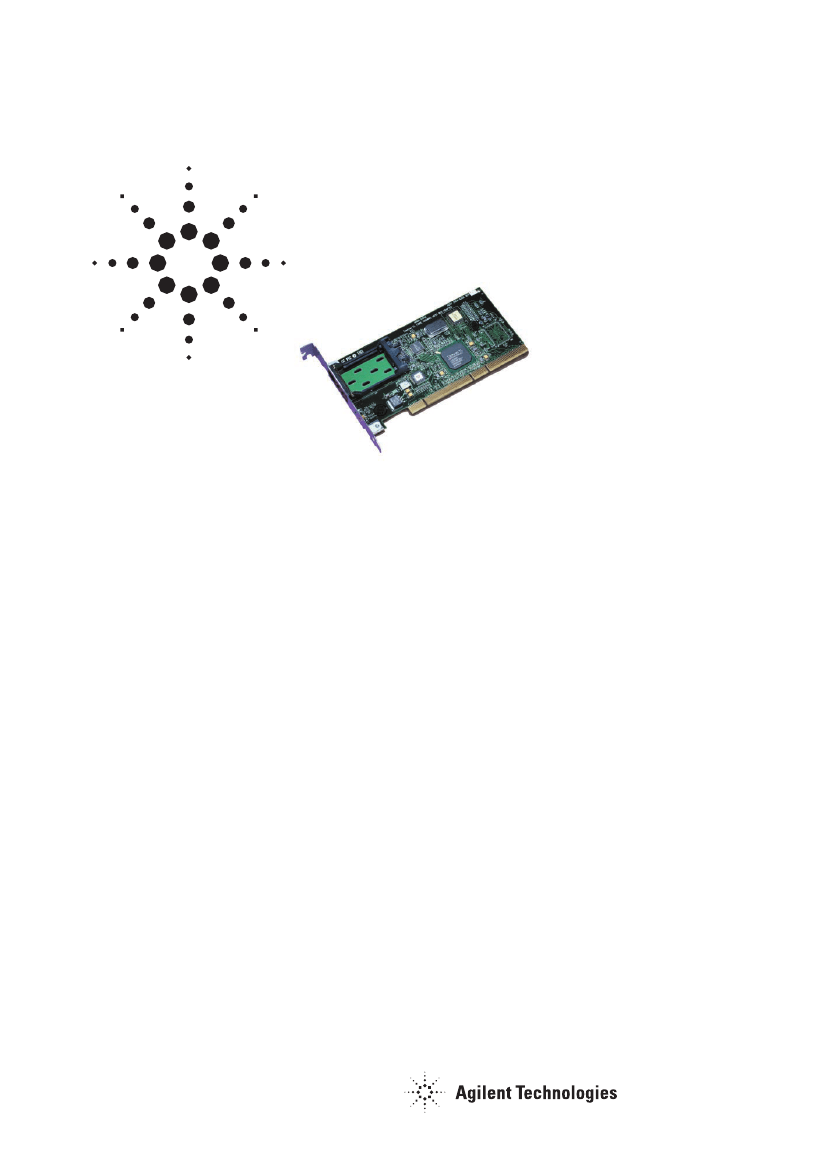

Agilent HHBA-5101
64-bit Tachyon TL PCI-to-Fibre
Channel Adapter
Product Overview
Features
• Fibre Channel data transfer rates:
– up to 100 MB/s (Half duplex)
– up to 200 MB/s (Full duplex)
Description
The HHBA-5101 is a 64-bit
PCI-to-Fibre Channel Adapter for
mass storage applications that
require FC-AL or Fabric, Class 3
and SCSI upper layer protocol
handling.
At the heart of these is the
HPFC-5100 Tachyon TL Fibre
Channel Interface Controller IC.
The 1Gb/s Fibre Channel Adapters
are powered by Agilent Tachyon
controllers, based on a Finite State
Machine (FSM) architecture. The
FSM allows performance to scale
seamlessly with increased server
CPU power. By contrast, proces-
sor-based adapters are limited by
the maximum performance of the
processor itself.
Software Driver Support
Agilent offers a Tachyon Software
Developer’s Kit (TSDK) for
Windows NT® 4.0, Linux environ-
ments and VXWorks.
Product Offering
The HHBA-5101 is
available in
four configurations. The
HHBA-5121x and HHBA-5121xP
are single and bulk packaged
adapters, respectively.
In
addition, there are two bulk
package options which include
an industry standard GBIC:
HHBA-5121xP1 with an 850 nm
optical GBIC or HHBA-5121xP2
with an HSSDC Copper GBIC.
• Physical interface style
– GBIC (optical or copper) for
applications requiring reliability
and flexibility
• Supports Fibre Channel Arbitrated
Loop (FC-AL) including Public Loop
and Fabric (F- and FL-port login)
• One or less PCI bus interrupt per
SCSI I/O operation
• 64-bit Universal PCI interface
(2.1 compliant)
Workstation and Server Applications
• Storage Area Networks (SANs)
• Data warehousing
• Clustering
• Remote back-up
• Near on-line storage
• Video editing & CAD
Specifications
Fibre Channel Operation
Fibre Channel Data Rate
Topology
Class
Upper Layer Protocol
Loop Initialization
Arbitrated Loop Capabilities
Link Diagnostics
Compliance
1 Gbit/sec, 100 MBytes/sec (half duplex), 200 Mbytes/sec (full duplex)
Arbitrated Loop – Public and private, Fabric support (F- and FL-login)
3
SCSI FCP - On-chip automation of complete SCSI I/O
Completely hardware-based for high availability
Loop map, Loop directed reset, Loop broadcast
Link Status indicators, internal/external loopback
FC-PH, FC-AL, FC-PLDA, FCP-SCSI
PCI
Compliance
Rate & Width
Burst Transfer Rate
Dual Address Cycle Support
Hot Plug Support
Additional PCI Features
PCI Local Bus specification v2.1
33 MHz, 64/32-bit PCI
264 Mbytes/sec, guaranteed for length of frame, inbound & outbound at 64-bit, 33 MHz
Yes (64-bit PCI addressing)
Yes
Zero wait state multiple cache line bursting capable up to full frame size, 32-byte cache line
Tachyon TL Architectural Features
Complete Hardware-based Design
Numerous independent functional blocks concurrently processing inbound data, outbound data,
control and commands in hardware
Automation of complete I/O on-chip in hardware
Results in lowest latency & I/O overhead and highest levels of parallelism
Physical and Environmental
PCB Size
PCB Power
Supply Voltage
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Universal PCI short card
5W max, at 5V
±
5%
5V
±
5%
0° to 55° Centigrade (no airflow)
-40° to 70° Centigrade
up to 90% (non-condensing)
Software Support
Tachyon Software Developer’s Kit
(TSDK)
Windows NT 4.0
Linux Environments
VXWorks
Certifications
FCC Class B
CE
VCCI ITE Class
C-TICK (AZ/NZS 3548)
US/FDA/CDRH Laser AEL Class I (21CFR)
TÜV Rheinland Laser AEL Class 1 (EN60825-1+A11)
Yes
Yes
www.agilent.com/semiconductors
For product information and a complete list of
distributors, please go to our web site.
For technical assistance call:
Americas/Canada: +1 (800) 235-0312 or
(408) 654-8675
Europe: +49 (0) 6441 92460
China: 10800 650 0017
Hong Kong: (+65) 6271 2451
India, Australia, New Zealand: (+65) 6271 2394
Japan: (+81 3) 3335-8152(Domestic/International), or
0120-61-1280(Domestic Only)
Korea: (+65) 6271 2194
Malaysia, Singapore: (+65) 6271 2054
Taiwan: (+65) 6271 2654
Data subject to change.
Copyright © 2002 Agilent Technologies, Inc.
Obsoletes 5988-6274EN
July 25, 2002
5988-7408EN
