DSML-0630-12C

Description

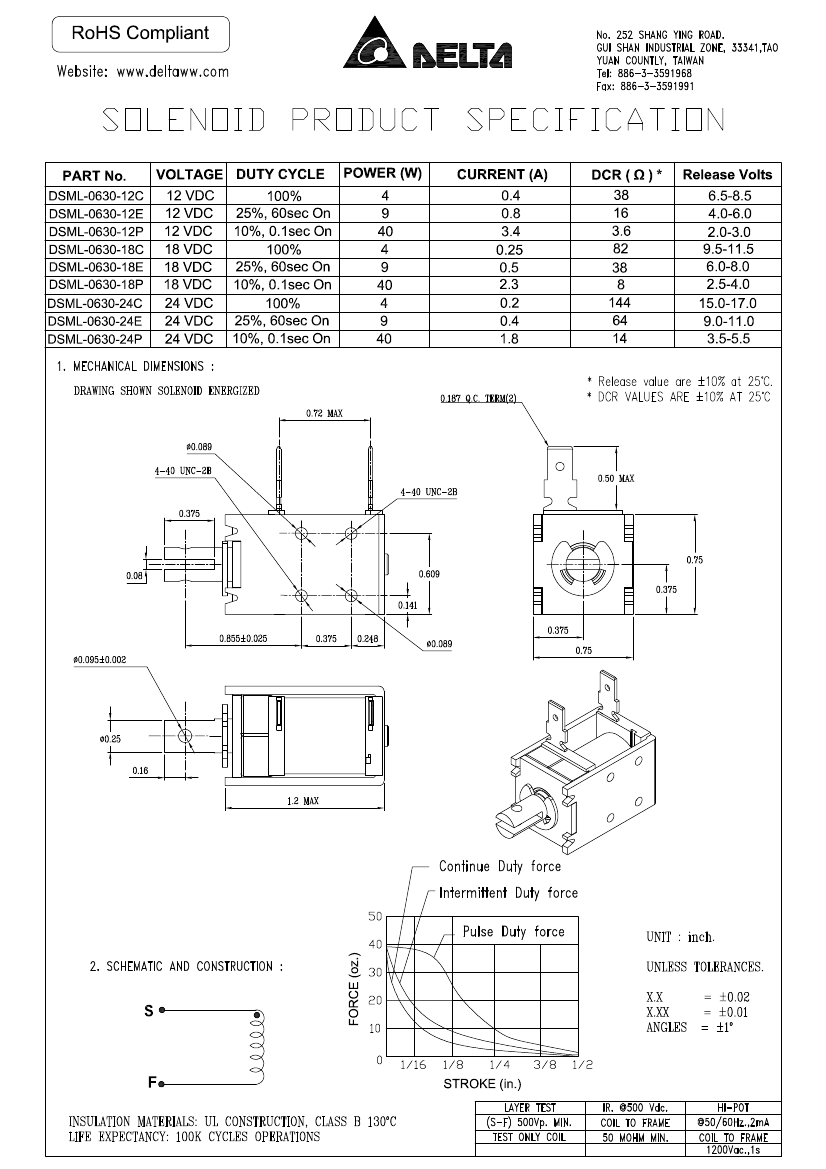

SOLENOID LATCH PULL CONT 12V
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size190KB，1 Pages
ManufacturerDelta Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

DSML-0630-12C Online Shopping

Suppliers Part Number Price MOQ In stock
DSML-0630-12C - - View Buy Now

DSML-0630-12C Overview

SOLENOID LATCH PULL CONT 12V

DSML-0630-12C Parametric

Parameter NameAttribute value
technologyElectromechanical components
typeopen frame latch (pull)
duty cyclecontinuous
Voltage - Rated12VDC
Stroke length0.500"（12.70mm）
Power (W)4W
DC resistance (DCR)38 ohms
Bushing thread-
Installation typeBase installation
Terminal typeQuick Connect - 0.187" (4.7mm)
size/dimensions1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft0.250"（6.35mm）
Shaft detailsU shape

Preview

Download Datasheet

DSML-0630-12C Related Products

DSML-0630-12C DSML-0630-12E DSML-0630-12P DSML-0630-18C DSML-0630-18E DSML-0630-18P DSML-0630-24C DSML-0630-24E DSML-0630-24P
Description SOLENOID LATCH PULL CONT 12V SOLENOID LATCH PULL INTER 12V SOLENOID LATCH PULL PULSE 12V SOLENOID LATCH PULL CONT 18V SOLENOID LATCH PULL INTER 18V SOLENOID LATCH PULL PULSE 18V SOLENOID LATCH PULL CONT 24V SOLENOID LATCH PULL INTER 24V SOLENOID LATCH PULL PULSE 24V
technology Electromechanical components Electromechanical components Electromechanical components Electromechanical components Electromechanical components Electromechanical components Electromechanical components Electromechanical components Electromechanical components
type open frame latch (pull) open frame latch (pull) open frame latch (pull) open frame latch (pull) open frame latch (pull) open frame latch (pull) open frame latch (pull) open frame latch (pull) open frame latch (pull)
duty cycle continuous Intermittent pulse continuous Intermittent pulse continuous Intermittent pulse
Voltage - Rated 12VDC 12VDC 12VDC 18VDC 18VDC 18VDC 24VDC 24VDC 24VDC
Stroke length 0.500"（12.70mm） 0.500"（12.70mm） 0.500"（12.70mm） 0.500"（12.70mm） 0.500"（12.70mm） 0.500"（12.70mm） 0.500"（12.70mm） 0.500"（12.70mm） 0.500"（12.70mm）
Power (W) 4W 9W 40W 4W 9W 40W 4W 9W 40W
DC resistance (DCR) 38 ohms 16 ohms 3.6 ohms 82 ohms 38 ohms 8 ohms 144 ohms 64 ohms 14 ohms
Installation type Base installation Base installation Base installation Base installation Base installation Base installation Base installation Base installation Base installation
Terminal type Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm)
size/dimensions 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm) 1.200" long x 0.750" wide x 0.750" high (29.46mm x 19.05mm x 19.05mm)
Diameter - Shaft 0.250"（6.35mm） 0.250"（6.35mm） 0.250"（6.35mm） 0.250"（6.35mm） 0.250"（6.35mm） 0.250"（6.35mm） 0.250"（6.35mm） 0.250"（6.35mm） 0.250"（6.35mm）
Shaft details U shape U shape U shape U shape U shape U shape U shape U shape U shape
