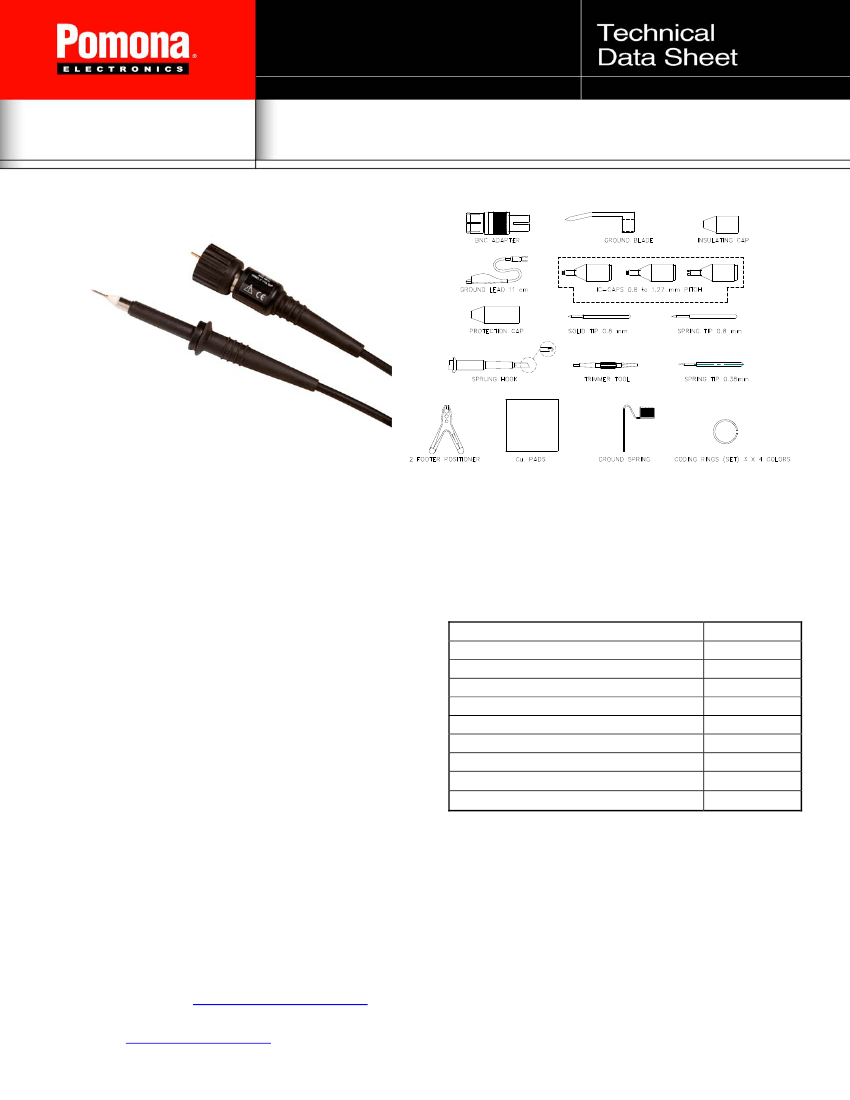

Model 6551
Microline Passive Oscilloscope Probe w/RO
Accessories included with Probe:
Model 6551
Microline Passive Oscilloscope Probe with Readout
Actuator
Features
•
•
•
This probe is recommended for high performance
probing applications and is adjustable for low and
high frequencies.
The probe's entire core is made of a high quality
ceramic hybrid.
Pure coaxial design and laser trimmed resistors
ensure highest signal fidelity along the signal path
offering high bandwidth and fast risetimes for
accurate impulse measurements.
Probe tips are interchangeable and can be replaced
easily.
Accessories (one of each) included with Probe are:
BNC Adapter
Ground Blade
Ground Spring
Ground Lead with Alligator Clip 11 cm (4.33”)
IC Caps: 0.8mm, 1.0mm, and 1.27mm pitch
Insulating Cap
Protection Cap
Solid Tip 0.8mm (0.0315”)
Spring Tips 0.8mm (0.0315”) & 0.38mm (0.015”)
Sprung Hook
Trimmer Tool
2 Footer Positioner
Coding Rings (Set) 3 X 4 colors
Copper (Cu) Pads
•
Our passive probes are spring loaded, with needle
sharp tips to support precise and safe
measurements.
Specifications
Attenuation Ratio
Maximum Input Voltage CAT II¹
Scope Bandwidth MHz
System Bandwidth MHz (-3 dB)
System Risetime (ns)
Probe Input Resistance (MΩ)
Probe Input Capacitance (pF)
Compensation Range (pF)
Readout Actuator²
Cable Length
10:1
300 Vrms
500
500
< 0.7
10
< 11
10 - 20
Yes
4 ft. (1.2 m)
•
•
1
Rating:
Per IEC 61010-031. Maximum voltage allowed on the low or ground
connection including shell and housing must not exceed 30 V.
2 Any oscilloscope that uses the Tektronix® style range actuator.
Ordering Information
Model: 6551
500 MHz 0-Scope Probe w/RA
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2008
D1094822 Rev. 100
Page 1 of 1
