What is ESD?
Toll Free: (800) 494-6104
Basic Concepts in Electrostatic Discharge (ESD)
We have all seen static electricity in the form of lightning or perhaps felt the
zap when reaching for a door knob. Similar types of electrical charges can have
an effect on the electronic components you handle every day in your work.
Unfortunately, their effect is much more hazardous and not as readily apparent.
Definition
Static electricity is an electrical charge at rest. Static electricity is most commonly
created by friction and separation. Friction causes heat which excites the molecular
particles of the material. When two materials are then separated, a transfer of
electrons from one material to the other may take place.
As electrons transfer, the absence or surplus of electrons creates an electrical field
known as static electricity. The simple separation of two materials, as when tape is
pulled off a roll, can also create this same transfer of electrons between materials,
generating static electrical fields.
The amount of static electricity generated depends upon the materials subjected
to friction or separation, the amount of friction or separation and the relative
humidity of the environment. Common plastic generally will create the greatest
static charge. Low humidity conditions such as those created when air is heated
during the winter will also promote the generation of significant static electrical
charges.
Materials that easily transfer electrons (or charge) between atoms are called
conductors and are said to have “free” electrons. Some examples of conductors
are metals, carbon and the human body’s sweat layer. Materials that do not easily
transfer electrons are called insulators. Some well known insulators are common
plastics, glass and air. Both conductors and insulators may become “charged” with
static electricity. When a conductor is charged, the free electrons give it the ability
to discharge rapidly when it comes close to another conductor with a different
potential.
Typical Electrostatic Voltages
Many of the common activities you perform daily may generate charges on your
body that are potentially harmful to components.
Some of these activities include:
· Walking across a carpet, 1,500 to 35,000 volts
· Walking over untreated vinyl floor, 250 to 12,000 volts
· Worker at a bench, 700 to 6,000 volts
· Vinyl envelope used for work instructions, 600 to 7,000 volts
· Picking up a common plastic bag from a bench, 1,200 to 20,000 volts
Costly Effects of ESD
When you feel a static shock, you are experiencing a minimum of 3,000 volts
of electricity.
This “shock” known as Electro Static Discharge or ESD also may be responsible
for damaging many of the rejected electronic components in your company.
While you can feel electrostatic discharges of 3,000 volts, smaller charges are
below the threshold of human sensation. Unfortunately, smaller charges can and
do damage semiconductor devices. Many of the CMOS technology components
used in your facility can be damaged by charges of less than 1,000 volts. Some of
the more sophisticated components can be damaged by charges as low as 10 volts.
You should be aware of the relative sensitivity to ESD damage of devices you may
be working with.
As electronic technology advances, electronic components tend to become smaller
and smaller. As the size of the components is reduced, so is the microscopic
spacing of insulators and circuits within them, increasing their sensitivity to ESD.
As you can predict, the need of proper ESD protection increases everyday.
Types of ESD Damage
Static damage to components can take the form of upset failures or catastrophic
failures.
· Upset failures - result in gate leakage
· Catastrophic failures - occur in two forms, Direct and Latent
Direct catastrophic failures occur when a component is damaged to the point
where it is DEAD NOW and it will never again function. This is the easiest type of
ESD damage to find since it usually can be detected during testing.
Latent failures occur when ESD weakens or wounds the component to the point
where it will still function properly during testing, but over time the wounded
component will cause poor system performance and eventually complete system
failure. Because latent failures occur after final inspection or in the hands of your
customer, the cost for repair is very high. Not only is this type of damage hard to
find, but it severely affects the reputation of your company’s product.
An upset failure occurs when an electrostatic discharge has caused a current flow
that is not significant enough to cause total failure, but in use may intermittently
result in gate leakage causing loss of software or incorrect storage of information.
Upset or latent failures may pass your company’s quality control testing program.
In other words, static damage may occur that cannot be felt, seen, or detected
through normal testing procedures.
Think of Static As Contamination!
Damage caused by invisible and undetectable events can be understood by
comparing ESD damage to medical contamination of the human body by viruses
or bacteria. Although viruses and bacteria are invisible, they can cause severe
damage even before you can detect their presence. A defense against this invisible
threat is sterilization.
As an employee, the hidden threat of electrostatic discharge or ESD should be
of great concern to you. ESD damage can significantly reduce your company’s
profitability. This may affect your profit sharing, your company’s ability to
compete in the market place and even your employment. Everyone likes to take
pride in their work, but without proper ESD controls, your best efforts may be
destroyed by static electricity that you can neither feel nor see.
ESD Safe Precision Screwdrivers
Description
Prec. Slotted/Phillips
Prec. Torx/TorxPlus
Prec. Hex Screwdrivers
Prec. Nut Drivers
Page
4
5
6
6
ESD Safe SYSTEM 4 Handles/Blades & Sets
Description
SYSTEM 4
Drive-Loc Precision
Page
7-10
11
This Article courtesy of Desco Industries, Inc
www.wihatools.com
3

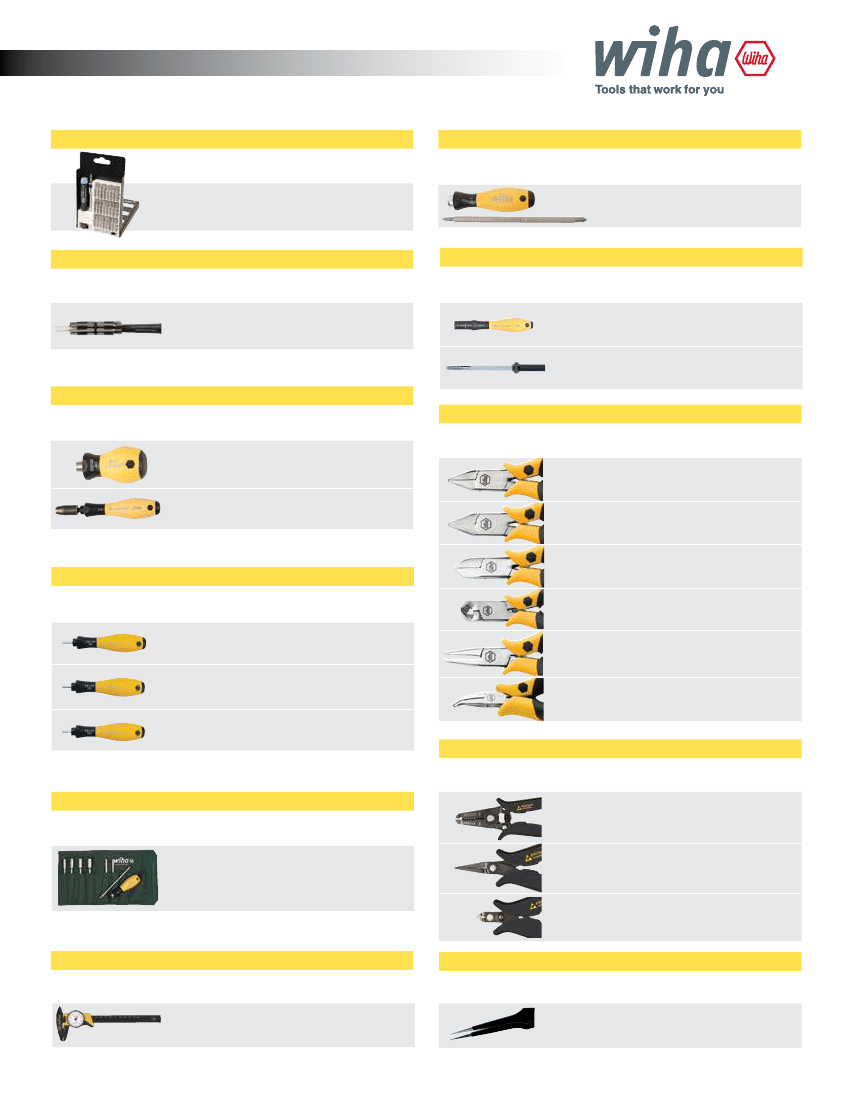

ESD Safe Micro Bit Handles/Bits & Sets
Description
Micro Bits
Page
11-15
ESD Safe Drive-Loc VI Handle & Blades
Description
Drive-Loc VI
Handle, Blades & Set
Page
18-19
ESD Safe SYS 4 ESD Safe Micro Bit Sets
Description
Micro Bit Sets
Page
14-16
ESD Safe TorqueControl Tools
Description
TorqueControl Drivers
TorqueControl Blades
Page
20
20
ESD Safe Cushion Grip Bit Holders
Description
SoftFinish
®
Bit Holders
Page
16
ESD Safe Pliers & Cutters Index
Description
Diagonal Cutters
Tapered Head
Page
21
21-22
22
23
23
23-24
Quick Release Bit Holder 16
Diagonal Cutters
Wide Tapered & Oval Head
ESD Safe Cushion Grip Screwdrivers
Description
Page
Diagonal Cutters
Wide Oval & Wide Form
Oblique Angled Cutters
Carbide Edge
SoftFinish
®
Slotted Drivers
17
SoftFinish
®
Phillips Drivers 17
End Cutters
Pliers
SoftFinish
®
Torx
®
Drivers 17
ESD Safe Proturn Pliers & Cutters Index
Description
Page
25
26
26
Proturn Wire Strippers
30 to 20 AWG
ESD Safe Interchangeable Blade Sets
Description
Interchangeable ESD Sets
Page
19
Proturn Pliers
Long, Flat, Bent, Round Nose
Precision Cutters/
Flush Cut
21° & 45° Angle
ESD Safe Calipers Index
Description
Calipers
Page
16
ESD Safe Tweezers Index
Description
Tweezers
Page
27-29
4
Toll Free: (800) 494-6104

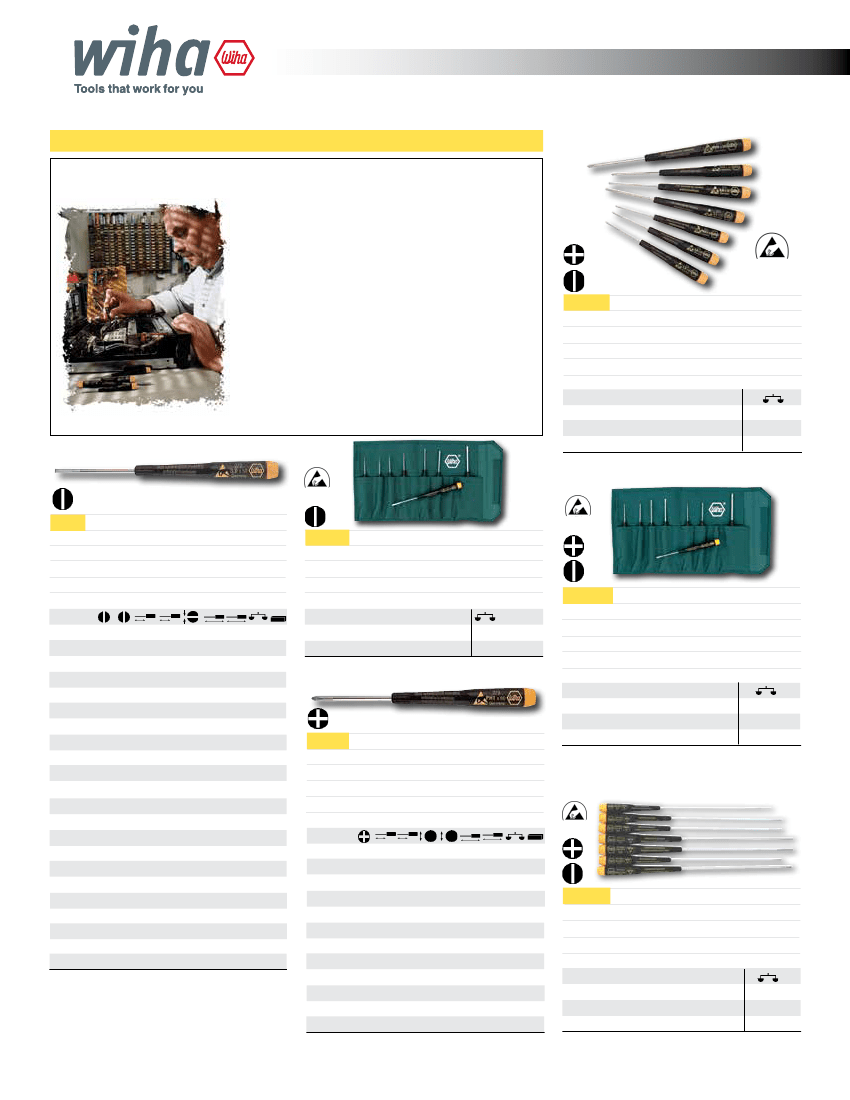

Precision ESD Safe Dissipative Screwdrivers
Wiha Precision ESD Static Dissipative Screwdrivers
meet the requirements for tools used in static sensitive areas
Rotating cap
For precise turning & control with fingertip
Molded Precision handle
Impact resistant dissipative material
Tapered handle
allows rapid rotation
Blade
CVM steel, hardened, hard chrome finish
Tip
Precision ground for exact fit, Wiha Chromtop finish
D
ESD Standard IEC 61340-5-1
Surface resistance of handles is 10
6
- 10
9
Ohms
27390 Set 7 Pcs. Slotted & Phillips
Precision ESD Safe Dissipative Handle
Blade high alloy CVM steel, hardened,
hard chrome. Handle manufactured from
impact resistant, dissipative material.
ESD standard IEC 61340-5-1
Item
Slotted:
No.
1.5, 2.0, 2.5, 3.5mm
lbs.
27390
Phillips:
.30
#00, 0, 1
D
272 Slotted Screwdriver, With Precision
ESD Safe Dissipative Handle
Blade high
alloy chrome-vanadium-molybdenum steel.
Hard chrome finished. Handle manufactured
from impact resistant, dissipative material.
ESD standard IEC 61340-5-1.
Item
No.
mm Inch mm Inch mm mm Inch lbs. pkg.
27208
.8 1/32 40 1.6 0.16 120 4.7 .02 10
27210
1.0 .039 40 1.6 0.18 120 4.7 .02 10
27212
1.2 3/64 40 1.6 0.20 120 4.7 .02 10
27215
1.5 1/16 40 1.6 0.25 120 4.7 .02 10
27218
1.8 5/64 40 1.6 0.30 120 4.7 .02 10
27220
2.0 5/64 40 1.6 0.40 120 4.7 .02 10
27222
2.0 5/64 75 3.0 0.40 155 6.1 .03 10
27223
2.0 5/64 100 3.9 0.40 180 7.1 .03 10
27224
2.0 5/64 150 5.9 0.40 260 10.2 .04 10
27225
2.5 3/32 50 2.0 0.40 145 5.7 .04 10
27227
2.5 3/32 100 3.9 0.40 195 7.7 .04 10
27228
2.5 3/32 150 5.9 0.40 245 9.6 .04 10
27230
3.0 1/8 50 2.0 0.50 145 5.7 .04 10
27232
3.0 1/8 100 3.9 0.50 210 8.3 .04 10
27234
3.0 1/8 150 5.9 0.50 260 10.2 .05 10
27235
3.5 9/64 60 2.4 0.60 170 6.7 .06 10
27237
3.5 9/64 100 3.9 0.60 210 8.3 .06 10
27238
3.5 9/64 150 5.9 0.60 260 10.2 .06 10
27240
4.0 5/32 60 2.4 0.80 170 6.7 .06 10
27242
4.0 5/32 100 3.9 0.80 210 8.3 .06 10
27243
4.0 5/32 150 5.9 0.80 260 10.2 .07 10
*Metric dimensions actual - Inch dimensions approximate
D
27290 Set 8 Pcs. Slotted Precision
ESD Safe Dissipative Handle
Blade CVM
steel, hardened, hard chrome. Handle impact
resistant, dissipative material. In storage
pouch. ESD standard IEC 61340-5-1
Item
Slotted:
No.
.8, 1.0, 1.2, 1.5,
lbs.
2.0, 2.5, 3.0, 3.5mm .54
27290
273 Phillips Screwdriver, With Precision
ESD Safe Dissipative Handle
Blade high
alloy chrome-vanadium-molybdenum steel.
Hard chrome finished. Handle manufactured
from impact resistant, dissipative material.
ESD standard IEC 61340-5-1.
Item
No.
Size mm Inch mm Inch mm Inch lbs. pkg.
27302
000 40 1.6 2.0 .08 120 4.7 .02 10
27305
00 40 1.6 2.0 .08 120 4.7 .02 10
27307
00 75 3.0 2.0 .08 155 6.1 .02 10
27310
0
50 2.0 3.0 .12 145 5.7 .04 10
27312
0
75 3.0 3.0 .12 170 6.7 .04 10
27314
0
100 3.9 3.0 .12 195 7.6 .05 10
27316
0
150 5.9 3.0 .12 245 9.6 .06 10
27320
1
60 2.3 4.0 .16 170 6.7 .06 10
27322
1
75 3.0 4.0 .16 155 6.1 .06 10
27324
1
100 3.9 4.0 .16 210 8.2 .06 10
27326
1
150 5.9 4.0 .16 260 10.2 .07 10
*Metric dimensions actual - Inch dimensions approximate
27399 Set 8 Pcs. Slotted & Phillips
Precision ESD Safe Dissipative Handle
Blade high alloy CVM steel, hardened,
hard chromed. Handle manufactured from
impact resistant, dissipative material.
Storage pouch. ESD standard IEC 61340-5-1.
Item
Slotted:
No.
1.5, 2.0, 2.5, 3.0mm
lbs.
27399
Phillips:
.50
#000, 00, 0, 1
D
27393 Set 7 Pcs. Extra Long Slotted/
Phillips Precision ESD Safe Dissipative
Handle
Blade CVM steel, hardened, hard
chromed. Handle impact resistant, dissipative
material. ESD standard IEC 61340-5-1
Item
Slotted:
No.
2.0, 2.5, 3.0, 3.5, 4.0mm
lbs.
Phillips:
.50
27393
#0, 1
www.wihatools.com
5

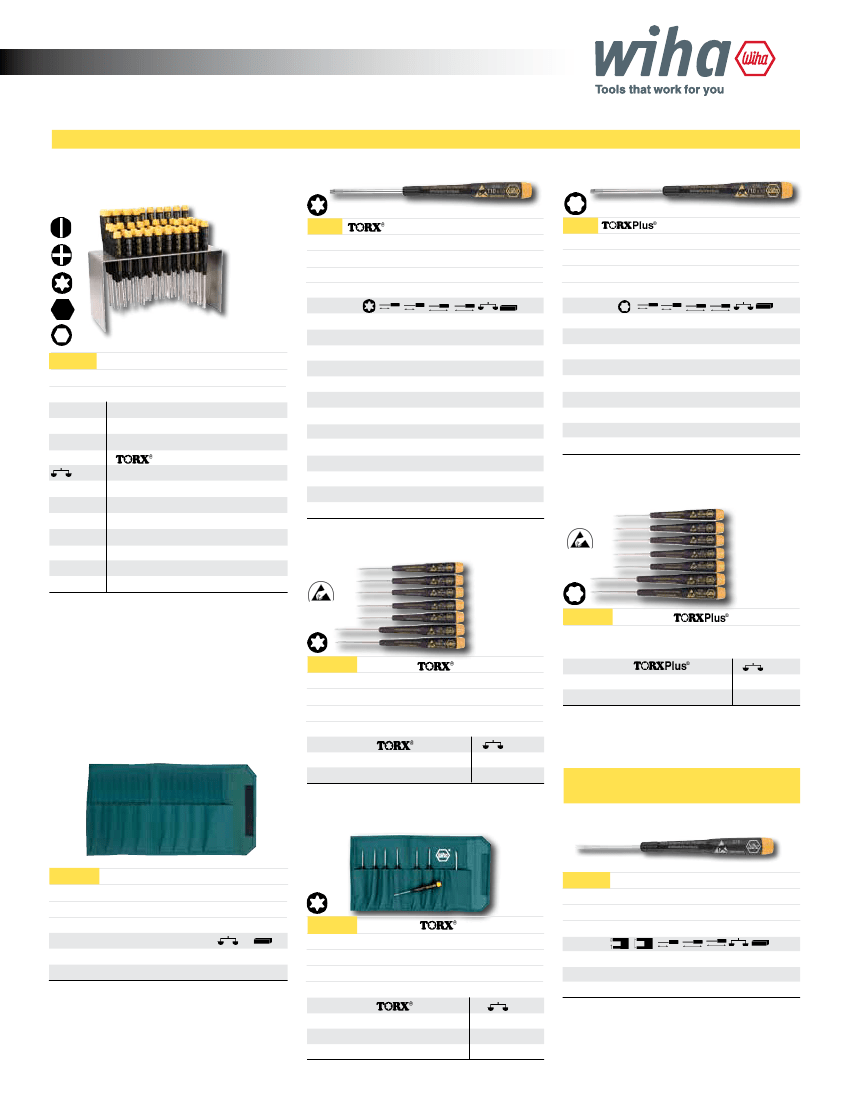

ESD Safe Dissipative Precision Screwdrivers
Surface resistance of handles is 10
6
- 10
9
Ohms
Surface
resistance of
handles is
10
6
- 10
9
Ohms
ESD
standard
IEC
61340-5-1
92092 Master Technicians Bench Top Set
Metal frame. Equipped with 50 precision ESD
Safe screwdrivers.
Item
No.
92092
Slotted:
.8, 1.0, 1.2, 1.5, 2.0, 2.5,
3.0, 3.5, 4.0mm
Phillips:
#000, #00, #0, #1
: T1, T2, T3, T4, T5, T6,
T7, T8, T9, T10, T15, T20
Metric
Hex:
.7, .9, 1.3, 1.5, 2.0,
2.5, 3.0, 4.0mm
Inch Hex: 1/16, 5/64, 3/32, 7/64,
1/8, 9/64, 5/32”
Metric
Nut Drivers:
1.5, 2.0,
2.5,
3.0, 3.5, 4.0, 4.5, 5.0, 5.5mm
27920 Chip Lifter
lbs.
2.25
Screwdriver, With Precision
ESD Safe Dissipative Handle
Blade high
alloy CVM steel. Hard chrome finished.
Handle impact resistant, dissipative material.
ESD standard IEC 61340-5-1.
Item
No.
Size mm Inch mm Inch lbs. pkg.
T1 40 1.6 120 4.7 .03 10
27801
T2 40 1.6 120 4.7 .03 10
27802
T3 40 1.6 120 4.7 .03 10
27803
T4 40 1.6 120 4.7 .03 10
27804
T5 40 1.6 120 4.7 .03 10
27805
T6 40 1.6 120 4.7 .03 10
27811
T7 40 1.6 120 4.7 .03 10
27817
T8 40 1.6 120 4.7 .03 10
27823
T9 50 2.0 145 5.7 .04 10
27829
T10 50 2.0 145 5.7 .04 10
27835
T15 60 2.4 170 6.7 .07 10
27841
T20 60 2.4 170 6.7 .07 10
27847
*Metric dimensions actual - Inch dimensions approximate
278
Screwdriver, With
278
Precision ESD Safe Dissipative Handle
Blade high alloy CVM steel, hardened, hard
chromed. Handle impact resistant, dissipative
material. ESD standard IEC 61340-5-1.
Item
No.
Size mm Inch mm Inch lbs. pkg.
IP4 40 1.6 120 4.7 .03 10
27850
IP5 40 1.6 120 4.7 .03 10
27851
IP6 40 1.6 120 4.7 .03 10
27852
IP7 40 1.6 120 4.7 .03 10
27853
IP8 40 1.6 120 4.7 .03 10
27854
IP9 50 2.0 145 5.7 .04 10
27855
IP10 50 2.0 145 5.7 .04 10
27856
IP15 60 2.4 170 6.7 .07 10
27857
*Metric dimensions actual - Inch dimensions approximate
ESD standard
IEC 61340-5-1
D
ESD standard
IEC 61340-5-1
D
Set 7 Pcs.
Precision ESD
Safe Dissipative Handle
Blade high alloy CVM steel, hardened, hard
chromed. Handle manufactured from impact
resistant, dissipative material.
Item
:
No.
T4, T5, T6, T7,
lbs.
T8, T9, T10
.31
27890
27890
Set 7 Pcs.
Precision
ESD Safe Dissipative Handle
Blade high
alloy CVM steel, hardened, hard chromed.
Item
:
No.
IP5, IP6, IP7, IP8
lbs.
IP9, IP10, IP15
.27
27894
27894
Wiha Precision ESD Safe
Chip Lifter
Surface resistance of handles
is 10
6
- 10
9
Ohms
ESD standard IEC 61340-5-1
Rugged Polyester Canvas
Storage Pouch
Holds 8 Precision Tools up to
170mm in length. Folding pouch. Has security
flaps and velcro closer.
Item
No.
Size
lbs. pkg.
14-1/2” W x 7-3/4” L .13
1
91118
91118
Precision
27899 Set 8 Pcs.
ESD Safe Dissipative Handle Set In Pouch
Blade high alloy CVM steel, hardened, hard
chromed. Handle impact resistant, dissipative
material. In storage pouch.
Item
:
No.
T1, T2, T3, T4,
lbs.
T5, T6, T7
.47
27899
Chip Lifter
27920 Precision Chip Lifter - ESD Safe
Blade CVM steel, hardened, corrosion resistant
finish. Precision handle high quality plastic,
Dissipative material.
Item
No.
mm mm mm mm Inch lbs. pkg.
27920
1
3.5 50 145 5.7 .07 1
ESD Safe dissipative handle
京公网安备 11010802033920号
EEWORLD
