Bridgelux
Décor Series
on
Vero SE Series
LED Array
®
™
®
Product Data Sheet DS124
BXRC-27H1000
BXRC-17E4000
|
27H2000
|
27H4000
|
30H1000
|
30H2000
|
30H4000
|
25E4000
|
56G4001
|
17E10K0
|
25E10K0
|
56G10K1
Introduction
The Bridgelux Décor Series
TM
on Vero
®
SE Series line of products produce unmatched quality of light with brilliant
color rendering options designed specifically for high end, niche applications. The Bridgelux Décor Series line of
specialty LED products is available on the Bridgelux Vero SE Series of chip on board products.
Décor Series
TM
Ultra
products provide a high CRI of 97, befitting of the most luxurious retail shops and world
renowned museums.
Décor Series
TM
Food
products offer color points developed to address the unique requirements of the food, grocery,
and restaurant industries. Highlighting the distinctive colors and nuanced patterns found in meats and breads, the
Décor Food products are a must have for any butcher counter or bakery.
Décor Series
TM
Specialty
products provide color points developed specifically for the healthcare and entertainment
industries. The 5600K color point combined with a CRI of 90 provides the bright white required by these industries.
Décor Series on Vero SE is available in four different light emitting surface (LES) configurations and has been
engineered to reliably operate over a broad current range, enabling new degrees of flexibility in luminaire design
optimization. Décor Series on Vero SE arrays deliver increased lumen density to enable improved beam control and
precision lighting with 2, 3 and 4 SDCM color control standard for clean and consistent uniform lighting.
Décor includes poke-in connectivity to enable simplified manufacturing and assembly processes. Secondary
connector and holder components are not required, allowing the integration of arrays into fixtures more streamlined
without the need for soldering.
Features
Benefits
• Poke-in connectivity
• Typical 97 CRI with a 95 CRI minimum (Décor Series
Ultra)
• Application specific color points
• Typical R9 value of 98 for brilliant rendering of red
colors and skin tones (Décor Series Ultra)
• 2 and 3 SDCM color control
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Top side part number markings
• No exposed solder pads or electrical connections
• Poke-in connectivity enables solderless and
connector free installation
• Broad application coverage for interior lighting
requiring state of the art color rendering
• Flexibility for application driven lighting design
requirements
• High quality true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Improved optical control
• Enhanced ease of use and manufacturability
•
Ability to configure multiple arrays in series and
parallel reduces customer driver cost
• Improved inventory management and quality control
Vero SE
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Eye Safety
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
5
10
11
12
13
20
21
22
26
27
30
30
30
31
1
Product Feature Map
In addition to delivering the performance and light quality
required for many lighting applications, Décor Series
on Vero SE LED arrays incorporate several features
to simplify the design integration and manufacturing
process, accelerate time to market and reduce
system costs. Décor Series on Vero SE
incorporates
several features to simplify the design integration and
manufacturing process, accelerate time to market and
reduce system costs.

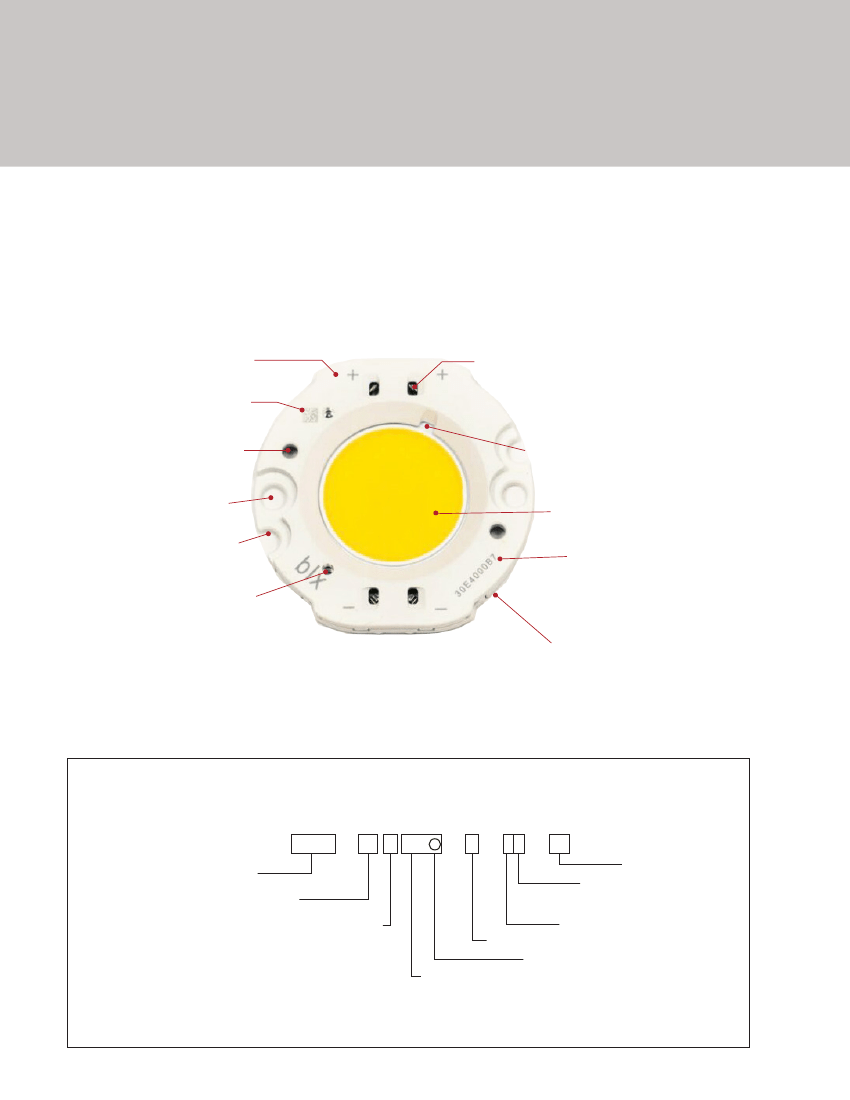

Polarity indication marks simplify
manufacturing operator instructions
2D Bar code provides full
manufacturing traceability
Wire release mechanisms x4
Optic mounting holes
T
c
Measurement point
Mounting location
Radial die configuration improves lumen
density and beam control
Zhaga Book 3 compatible
mounting locations
Top side part number marking improves
inventory management and outgoing
quality control
Test port for probing
Dual poke-in connectors
Product Nomenclature
The part number designation for Bridgelux Décor Series on Vero SE LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
-
16 17
BXRC – 30 H 100 0 – B – 7 3 - SE
Product Family
Nominal CCT
17 = 1,750K
25 = 2,500K
27 = 2,700K
30 = 3,000K
56 = 5,600K
Special Edition
CCT Bin Options
3 = 3 SDCM
4 = 4 SDCM
Gen. 7
Array Configuration
Nominal Flux
100x = 1000lm
200x = 2000lm
400x = 4000lm
10Kx = 10,000lm
Color Targeting Designator
0 = Cold Targeted (1750K-4000K)
1 = Hot Targeted (5000K-6500K)
Typical CRI
E = 80 CRI
G = 90 CRI
H = 97 CRI
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Product
Part Number
Nominal
CCT
1
(K)
2700
2700
2700
3000
3000
3000
2700
2700
2700
3000
3000
3000
2700
2700
2700
3000
3000
3000
1750
1750
1750
2500
2500
2500
5600
5600
5600
1750
1750
1750
2500
2500
2500
5600
5600
5600
CRI
2
Nominal
Drive
Current
3
(mA)
270
360
350
270
360
350
450
630
500
450
630
500
900
1170
1050
900
1170
1050
900
1170
1050
900
1170
1050
900
1170
1050
1800
1710
2100
1800
1710
2100
1800
1710
2100
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
1028
1371
999
1101
1468
1070
1789
2505
1823
1912
2676
1947
3605
4686
3504
3850
5007
3744
2649
3445
2576
4282
5568
4163
4559
5928
4433
8033
10175
6768
12983
16446
10940
13824
17510
11648
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
905
1206
880
969
1292
942
1611
2255
1641
1721
2409
1752
3243
4217
3153
3465
4506
3370
2385
3100
2318
3853
5011
3747
4103
5335
3989
7230
9157
6092
11685
14801
9845
12442
15760
10483
Typical
V
f
(V)
35.0
35.0
26.0
35.0
35.0
26.0
35.0
35.0
31.8
35.0
35.0
31.8
35.0
35.0
29.0
35.0
35.0
29.0
35.0
35.0
29.0
35.0
35.0
29.0
35.0
35.0
29.0
52.0
69.4
37.6
52.0
69.4
37.6
52.0
69.4
37.6
Typical
Power
(W)
9.5
12.6
9.1
9.5
12.6
9.1
15.8
22.1
15.9
15.8
22.1
15.9
31.5
41.0
30.5
31.5
41.0
30.5
31.5
41.0
30.5
31.5
41.0
30.5
31.5
41.0
30.5
93.6
118.7
79.0
93.6
118.7
79.0
93.6
118.7
79.0
Typical
Efficacy
(lm/W)
109
109
110
117
116
118
114
114
115
121
121
122
114
114
115
122
122
123
84
84
85
136
136
137
145
145
146
86
86
86
139
139
139
148
148
148
Décor Ultra Vero SE 10B
Décor Ultra Vero SE 10C
Décor Ultra Vero SE 10D
Décor Ultra Vero SE 10B
Décor Ultra Vero SE 10C
Décor Ultra Vero SE 10D
Décor Ultra Vero SE 13B
Décor Ultra Vero SE 13C
Décor Ultra Vero SE 13D
Décor Ultra Vero SE 13B
Décor Ultra Vero SE 13C
Décor Ultra Vero SE 13D
Décor Ultra Vero SE 18B
Décor Ultra Vero SE 18C
Décor Ultra Vero SE 18D
Décor Ultra Vero SE 18B
Décor Ultra Vero SE 18C
Décor Ultra Vero SE 18D
Décor Food Vero SE 18B
Décor Food Vero SE 18C
Décor Food Vero SE 18D
Décor Food Vero SE 18B
Décor Food Vero SE 18C
Décor Food Vero SE 18D
Décor Specialty Vero SE 18B
Décor Specialty Vero SE 18C
Décor Specialty Vero SE 18D
Décor Food Vero SE 29B
Décor Food Vero SE 29C
Décor Food Vero SE 29D
Décor Food Vero SE 29B
Décor Food Vero SE 29C
Décor Food Vero SE 29D
Décor Specialty Vero SE 29B
Décor Specialty Vero SE 29C
Décor Specialty Vero SE 29D
BXRC-27H1000-B-7x-SE
BXRC-27H1000-C-7x-SE
BXRC-27H1000-D-7x-SE
BXRC-30H1000-B-7x-SE
BXRC-30H1000-C-7x-SE
BXRC-30H1000-D-7x-SE
BXRC-27H2000-B-7x-SE
BXRC-27H2000-C-7x-SE
BXRC-27H2000-D-7x-SE
BXRC-30H2000-B-7x-SE
BXRC-30H2000-C-7x-SE
BXRC-30H2000-D-7x-SE
BXRC-27H4000-B-7x-SE
BXRC-27H4000-C-7x-SE
BXRC-27H4000-D-7x-SE
BXRC-30H4000-B-7x-SE
BXRC-30H4000-C-7x-SE
BXRC-30H4000-D-7x-SE
BXRC-17E4000-B-74-SE
BXRC-17E4000-C-74-SE
BXRC-17E4000-D-74-SE
BXRC-25E4000-B-74-SE
BXRC-25E4000-C-74-SE
BXRC-25E4000-D-74-SE
BXRC-56G4001-B-74-SE
BXRC-56G4001-C-74-SE
BXRC-56G4001-D-74-SE
BXRC-17E10K0-B-74-SE
BXRC-17E10K0-C-74-SE
BXRC-17E10K0-D-74-SE
BXRC-25E10K0-B-74-SE
BXRC-25E10K0-C-74-SE
BXRC-25E10K0-D-74-SE
BXRC-56G10K1-B-74-SE
BXRC-56G10K1-C-74-SE
BXRC-56G10K1-D-74-SE
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
80
80
80
80
80
80
90
90
90
80
80
80
80
80
80
90
90
90
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with CCTs 5000K-6500K are hot targeted to 85°C.
2. CRI Values are minimums. Minimum R9 value at T
j
= T
c
= 25°C for 80 CRI products is 0, the minimum R9 values for warm white and neutral white 90 CRI
products is 60, the minimum R9 values for cool white 90 CRI products is 50.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and not a guarantee of performance.
6. Bridgelux maintains a ± 7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
3
