6163R20KT5L1.0XX Overview

7/8 Diameter Single Turn Conductive Plastic Precision Potentiometer / Position Sensor

Preview

Download Datasheet

View All

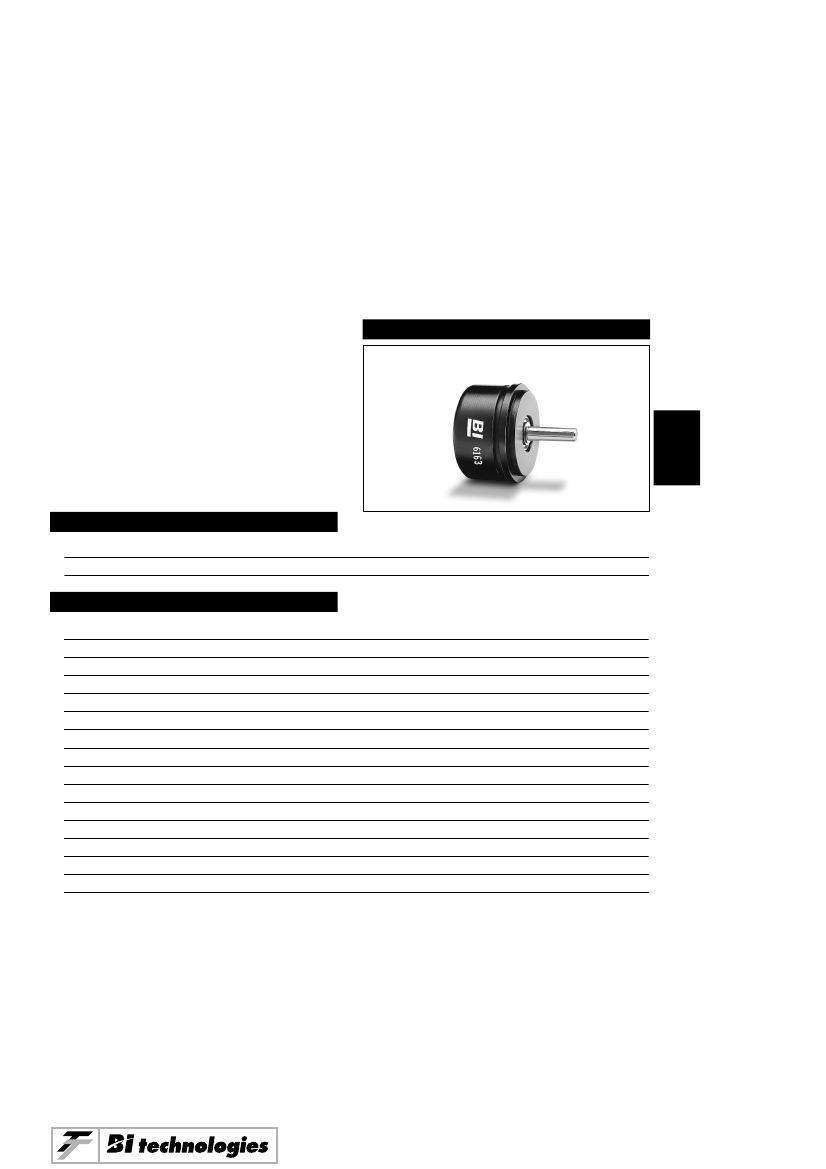

MODEL 6143, 6163

7/8” Diameter

Single Turn

Conductive Plastic

Precision Potentiometer /

Position Sensor

MODEL STYLES

6143

6163

ELECTRICAL

1/8” Shaft, Bronze Sleeve Bearing

1/8” Shaft, Ball Bearing

Resistance Range, Ohms

Standard Resistance Tolerance

Minimum Practical Resistance Tolerance

Independent Linearity*

Minimum Practical Independent Linearity

Input Voltage, Maximum

Power Rating, Watts

Dielectric Strength

Insulation Resistance, Minimum

Output Smoothness, Maximum

Actual Electrical Travel, Nominal

Electrical Continuity Travel, Minimum

End Voltage, Maximum

Resolution

Temperature Coefficient**

Specifications subject to change without notice.

* Linearity is measured between 1% and 99% of input voltage.

** Special tempco available to ±100ppm/°C.

1K to 100K

±10%

±5%

±1.0%

±0.5%

400Vdc not to exceed power rating

1.0 at 70°C derating to 0 at 125°C

750V rms

1,000 Megohms

0.1%

340°

350°

0.5% of Input Voltage

Essentially infinite

–800 ppm/°C

2-59

Model 6143, 6163
