2332D5: DescriptionINDICATOR NEON GREEN PANEL MNT; CategoryLED optoelectronic/LED; File Size102KB，2 Pages; ManufacturerVisual Communications Company - VCC; Environmental Compliance

Download Datasheet Parametric Compare View All

2332D5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2332D5	-	-	View	Buy Now

2332D5 Overview

INDICATOR NEON GREEN PANEL MNT

2332D5 Parametric

Parameter Name	Attribute value
type	neon
lamp color	green
Lens color	-
Lens transparency	-
grade	AC
Voltage	105 V ~ 125 V
current	-
Panel opening shape	-
Panel opening size	-
Lens style/size	Rectangular with flat top
millicandela level	-
Wavelength - Peak	-
perspective	-
Terminal type	Lead - 4.6" (116.84mm)
Intrusion protection	-
characteristic	-

Preview

Download Datasheet

View All

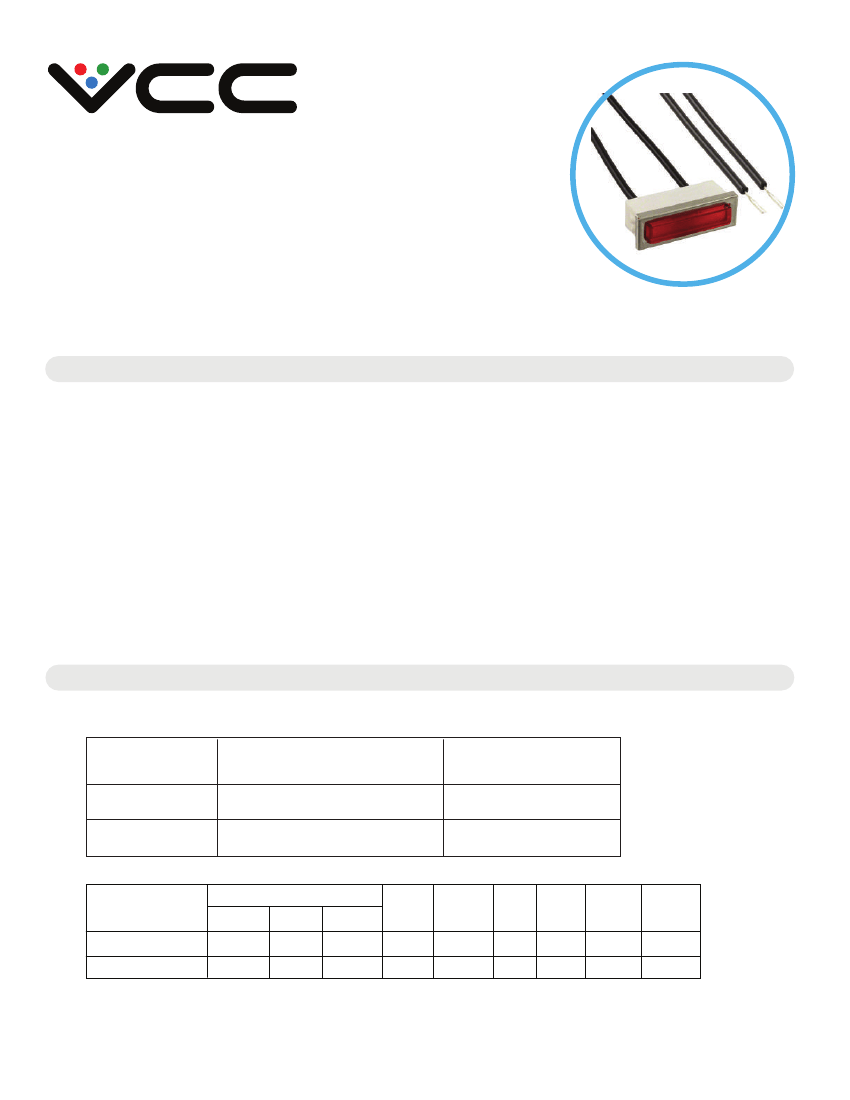

2330D and 2332D Series

Non-Relampable

Neon Panel Mount Indicator

Snapfit Rectangular Neon Wired Indicator Lights

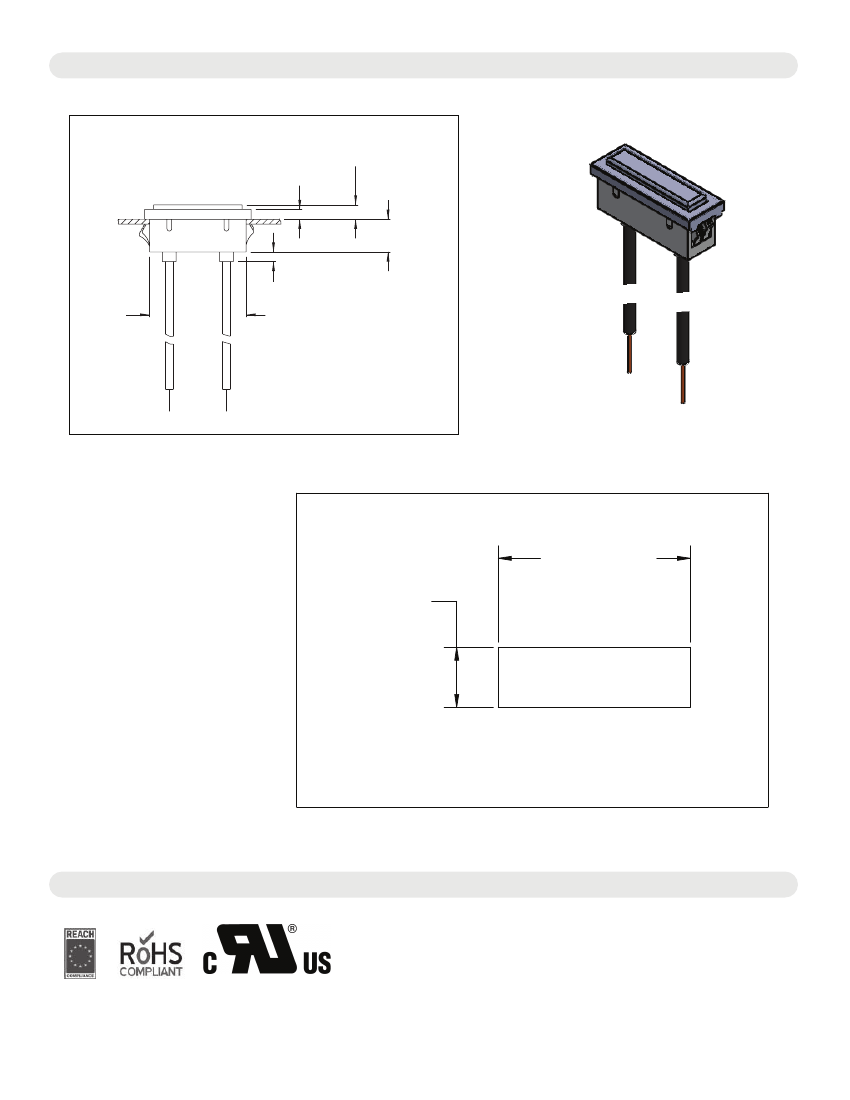

For 0.400” x 1.280” mounting hole

Specifications

Mounting: Will snap-fit into cut-out 0.400” x 1.280“ and will mount in .032” - .100” thick panel

Wire Leads: No. 22 AWG (105°C) 4.40”/4.80” long, stripped .430”/.570”

Lens: Polycarbonate

Anode(+): Red lead

Bezel: Stainless steel.

Underwriters Laboratories (UL) File No. E20356

Ordering Information

Model No.

(105-125 VAC)

2330D1

2332D5

Maximum Breakdown Voltage

Design

VAC

N/A

VDC

135

Exting.

Volts

N/A

2.6

1.4

Lens Color

Red

Green

Lamp

G2B

LT2-32-1

Lamp used

LT2-32-1 + Resistor

G2B + Resistor

Life

Avg.

Hours

25,000

N/A

Typ.

Ohms

N/A

Bulb

Length

Max. In.

N/A

Current

Pre-

Aged

N/A

Base

1” Wire

N/A

the first call for illuminated components

www.vcclite.com

1.800.522.5546

11/16 Rev 3
