Series PVG613PbF
Microelectronic Power IC
HEXFET
®
Power MOSFET Photovoltaic Relay
Single-Pole, Normally-Open, 0-60V, 1.0A AC / 2.0A DC
General Description
The PVG613 Series Photovoltaic Relay is a single-
pole, normally open solid-state relay that can replace
electromechanical relays in many applications. It
utilizes International Rectifier’s proprietary HEXFET
power MOSFET as the output switch, driven by an
integrated circuit photovoltaic generator of novel
construction. The output switch is controlled by
radiation from a GaAlAs light emitting diode (LED)
which is optically isolated from the photovoltaic
generator.
These units exceed the performance capabilities of
electromechanical relays in operating life, sensitivity,
stable on-resistance, low off-state leakage,
miniaturization, insensitivity to magnetic fields and
ruggedess. The compact PVG613 is particularly
suited for isolated switching of high currents from 12
to 48 Volt AC or DC power sources.
Series PVG613 Relays are packaged in a 6-pin,
molded DIP package with either thru-hole or surface
mount (gull-wing) terminals. It is available in standard
plastic shipping tubes or on tape-and-reel. Please
refer to Part Identification information opposite.
Features
Bounce-free operation
High load current capacity
Extremely low off-state leakage
Linear AC/DC operation
4,000 V
RMS
I/O Isolation
Solid-State reliability
UL recognized
ESD Tolerance:
4000V Human Body Model
500V Machine Model
Applications
Industrial Control
Computers and Peripheral Devices
Audio Equipment
Power Supplies and Power Distribution
Factory Automation
Part Identification
PVG613PbF
PVG613SPbF
PVG613S-TPbF
thru-hole
surface-mount
surface-mount, tape
and reel
(HEXFET is the registered trademark for International Rectifier Power MOSFETs)
1
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
May 04, 2015
Series PVG613PbF
Electrical Specifications
(-40°C
≤
T
A
≤
+85°C unless otherwise specified)
INPUT CHARACTERISTICS
Minimum Control Current
(see figure 1)
Maximum Control Current for Off-State Resistance
@ T
A
= +25°C
Control Current Range
(Caution: current limit input LED, see figure 6)
Maximum Reverse Voltage
Limits
5.0
0.4
5.0 to 25
6.0
Units
mA
mA
mA
V
OUTPUT CHARACTERISTICS
Operating Voltage Range
Maximum Load Current
@ TA = +40°C, 10mA Control (see figure 1)
A Connection
B Connection
C Connection
Maximum Pulsed Load Current
@ TA =+25°C (100 ms @ 10% Duty Cycle)
A Connection
Maximum On-State Resistance
@T
A
=+25°C
For 1A pulsed load, 10mA Control (see figure 4)
A Connection
B Connection
C Connection
Maximum Off-State Leakage
@T
A
=+25°C, ±48V (see figure 5)
Maximum Turn-On Time
@T
A
=+25°C (see figure 7)
For 500mA, 50 V
DC
load, 10mA Control
Maximum Turn-Off Time
@T
A
=+25°C (see figure 7)
For 500mA, 50 V
DC
load, 10mA Control
Maximum Output Capacitance
@ 50V
DC
(see figure 2)
Limits
0 to ±60
1.0
1.5
2.0
2.4
500
250
150
10
2.0
0.5
130
Units
V
(DC or AC peak)
A (AC or DC)
A (DC)
A (DC)
A (AC or DC)
mΩ
mΩ
mΩ
nA
ms
ms
pF
GENERAL CHARACTERISTICS
Minimum Dielectric Strength, Input-Output
Minimum Insulation Resistance,
Input-Output, @T
A
=+25°C, 50%RH, 100V
DC
Maximum Capacitance, Input-Output
Maximum Pin Soldering Temperature
(10 seconds maximum)
Ambient Temperature Range:
Operating
Storage
Limits
4000
10
12
1.0
+260
-40 to +85
-40 to +100
Units
V
RMS
Ω
pF
°C
International Rectifier does not recommend the use of this product in aerospace, avionics, military or life support applications.
Users of this International Rectifier product in such applications assume all risks of such use and indemnify International
Rectifier against all damages resulting from such use.
Connection Diagrams
2
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
May 04, 2015
Series PVG613PbF
1.25
I
1.00
M ax. Lo ad C urrent (A )
5 mA
0.75
LED = 10 m A
'A ' C o nnectio n
600
'A ' C o nnectio n
Typical C apa citance (pF)
450
300
0.50
0.25
150
0
0
20
40
60
80
100
A m b ient Tem p era ture (deg. C )
0
0
15
30
45
60
Vdd, Drain to D rain Vo lta ge (V )
Figure 1. Current Derating Curves*
Figure 2. Typical Output Capacitance
* Derating of ‘B’ and ‘C’ connection at +85°C will be 70% of that specified at +40°C and is linear from +40°C to +85°C.
1.25
2.5
Rd-o n (N o rm alized to 25 deg. C )
1.00
0.7 5
0.50
2.0
'A ' C o n nectio n
10 m A C o ntro l
I D = 500 m A
Lo ad C urrent (A )
0.25
-0.5 -0.4 -0.3 -0.2 -0.1
0.1 0.2 0.3 0.4 0.5
-0 .2 5
10 m A C o ntrol
-0 .5 0
@ 25C , p ulse d
-0 .7 5
1.5
1.0
0.5
-1 .0 0
-1 .2 5
C o nn ectio n 'A ' V o lta ge D ro p (V dd)
0
-50
-25
0
25
50
75
100
125
A m bient Tem p erature (deg. C )
Figure 3. Linearity Characteristics
Figure 4. Typical Normalized On-Resistance
3
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
May 04, 2015
Series PVG613PbF
100
30
10
3.0
1.0
0.3
0.1
-35
20
16
Input C urrent (m A )
8
I
4
-15
5
25
45
65
85
105
0
0
A m bient Tem p era ture (d eg. C )
2.0
0.5
1.0
1.5
LED Fo rw ard V o ltag e D ro p (V o lts DC )
Figure 5. Typical Normalized Off-State Leakage
Figure 6. Input Characteristics (Current Controlled)
20
LED C urrent (m A )
10
t on
t d ly
5
I LED
90%
3
20
t o ff
50
100
200
500
1000 2000
I
D
10%
tdly
t on
t off
D ela y Tim e (m icro seco nds)
Figure 7. Typical Delay Times
Figure 8. Delay Time Definitions
4
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
TY P IC AL
12
M in. de vice
a nd +8 5 d eg
. C lim it
M a x. d e vic e
a nd -4 0 d eg
. C lim it
D -O FF
/
I D -O FF 25 d eg. C
CAUTION: provid e current lim iting
so that 25 m A m axim um steady-
state control cu rrent rating is
not exceed ed
May 04, 2015
Series PVG613PbF

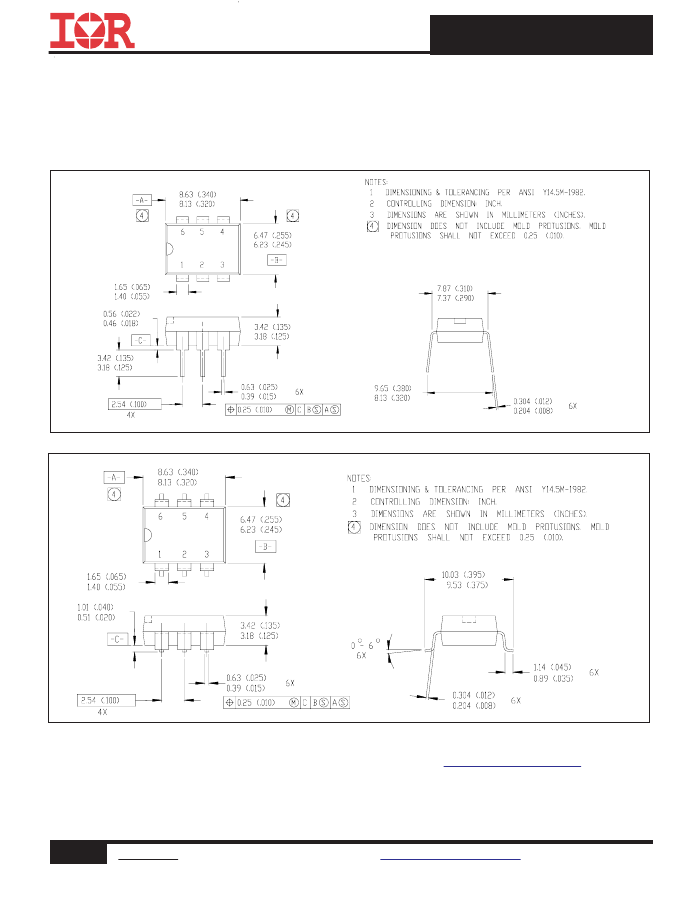

Case Outlines
01-2008 01
01-2009 01
Note: For the most current drawing please refer to IR website at:
http://www.irf.com/package/
5
www.irf.com
©
2015 International Rectifier
Submit Datasheet Feedback
May 04, 2015
