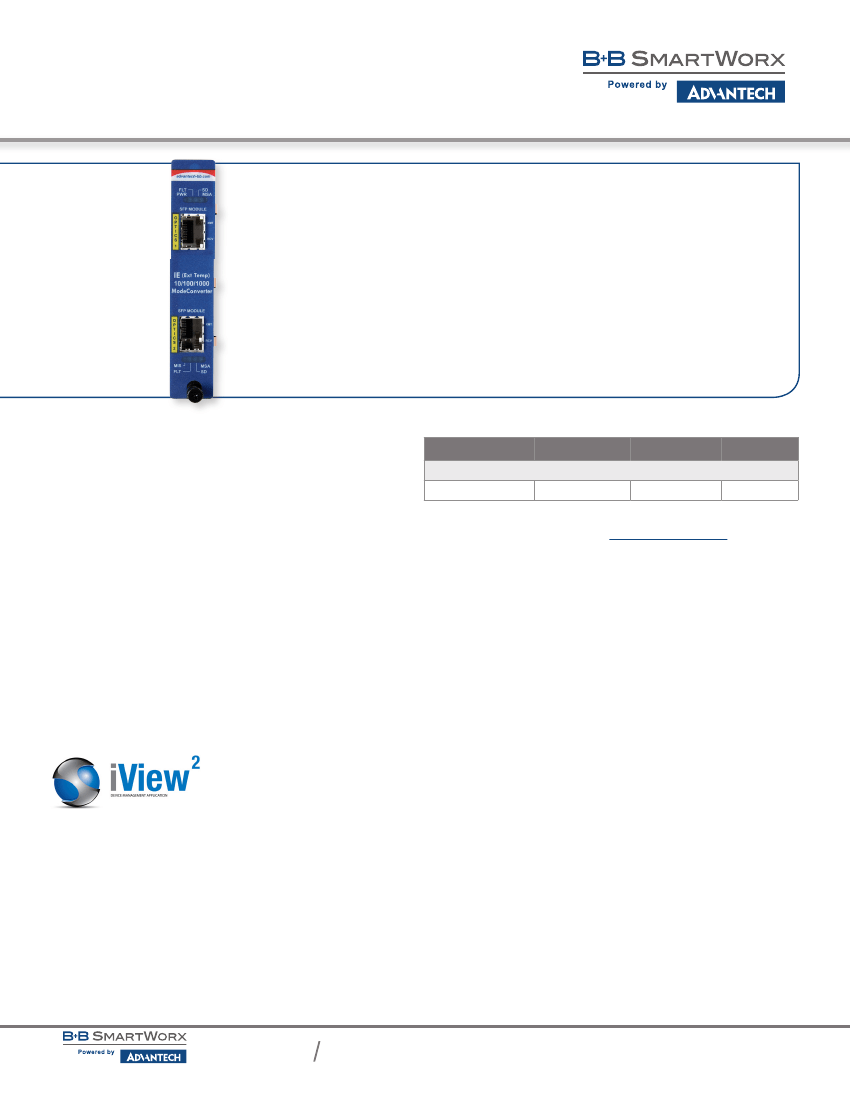

Modular Fiber Mode Converter
via SFP Modules
IE-iMcV-ModeConverter series
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
•
Interchangeable SFP modules allow for multiple fiber mode/type conversion
options (single-mode, multi-mode, single-strand, long haul, short haul, etc.)
Extended operating temperatures
DDMI enabled SFPs support SNMP when installed in a compatible
managed chassis
Modular, hot-swappable architecture reduces operational costs associated
with product installation, upgrades and maintenance
Ideal for use with B+B SmartWorx’ SFPs
Supports a full range of SFP modules offering various transmission
speeds, from 10 Mbps up to 2.4 Gbps*
The IE-iMcV-ModeConverter is an SNMP manageable module that allows
network operators to incorporate multiple fiber types and wavelengths within
a network. It installs in the modular, SNMP-manageable iMediaChassis series
and in the unmanaged MediaChassis series.
The IE-iMcV-ModeConverters are protocol-independent with dual SFP ports
which can provide a single conversion between different wavelengths or single-
mode and multi-mode fiber, single-mode to single-mode fiber or multimode
to single-strand single-mode fiber. The IE-iMcV-ModeConverter can support
speeds of Fast Ethernet, Gigabit and FibreChannel; however, each SFP port
must use an SFP of the same speed, while allowing different fiber types.
Additionally, since the IE-iMcV-ModeConverter is an Industrial Equipment (IE)
device, the unit operates in environments that demand extended operating
temperatures.
The IE-iMcV-ModeConverter uses MSA Compliant SFP modules to provide
greater fiber flexibility in the network environment. The hot-swappable nature of
SFPs and the numerous fiber modes and types that are available allow for easy
configuration and future upgrading as network demands evolve.
ORDERING INFORMATION
MODEL
DESCRIPTION
NUMBER
IE-ModeConverter SFP/SFP with AC Adapter **
850-19500
SFP
FIBER PORTS
2
DISTANCE
Various
* Certified at 155Mbps, 1.25Mbps, 2.4Gbps achievable.
** SFP fibers sold separately - available at
www.advantech-bb.com
iView: Webserver Version
Free Download
All product specifications are subject to change without notice.
IE-iMcV-ModeConverter_4517ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Modular Fiber Mode Converter
via SFP Modules
IE-iMcV-ModeConverter series
SPECIFICATIONS
TECHNICAL
Includes two SFP ports
Protocol independent operation
Converts between dissimilar fiber modes and wavelengths
Includes diagnostic LEDs
Hot-swappable architecture
Modular form factor
Extended temperature range from -40 to +85 °C
Compatible with IB+B SmartWorx’ SFPs and all standard MSA compliant SFP devices
STANDARD COMPLIANCE
SFP-MSA SFP standard (September 14, 2000)
SFF-8472 DDMI standard (Revision 1.0)
MECHANICAL
Dimensions
10.6 x 1.98 x 6.99 cm (4.19 x 0.78 x 2.75 in)
Shipping Weight
0.11 kg (0.25 lb)
POWER
422mA with SFP ports populated (typical @ 5V)
ENVIRONMENTAL
Operating Temperature
-40 to +85 °C (-40 to +185 °F)
Storage Temperature
-40 to +85 °C (-40 to +185 °F)
5 to 95% (non-condensing),
Operating Humidity
0 to 10,000 ft. altitude
REGULATORY APPROVALS
FCC Class A
UL/cUL, CE

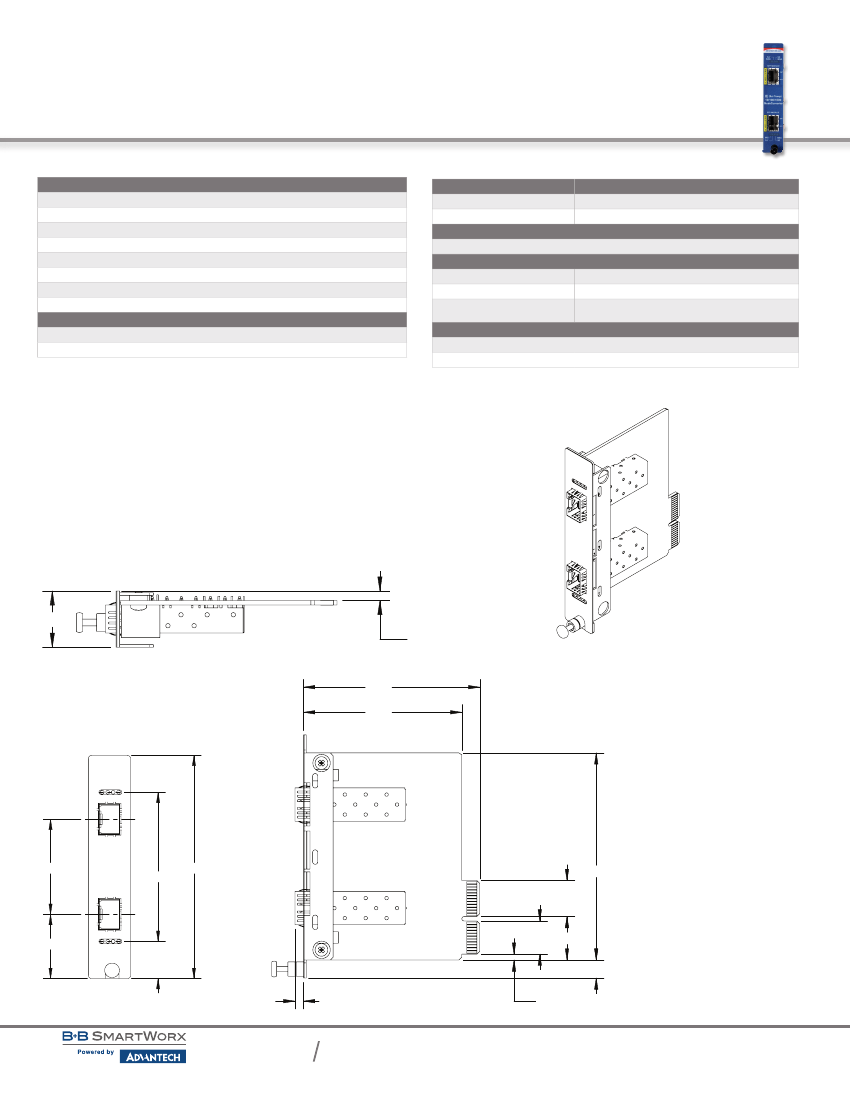

MECHANICAL DIAGRAM
units = inches
.78
.14
3.04
2.73
1.79
2.80
4.19
3.57
.62
.57
.75
.31
.15
.10
1.21
.70
