7.68 V, 0.15 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

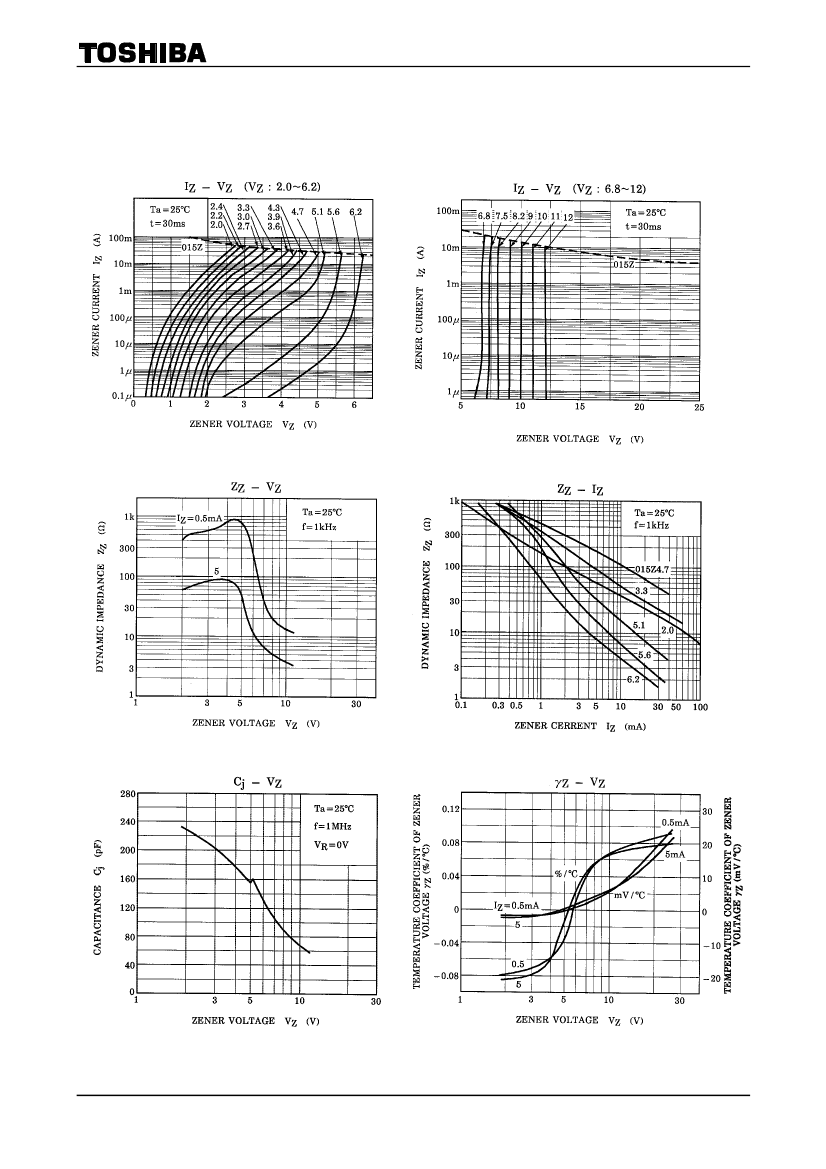

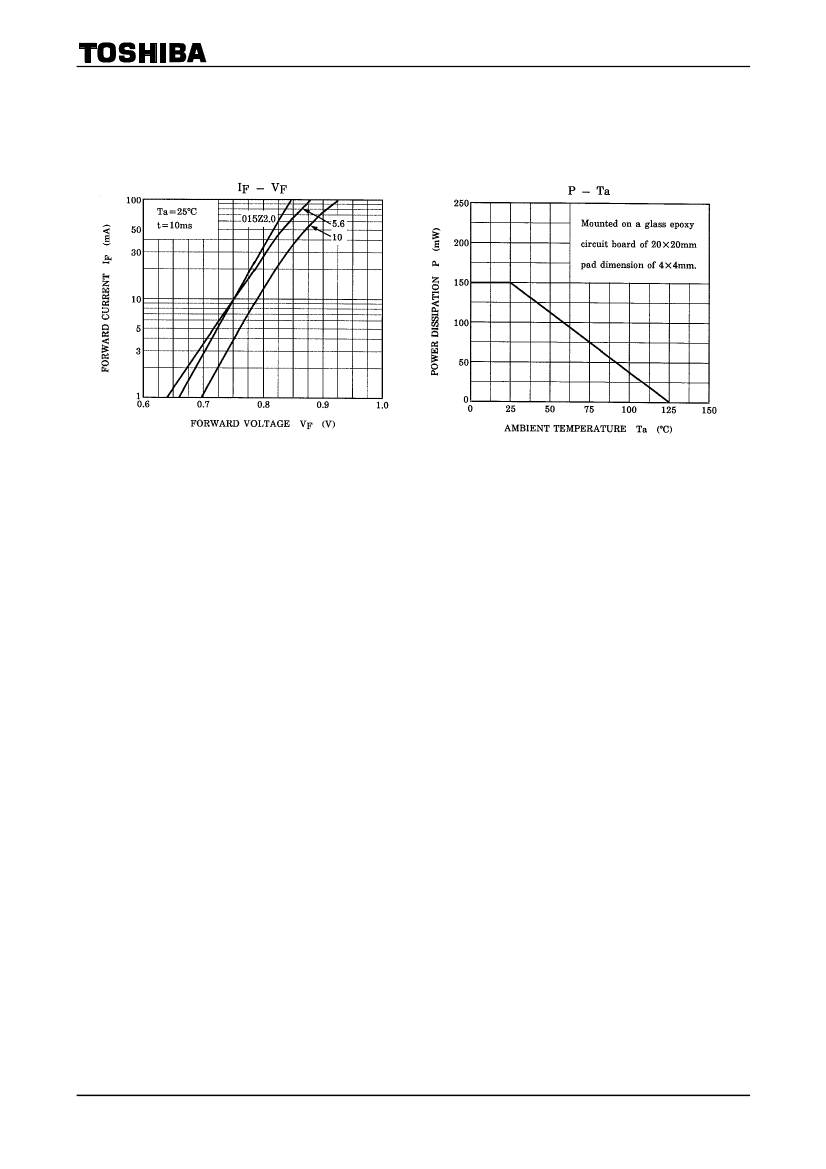

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| package instruction | R-PDSO-F2 |
| Contacts | 2 |
| Manufacturer packaging code | 1-1G1A |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| Maximum dynamic impedance | 23 Ω |
| JESD-30 code | R-PDSO-F2 |
| Maximum knee impedance | 120 Ω |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 125 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 0.15 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 7.68 V |
| Maximum reverse current | 0.5 µA |
| surface mount | YES |
| technology | ZENER |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Maximum voltage tolerance | 2.5% |
| Working test current | 5 mA |
| Base Number Matches | 1 |
| 015AZ7.5-Z | 015AZ7.5 | 015AZ7.5-X | 015AZ7.5-Y | |
|---|---|---|---|---|
| Description | 7.68 V, 0.15 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 7.5 V, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 7.215 V, 0.15 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 7.445 V, 0.15 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
| Contacts | 2 | 2 | 2 | 2 |
| Manufacturer packaging code | 1-1G1A | 1-1G1A | 1-1G1A | 1-1G1A |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Is Samacsys | N | N | N | N |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| JESD-30 code | R-PDSO-F2 | R-PDFP-F2 | R-PDSO-F2 | R-PDSO-F2 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | FLATPACK | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | 240 | NOT SPECIFIED | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal reference voltage | 7.68 V | 7.5 V | 7.22 V | 7.45 V |
| surface mount | YES | YES | YES | YES |
| technology | ZENER | ZENER | ZENER | ZENER |
| Terminal form | FLAT | FLAT | FLAT | FLAT |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum voltage tolerance | 2.5% | 2.5% | 2.5% | 2.5% |
| Working test current | 5 mA | 5 mA | 5 mA | 5 mA |
| Base Number Matches | 1 | 1 | 1 | 1 |
| package instruction | R-PDSO-F2 | - | R-PDSO-F2 | R-PDSO-F2 |
| Maximum dynamic impedance | 23 Ω | - | 23 Ω | 23 Ω |
| Maximum knee impedance | 120 Ω | - | 120 Ω | 120 Ω |
| Maximum operating temperature | 125 °C | - | 125 °C | 125 °C |
| Maximum power dissipation | 0.15 W | - | 0.15 W | 0.15 W |
| Maximum reverse current | 0.5 µA | - | 0.5 µA | 0.5 µA |
