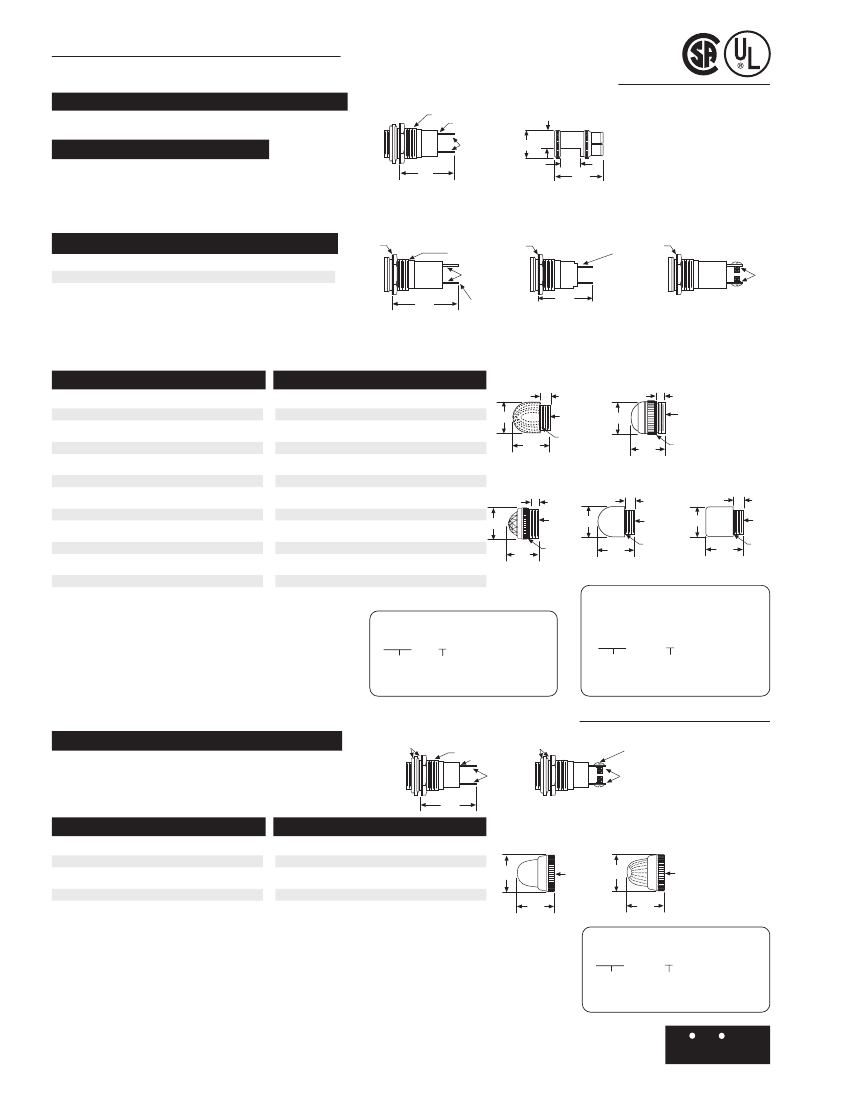

INCANDESCENT PANEL MOUNT INDICATORS
021 SERIES FOR 11/16" MOUNTING HOLE • LIGHT SHIELD
BASE PART NO.
021-0410-29-301
VOLTAGE
2–120
FIG
1
Fig. 1
11/16 - 27NS THD
+ CENTER CONTACT
17.86
[.70]
10.72
[.42]
Fig. 2
CAP PART NO.
021-2900-300
COLOR
NO LENS
FIG
2
34.04
[1.34]
MAX
1.98 [.08] x
3.18 [.13]
SLOTS
Uses:
T-3 1/4 MINIATURE
BAYONET BASE
INCANDESCENT LAMP
12.7
[.50]
30.48
[1.20]
Material & Finish: Chrome Plated Brass
052, 081, 095, 135 SERIES FOR 11/16" MOUNTING HOLE • WATERTIGHT
BASE PART NO.
081-0410-01-303
081-1059-01-303†
081-1310-01-303
VOLTAGE
2–120
2–120
2–120
FIG
3
4
5
GASKET
Fig. 3
11/16
27NS THD
1.98 [.08] x
3.30 [.125]
SLOTS
GASKET
Fig. 4
+ CENTER
CONTACT
GASKET
Fig. 5
No. 4–36
THD
45.97
[1.81]
MAX
+ CENTER CONTACT
33.34
[1.31]
MAX
† Part No. 081-1059-01-303 uses T2 Telephone Slide Base Lamp (PSB Type); CSA certified
** Dialight recommends: transparent lens caps for Based LED;
Clear lens caps for green Based LEDs
CAP PART NO.
*
052-3191-003
052-3192-003
052-3193-003
052-3195-003
052-3197-003
081-0111-303
081-0112-303
081-0113-303
081-0117-303
081-0135-303
081-0137-303
081-0431-303
081-0432-303
COLOR
RED
GREEN
AMBER
WHITE
CLEAR
RED
GREEN
AMBER
CLEAR
WHITE
CLEAR
RED
GREEN
FIG
6
6
6
6
6
7
7
7
7
7
7
8
8
CAP PART NO.
*
081-0433-303
081-0435-303
081-0437-303
095-3137-003
095-3171-003
095-3172-003
095-3173-003
095-3175-003
135-3237-003
135-3271-003
135-3272-003
135-3273-003
135-3275-003
COLOR
AMBER
WHITE
CLEAR
CLEAR
RED
GREEN
AMBER
WHITE
CLEAR
RED
GREEN
AMBER
WHITE
FIG
8
8
8
9
9
9
9
9
10
10
10
10
10
Fig. 6
4.76
[.18]
15.86
[.63]
Uses:
T-3 1/4 MINIATURE BAYONET BASE
INCANDESCENT LAMP,
CLUSTER BASED LED** OR
MULTI-CHIP LED**
Fig. 7
4.76
[.18]
16.27
[.64]
9/16 - 27
NS THD
9/16 - 27
NS THD
15.86
[.63]
MAX
FLUTED
TRANSPARENT
GASKET
17.46
[.68]
MAX
GASKET
Fig. 8
4.76
[.18]
16.27
[.64]
9/16 - 27
NS THD
Fig. 9
4.76
[.18]
15.86
[.63]
9/16 - 27
NS THD
15.86
[.63]
Fig. 10
4.76
[.18]
9/16 - 27
NS THD
GASKET
17.46
[.68]
MAX
FACETED
TRANSPARENT
15.86
[.63]
MAX
GASKET
15.86
[.63]
MAX
GASKET
Material & Finish: Base - Chrome Plated Brass,
Cap - Polycarbonate with Chrome Plated Bezel on
the 081 Series Fig. 7 and Fig. 8.
** Dialight recommends: transparent lens caps for
Based LED; Clear lens caps for green Based LEDs
*
PART NUMBER ORDERING CODE
081-0xxx-303
Series
Lens Finish:
1 = Back Frosted
(Not available in white)
3 = Transparent**
*
PART NUMBER ORDERING CODE
095 – 31xx – 003
135 – 32xx – 003
Series
Lens Finish:
3 = Transparent**
7 = Translucent
(Not available in clear)
125 SERIES FOR 11/16" MOUNTING HOLE • OILTIGHT*
BASE PART NO.
125-0410-11-103
125-1310-11-103
VOLTAGE
2–120
2–120
FIG
11
12
Fig. 11
"O" RING
11/16
"O" RING
27NS THD
+ CENTER CONTACT
1.98 [.08] x
3.30 [.125]
SLOTS
Fig. 12
+ CENTER CONTACT
No. 4–36
THD
31.24
[1.23]
MAX
Uses:
T-3 1/4 MINIATURE
BAYONET BASE
INCANDESCENT LAMP,
CLUSTER BASED LED**,
OR MULTI-CHIP LED**
CAP PART NO.
125-1131-403
125-1132-403
125-1133-403
125-1135-403
125-1137-403
COLOR
RED
GREEN
AMBER
WHITE
CLEAR
FIG
13
13
13
13
13
CAP PART NO.
125-1191-403
125-1192-403
125-1193-403
125-1195-403
125-1197-403
COLOR
RED
GREEN
AMBER
WHITE
CLEAR
FIG
14
14
14
14
14
Fig. 13
21.03
[.83]
5/8 - 27
NS THD
21.03
[.83]
Fig. 14
FLUTED
TRANSPARENT
5/8 - 27
NS THD
22.22
[.86]
MAX
22.22
[.86]
MAX
Material & Finish: Base - Nickel Plated Brass
Cap - Polycarbonate with Chrome Plated Brass Bezel
*
See Page 14 for Oiltight information
*
PART NUMBER ORDERING CODE
125 – 11xx – 403
Series
Lens Finish:
1 = Back Frosted
(Not available in white)
3 = Transparent**
Neon and incandescent lamp information on Pages 35 and 36.
Based LED lamp information on Pages 37 through 40.
** Dialight recommends: transparent lens caps for Based LED; Clear lens caps for green Based LEDs
Dimensions in mm [inches]
